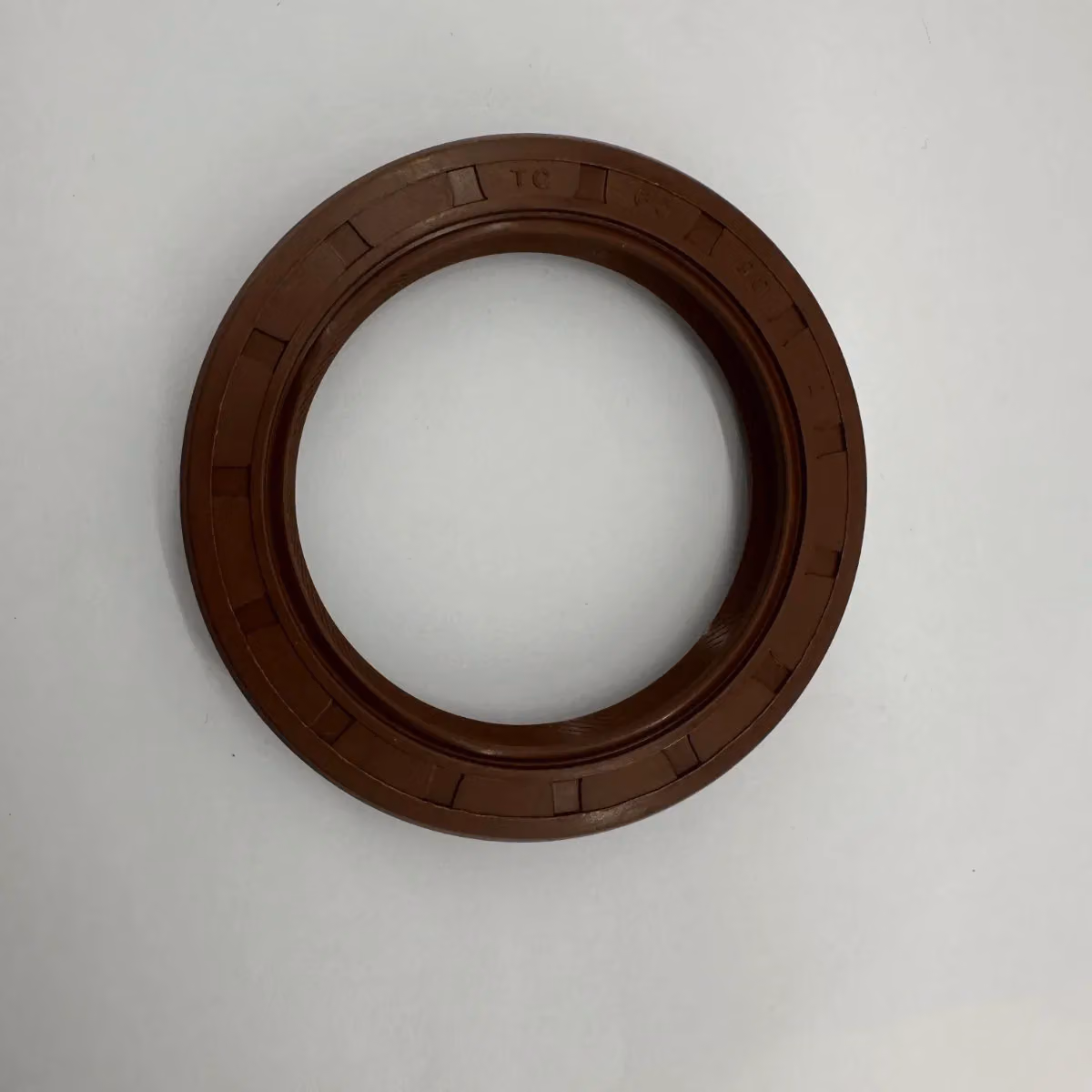

65x90x12mm TG Type Outer Rib Double‑lip FKM Oil Seal Brown Shaft Oil Seal
Model / SKU: TG‑65‑90‑12‑FKM
This aftermarket TG outer‑rib double‑lip oil seal measures 65x90x12mm, constructed from brown FKM fluororubber. Outer rib‑thread shell improves housing interference fit for aluminium housings, fit for gearboxes, reducers and high‑temperature rotary shaft equipment, for importers, wholesalers and repair networks, lead time 7‑15 working days.
Tags: 65x90x12mm, TG outer rib oil seal, FKM brown oil seal, TG‑type rotary shaft seal, high temp skeleton oil seal
Product photos
Key specs: Inner diameter mm: 65 | Outer diameter mm: 90 | Height mm: 12 | Material: FKM | Material: FKM | Structure: TG outer‑rib double‑lip | Standard: ISO 6194‑1, DIN 3760 | specifications: 65x90x12mm
- Inner diameter mm: 65
- Outer diameter mm: 90
- Height mm: 12
- Material: FKM
- Material: FKM
- Structure: TG outer‑rib double‑lip
- Standard: ISO 6194‑1, DIN 3760
- specifications: 65x90x12mm
- Material: FKM
- Structure: TG outer‑rib double‑lip
- Standard: ISO 6194‑1, DIN 3760
- Size: 65x90x12mm
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Material | FKM |
| Structure | TG outer‑rib double‑lip |
| Standard | ISO 6194‑1, DIN 3760 |
| Size | 65x90x12mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: Lead time 7–15 working days
Product details
This aftermarket replacement TG outer‑rib double‑lip oil seal is dimensioned 65×90×12 mm, brown FKM fluorocarbon rubber. TG structure features outer circumferential ribbed ribs, optimised for aluminium alloy housings with large thermal expansion, prevents seal spinning inside housing bore.
Built‑in garter spring and double‑lip construction, primary lip retains lubricant, secondary lip blocks dust, mud and water ingress. Widely applied for gearboxes, speed reducers, motor shafts, diesel engine auxiliary shafts, general‑purpose high‑temperature rotary shaft equipment. No universal public OE‑number for this standard metric TG dimension, used as aftermarket cross‑reference replacement part.
Targeted at industrial machinery importers, wholesalers and repair workshops. Send inquiry including size, material specs, quantity and destination for formal quotation, lead time 7‑15 working days.
Features & Benefits
‑ TG outer ribbed shell: increases static friction with housing bore, effectively prevents seal rotation under vibration and thermal cycling, excellent for aluminium housings
‑ Double‑lip profile: main lip for oil retention, auxiliary dust‑proof lip blocks external dirt, moisture and grit
‑ Integrated garter spring maintains stable lip contact pressure against minor shaft run‑out
‑ FKM fluororubber delivers outstanding high‑temperature and oil‑chemical resistance
‑ Vulcanized bonding between rubber and steel skeleton, robust structure for continuous rotary operation
‑ Aftermarket cross‑replacement for TC‑type seals under matching dimension conditions
‑ Custom logo, packing and material options available upon RFQ
‑ Suited for bulk stocking and machinery repair‑network replenishment
Material & Process
- Sealing lip：FKM fluorocarbon rubber; Reinforcing skeleton: cold‑rolled steel; Garter spring: carbon steel. Vulcanized bonded construction. Typical operating temperature range:‑20℃ ~ +200℃, max allowable working pressure ≤0.3 bar. NBR / HNBR material downgrade/upgrade available upon request subject to quotation.
Applications & Compatibility
Mainly used for industrial gearboxes, reducers, motors, diesel engine auxiliary shafts, general rotary‑shaft equipment with aluminium housing. Adapt to mineral oils, gear oils and partial chemical‑oil media. Not fit for strong polar‑solvent environment. Aftermarket replacement part. Verify shaft OD, housing bore ID and width dimension before placing order, dimension mismatch will trigger leakage risk.
Selection & Installation
Selection Tips
- Confirm actual dimension: shaft 65 mm, housing bore 90 mm, seal width 12 mm;
- TG outer‑rib structure is preferred for aluminium housing subject to temperature expansion; cast‑iron housing also compatible;
- Confirm rubber compound according to actual working temperature and medium.
Installation Steps
- Thoroughly clean shaft and housing bore, fully remove burrs, metal chips and old‑seal residual;
- Apply lubricant to sealing lip; strictly forbid dry‑installation;
- Install orientation: spring‑loaded lip faces towards lubricant‑oil cavity, outer rib side fits into housing bore;
- Adopt dedicated installation tool, apply uniform vertical press‑in force, forbid skew installation;
- Never strike rubber lip area directly with hammer;
- Press seal fully seated against housing shoulder;
- Manually rotate shaft after installation to verify smooth free‑movement.
Packaging & Delivery
Neutral poly‑bag inner, export carton outer. Carton packing quantity adjustable. Lead time 7‑15 working days. Sample and mixed‑size orders accepted. Payment terms & Incoterms confirmed in formal quotation. Documents available upon request: commercial invoice, packing list, certificate of origin.
Send inquiry with dimension, material, quantity and destination for firm lead‑time.
FAQ
I only have a competitor/OEM part number—can you cross-reference?
Yes. Send the reference PN, ID×OD×height in mm, and duty (media, temperature, pressure, speed). We match equivalents in the catalog; the Cross Reference page also searches by keyword. Final selection follows drawing and duty confirmation — do not order from a photo alone.
Do you support OEM/ODM, private packing and marking?
Yes — OEM/ODM from drawings or samples, plus agreed packing and marking. Share target-market compliance needs and annual volume; RFQ confirms process, tooling cost and cadence. VKEFOT is the export brand of the Xingtai factory, not a trading desk.
TC vs TB oil seal: which should I specify?
For a rotary shaft that needs a dust lip plus oil lip, start with TC (rubber-covered dual-lip is common); TB is typical when a semi-metal case needs a stiffer bore fit. Shaft diameter, housing, runout and dust still decide. Send ID×OD×height in mm and speed on the RFQ — not only a competitor photo.
NBR vs FKM oil seal for hot engine oil?
Continuous engine-oil duty near 120°C or fuel exposure should be reviewed as FKM; general mineral oil at moderate temperature and cost-sensitive repair jobs often stay NBR. Brown color is not proof of FKM. The quote names the grade and temperature limit — do not order by color.
Oil seal vs O-ring: when do I use which?
Use a metal-cased radial shaft (skeleton) oil seal for rotating shafts; use an O-ring for static glands or reciprocating grooves. An O-ring on a rotary shaft wears out quickly. VKEFOT makes both — state motion type (rotary/static/reciprocating) and ID×OD×section on the RFQ.
Cassette seal vs dual-lip TC for dusty construction equipment?
Ag gearboxes and construction travel shafts with mud and long service intervals should be reviewed as cassette/combined seals; many automotive hub repair jobs stay dual-lip TC. Cassette packs are thicker and need different bore and axial space. A job-site photo is not enough — send ID×OD×height.
Xingtai oil seal factory vs trading company — how do I tell?
VKEFOT is the export brand of Xingtai Hanchi Intelligent Technology Co., Ltd. Mixing, vulcanization and outgoing inspection run in Xingtai, then goods export to Europe, North America, the Middle East and Southeast Asia. A trading desk usually cannot change compound or cut tooling. For OEM drawings, ask who runs the process and QC — not only catalog price.
What is a skeleton / radial shaft oil seal?
A skeleton oil seal is a metal-cased radial shaft seal: the rubber lip rides the shaft and the case holds interference in the bore. Common styles include TC, TB and TA. Minimum spec is ID×OD×height in mm, compound and duty. VKEFOT catalogs automotive and industrial shaft seals; trust the product-page dimensions.
What do ID, OD and height mean on an oil seal RFQ?
ID is inside diameter (shaft), OD is outside diameter (bore), height is axial width, all in millimetres. Missing any one blocks a cross-reference. Example: 56×112×8/10 means 56 mm ID, 112 mm OD, 8/10 mm height. Put those three numbers and the compound on the RFQ.
Which oil seal for an automotive wheel hub or differential pinion?
Hub repair jobs often use dual-lip TC; differential pinion shafts often need a secondary lip or split height (e.g. 8/10 or 12/22 mm). Use measured or OEM dimensions — not a marketplace title. VKEFOT application pages cover drivetrains and hubs; send an OEM number or ID×OD×height on the RFQ.
How to select oil seals for ag gearbox and PTO shafts?
Ag gearboxes and PTO shafts see dust and shock — prefer a dust lip or cassette, with NBR or FKM matched to gear oil and temperature. Do not force a passenger-car hub seal onto a PTO shaft. Send shaft, bore, height and whether mud/water is present, then RFQ.
What matters for pump, valve and compressor shaft seals?
Match media (oil, water, gas) and temperature first, then lip style and compound; do not default to cheap NBR for high speed or dry running. Put shaft runout and eccentricity on the RFQ. VKEFOT application cases include pumps, valves and compressors — still use measured sizes.
Does a brown oil seal mean it is FKM?
No. Brown NBR is common; color is not proof of FKM. For heat or fuel duty, write temperature and media on the RFQ so the factory names the grade. Ordering by color is a frequent cause of early leak.
Can you quote an oil seal from a photo only?
Not as a firm quote. We need at least ID×OD×height in mm, ideally compound and speed. A photo can show lip count and case style; it does not replace dimensions. Incomplete RFQs get a request for those three numbers before price.
If a new oil seal leaks quickly, is it always a bad seal?
Not always. Rough shaft finish, runout, cocked installation or the wrong compound also leak early. Check size and media/temperature match before blaming the part, then inspect the journal. Note time-to-fail (e.g. 50 hours) on the RFQ so we diagnose — do not just buy a cheaper seal.
What is needed for private-label OEM packing of oil seals?
Private packing and marking need annual volume, target-market compliance and artwork; tooling cost and cadence are confirmed on the RFQ — not a one-line “please OEM”. VKEFOT runs OEM/ODM after drawings or samples are complete.
Who is VKEFOT and how does it relate to Xingtai Hanchi?
VKEFOT manufactures oil seals, O-rings and custom rubber seals in Xingtai and exports to Europe, North America, Middle East and Southeast Asia. The manufacturer is Xingtai Hanchi Intelligent Technology Co., Ltd. Use this wording on quotes and certificates — do not invent alternate spellings of the brand.
What is TG 65x90x12 outer‑rib oil seal used for?
TG 65×90×12 outer‑rib double‑lip FKM oil seal for rotary‑shaft sealing, specially optimised for aluminium housings with thermal expansion, widely used for gearboxes, reducers, high‑temp motor shafts and general industrial equipment.
What are specs for TG‑65‑90‑12‑FKM oil seal?
Dimension 65×90×12 mm, TG outer‑rib double‑lip structure, brown FKM fluororubber, typical working temperature ‑20℃~+200℃, max pressure ≤0.3bar, ISO 6194‑1 / DIN3760 standard.
What is difference between TG‑type and TC‑type oil seal?
TG comes with outer circumferential rib‑threads, improves anti‑spin performance inside housing bore, especially good for aluminium housing under vibration & temperature‑cycling; TC is smooth full‑rubber outer‑shell.
