58x70x7.5/7mm TB Type NBR Oil Seal for Motors & Pumps

58×70×7.5/7mm TB type exposed metal case oil seal, made of premium NBR nitrile rubber with built in carbon steel garter spring. Standard universal size rotary shaft seal with excellent oil resistance and wear resistance, widely used for industrial motors, water pumps, agricultural machinery rotating shafts and automotive transmission auxiliary shafts. Factory direct supply from China with stable stock, ideal for industrial parts distributors, repair workshops and equipment maintenance procurement.

Tags: 58x70mm rotary shaft seal, industrial motor oil seal, pump shaft oil seal, NBR industrial oil seal, agricultural machinery seal, automotive auxiliary shaft seal, small size oil seal, exposed metal case seal, aftermarket replacement oil seal

Product photos

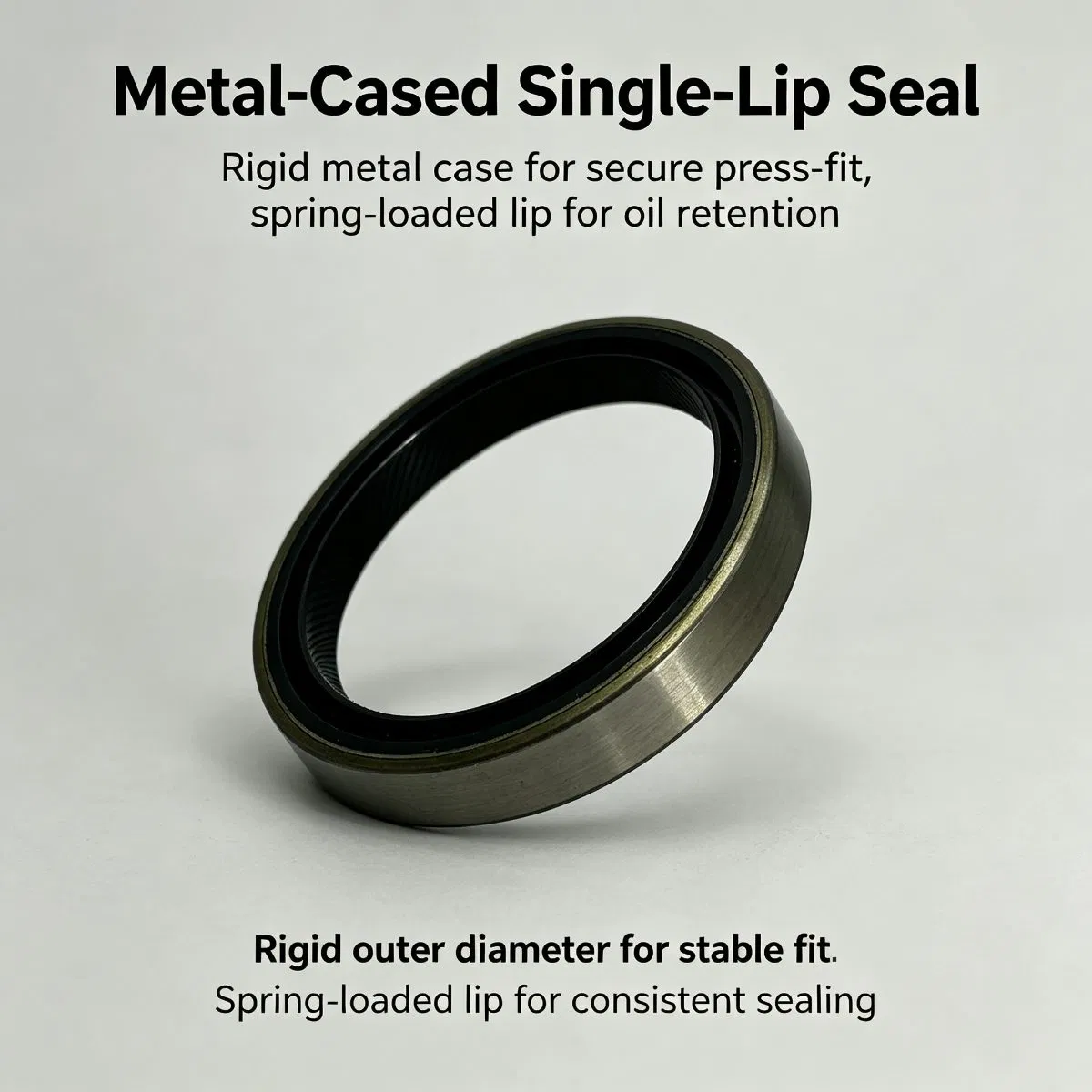

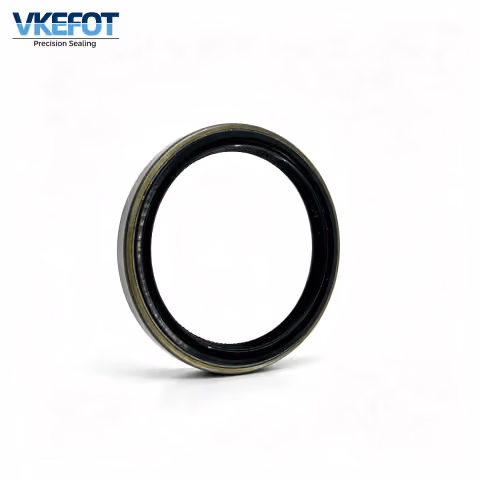

58x70x7.5/7mm TB Type NBR Oil Seal for Motors & Pumps — photo 2

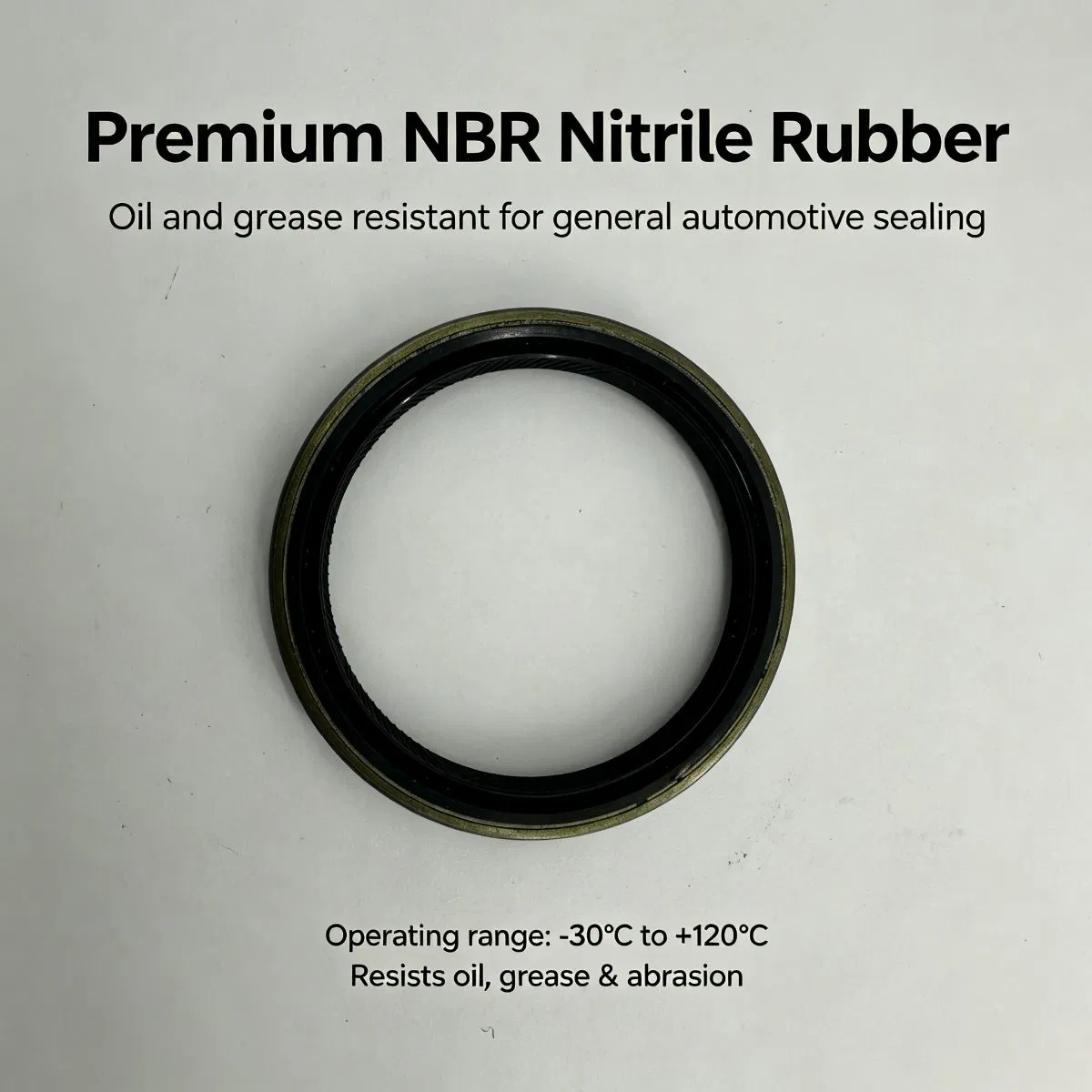

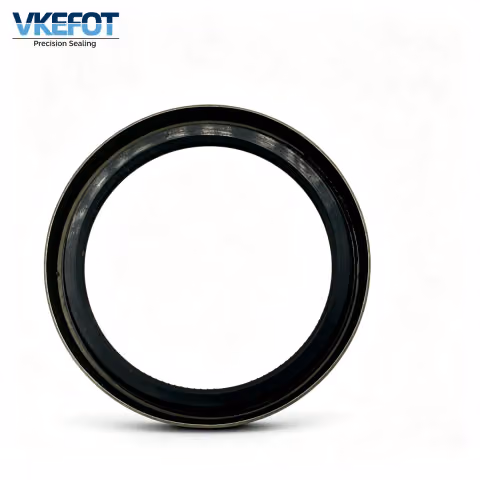

58x70x7.5/7mm TB Type NBR Oil Seal for Motors & Pumps — photo 3

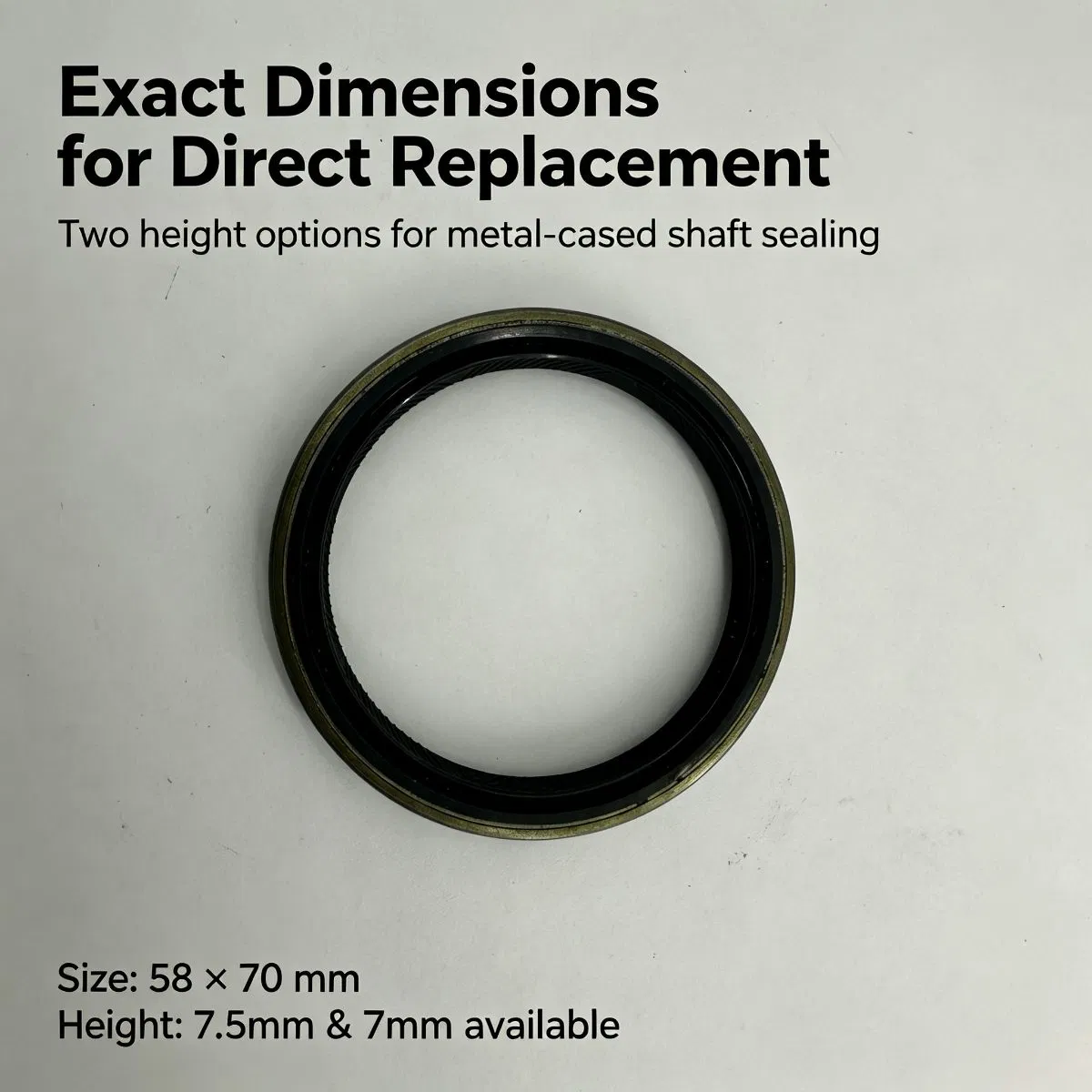

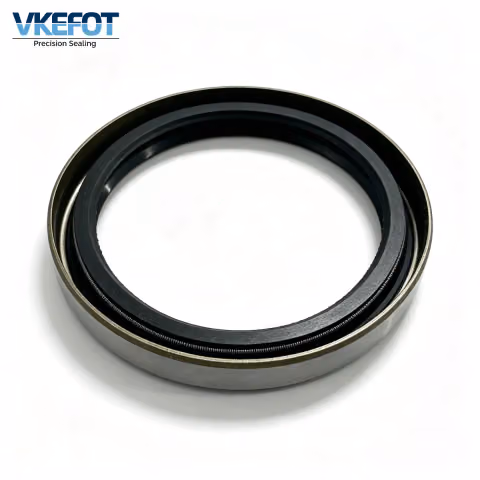

58x70x7.5/7mm TB Type NBR Oil Seal for Motors & Pumps — photo 4

Key specs: Inner diameter mm: 58 | Outer diameter mm: 70 | Height mm: 7.5 | Material: NBR | Spec & Model: ID 58mm × OD 70mm × Thickness 7.5/7mm | Spec & Model: NBR nitrile rubber sealing lip + Cold-rolled steel outer case + Carbon steel garter spring | Spec & Model: TB type single-lip exposed metal case seal | Spec & Model: Standard universal aftermarket replacement part

Inner diameter mm: 58
Outer diameter mm: 70
Height mm: 7.5
Material: NBR
Spec & Model: ID 58mm × OD 70mm × Thickness 7.5/7mm
Spec & Model: NBR nitrile rubber sealing lip + Cold-rolled steel outer case + Carbon steel garter spring
Spec & Model: TB type single-lip exposed metal case seal
Spec & Model: Standard universal aftermarket replacement part
Spec & Model: Industrial motor, pump, agricultural machinery & automotive auxiliary shaft sealing
Size: ID 58mm × OD 70mm × Thickness 7.5/7mm
Material: NBR nitrile rubber sealing lip + Cold-rolled steel outer case + Carbon steel garter spring
Structure: TB type single-lip exposed metal case seal

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

Spec	Value
Size	ID 58mm × OD 70mm × Thickness 7.5/7mm
Material	NBR nitrile rubber sealing lip + Cold-rolled steel outer case + Carbon steel garter spring
Structure	TB type single-lip exposed metal case seal
Type	Standard universal aftermarket replacement part
Application	Industrial motor, pump, agricultural machinery & automotive auxiliary shaft sealing

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This 58×70×7.5/7mm oil seal is a general purpose rotary shaft sealing solution for industrial and light automotive scenarios, mainly used for radial sealing of rotating shafts in equipment such as industrial motors, centrifugal pumps, reducers and agricultural machinery. It adopts TB type exposed metal case structure, which provides reliable press fit positioning in the housing bore and resists radial displacement under vibration conditions. The precision machined NBR sealing lip, matched with a carbon steel garter spring, maintains stable radial contact pressure on the shaft surface, effectively blocking lubricating oil leakage inside the equipment and preventing external dust, water mist and impurities from invading the bearing chamber. This size is a common general specification in the industrial field, interchangeable with oil seals of the same size from mainstream brands. It is suitable for both OEM supporting of small and medium sized equipment and aftermarket maintenance replacement. We maintain long term stable stock of conventional sizes to meet the needs of bulk procurement and urgent maintenance. Core value for buyers Universal industrial size, widely compatible with motors, pumps, reducers and other equipment Stable sealing performance under medium speed and medium load working conditions Mature production technology, stable batch quality, cost effective for bulk use Fast delivery from stock, supporting small batch trial and large batch replenishment

Material and process

Material ：Premium grade NBR (nitrile butadiene rubber) sealing lip, cold rolled steel outer case, carbon steel garter spring Structure ：TB type single lip exposed metal case rotary shaft oil seal Hardness ：70±5 Shore A Key performance ：Oil resistant, wear resistant, dust proof, anti aging Working temperature range: 30℃ +120℃ (standard NBR 70) Working speed ：≤12 m/s (medium speed condition) Manufacturing process Integrated vulcanization bonding between rubber lip and metal case Precision trimming of sealing lip edge for uniform contact pressure Dimensional inspection per production batch before shipment Quality control aligned with general industrial sealing standards Upgrade option ：FKM (fluoroelastomer) version available for higher temperature and chemical resistance requirements

Application and compatibility

Product Type ：General industrial rotary shaft oil seal Core dimensions ：ID 58mm × OD 70mm, thickness 7.5mm / 7mm Compatible fluids: Mechanical lubricating oil, bearing grease, hydraulic oil, gear oil Typical application scenarios: Industrial AC/DC motor output shaft sealing Centrifugal pump, water pump shaft sealing Gear reducer, gearbox auxiliary shaft sealing Agricultural machinery rotating shaft sealing Automotive steering system, transmission auxiliary shaft sealing General mechanical equipment bearing housing sealing Suitable for ：Industrial parts distributors, equipment maintenance service providers, agricultural machinery repair shops, auto parts distributors, small equipment OEM factories Buyer notice ：This is a standard universal size aftermarket replacement part. Please confirm shaft diameter, housing bore size and installation space before ordering. Dimension mismatch will cause lubricant leakage after installation.

Selection guide

Selection Guide 1. Confirm shaft diameter 58mm, housing bore 70mm, installation depth 7.5/7mm, and select TB type for exposed housing bore scenarios. 2. Standard NBR version is recommended for conventional mineral oil lubrication and working temperature 30℃ 120℃; select FKM upgrade for high temperature or strong chemical media. 3. For equipment with large vibration or heavy dust, it is recommended to select double lip structure products. Installation Steps Surface Preparation Thoroughly clean the installation housing bore and shaft surface, remove burrs, dirt, old seal residue and impurities. Pre lubrication Apply compatible lubricating oil or grease evenly on the sealing lip and shaft surface to avoid lip cutting during installation. Installation Press the seal into the housing bore evenly with a dedicated installation tool, keep it perpendicular to the shaft. Avoid hitting the seal directly with hard tools. Post installation Check Confirm the seal is properly seated in the groove without tilting, and the sealing lip is not twisted or damaged.

Packaging and delivery

Inner packaging ：Each piece individually packed in anti dust poly bag to protect the sealing lip. Outer packaging ：Standard export corrugated carton with moisture proof lining. Custom packaging with private label available. Packing quantity ：Adjustable per bulk order requirements. Lead time Stock items ：Ship within 7 15 working days after payment Custom private label / packaging orders: 25 40 working days Large volume bulk orders: Lead time to be confirmed based on quantity Custom services ：Private label printing, custom packaging design, consolidated shipping for mixed SKUs Shipping terms ：EXW, FOB, CIF available Export documents ：Commercial invoice, packing list, certificate of origin available on request

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is 58x70x7.5mm oil seal used for?

It is widely used for rotary shaft sealing in industrial motors, water pumps, gear reducers, agricultural machinery and automotive auxiliary shafts, retaining lubricant and blocking dust.

What type of seal is this 58x70mm rotary shaft seal?

It is a TB type exposed metal case oil seal, with steel outer case for press fit mounting and NBR sealing lip with garter spring for radial sealing.

What material is this industrial rotary shaft seal made of?

Made of premium grade NBR nitrile rubber sealing lip with cold rolled steel outer case and carbon steel garter spring, working temperature 30℃ to +120℃.

Is this 58x70 seal a standard industrial size?

Yes, it is a standard universal metric size, widely compatible with motors, pumps and reducers from most manufacturers.

What is the maximum working speed of this oil seal?

The recommended maximum working speed is ≤12 m/s under medium load and normal lubrication conditions.

What is your typical MOQ for this oil seal?

Depends on spec; typically 100 5,000 pcs. Sample orders are supported for quality evaluation before bulk purchase.

What is the lead time for stock orders?

Stock items are shipped within 7 15 working days after payment. Custom orders take 25 40 working days.

What trade terms do you offer?

We offer EXW, FOB and CIF trade terms to support cross border procurement.

Do you have a high temperature version?

Yes, we also offer FKM fluoroelastomer version for higher temperature and chemically aggressive working conditions.

Can I mix different seal sizes in one order?

Yes, mixed sizes and types are supported in one order, with consolidated shipping to reduce logistics cost.
