VKEFOT 23.5x47.3x8 mm NBR Internal Rubber Oil Seal, OEM ET14566 for John Deere
Model / SKU: VKEFOT-ET14566-23.5-47.3-8
VKEFOT 23.5x47.3x8 mm NBR internal rubber oil seal with OEM ET14566, compatible with John Deere equipment, factory direct from Xingtai, China. It features oil and wear-resistant performance for automotive and agricultural rotary shaft sealing. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT ET14566 oil seal, 23.5x47.3x8 oil seal, NBR internal rubber oil seal, John Deere replacement oil seal, agricultural machinery shaft seal

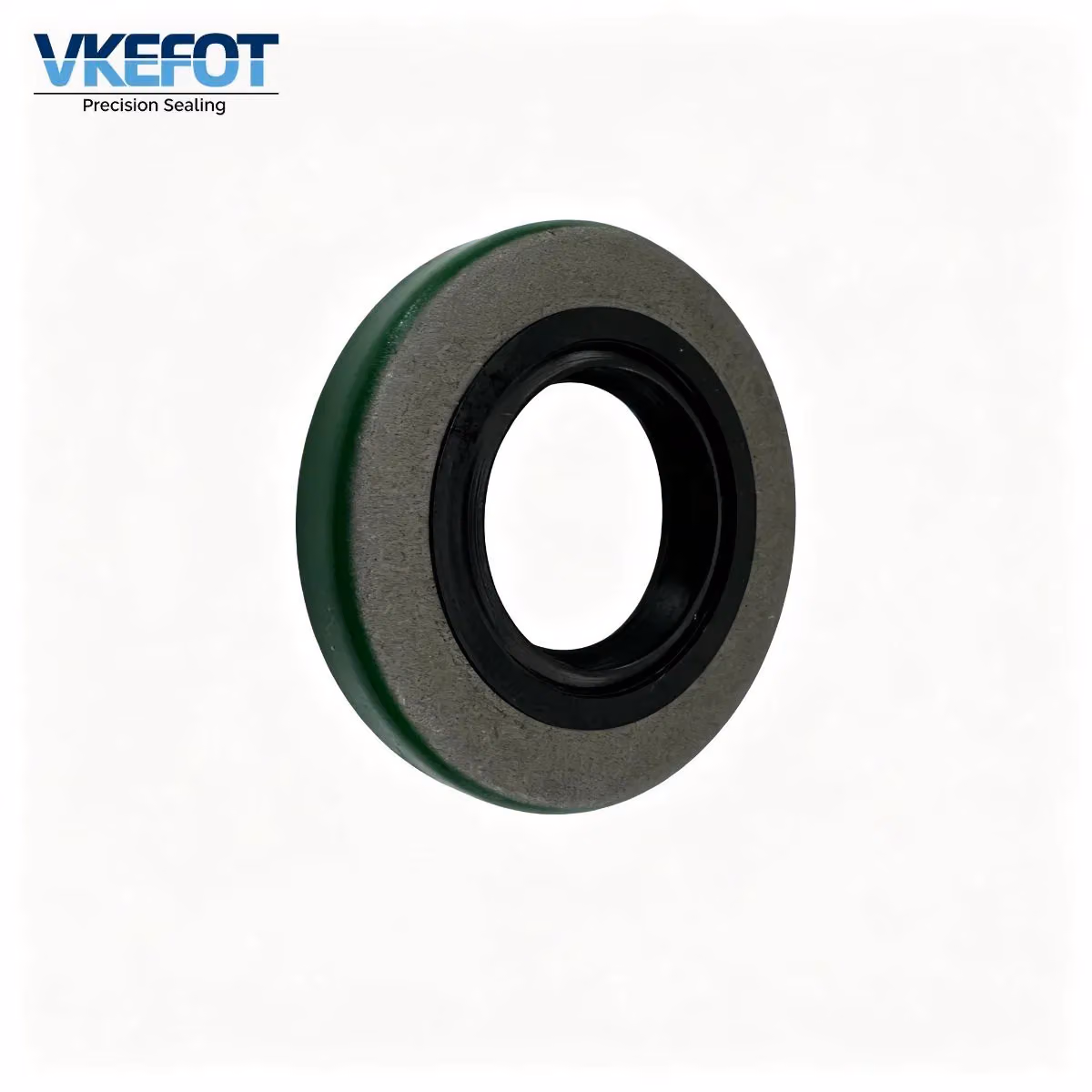

Product photos
Key specs: Inner diameter mm: 23.5 | Outer diameter mm: 47.3 | Height mm: 8 | Material: NBR | Size: 23.5×47.3×8 mm | Type: Internal Rubber Oil Seal | OEM: ET14566 | Fit: John Deere
- Inner diameter mm: 23.5
- Outer diameter mm: 47.3
- Height mm: 8
- Material: NBR
- Size: 23.5×47.3×8 mm
- Type: Internal Rubber Oil Seal
- OEM: ET14566
- Fit: John Deere
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 23.5×47.3×8 mm |
| Type | Internal Rubber Oil Seal |
| Material | NBR |
| OEM | ET14566 |
| Fit | John Deere |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT 23.5x47.3x8 mm internal rubber oil seal made of NBR material, OEM number ET14566, manufactured in Xingtai, China. This seal is designed as aftermarket replacement for John Deere machinery.
This internal rubber oil seal delivers stable sealing performance. It keeps lubricant inside the housing while preventing dust, dirt and contaminants from entering the shaft assembly. NBR material provides reliable oil resistance and wear resistance under normal working conditions.
Key Features
- Internal rubber structure for rotary shaft sealing
- NBR material offers good oil resistance and wear resistance
- Matches OEM ET14566 for John Deere equipment replacement
- Robust construction for agricultural and automotive applications
Material & Working Condition
Base material is NBR. Confirm compatibility with your lubricant and operating temperature in your RFQ.
Typical Applications
Aftermarket replacement seal for John Deere agricultural and related automotive equipment. This is an aftermarket replacement seal. Verify shaft diameter, housing bore dimension and OEM part number before purchase.
Installation Guide
- Clean shaft and housing thoroughly, remove old seal residue, burrs and debris.
- Lightly lubricate the sealing lip with compatible lubricant before installation.
- Use matching installation sleeve, apply even perpendicular force only on the outer shell, avoid hitting the rubber lip.
- Keep the seal level during pressing; scratches on the sealing lip will lead to early leakage.
- After installation, manually rotate the shaft to check smooth movement before equipment startup.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT ET14566 oil seal used for?
This 23.5x47.3x8 mm NBR internal rubber oil seal is an aftermarket replacement part for John Deere agricultural and automotive equipment to seal rotary shafts.
What material is ET14566 oil seal?
This oil seal is made of NBR rubber. Check compatibility with your lubricant and operating temperature before ordering.
How to install this internal rubber oil seal correctly?
Clean shaft and housing, lubricate sealing lip, use installation sleeve, apply even force only on outer shell, avoid tilting or striking rubber lip. Rotate shaft manually after assembly.
What is MOQ and lead time for VKEFOT ET14566 oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, quantity, destination country and working medium for accurate quotation.
