58x70x7.5/7mm TB Type Oil Seal | Metal Case NBR for Auto & Industry

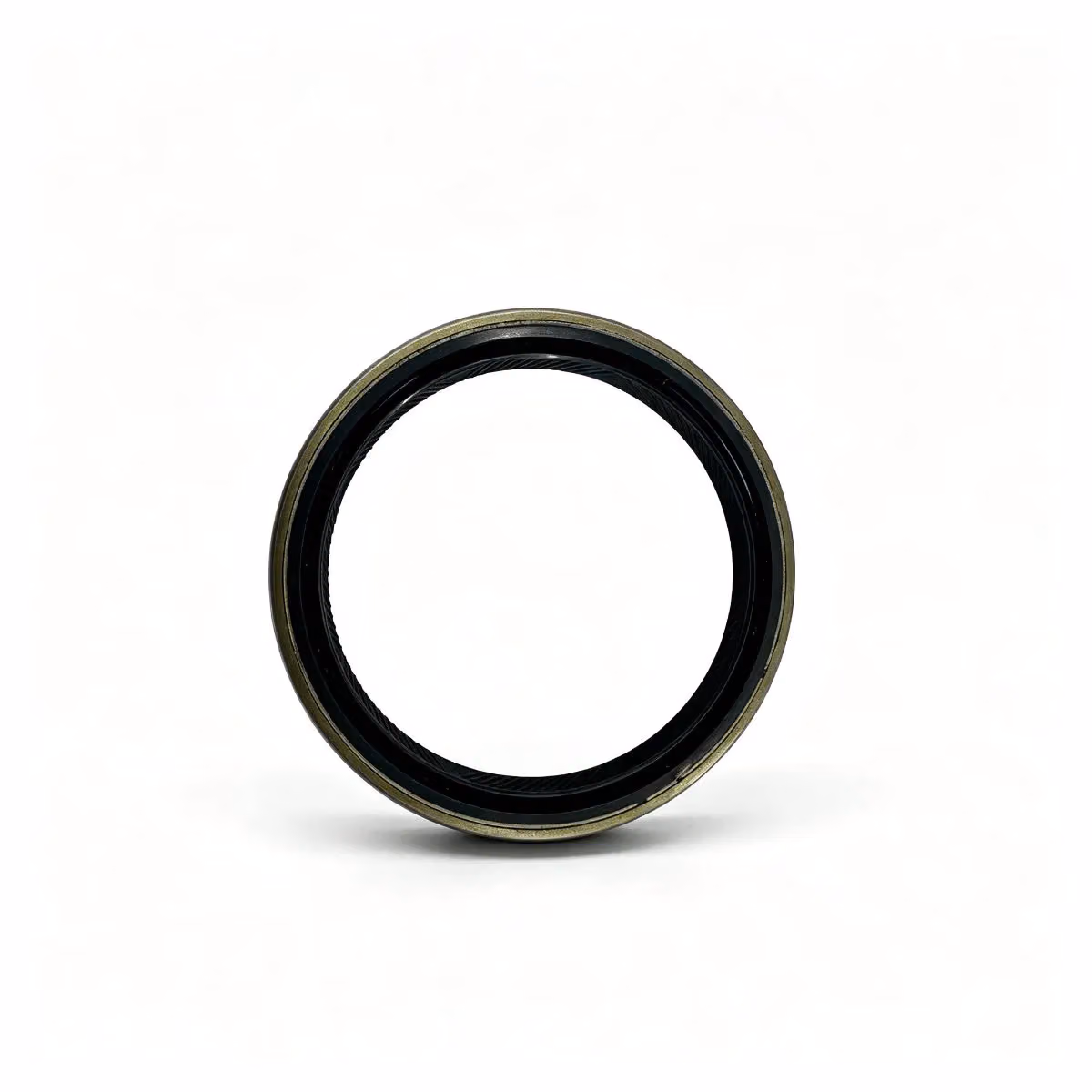

58x70x7.5/7mm TB Type Oil Seal — main photo

58×70×7.5/7mm TB type oil seal with exposed metal outer case and premium NBR sealing lip, built in carbon steel garter spring. High quality universal aftermarket rotary shaft seal with good oil resistance and wear resistance, widely used for automotive, agricultural machinery and industrial equipment rotating shaft sealing. Factory direct supply with stable stock, ideal for auto parts distributors, repair workshops and industrial parts procurement.

Tags: TB type oil seal, 58x70mm shaft seal, metal case oil seal, NBR rotary seal, small size oil seal, aftermarket auto seal, industrial shaft seal

Product photos

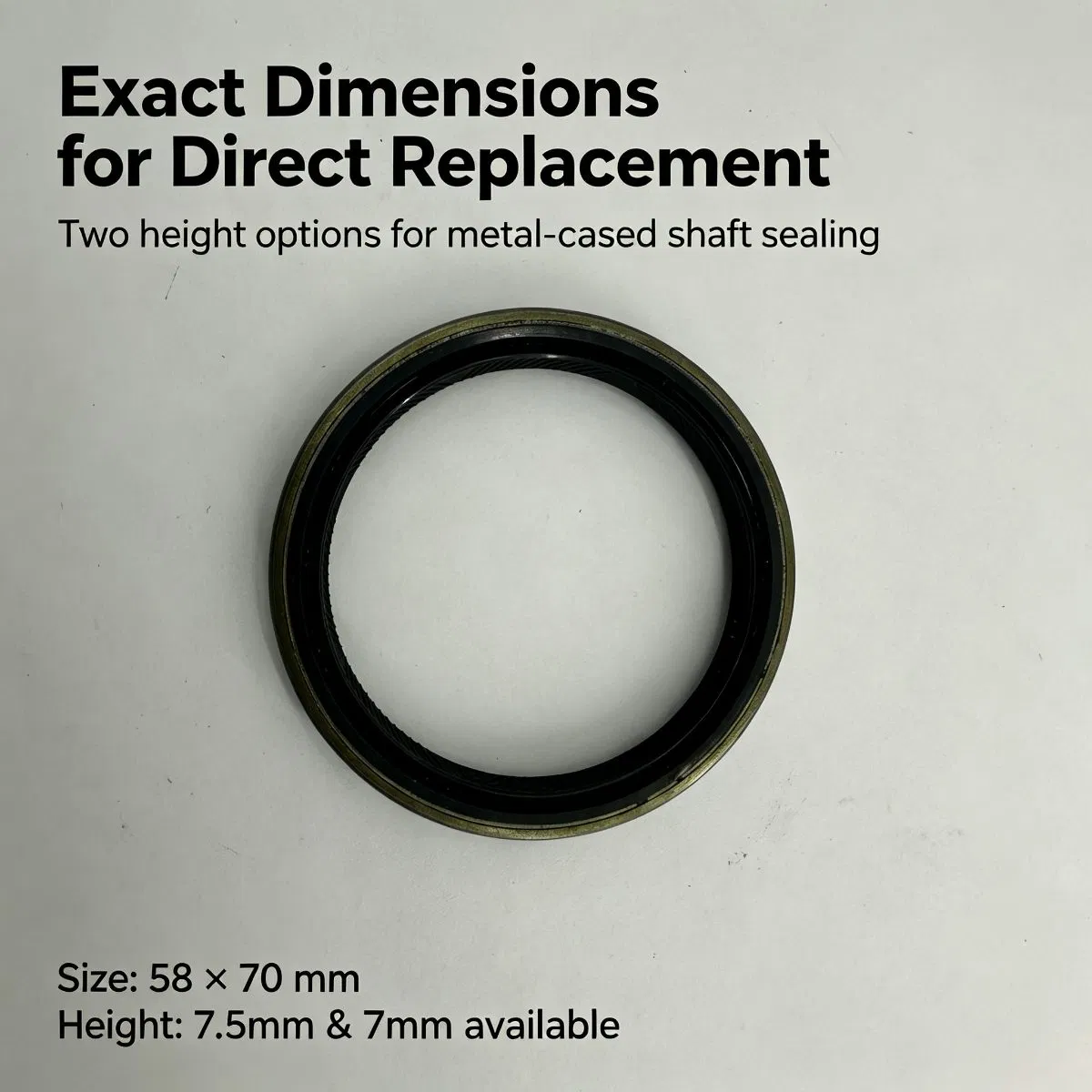

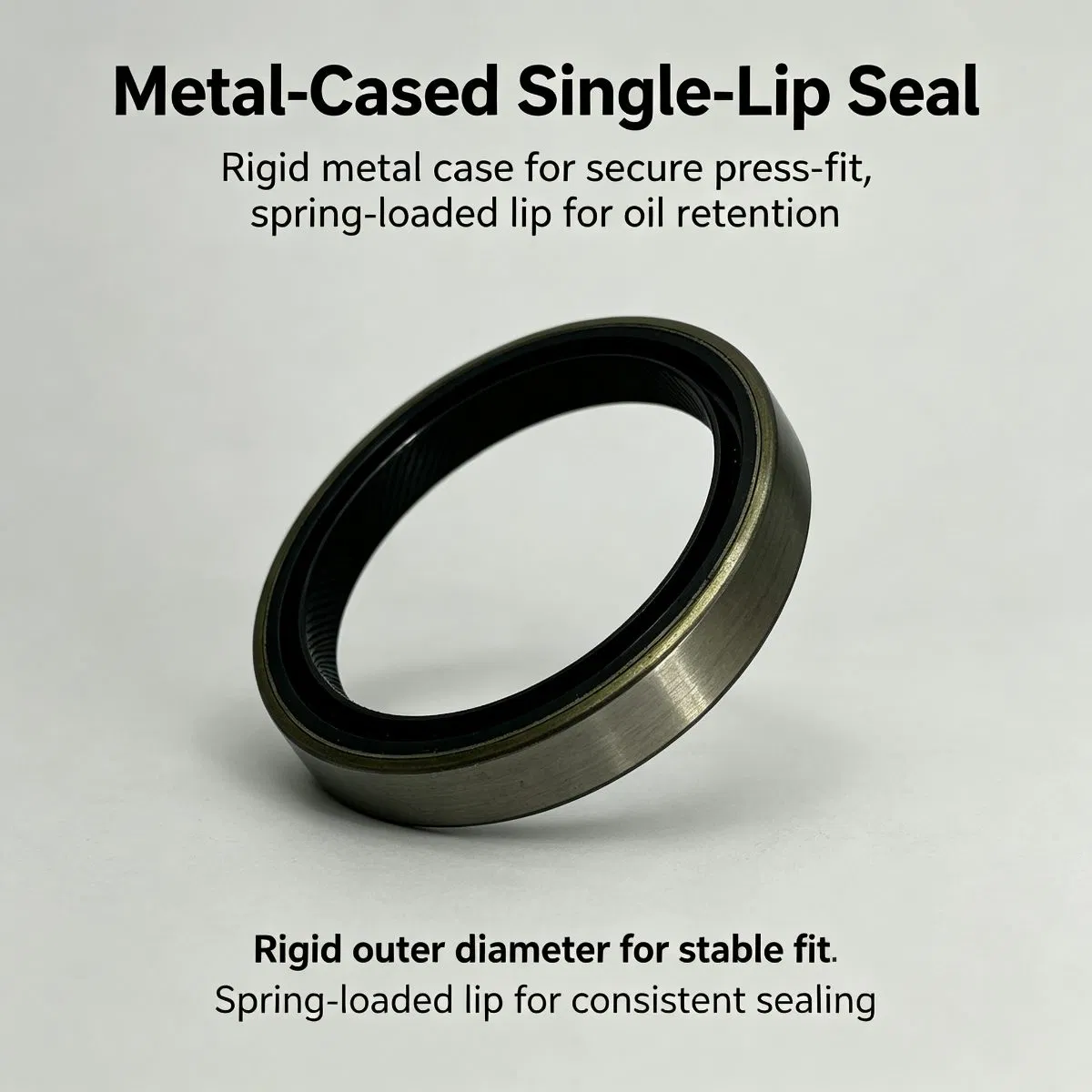

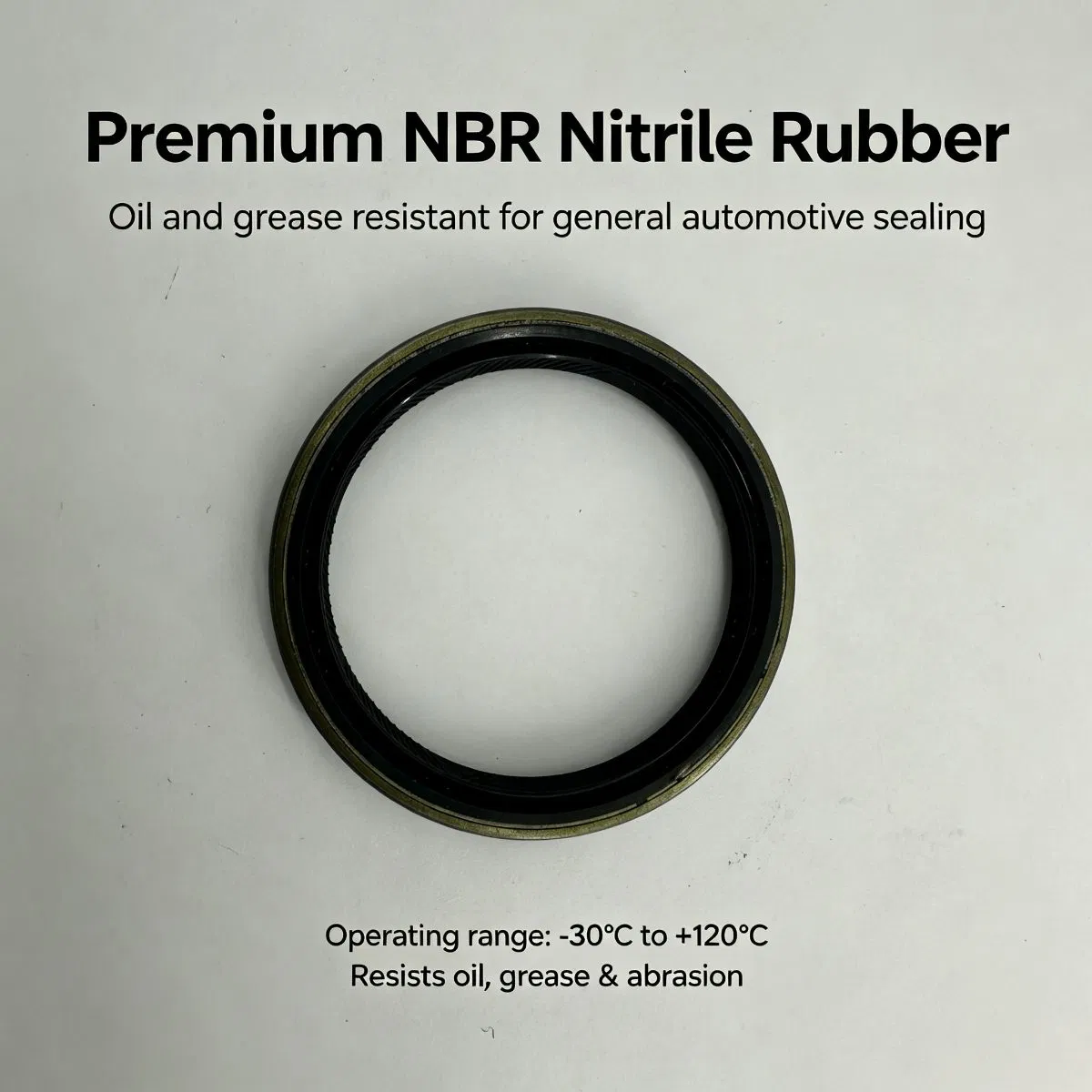

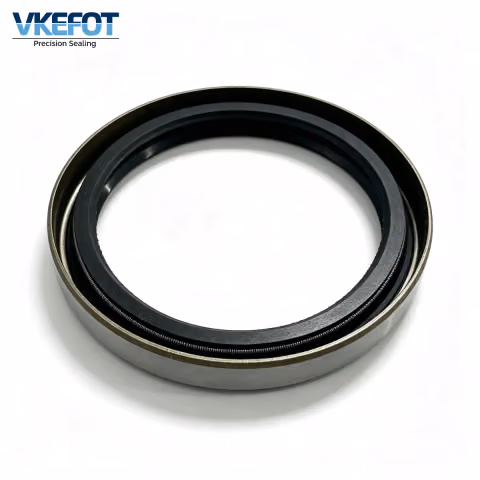

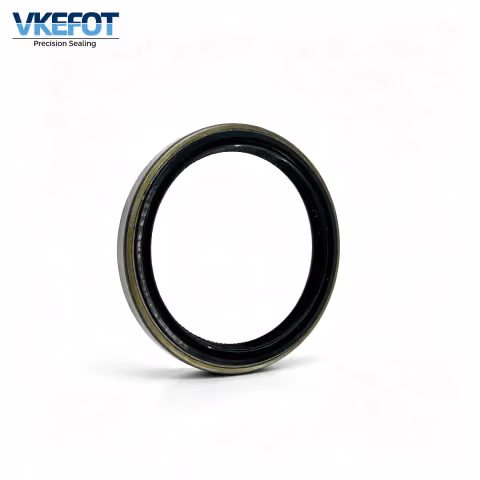

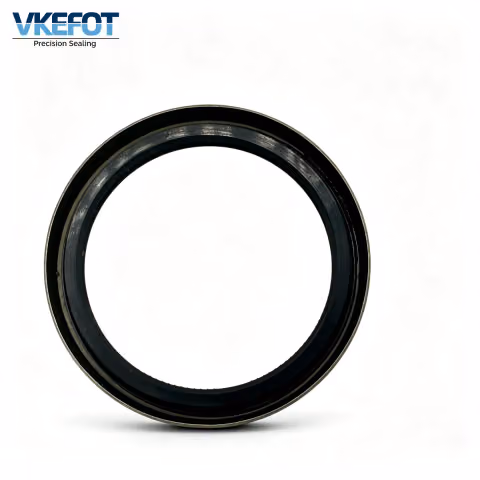

58x70x7.5/7mm TB Type Oil Seal — photo 2 58x70x7.5/7mm TB Type Oil Seal — photo 3 58x70x7.5/7mm TB Type Oil Seal — photo 4

Key specs: Inner diameter mm: 58 | Outer diameter mm: 70 | Height mm: 7.5 | Material: NBR | Spec & Model: ID 58mm × OD 70mm × Thickness 7.5/7mm | Spec & Model: NBR sealing lip + Cold-rolled steel outer case + Carbon steel garter spring | Spec & Model: TB type single-lip metal-cased seal | Spec & Model: Universal aftermarket replacement part

  • Inner diameter mm: 58
  • Outer diameter mm: 70
  • Height mm: 7.5
  • Material: NBR
  • Spec & Model: ID 58mm × OD 70mm × Thickness 7.5/7mm
  • Spec & Model: NBR sealing lip + Cold-rolled steel outer case + Carbon steel garter spring
  • Spec & Model: TB type single-lip metal-cased seal
  • Spec & Model: Universal aftermarket replacement part
  • Spec & Model: ISO/TS 16949 compliant
  • Spec & Model: Automotive, agricultural & industrial rotating shaft sealing
  • Size: ID 58mm × OD 70mm × Thickness 7.5/7mm
  • Material: NBR sealing lip + Cold-rolled steel outer case + Carbon steel garter spring

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
SizeID 58mm × OD 70mm × Thickness 7.5/7mm
MaterialNBR sealing lip + Cold-rolled steel outer case + Carbon steel garter spring
StructureTB type single-lip metal-cased seal
TypeUniversal aftermarket replacement part
StandardISO/TS 16949 compliant
ApplicationAutomotive, agricultural & industrial rotating shaft sealing

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This 58×70×7.5/7mm TB type oil seal is a universal metal cased rotary shaft sealing solution, widely applied in automotive auxiliary shafts, agricultural machinery, industrial motors and general hydraulic equipment. It features an exposed cold rolled steel outer case for rigid mounting and stable positioning in the housing bore, paired with a precision machined NBR sealing lip and an integrated carbon steel garter spring. The spring maintains consistent radial preload on the shaft surface to ensure reliable sealing performance under continuous rotation and vibration. It effectively retains lubricating oil and grease inside the housing, and blocks external dust and impurities from invading internal components. Manufactured under ISO/TS 16949 quality management system with strict dimensional tolerance control, it is a direct replacement for standard industry size seals. We maintain stable bulk stock to support fast delivery and volume procurement for global aftermarket and industrial channels. Core value for buyers Standard industry interchange dimensions, direct drop in replacement Rigid metal case for secure press fit installation Cost effective factory direct pricing for bulk sourcing Stable quality consistency for repair and maintenance

Material and process

Material ：Premium grade NBR (nitrile butadiene rubber) sealing lip, cold rolled steel outer case, carbon steel garter spring Structure ：TB type single lip metal cased rotary shaft oil seal Hardness ：70±5 Shore A Key performance ：Oil resistant, wear resistant, dust proof, anti aging Working temperature range: 30℃ +120℃ (NBR version) Manufacturing process Integrated vulcanization bonding between rubber lip and metal case Precision grinding of sealing lip edge for uniform contact pressure Dimensional inspection per production batch before shipment Quality control aligned with general sealing part standards Upgrade option ：FKM (fluoroelastomer) version available for higher temperature and chemical resistance requirements

Application and compatibility

Product Type ：Universal aftermarket TB type metal cased oil seal Core dimensions ：ID 58mm × OD 70mm, thickness 7.5mm / 7mm Compatible fluids: Lubricating oil, bearing grease, general hydraulic oil Fit applications Automotive transmission auxiliary shaft sealing Agricultural machinery rotating shaft sealing Industrial motor and pump shaft sealing General mechanical equipment bearing housing sealing Suitable for ：Auto parts distributors, independent repair workshops, agricultural parts suppliers, industrial parts traders Buyer notice ：This is a universal aftermarket replacement part. Please confirm shaft diameter, housing bore size and seal thickness before ordering. Dimension mismatch will cause lubricant leakage after installation.

Selection guide

Selection Guide 1. Confirm shaft ID 58mm, housing OD 70mm, required thickness 7.5/7mm and TB metal case structure. 2. Standard NBR version for general working conditions ( 30℃ 120℃); select FKM upgrade for high temperature and chemically aggressive environments. 3. For volume procurement projects, contact us for exclusive bulk pricing. Installation Steps Surface Preparation Thoroughly clean the housing bore and shaft surface, remove old seal residue, dirt, rust and burrs. Pre lubrication Apply matching lubricating oil or grease evenly on the sealing lip and shaft mating surface. Dry installation is strictly prohibited. Orientation Confirmation The sealing lip faces the lubricant cavity side; the metal case open end faces outward. Press fit Installation Use a dedicated press tool to press the seal in evenly and vertically. Never strike the seal directly to avoid deformation and lip damage. Post installation Check Ensure the seal sits fully flush inside the housing bore without tilt. Inspect the sealing lip for nicks and scratches.

Packaging and delivery

Inner packaging ：Each piece individually packed in anti dust poly bag to protect the sealing lip. Outer packaging ：Standard export corrugated carton with shock proof padding. Custom packaging with private label available. Packing quantity ：Adjustable per bulk order requirements. MOQ ：No minimum order for stock items; sample orders supported for quality evaluation. Lead time Stock items ：Ship within 2 5 working days after payment Custom private label / packaging orders: 25 40 working days Large volume bulk orders: Lead time to be confirmed based on quantity Custom services ：Private label printing, custom packaging design, consolidated shipping for mixed SKUs Shipping terms ：EXW, FOB, CIF available Export documents ：Commercial invoice, packing list, certificate of origin available on request

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is 58x70x7.5mm TB oil seal used for?

It is widely used for automotive auxiliary shafts, agricultural machinery, industrial motors and general rotating shaft sealing, retaining lubricant and blocking dust.

What does TB type oil seal mean?

TB type means the seal has an exposed metal outer case for rigid mounting, with a rubber sealing lip and garter spring inside.

What material is this 58mm shaft seal made of?

Made of premium NBR nitrile rubber sealing lip with cold rolled steel outer case and carbon steel garter spring, working temperature 30℃ to +120℃.

Is this 58x70 seal a standard size?

Yes, it is a standard industry size seal, direct drop in replacement for same size rotary shaft applications.

Is this TB type oil seal in stock?

Yes, we keep stable stock of this standard size. Stock orders can be shipped within 2 5 working days after payment.

What is your MOQ for bulk orders?

No minimum order quantity for stock items. Sample orders are supported for quality evaluation before bulk purchase.

What trade terms do you offer?

We offer EXW, FOB and CIF trade terms to support cross border procurement.

Can you provide private label service?

Yes, we provide private label printing and custom packaging services. MOQ for custom orders is 1000 pieces, lead time 25 40 working days.

Do you have a high temperature version?

Yes, we offer FKM fluoroelastomer upgrade version for higher temperature and chemically aggressive working conditions.

Can I mix different seal sizes in one order?

Yes, mixed wholesale of multiple sizes and types is supported, with consolidated shipping to reduce logistics cost.
