72x89.5x6.5/16mm TC Front Hub Oil Seal OEM XW0126E 90316-T0002

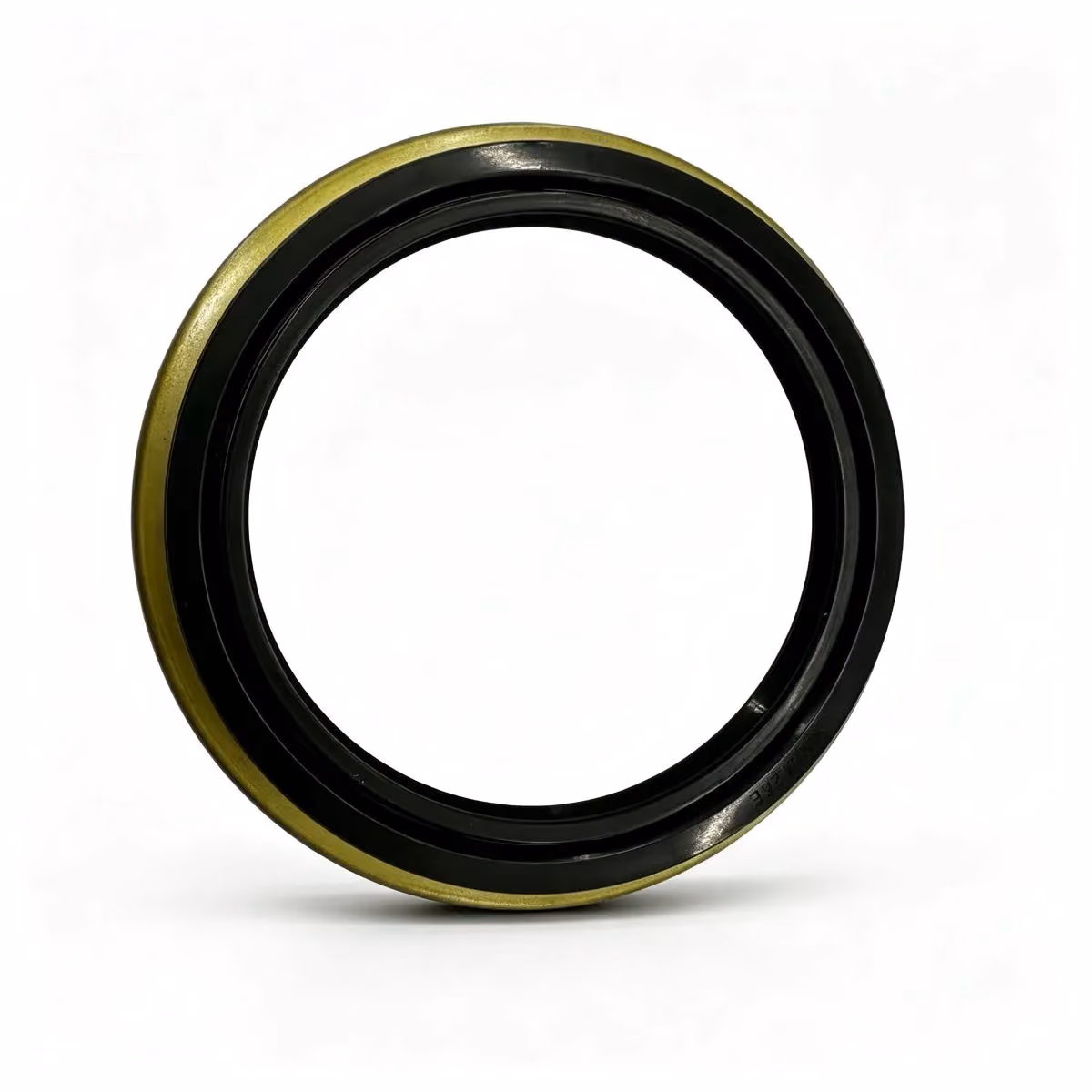

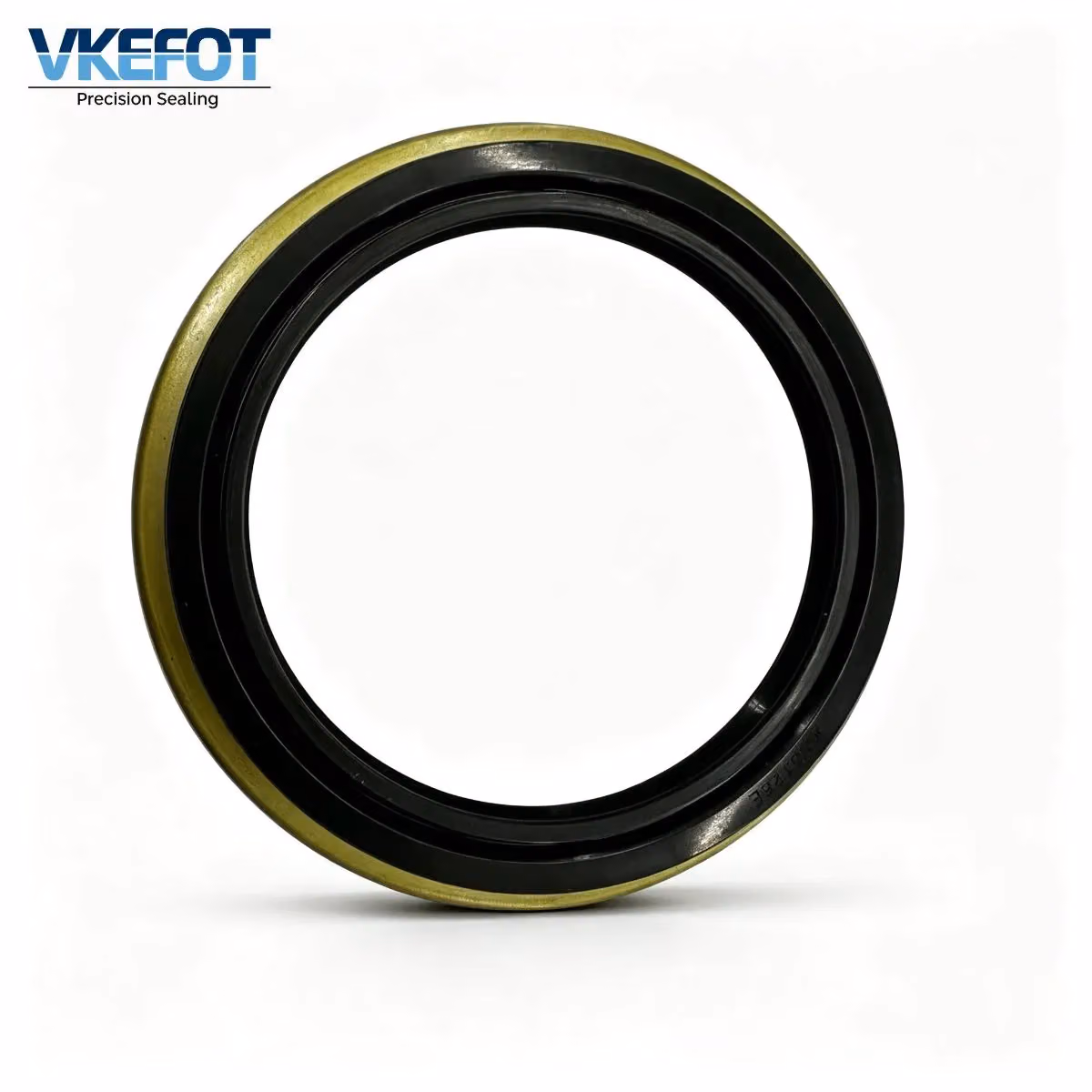

72x89.5x6.5/16 mm TC‑Type Front Wheel Hub Oil Seal, OE XW0126E — main photo

Aftermarket TC‑type front wheel hub oil seal size 72x89.5x6.5/16 mm, OE reference XW0126E, 90316‑T0002, 90316‑72001. NBR double‑lip with garter spring, painted metal shell. Fits Toyota Hilux, Fortuner, Land Cruiser front axle hub, prevents grease leakage and blocks mud, dust and splash‑water. Stock and bulk export available.

Tags: 72x89.5x6.5/16 oil seal, 90316‑T0002 hub seal, XW0126E oil seal, Toyota front wheel hub seal, automotive axle sealing parts

Product photos

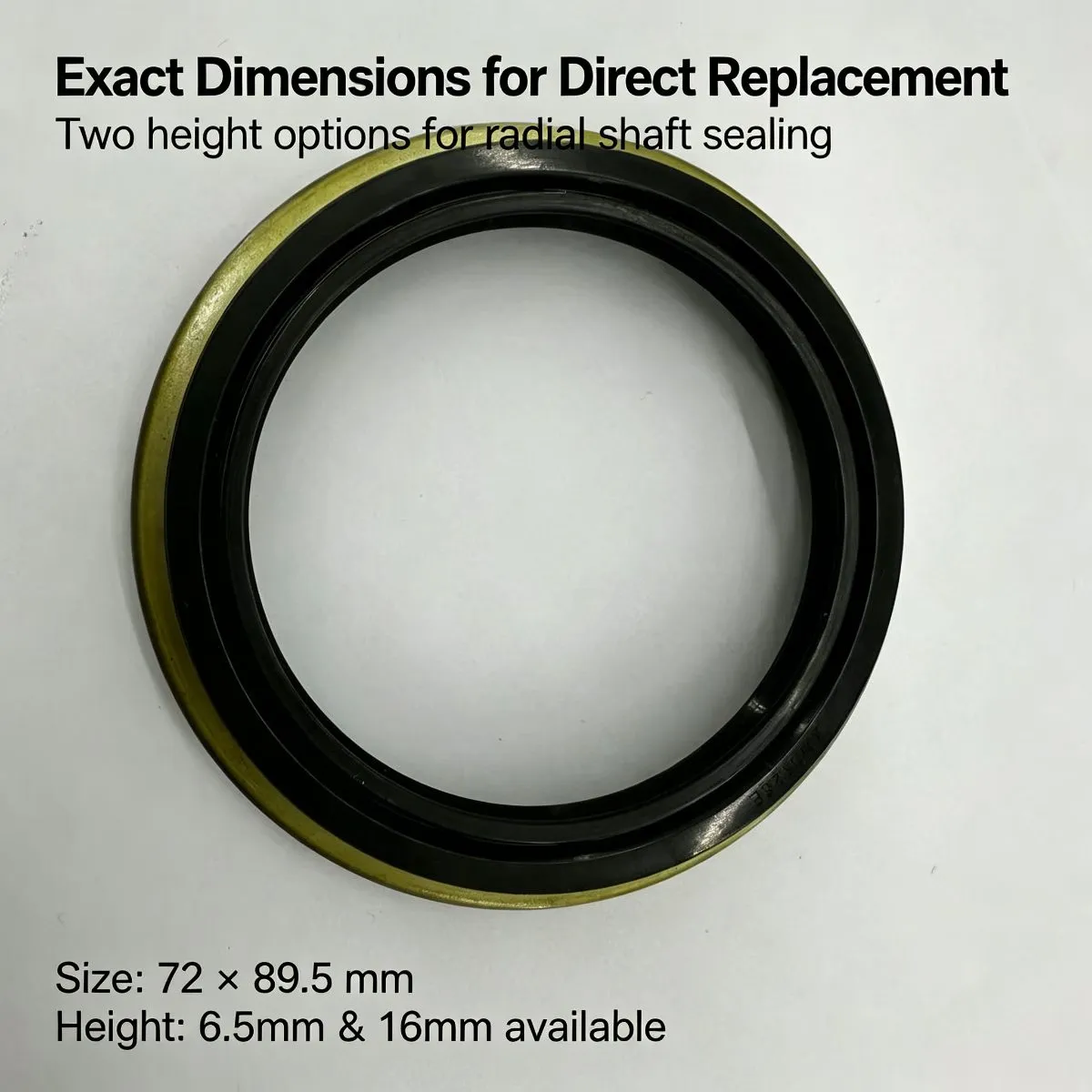

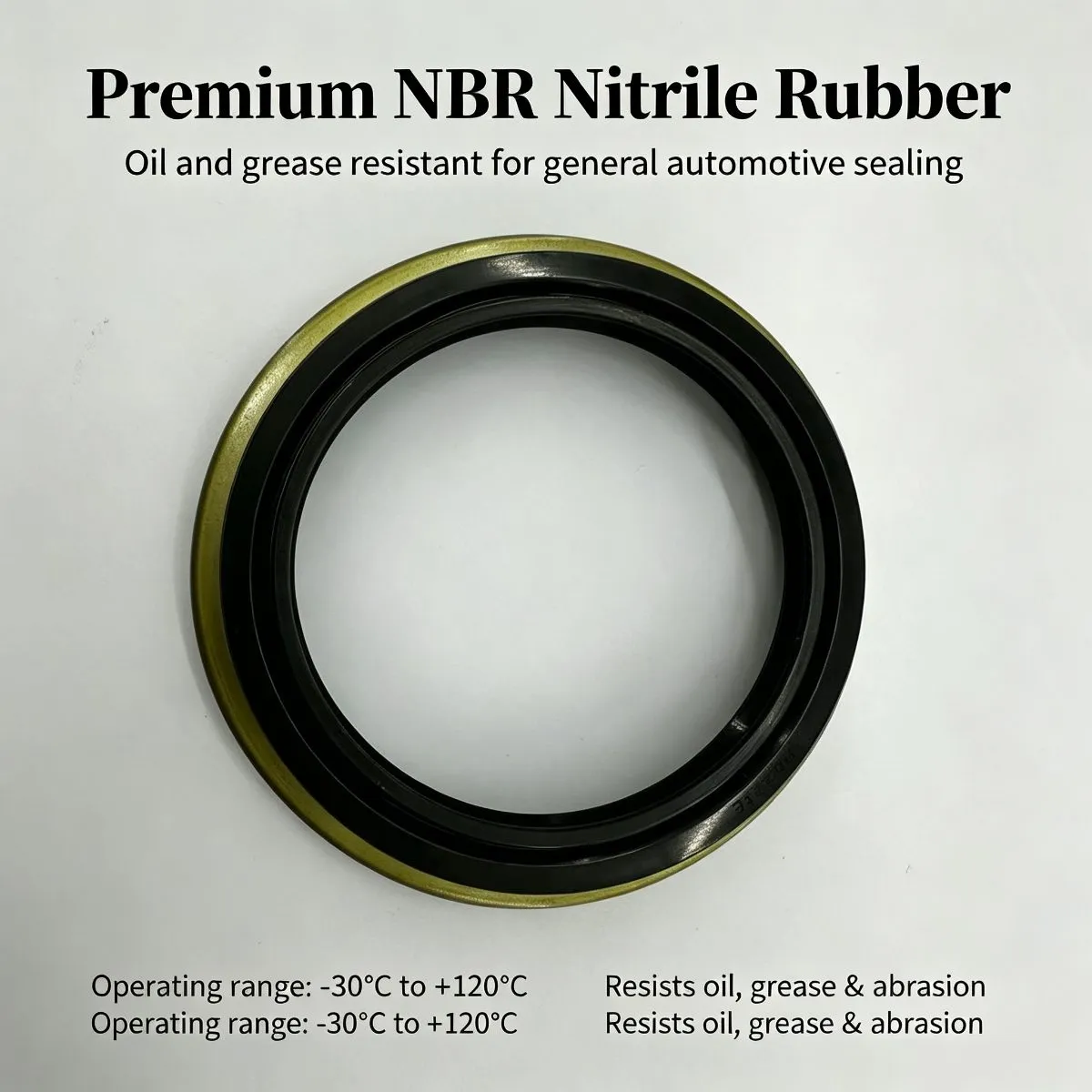

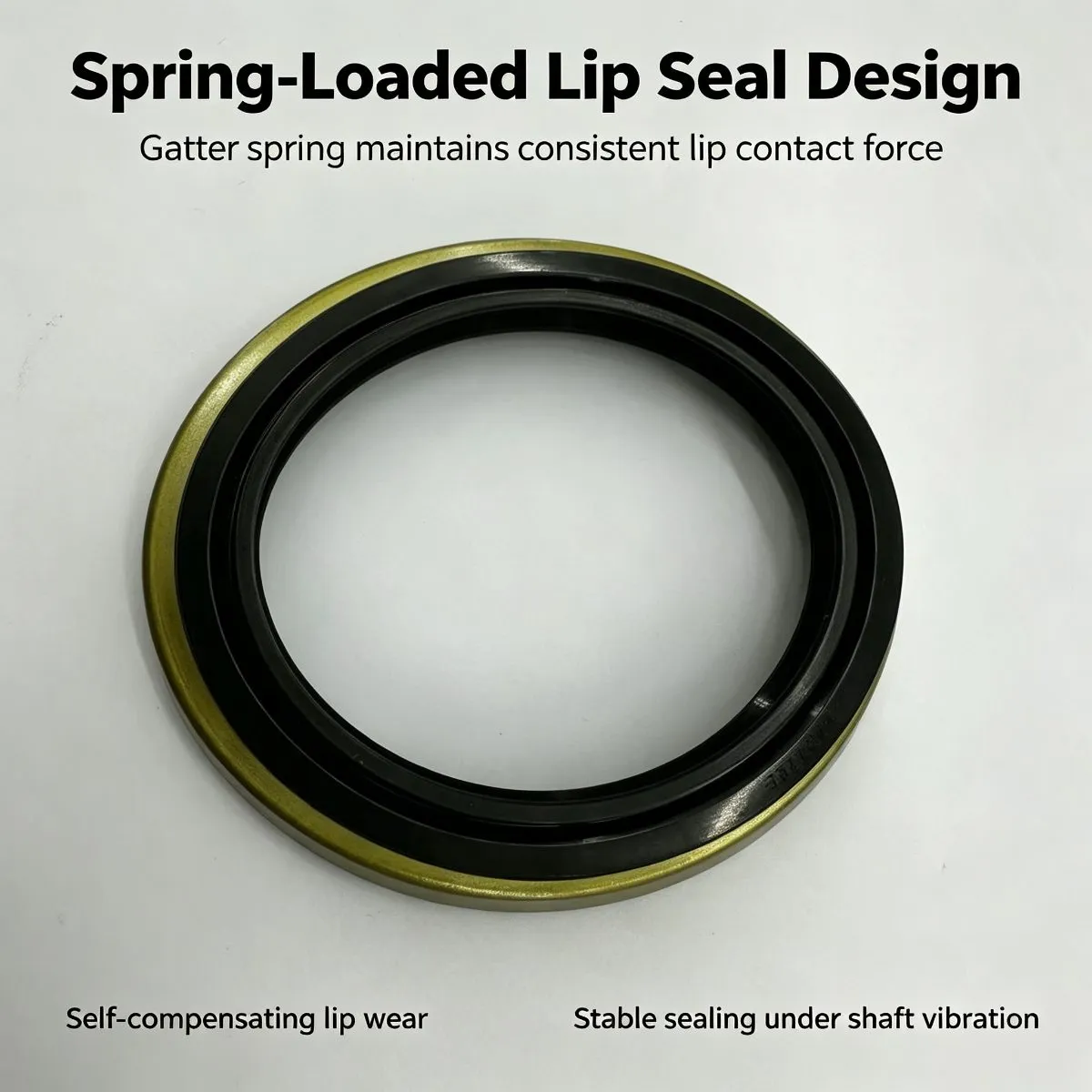

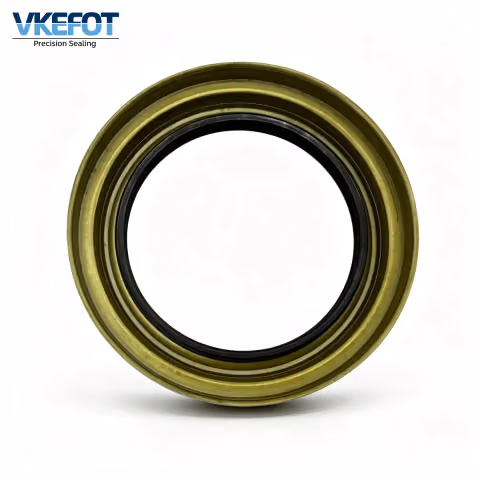

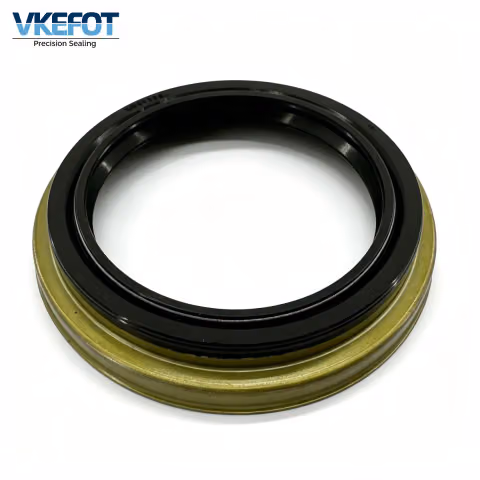

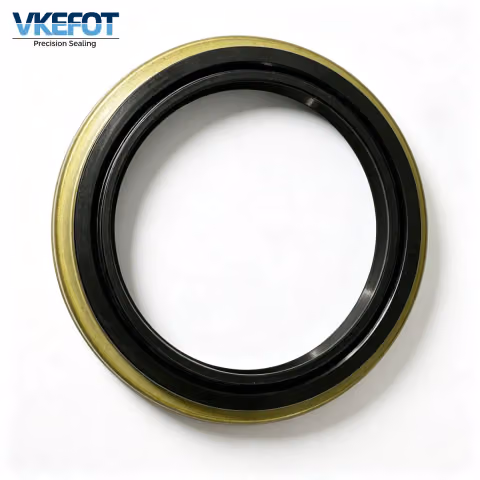

72x89.5x6.5/16 mm TC‑Type Front Wheel Hub Oil Seal, OE XW0126E — photo 2 72x89.5x6.5/16 mm TC‑Type Front Wheel Hub Oil Seal, OE XW0126E — photo 3 72x89.5x6.5/16 mm TC‑Type Front Wheel Hub Oil Seal, OE XW0126E — photo 4

Key specs: Inner diameter mm: 72 | Outer diameter mm: 89.5 | Height mm: 6.5/16 | Material: NBR | Spec & Model: 72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring | Spec & Model: 72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring

  • Inner diameter mm: 72
  • Outer diameter mm: 89.5
  • Height mm: 6.5/16
  • Material: NBR
  • Spec & Model: 72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring
  • Spec & Model: 72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This 72x89.5x6.5/16 mm TC‑type wheel hub oil seal is aftermarket replacement for Toyota front axle hub assembly. It adopts painted metal outer shell for stable press‑fit mounting. Double‑lip design with garter spring maintains consistent radial pressure against rotating hub shaft. It keeps wheel‑hub grease inside hub assembly, and blocks road mud, splash‑water and dust ingress to protect wheel bearings, avoid premature bearing wear. Widely applied for Toyota Hilux Vigo, Fortuner, Land Cruiser series. Suitable for auto‑parts wholesalers, repair shops and overseas bulk procurement. Core functions Grease retention ：Prevent wheel‑hub lubricant leakage Dust & mud exclusion: Resist splash‑water and road contaminants Painted metal shell: Anti‑rust and stable interference fit Garter‑spring pre‑load: Reliable sealing under vehicle vibration

Material and process

Material ：NBR nitrile rubber sealing lip, anti‑rust painted carbon‑steel shell, stainless steel garter spring Structure ：TC‑type double‑lip rotary shaft oil seal Key properties ：Grease‑resistant, dust‑proof, vibration‑resistant, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features High‑temperature vulcanization bonding between rubber lip and metal shell, resist delamination under vehicle vibration. Precision‑ground sealing lip reduces friction heat and extends service‑life. Anti‑rust painted metal shell improves storage performance in humid environment. NBR compound compatible with automotive wheel‑hub grease and chassis lubricants. Upgrade option ：FKM fluoro‑rubber version for higher‑temperature working environment.

Application and compatibility

Product Type ：TC‑type front wheel hub oil seal for Toyota 4‑WD vehicles Key dimension ：ID72mm × OD89.5mm × dual width6.5/16mm OE reference number: XW0126E, 90316‑T0002, 90316‑72001 Compatible media ：Wheel‑hub grease, chassis lubricating grease. Working conditions: Front wheel hub, withstand vibration, mud and splash‑water. Not suitable for ：Strong corrosive solvents, extreme ultra‑high‑temperature special‑purpose equipment. Fit models ：Toyota Hilux Vigo, Fortuner, Land Cruiser series front axle hub. Buyer reminder ：This is aftermarket replacement part. Please verify shaft diameter, housing bore and OE number before placing order. Mismatch dimension will cause grease leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID72mm, OD89.5mm, dual width6.5/16mm and cross‑check OE number XW0126E / 90316‑T0002 /90316‑72001. 2. Standard NBR for regular chassis grease environment; select FKM upgrade for high‑temperature scenarios. 3. Inspect hub shaft and housing bore before installation; repair shaft wear, rust and burrs. Damaged mating surfaces will lead to early leakage. Installation Steps Preparation Clean hub housing bore and shaft surface thoroughly, remove old seal residue, grease dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matching wheel‑hub grease. Dry installation is strictly forbidden; dry friction will damage sealing lip. Orientation Confirmation Main sealing lip faces hub grease cavity; dust lip faces outward to road side. Wrong installation direction causes grease leakage and loses dust‑proof function. Vertical Press‑fit Use proper press‑sleeve tool to press oil‑seal evenly and vertically. Never strike rubber lip directly to avoid shell deformation and lip tearing. Seating Inspection Ensure oil‑seal sits fully flush inside housing bore without tilt. Visual Check Inspect sealing lip for tears and shell deformation. Tiny invisible damage triggers seepage after commissioning. Rotation Test Manually rotate hub assembly to confirm smooth movement without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each unit to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：50‑200 pcs per carton, adjustable per order requirement. MOQ ：No MOQ for stock items, sample order acceptable; bulk stock order MOQ:300 pcs. Lead‑time ：Stock items ship within 3‑5 working days; custom logo, color and export‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and compression‑resistant packing to prevent seal deformation during transit.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is this 72x89.5x6.5/16 oil seal used for?

This TC‑type double‑lip oil seal is aftermarket front wheel hub replacement seal for Toyota Hilux, Fortuner and Land Cruiser, keeps hub grease inside and blocks mud‑water ingress for front axle hub.

What are OE numbers and full specifications?

Size: ID72mm × OD89.5mm × width6.5/16 mm; OE: XW0126E,90316‑T0002,90316‑72001; Material:NBR lip + painted carbon‑steel shell + garter spring; Working temperature:‑20℃ 120℃; Application: Toyota front wheel hub.

Which vehicles fit 90316‑T0002 oil seal?

It fits Toyota Hilux Vigo, Fortuner, Land Cruiser series 4‑WD front wheel hub assembly.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.

What is your MOQ and delivery time?

In‑stock items: no MOQ, delivery within 3‑5 working days. Bulk stock order MOQ:300 pcs. Customized order MOQ:1000 pcs, lead‑time 30‑45 days.

How to avoid grease leakage after installation?

Repair worn hub shaft and housing bore before fitting. Lubricate seal lip before pressing. Install in correct direction with proper sleeve press‑tool, never strike seal directly. Test hub rotation after assembly. Improper installation is main cause of early leakage.

What is shelf‑life for NBR oil seal?

Shelf life is 24 months when stored in cool, dry, dark and ventilated warehouse, avoid ozone, high temperature and heavy squeezing.

Can I get FKM high‑temperature version for this size?

Yes, FKM material upgrade version is available for higher‑temperature working conditions, please contact us for quotation.

Can you provide export documents for bulk order?

We can provide commercial invoice, packing list and certificate of origin for bulk export shipments to support customs clearance.

Can I mix different oil seals in one order?

Mixed wholesale is supported, you can combine multiple sizes of oil seals for one‑stop sourcing.
