75x165x12.5/18.5 mm TC‑Type Flange Oil Seal, Double‑Lip Shaft Seal

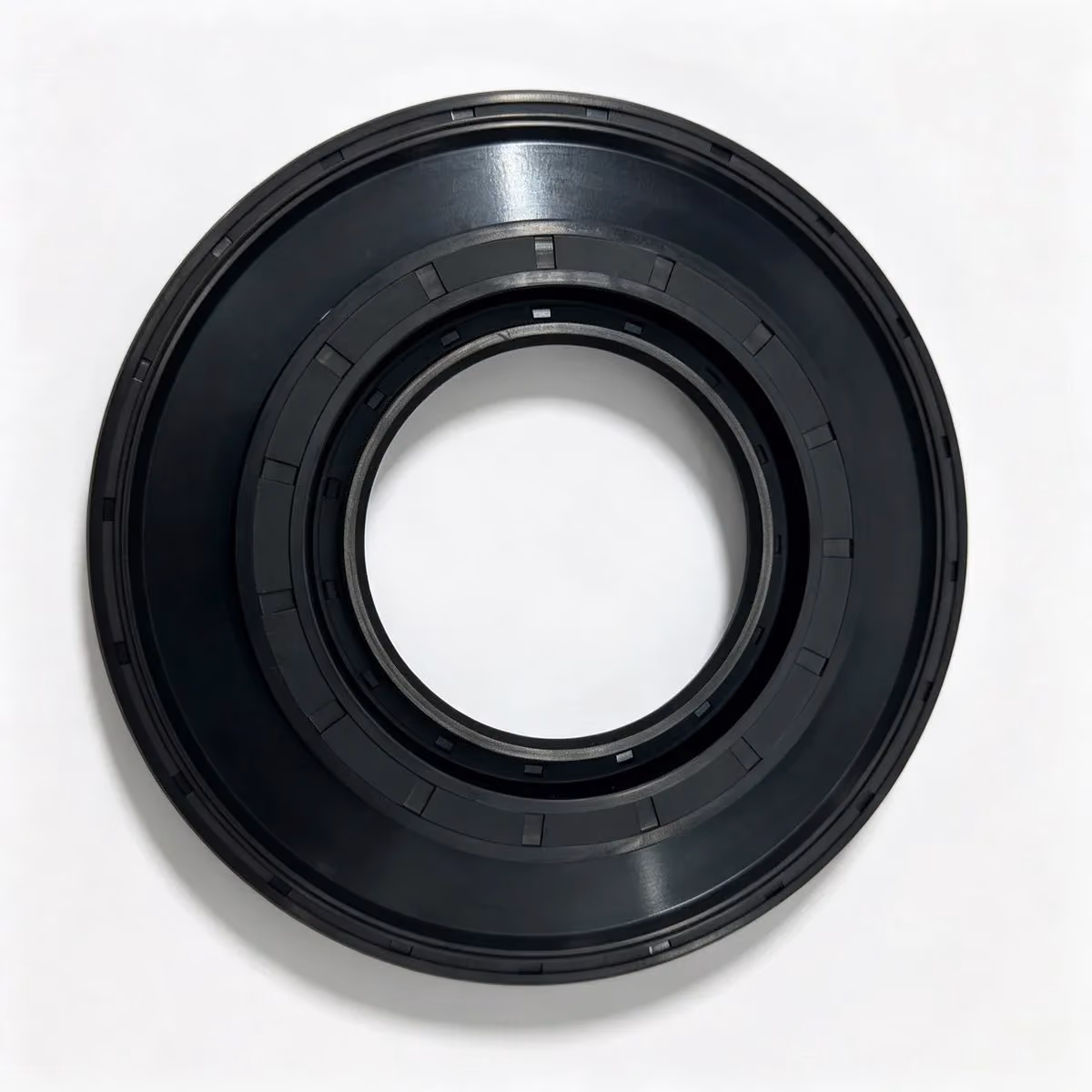

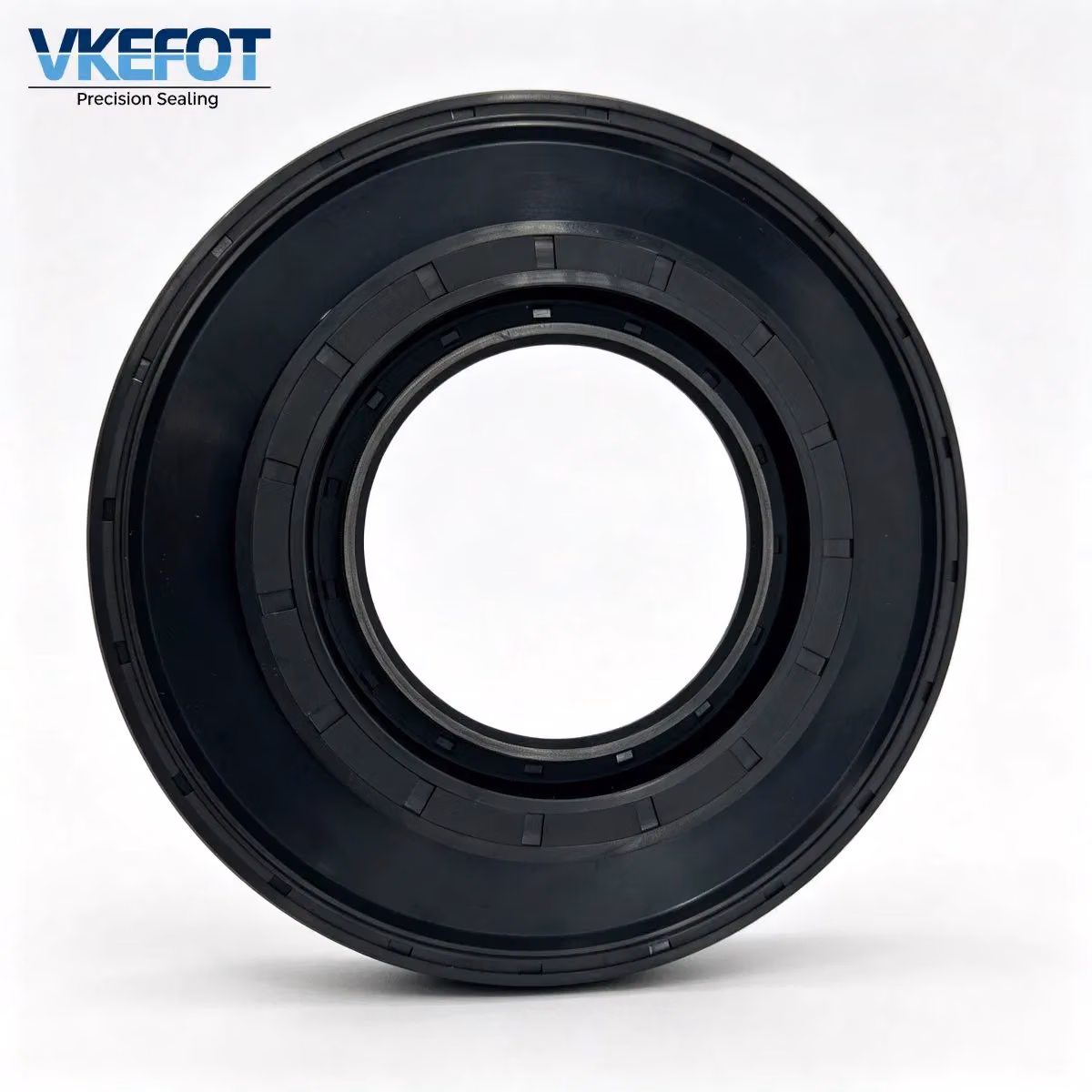

75x165x12.5/18.5 mm TC‑Type Flange Oil Seal, Double‑Lip Shaft Seal — main photo

Aftermarket TC‑type flange oil seal size 75x165x12.5/18.5 mm. NBR double‑lip with garter spring, metal reinforced flange shell. Suitable for heavy‑duty axle, agricultural machinery and transmission assemblies. Resists oil leakage, dust and mud ingress. Stock and bulk export available.

Tags: 75x165x12.5/18.5 oil seal, TC flange oil seal, double lip shaft seal, heavy duty machinery seal, agricultural machinery oil seal

Product photos

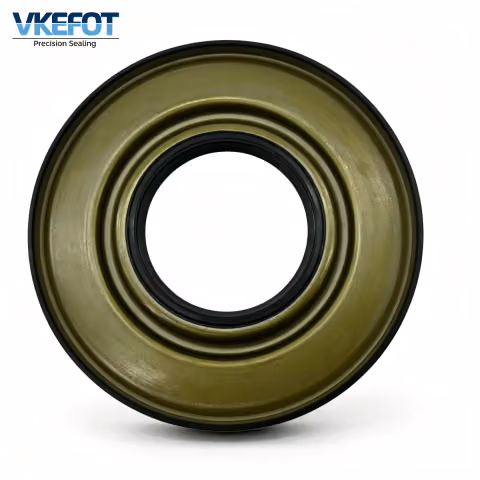

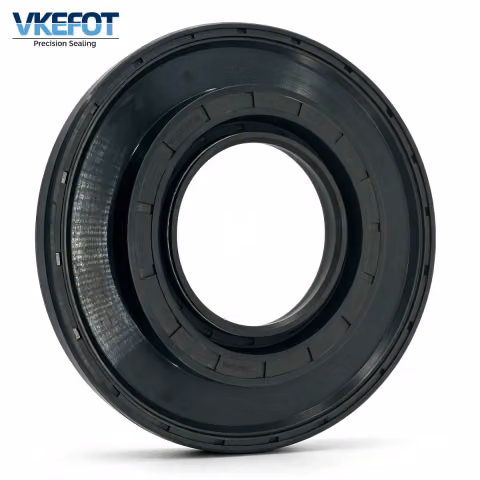

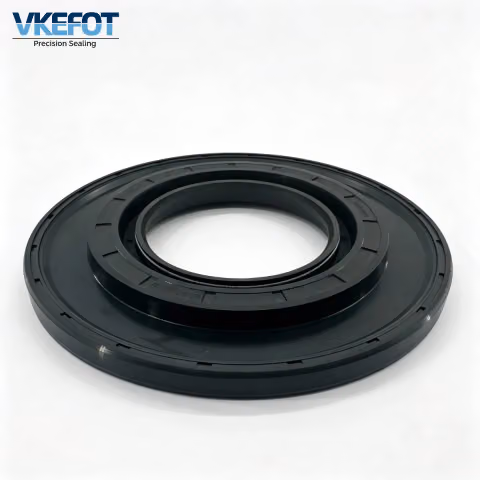

75x165x12.5/18.5 mm TC‑Type Flange Oil Seal, Double‑Lip Shaft Seal — photo 2 75x165x12.5/18.5 mm TC‑Type Flange Oil Seal, Double‑Lip Shaft Seal — photo 3 75x165x12.5/18.5 mm TC‑Type Flange Oil Seal, Double‑Lip Shaft Seal — photo 4

Key specs: Inner diameter mm: 75 | Outer diameter mm: 165 | Height mm: 12.5/18.5 | Material: NBR | Spec & Model: 75x165x12.5/18.5mm｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip flange oil seal with garter spring | Spec & Model: 75x165x12.5/18.5mm｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip flange oil seal with garter spring

  • Inner diameter mm: 75
  • Outer diameter mm: 165
  • Height mm: 12.5/18.5
  • Material: NBR
  • Spec & Model: 75x165x12.5/18.5mm｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip flange oil seal with garter spring
  • Spec & Model: 75x165x12.5/18.5mm｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip flange oil seal with garter spring

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号75x165x12.5/18.5mm｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip flange oil seal with garter spring

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

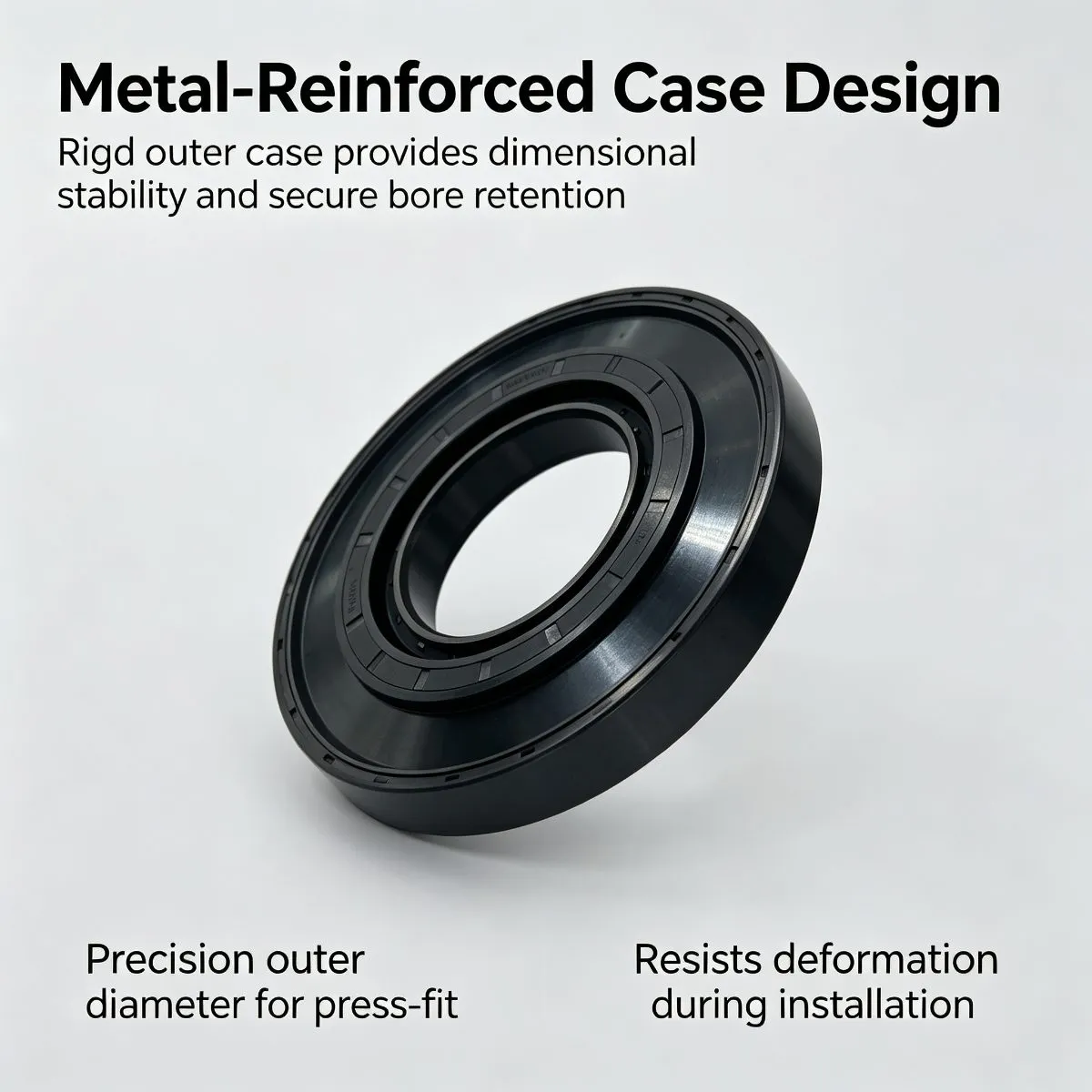

This 75x165x12.5/18.5 mm TC‑type flange oil seal features reinforced metal flange shell for stable press‑fit mounting. Double‑lip design with garter spring maintains consistent radial pressure against rotating shaft. It prevents lubricant leakage and blocks mud, splash‑water and dust ingress to protect bearings in heavy‑duty working conditions. Widely used for agricultural machinery, truck axle, transmission and engineering equipment. Suitable for auto‑parts wholesalers, repair shops and overseas bulk procurement. Core functions Grease retention ：Prevent lubricant leakage under heavy load Dust & mud exclusion: Resist splash‑water and harsh outdoor contaminants Flange metal shell: Anti‑rust and stable interference fit Garter‑spring pre‑load: Reliable sealing under vibration and shock

Material and process

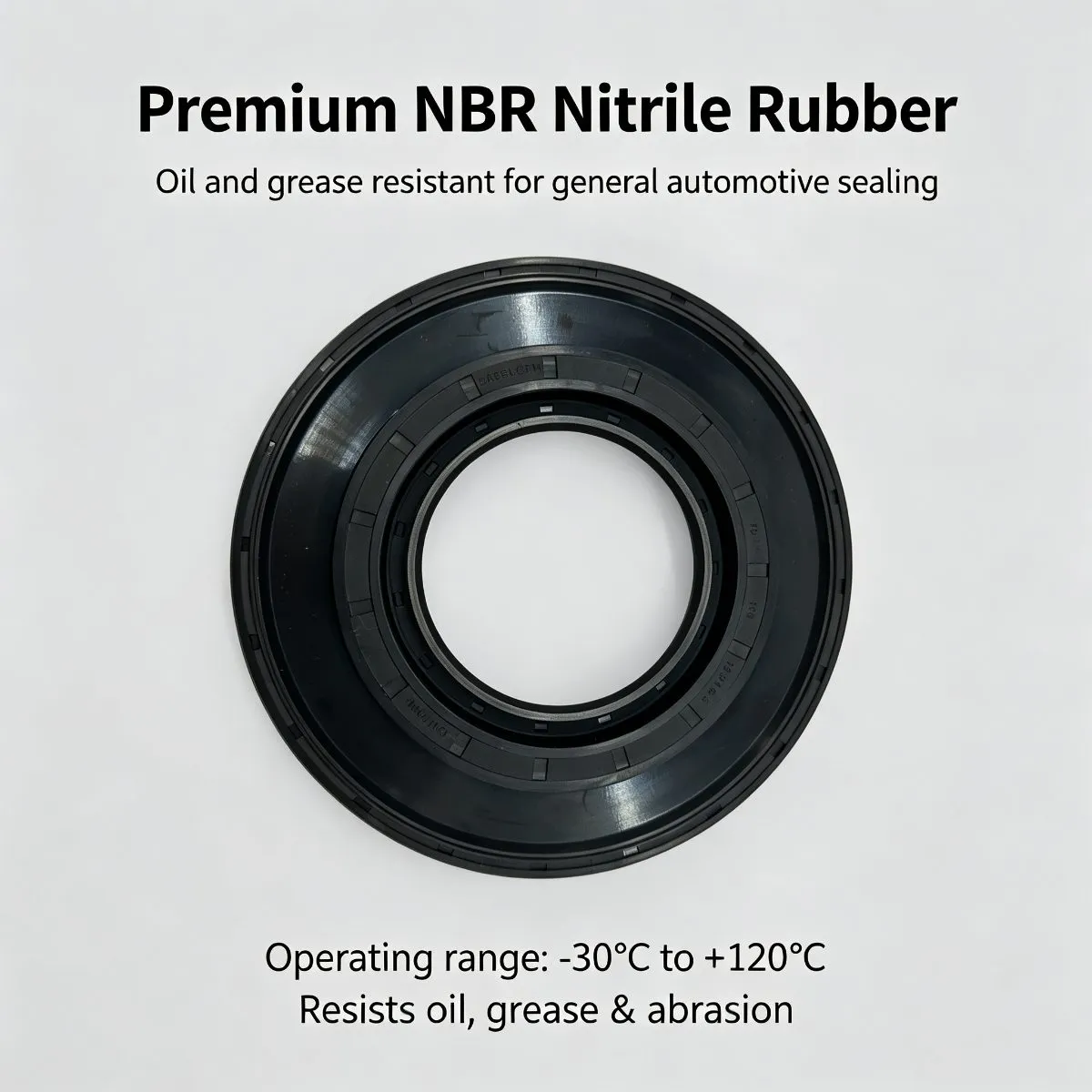

Material ：NBR nitrile rubber sealing lip, anti‑rust painted carbon‑steel flange shell, stainless steel garter spring Structure ：TC‑type double‑lip rotary shaft flange oil seal Key properties ：Oil‑resistant, dust‑proof, vibration‑resistant, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features High‑temperature vulcanization bonding between rubber lip and metal shell, resist delamination under vibration. Precision‑ground sealing lip reduces friction heat and extends service‑life. Anti‑rust painted flange shell improves storage performance in humid environment. NBR compound compatible with gear oil, hydraulic oil and chassis lubricants. Upgrade option ：FKM fluoro‑rubber version for higher‑temperature working environment.

Application and compatibility

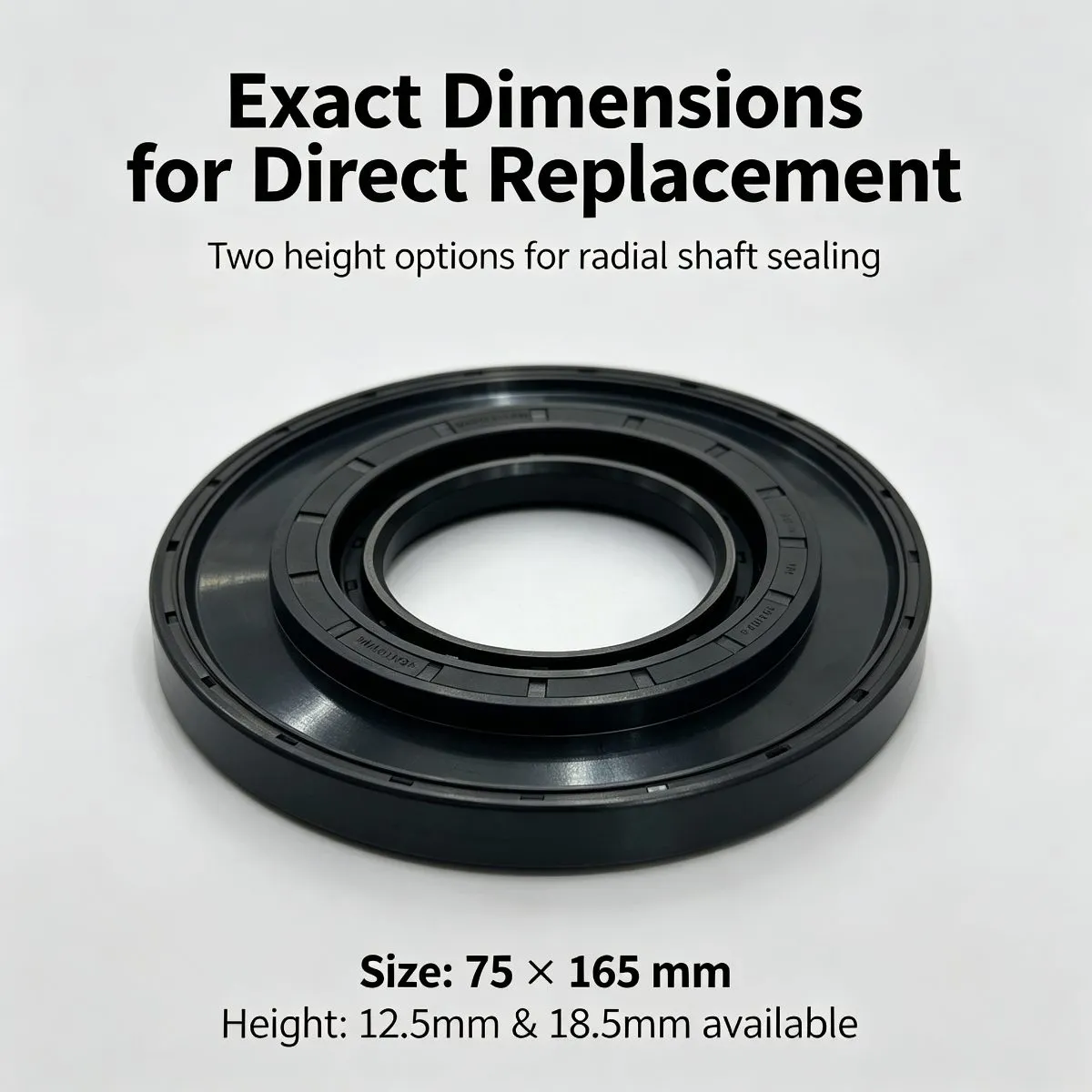

Product Type ：TC‑type flange double‑lip oil seal for heavy‑duty equipment Key dimension ：ID75mm × OD165mm × dual width12.5/18.5mm Compatible media ：Gear oil, hydraulic oil, wheel‑hub grease. Working conditions: Heavy‑duty shaft, withstand vibration, mud and splash‑water. Not suitable for ：Strong corrosive solvents, extreme ultra‑high‑temperature special‑purpose equipment. Fit applications ：Agricultural machinery, truck axle, transmission box, engineering machinery assemblies. Buyer reminder ：This is aftermarket replacement part. Please verify shaft diameter, housing bore and dimension before placing order. Mismatch dimension will cause oil leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID75mm, OD165mm, dual width12.5/18.5mm and seal type TC flange. 2. Standard NBR for regular oil & grease environment; select FKM upgrade for high‑temperature scenarios. 3. Inspect shaft and housing bore before installation; repair shaft wear, rust and burrs. Damaged mating surfaces will lead to early leakage. Installation Steps Preparation Clean housing bore and shaft surface thoroughly, remove old seal residue, oil dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matching gear or hub grease. Dry installation is strictly forbidden; dry friction will damage sealing lip. Orientation Confirmation Main sealing lip faces oil cavity; dust lip faces outward. Wrong installation direction causes oil leakage and loses dust‑proof function. Vertical Press‑fit Use proper press‑sleeve tool to press oil‑seal evenly and vertically. Never strike rubber lip directly to avoid shell deformation and lip tearing. Seating Inspection Ensure flange oil‑seal sits fully flush inside housing bore without tilt. Visual Check Inspect sealing lip for tears and shell deformation. Tiny invisible damage triggers seepage after commissioning. Rotation Test Manually rotate shaft assembly to confirm smooth movement without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each unit to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per order requirement. MOQ ：No MOQ for stock items, sample order acceptable. Lead‑time ：Stock items ship within 3‑5 working days; custom logo and export‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and compression‑resistant packing to prevent seal deformation during transit.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is this 75x165x12.5/18.5 oil seal used for?

This TC‑type flange double‑lip oil seal is heavy‑duty replacement seal for agricultural machinery, truck axle and transmission boxes, prevents oil leakage and keeps mud and water out.

What are full specifications?

Size: ID75mm × OD165mm × width12.5/18.5 mm; Material:NBR lip + painted carbon‑steel flange shell + garter spring; Working temperature:‑20℃ 120℃; Application: Heavy‑duty machinery shaft.

Can this flange seal work for agricultural equipment?

Yes, this TC flange oil seal is widely applied for farm machinery, truck axle and engineering equipment under muddy working conditions.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.

What is your MOQ and delivery time?

In‑stock items: no MOQ, delivery within 3‑5 working days. Customized order MOQ:1000 pcs, lead‑time 30‑45 days.

How to avoid oil leakage after installation?

Repair worn shaft and housing bore before fitting. Lubricate seal lip before pressing. Install in correct direction with proper sleeve press‑tool, never strike seal directly. Test shaft rotation after assembly. Improper installation is main cause of early leakage.

What is shelf‑life for NBR oil seal?

Shelf life is 24 months when stored in cool, dry, dark and ventilated warehouse, avoid ozone, high temperature and heavy squeezing.

Can I get FKM high‑temperature version for this size?

Yes, FKM material upgrade version is available for higher‑temperature working conditions, please contact us for quotation.

Can you provide export documents for bulk order?

We can provide commercial invoice, packing list and certificate of origin for bulk export shipments to support customs clearance.

Can I mix different oil seals in one order?

Mixed wholesale is supported, you can combine multiple sizes of oil seals for one‑stop sourcing.
