85x120x10/20mm ZD-Type Outer-Rib Double-lip FKM Hub Oil Seal

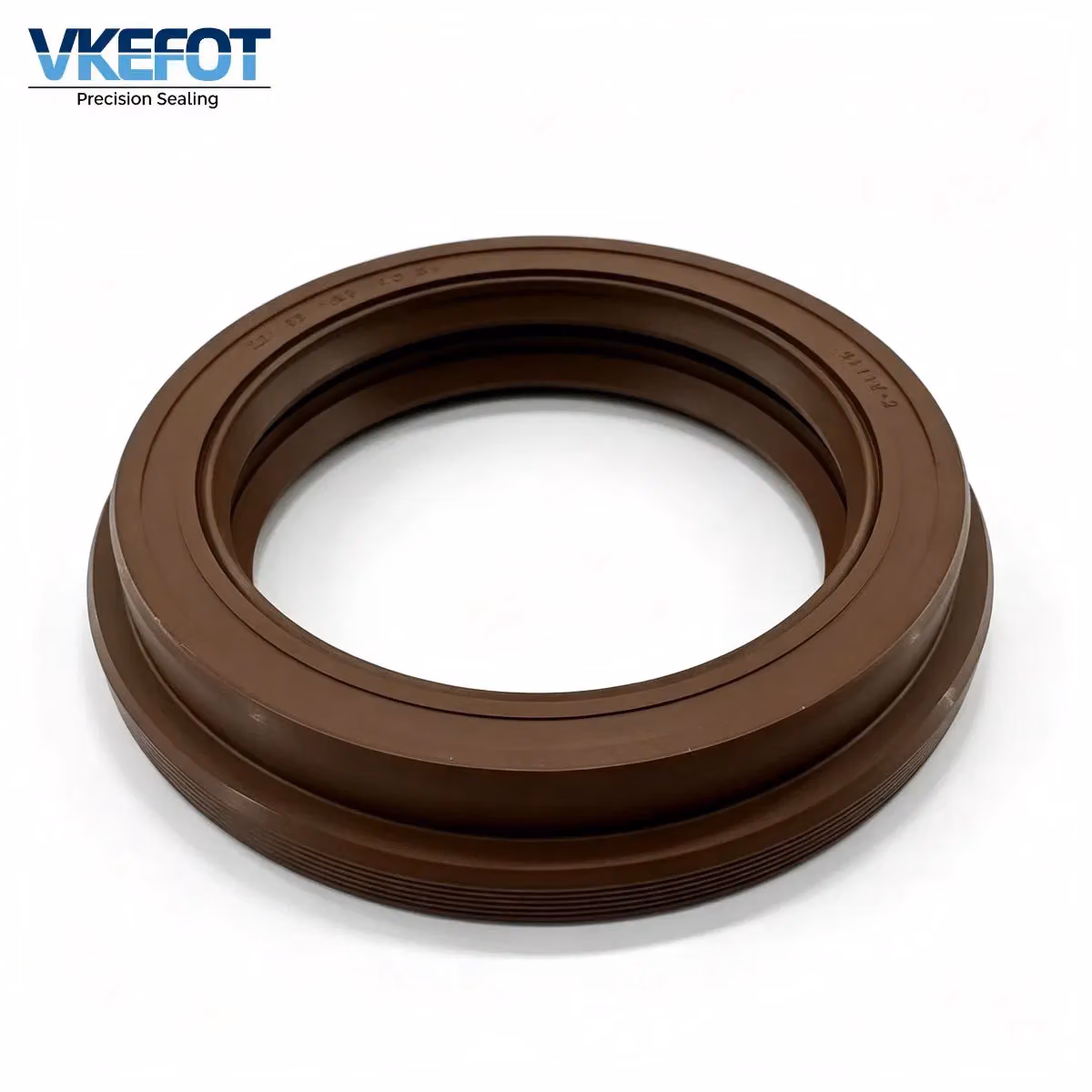

85x120x10/20mm ZD‑Type Combined Outer‑Rib Double‑lip FKM Oil Seal — main photo

This aftermarket ZD‑type combined outer‑rib double‑lip oil seal measures 85×120×10/20 mm, brown FKM fluororubber composite metal‑cased structure. ZD is a combined hub‑wheel oil seal with outer anti‑spin ribs, dual garter springs, widely used for heavy‑duty vehicle wheel hub, axle, agricultural machinery and engineering machinery rotary shafts, for spare‑parts importers, wholesalers and repair workshops, lead time 7‑15 working days.

Tags: 85x120x10/20mm, ZD combined oil seal, FKM brown heavy‑duty oil seal, ZD‑type wheel hub seal, composite skeleton shaft seal

Product photos

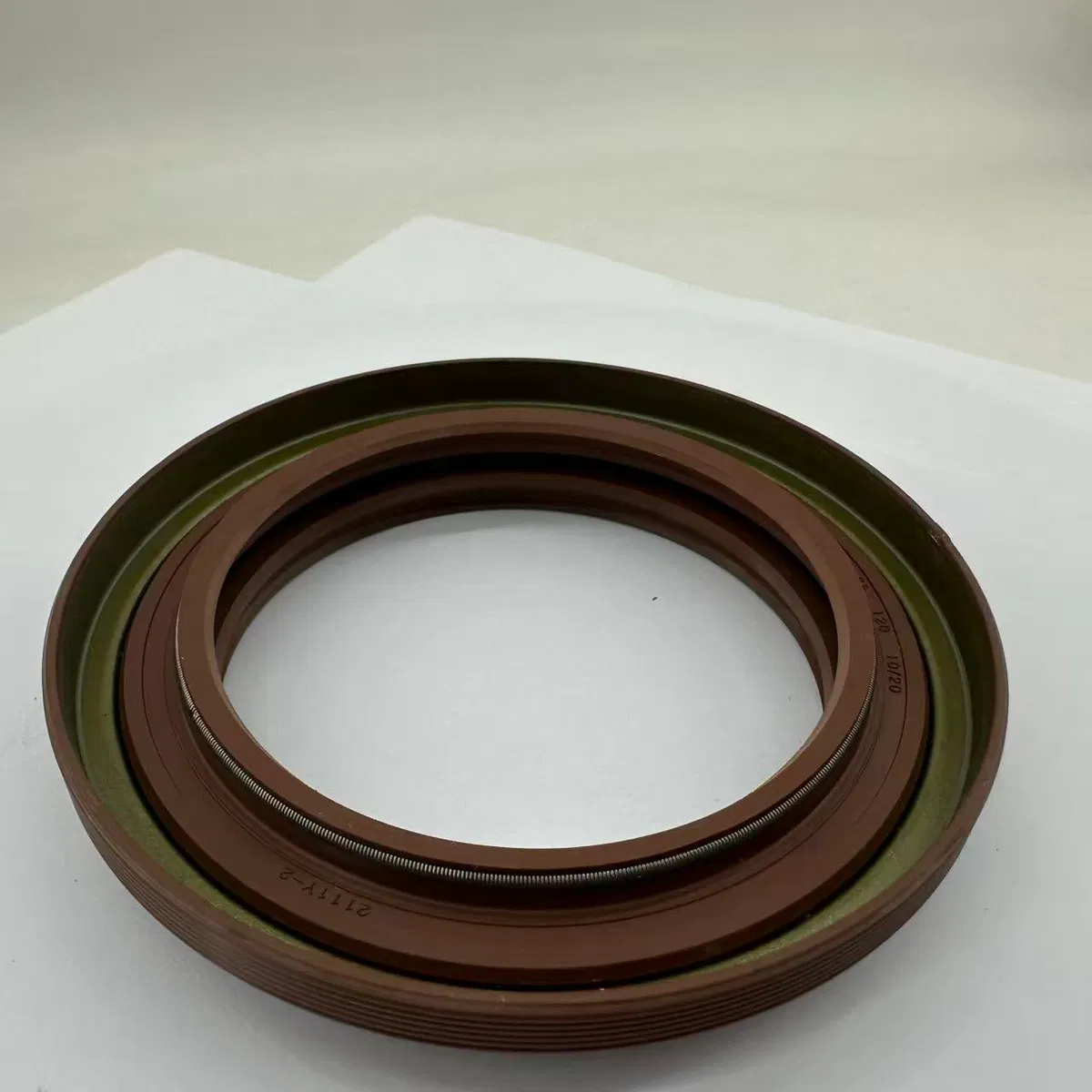

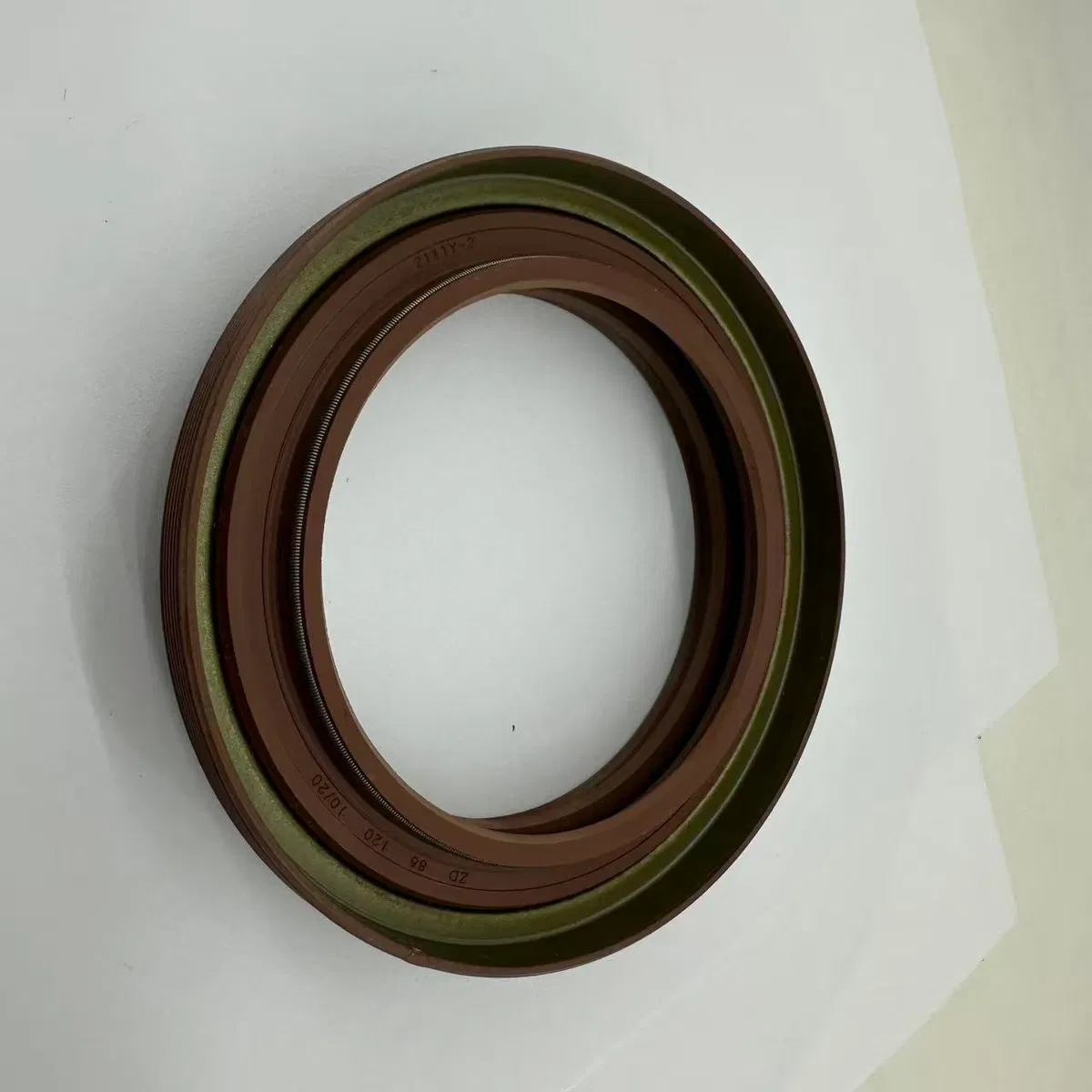

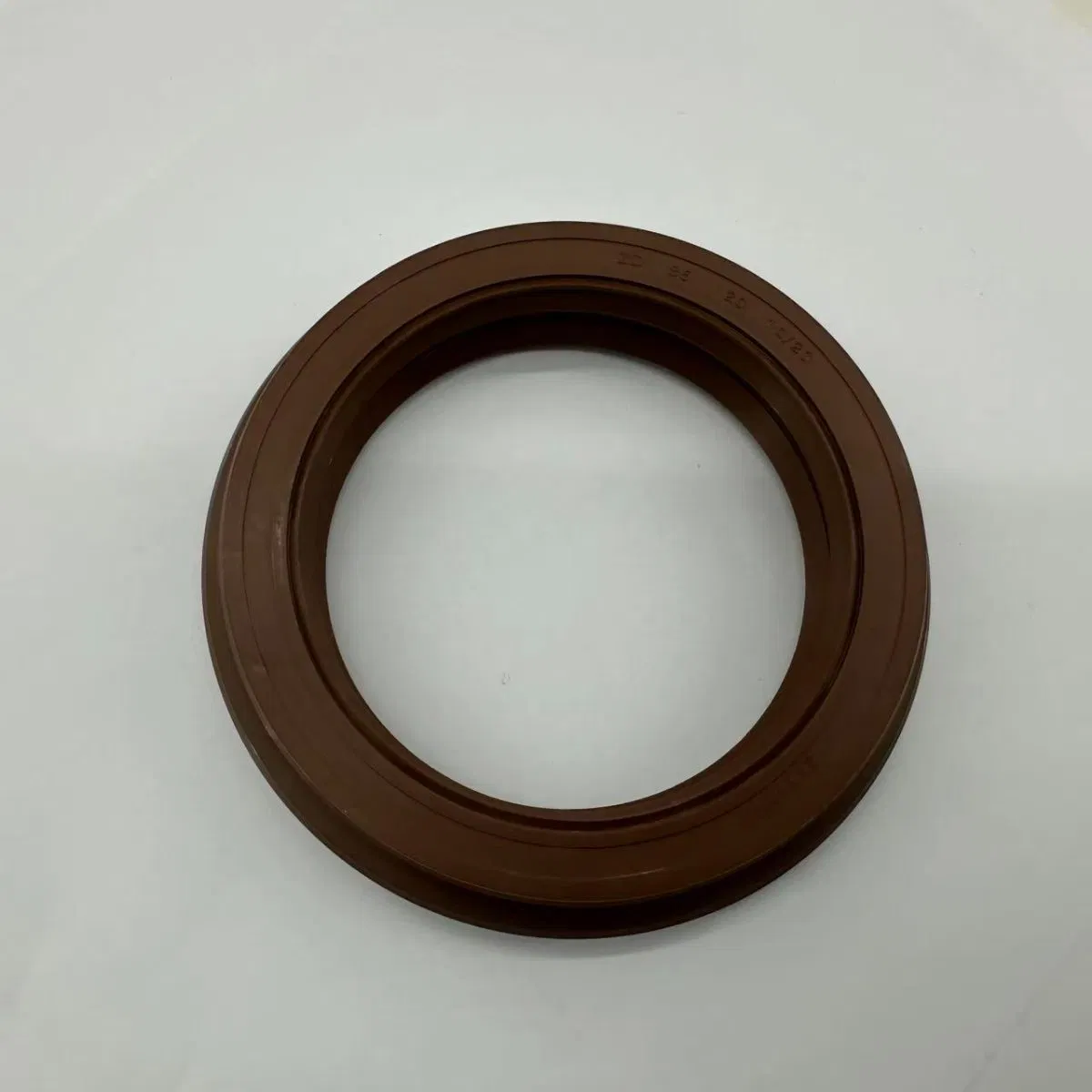

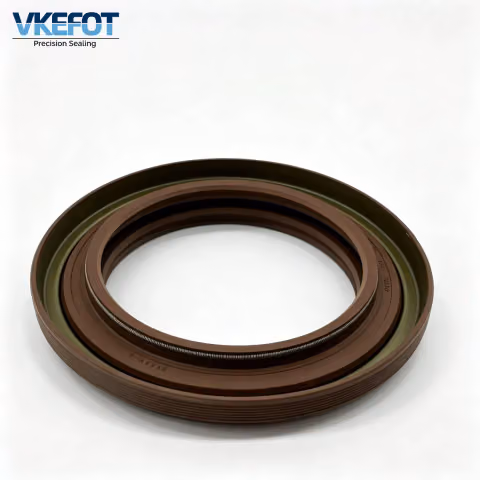

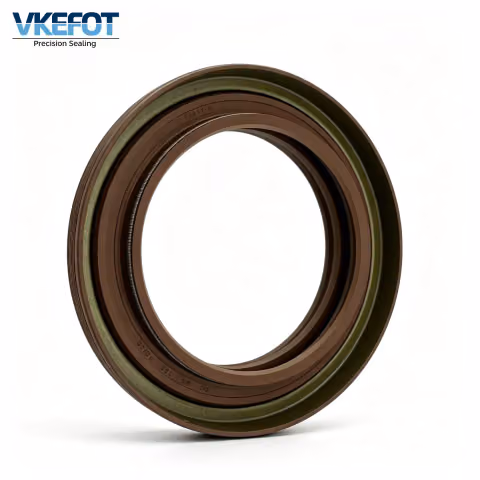

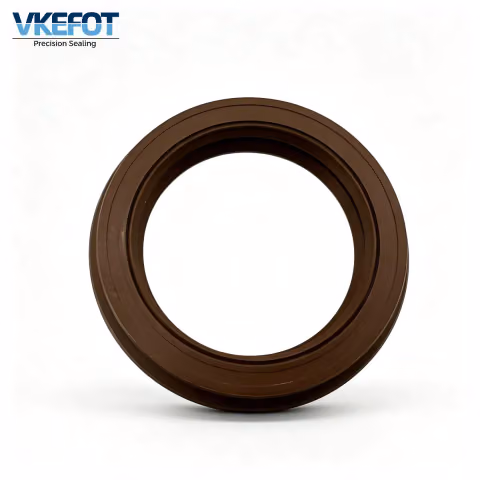

85x120x10/20mm ZD‑Type Combined Outer‑Rib Double‑lip FKM Oil Seal — photo 2 85x120x10/20mm ZD‑Type Combined Outer‑Rib Double‑lip FKM Oil Seal — photo 3 85x120x10/20mm ZD‑Type Combined Outer‑Rib Double‑lip FKM Oil Seal — photo 4

Key specs: Inner diameter mm: 85 | Outer diameter mm: 120 | Height mm: 10/20 | Material: FKM | Spec & Model: FKM | Spec & Model: ZD combined outer‑rib double‑lip dual‑spring | Spec & Model: 2111Y‑2 | Spec & Model: Non‑universal international standard, domestic heavy‑duty composite seal

  • Inner diameter mm: 85
  • Outer diameter mm: 120
  • Height mm: 10/20
  • Material: FKM
  • Spec & Model: FKM
  • Spec & Model: ZD combined outer‑rib double‑lip dual‑spring
  • Spec & Model: 2111Y‑2
  • Spec & Model: Non‑universal international standard, domestic heavy‑duty composite seal
  • Spec & Model: 85×120×10/20mm
  • Material: FKM
  • Structure: ZD combined outer‑rib double‑lip dual‑spring
  • Marking: 2111Y‑2

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
MaterialFKM
StructureZD combined outer‑rib double‑lip dual‑spring
Marking2111Y‑2
StandardNon‑universal international standard, domestic heavy‑duty composite seal
规格型号85×120×10/20mm

Pricing: request a quote (B2B / wholesale).

MOQ / commerce notes: Lead time 7–15 working days

Request a quote · Inquiry · Request a sample

Product details

This aftermarket replacement ZD combined composite oil seal dimension 85×120×10/20 mm, brown FKM fluororubber, composite metal‑cased assembly with outer circumferential anti‑spin ribs, equipped with double garter springs and double‑lip sealing system. ZD type belongs to heavy‑duty combined hub oil seal, different from ordinary TC/TG single‑piece skeleton seal, it adopts composite assembly structure to resist large vibration, mud splash and thermal deformation, outer ribs prevent seal spinning in housing bore under heavy‑load operation. Marking on product: 2111Y‑2. Primary sealing lip locks lubricant grease / gear oil inside hub cavity; secondary dust‑proof lip blocks mud, water, sand and road contaminants. Mainly applied for heavy‑truck wheel hub, drive axle, agricultural machinery and construction‑machinery rotary shafts. No universal cross‑reference OE number in global public database, served as aftermarket replacement component for matching‑size heavy‑duty assemblies. Targeted at heavy‑duty auto‑parts importers, wholesalers and machinery repair workshops. Send inquiry including dimension, material specs, quantity and destination for formal quotation, lead time 7‑15 working days. Features & Benefits ‑ ZD composite assembly structure: double‑spring double‑lip design, higher anti‑vibration performance than ordinary TG‑type seals, adapt to heavy‑load hub working‑condition ‑ Outer circumferential anti‑spin ribs: increase static friction with housing bore, effectively avoid seal rotation caused by vibration & temperature cycling ‑ FKM fluororubber material: excellent heat‑resistance, oil‑resistance and anti‑aging performance for heavy‑duty long‑time continuous operation ‑ Composite metal‑rubber vulcanized integration, stable shape under impact and alternating temperature ‑ Aftermarket cross‑replacement for matching‑size heavy‑duty hub seals ‑ Custom logo marking, packing and material upgrade options available upon RFQ ‑ Suited for bulk stocking of heavy‑duty vehicle & engineering‑machinery repair‑network replenishment Material & Process Sealing lip ：FKM fluororubber; Reinforcing composite metal skeleton: cold‑rolled steel plate; Dual garter springs: carbon steel. Vulcanized bonded composite assembly. Typical operating temperature range:‑20℃ +200℃, max allowable working pressure ≤0.3 bar. NBR / HNBR material downgrade/upgrade available subject to quotation. Applications & Compatibility Primary applications: heavy‑duty truck wheel hub, drive axle, agricultural machinery, construction‑machinery rotary shafts. Compatible with gear oil, lithium‑based grease and most mineral‑based lubricants. Not suitable for strong polar‑solvent media. Aftermarket replacement part. Verify shaft OD, housing bore ID and installation depth before placing order; dimension mismatch or worn housing will trigger leakage risk. Selection & Installation Selection Tips 1. Confirm dimension: shaft 85 mm, housing bore 120 mm, overall width 20 mm, effective sealing width 10 mm; 2. ZD composite seal is specially developed for heavy‑duty hub / axle with strong vibration; not suggested to replace common TC/TG single‑piece seal blindly without checking installation depth; 3. Confirm rubber compound according to actual working temperature and lubricant medium. Installation Steps 1. Thoroughly clean shaft and housing bore, fully remove burrs, metal chips and old‑seal residual; 2. Apply compatible lubricant to sealing lip; strictly forbid dry‑installation; 3. Install orientation: spring‑loaded main lip faces towards grease‑filled hub cavity; 4. Adopt dedicated installation tool, apply uniform vertical press‑in force, forbid skew installation; 5. Never strike rubber lip area directly with hammer; 6. Press seal fully seated against housing shoulder; 7. Manually rotate shaft after installation to verify smooth free‑movement. Packaging & Delivery Neutral poly‑bag inner, export carton outer. Carton packing quantity adjustable. Lead time 7‑15 working days. Sample and mixed‑size

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is ZD 85x120x10/20 combined oil seal used for?

ZD 85×120×10/20 composite double‑spring oil seal is heavy‑duty hub & axle seal, designed for heavy‑truck, agricultural and construction machinery, resist heavy vibration, mud and splash contamination.

What are specs for ZD‑85‑120‑10/20‑FKM oil seal?

Dimension 85×120×10/20 mm, ZD composite outer‑rib double‑lip dual‑spring structure, brown FKM fluororubber, typical working temperature ‑20℃ +200℃, max pressure ≤0.3bar, product marking 2111Y‑2.

What is difference between ZD‑type and TG‑type oil seal?

ZD is composite assembled heavy‑duty hub seal with dual garter springs, higher anti‑vibration performance for heavy‑load hub; TG is single‑piece skeleton seal for general‑purpose gearbox/motor.

Can ZD 85x120x10/20 replace TG‑85x120xx oil seal?

Not general‑purpose interchangeable. Must check installation cavity depth, housing dimension and assembly space before ordering, ZD has larger overall width.

Can I get custom options for ZD‑85‑120‑10/20‑FKM oil seal?

Custom logo marking, packing, material switching(NBR/FKM/HNBR) are available; special‑structure modification MOQ≥1200pcs, lead‑time 7‑15 working days upon quotation.

What is MOQ and delivery for ZD‑85‑120‑10/20‑FKM heavy‑duty oil seal?

Lead‑time 7‑15 working days, quantity confirmed on quotation, sample & mixed‑size orders are accepted.

How to install ZD‑85‑120‑10/20 composite hub oil seal correctly?

1.Clean shaft & housing bore completely;2.Lubricate sealing lip, no dry‑install;3.Spring‑loaded main lip face to grease‑filled hub cavity;4.Press vertically with dedicated installation‑tool;5.Fully sit against housing shoulder, avoid hammer‑striking rubber lip.

What is shelf‑life for FKM ZD‑85‑120‑10/20 oil seal?

Under dry shaded storage environment, typical shelf‑life reaches about 24‑months for this FKM ZD composite oil seal.

What media is FKM ZD‑85‑120‑10/20 seal compatible with?

FKM performs well under high‑temperature gear‑oil and lithium‑based grease for heavy‑duty hub, not suitable for strong polar‑solvent working‑condition.

What export documents can you provide for bulk ZD heavy‑duty‑seal orders?

Commercial invoice, packing list and certificate of origin can be provided on buyer’s request for orders with 7‑15 working‑day lead‑time.
