VKEFOT TG 93x114x13 mm NBR Fully Rubber Coated Rotary Shaft Oil Seal Brown for Automotive Axle
Model / SKU: VKEFOT-TG-93-114-13
VKEFOT TG 93x114x13 mm rotary shaft oil seal, NBR nitrile rubber, fully rubber coated skeleton, brown color. TG structure features enhanced dust exclusion, excellent oil resistance and wear resistance. Widely used for automotive axle, gearbox, reducer and off-road machinery rotary shaft maintenance. Factory direct supply from Xingtai, China. Working temperature -20℃ ~ +100℃, max pressure ≤0.05MPa, brand new high quality, in stock with worldwide shipping. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT TG oil seal, TG 93x114x13 rotary shaft oil seal, 93-114-13 NBR fully rubber coated oil seal, TG type rubber covered skeleton oil seal, off-road machinery rotary shaft seal, brown NBR rotary shaft seal 93*114*13

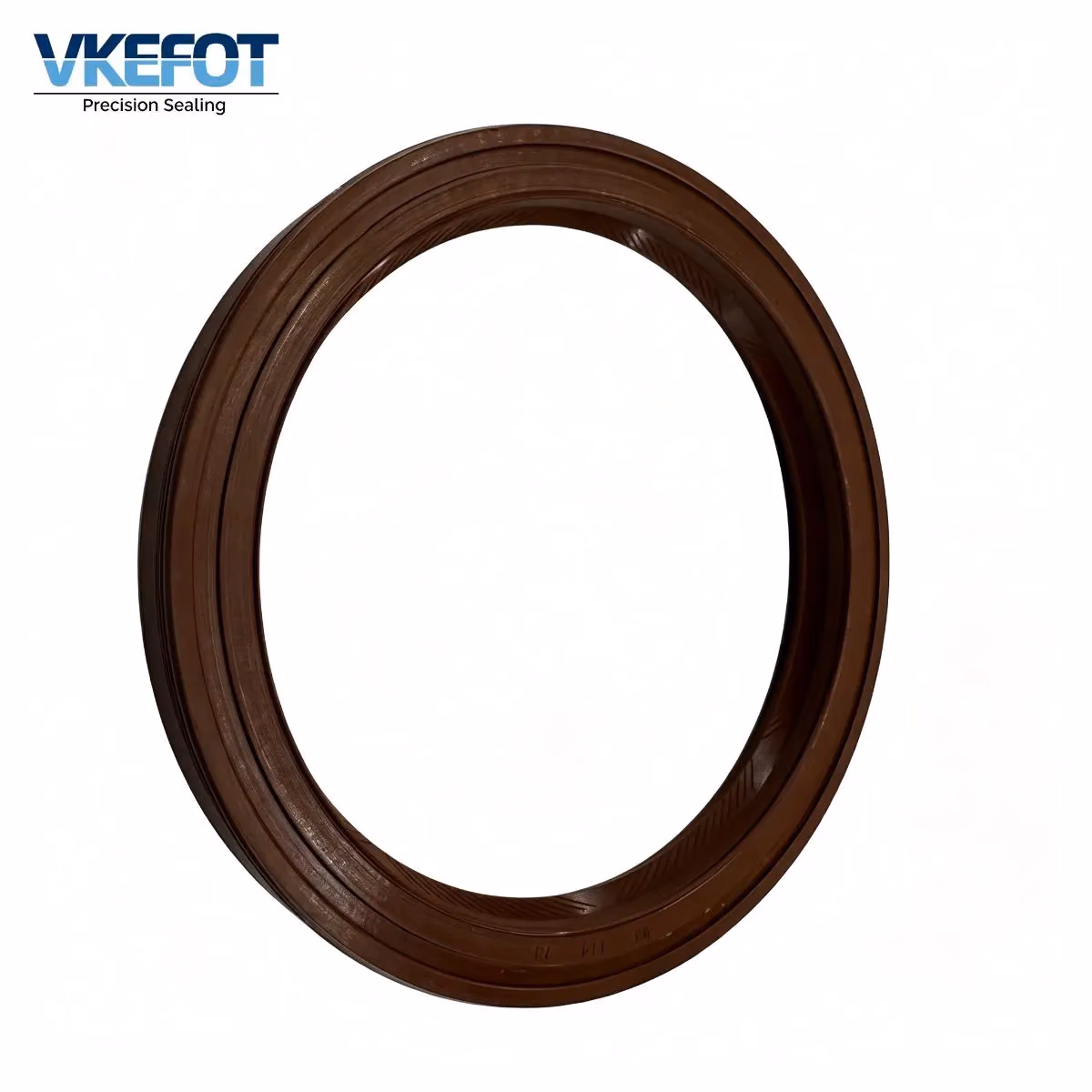

Product photos
Key specs: Inner diameter mm: 93 | Outer diameter mm: 114 | Height mm: 13 | Material: NBR | Size: 93×114×13 mm | Type: TG Oil Seal | Material: NBR Nitrile Rubber | Structure: Fully Rubber Coated Skeleton, Spring Energized Sealing Lip, Enhanced Dust Lip
- Inner diameter mm: 93
- Outer diameter mm: 114
- Height mm: 13
- Material: NBR
- Size: 93×114×13 mm
- Type: TG Oil Seal
- Material: NBR Nitrile Rubber
- Structure: Fully Rubber Coated Skeleton, Spring Energized Sealing Lip, Enhanced Dust Lip
- Temp Range: -20℃ ~ +100℃
- Max Pressure: ≤0.05MPa
- Max Shaft Speed: ≤12m/s
- Medium: Mineral Oil, Grease
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 93×114×13 mm |
| Type | TG Oil Seal |
| Material | NBR Nitrile Rubber |
| Structure | Fully Rubber Coated Skeleton, Spring Energized Sealing Lip, Enhanced Dust Lip |
| Temp Range | -20℃ ~ +100℃ |
| Max Pressure | ≤0.05MPa |
| Max Shaft Speed | ≤12m/s |
| Medium | Mineral Oil, Grease |
| Application | Automotive Axle, Gearbox, Reducer & Off-Highway Machinery Rotary Shaft Sealing Repair |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT TG type 93x114x13 mm rotary shaft oil seal manufactured in Xingtai, China. TG oil seal adopts fully rubber coated skeleton structure with built-in dust lip, full rubber outer surface delivers superior corrosion resistance and tight fit in housing bore.
This TG 93-114-13 brown NBR rotary shaft oil seal comes with spring energized primary sealing lip plus auxiliary dust lip. It retains lubricating oil inside the housing and blocks dirt, mud and water from entering the assembly, ideal for working under harsh contaminated environments. It is widely fitted to automotive axle, gearbox, reducer and off-road machinery rotary shaft for medium duty vehicles and construction equipment. Max working pressure ≤0.05MPa, allowable shaft speed up to 12m/s, operating temperature -20℃ to +100℃. It is a reliable aftermarket replacement seal for automotive and off-road equipment maintenance and repair jobs.
Key Features
- TG fully rubber coated skeleton rotary shaft oil seal, dimension 93×114×13 mm
- Integrated dust lip for heavy contamination protection
- All rubber outer shell for anti-corrosion and stable bore installation
- Spring energized sealing lip to keep consistent contact pressure
- NBR nitrile rubber, excellent oil resistance and wear resistance
- Brand new aftermarket seal for automotive axle, gearbox and off-road machinery repair
Material & Working Condition
Base rubber material is NBR (Nitrile Butadiene Rubber). Compatible with mineral oils and greases. Not suitable for ester oils, brake fluid and strong chemical solvents. Confirm lubricant type and operating temperature in your RFQ.
Typical Applications
Automotive axle, gearbox, transmission, reducer, off-highway and construction machinery rotary shaft sealing. This is an aftermarket replacement seal. Verify shaft diameter and housing bore dimension before purchase.
Installation Guide
- Clean shaft journal and housing bore thoroughly, remove old seal residue, rust, burrs and contaminants.
- Lightly lubricate sealing lip with compatible oil or grease before fitting.
- Press TG seal evenly and squarely into the bore, avoid tilting.
- Prevent scratches or nicks on rubber lip during installation; lip damage will cause oil leakage.
- After assembly, perform leak inspection before vehicle operation.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT TG 93x114x13 oil seal used for?
This TG 93×114×13 mm fully rubber coated oil seal is built with dust lip, used for automotive axle, gearbox, reducer and off-road machinery rotary shaft sealing, designed for heavy contaminated working conditions.
What is TG type oil seal?
TG oil seal is fully rubber coated skeleton rotary shaft seal with an extra dust lip. It provides both oil retention and dust exclusion, widely used in off-highway and automotive heavy duty applications.
What material is TG 93x114x13 oil seal made of?
Made of NBR nitrile rubber, provides reliable oil resistance and wear resistance. FKM, HNBR and ACM materials are available on request.
What is the temperature range for TG 93x114x13 NBR oil seal?
Working temperature range: -20℃ to +100℃, max working pressure ≤0.05MPa, maximum allowable shaft speed up to 12 m/s, compatible with mineral oil and grease.
What are the advantages of TG fully rubber coated oil seal?
TG seal full rubber outer shell prevents metal skeleton rusting. The integrated dust lip protects the sealing lip from dirt, mud and debris, extending service life under harsh field conditions.
How to install TG fully rubber coated oil seal correctly?
Clean shaft and housing bore, lightly lubricate sealing lip, press seal squarely and evenly into the bore, avoid scratching the rubber lip or tilting during installation.
What is MOQ and lead time for VKEFOT TG oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, type, quantity, destination country and working medium for accurate quotation.
