VKEFOT TG 70x85x8 mm NBR Fully Rubber Coated Rotary Shaft Oil Seal Brown for Automotive Gearbox Repair
Model / SKU: VKEFOT-TG-70-85-8
VKEFOT TG 70x85x8 mm rotary shaft oil seal, NBR nitrile rubber, fully rubber coated skeleton structure, brown color. Features oil-resistant, wear-resistant and anti-corrosion performance, widely used for automotive gearbox and rotary shaft repair. Factory direct supply from Xingtai, China. Working temperature -20℃ ~ +100℃, max pressure ≤0.05MPa, brand new high quality, in stock with worldwide shipping. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT TG oil seal, TG 70x85x8 rotary shaft oil seal, 70-85-8 NBR fully rubber coated oil seal, TG type rubber covered skeleton oil seal, automotive gearbox shaft oil seal replacement, brown NBR rotary shaft seal 70*85*8

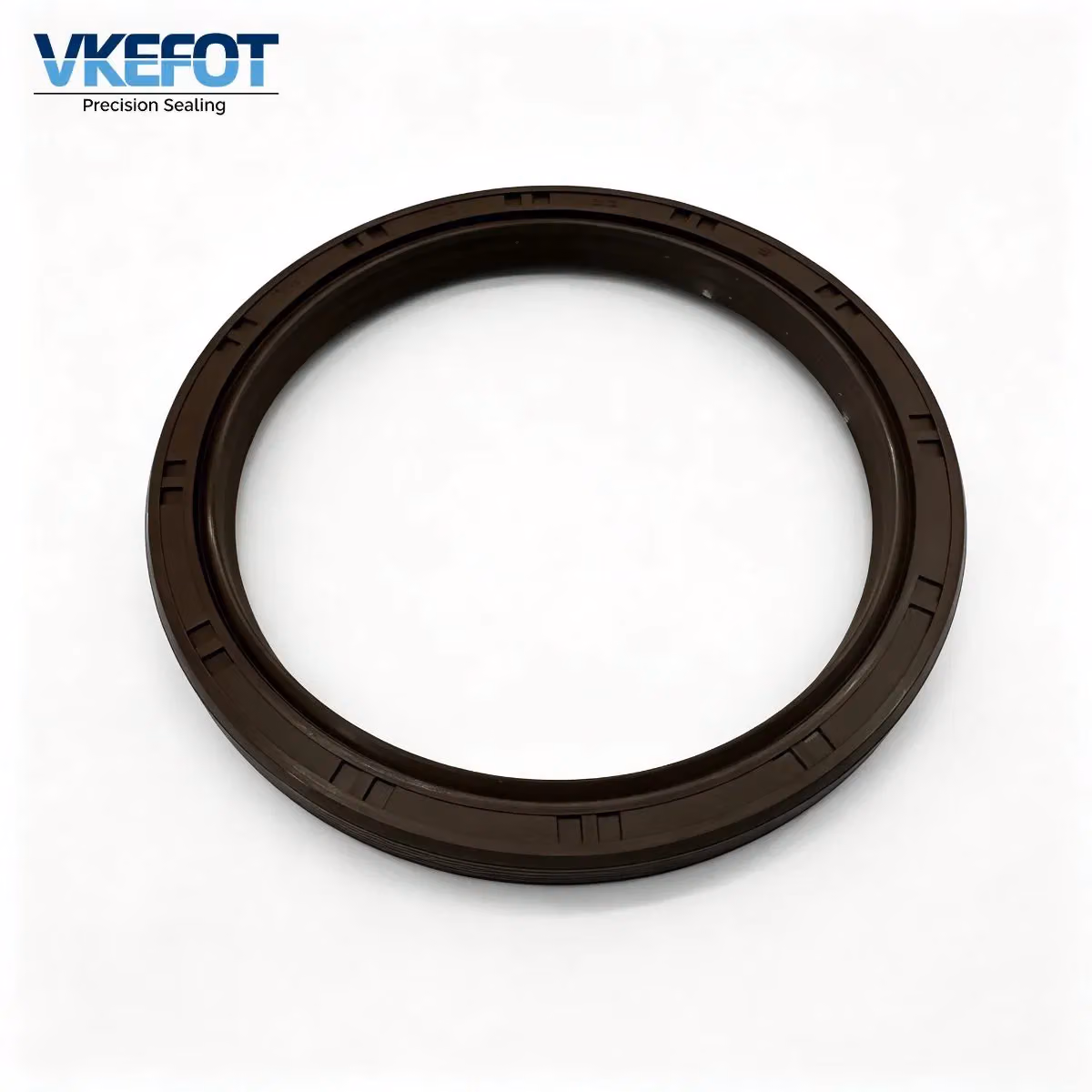

Product photos
Key specs: Inner diameter mm: 70 | Outer diameter mm: 85 | Height mm: 8 | Material: NBR | Size: 70×85×8 mm | Type: TG Oil Seal | Material: NBR Nitrile Rubber | Structure: Fully Rubber Coated Skeleton, Spring Energized Sealing Lip
- Inner diameter mm: 70
- Outer diameter mm: 85
- Height mm: 8
- Material: NBR
- Size: 70×85×8 mm
- Type: TG Oil Seal
- Material: NBR Nitrile Rubber
- Structure: Fully Rubber Coated Skeleton, Spring Energized Sealing Lip
- Temp Range: -20℃ ~ +100℃
- Max Pressure: ≤0.05MPa
- Max Shaft Speed: ≤12m/s
- Medium: Mineral Oil, Grease
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 70×85×8 mm |
| Type | TG Oil Seal |
| Material | NBR Nitrile Rubber |
| Structure | Fully Rubber Coated Skeleton, Spring Energized Sealing Lip |
| Temp Range | -20℃ ~ +100℃ |
| Max Pressure | ≤0.05MPa |
| Max Shaft Speed | ≤12m/s |
| Medium | Mineral Oil, Grease |
| Application | Automotive Gearbox & Rotary Shaft Sealing Repair |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT TG type 70x85x8 mm rotary shaft oil seal manufactured in Xingtai, China. TG oil seal adopts fully rubber coated skeleton structure, full rubber outer surface which delivers superior corrosion resistance and uniform compression inside housing bore.
This TG 70-85-8 brown NBR rotary shaft oil seal comes with spring energized sealing lip. It maintains stable sealing performance against oil leakage and abrasion. It is commonly applied for automotive gearbox, transmission and rotary shaft sealing for light duty vehicles. Max working pressure ≤0.05MPa, allowable shaft speed up to 12m/s, operating temperature -20℃ to +100℃. It is a reliable aftermarket replacement seal for automotive maintenance and repair jobs.
Key Features
- TG fully rubber coated skeleton rotary shaft oil seal, dimension 70×85×8 mm
- All rubber outer shell for anti-corrosion and tight bore installation
- Spring energized sealing lip to keep consistent contact pressure
- NBR nitrile rubber, excellent oil resistance and wear resistance
- Brand new aftermarket seal for automotive gearbox and rotary shaft repair
Material & Working Condition
Base rubber material is NBR (Nitrile Butadiene Rubber). Compatible with mineral oils and greases. Not suitable for ester oils, brake fluid and strong chemical solvents. Confirm lubricant type and operating temperature in your RFQ.
Typical Applications
Automotive gearbox, transmission, rotary shaft and light vehicle general sealing. This is an aftermarket replacement seal. Verify shaft diameter and housing bore dimension before purchase.
Installation Guide
- Clean shaft journal and housing bore thoroughly, remove old seal residue, rust, burrs and contaminants.
- Lightly lubricate sealing lip with compatible oil or grease before fitting.
- Press TG seal evenly and squarely into the bore, avoid tilting.
- Prevent scratches or nicks on rubber lip during installation; lip damage will cause oil leakage.
- After assembly, perform leak inspection before vehicle operation.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT TG 70x85x8 oil seal used for?
This TG 70×85×8 mm fully rubber coated oil seal is for automotive gearbox and rotary shaft sealing, widely used for light vehicle transmission repair and maintenance.
What is TG type oil seal?
TG oil seal is fully rubber coated skeleton rotary shaft seal with all rubber outer surface, it offers good corrosion resistance and fits tightly in housing bore for general automotive sealing.
What material is TG 70x85x8 oil seal made of?
Made of NBR nitrile rubber, provides reliable oil resistance and wear resistance. FKM, HNBR and ACM materials are available on request.
What is the temperature range for TG 70x85x8 NBR oil seal?
Working temperature range: -20℃ to +100℃, max working pressure ≤0.05MPa, maximum allowable shaft speed up to 12 m/s, compatible with mineral oil and grease.
What are the advantages of TG fully rubber coated oil seal?
TG seal full rubber outer shell prevents rusting of metal skeleton, better anti-corrosion and easier installation than metal-cased seals.
How to install TG fully rubber coated oil seal correctly?
Clean shaft and housing bore, lightly lubricate sealing lip, press seal squarely and evenly into the bore, avoid scratching the rubber lip.
What is MOQ and lead time for VKEFOT TG oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, type, quantity, destination country and working medium for accurate quotation.
