VKEFOT TB 62x82x9 mm NBR Flanged Metal Shell Half Shaft Oil Seal OEM 52810-4F400 for Automotive Axle
Model / SKU: VKEFOT-TB-62-82-9
VKEFOT TB 62x82x9 mm radial shaft oil seal, NBR nitrile rubber, flanged carbon steel metal shell with dust lip. Cross OEM 52810-4F400, used for automotive half shaft sealing. Factory direct supply from Xingtai, China. Working temperature -35℃ ~ +100℃, max pressure ≤0.05MPa, reliable dust and mud exclusion, in stock with worldwide shipping. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT TB oil seal, TB 62x82x9 half shaft oil seal, 62-82-9 NBR flanged metal shell oil seal, OEM 52810-4F400 axle oil seal, automotive half shaft seal replacement

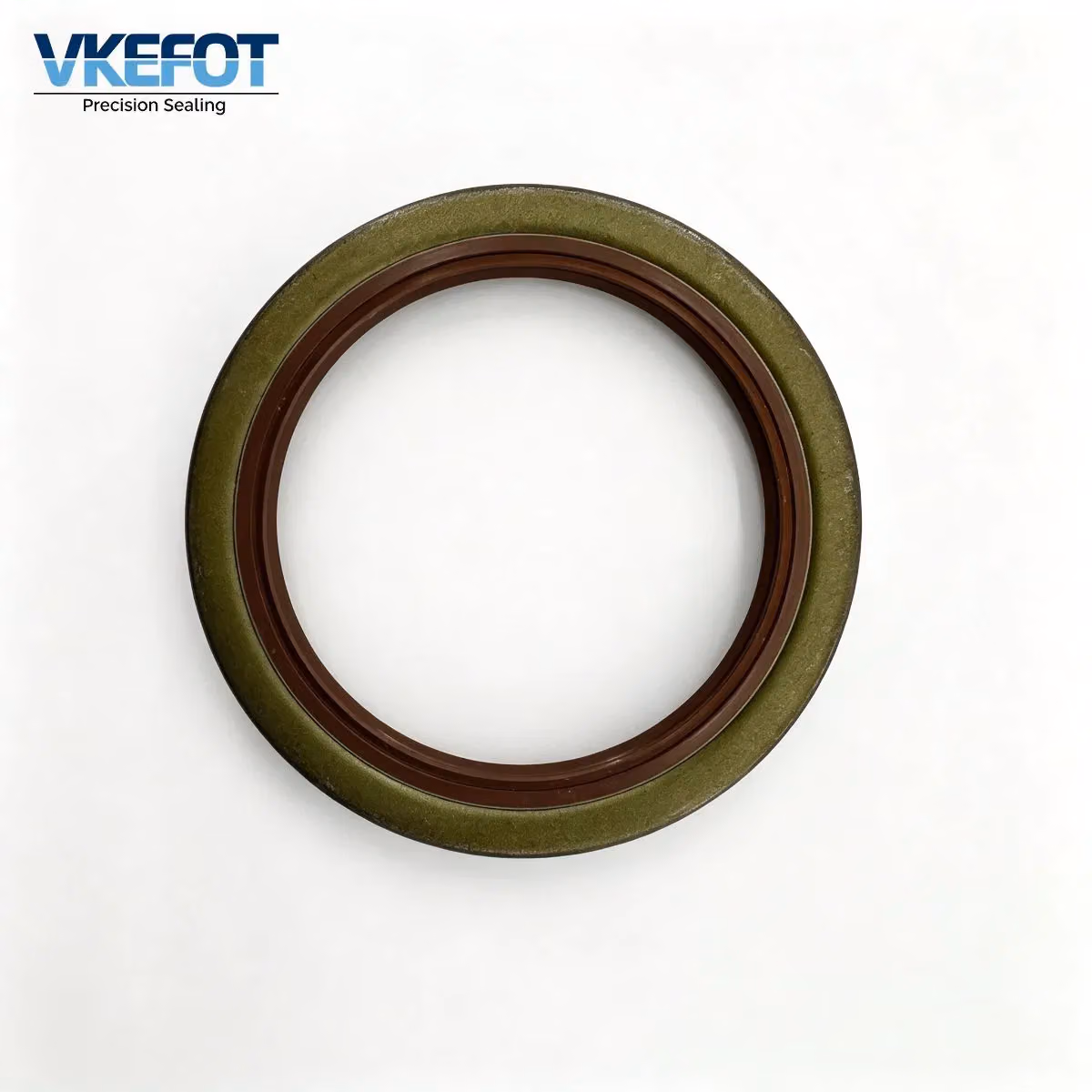

Product photos
Key specs: Inner diameter mm: 62 | Outer diameter mm: 82 | Height mm: 9 | Material: NBR | Size: 62×82×9 mm | Type: TB Oil Seal | Material: NBR Nitrile Rubber + AISI1010 Carbon Steel Shell | Structure: Flanged Metal Shell, Spring Energized Lip + Dust Lip
- Inner diameter mm: 62
- Outer diameter mm: 82
- Height mm: 9
- Material: NBR
- Size: 62×82×9 mm
- Type: TB Oil Seal
- Material: NBR Nitrile Rubber + AISI1010 Carbon Steel Shell
- Structure: Flanged Metal Shell, Spring Energized Lip + Dust Lip
- Temp Range: -35℃ ~ +100℃
- Max Pressure: ≤0.05MPa
- Max Shaft Speed: ≤12m/s
- Medium: Mineral Oil, Grease
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 62×82×9 mm |
| Type | TB Oil Seal |
| Material | NBR Nitrile Rubber + AISI1010 Carbon Steel Shell |
| Structure | Flanged Metal Shell, Spring Energized Lip + Dust Lip |
| Temp Range | -35℃ ~ +100℃ |
| Max Pressure | ≤0.05MPa |
| Max Shaft Speed | ≤12m/s |
| Medium | Mineral Oil, Grease |
| Cross OEM | 52810-4F400 |
| Application | Automotive Half Shaft, Axle Sealing |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT TB type 62x82x9 mm radial rotary shaft oil seal manufactured in Xingtai, China. TB is ISO Type5 flanged metal skeleton oil seal. The flanged carbon steel outer shell delivers axial positioning and high rigidity, resisting deformation during assembly.
This TB half shaft oil seal features spring-energized primary sealing lip plus built-in dust lip. NBR nitrile rubber maintains stable sealing performance for mineral oil and bearing grease. The dust lip blocks mud, sand and splash water to protect axle bearings. Max working pressure ≤0.05MPa, allowable shaft speed up to 12m/s, operating temperature -35℃ to +100℃. Cross reference OEM number 52810-4F400, widely used for automotive half shaft and axle overhaul, aftermarket replacement for vehicle axle maintenance.
Key Features
- TB ISO Type5 flanged metal shell radial shaft oil seal, dimension 62×82×9 mm
- Rigid AISI1010 carbon steel flange housing, anti-deformation
- Spring loaded main lip + integrated dust lip, waterproof and mudproof
- NBR nitrile rubber, compatible with mineral oils and lubricating greases
- Cross OEM 52810-4F400, aftermarket replacement for automotive half shaft sealing
Material & Working Condition
Base rubber material is NBR (Nitrile Butadiene Rubber). Compatible with mineral oils and greases. Not suitable for ester oils, brake fluid and strong chemical solvents. Confirm lubricant type and operating temperature in your RFQ.
Typical Applications
Automotive half shaft and axle rotary shaft sealing. This is an aftermarket replacement seal. Verify shaft diameter and housing bore dimension before purchase.
Installation Guide
- Clean shaft journal and housing bore thoroughly, remove old seal residue, rust, burrs and contaminants.
- Lightly lubricate sealing lip with compatible oil or grease before fitting.
- Press TB seal evenly and squarely into the bore until flange face fully sits against housing surface, avoid tilting.
- Prevent scratches or nicks on rubber lip during installation; lip damage will cause oil and grease leakage.
- After assembly, perform leak inspection before full load operation.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT TB 62x82x9 oil seal used for?
This TB 62×82×9 mm flanged metal shell oil seal is an automotive half shaft seal, cross OEM 52810-4F400, used for axle lubricant retention and protection against mud, dust and splash water.
What is TB type oil seal?
TB oil seal is ISO Type5 radial shaft seal with flanged metal outer shell, spring energized sealing lip and built-in dust lip. The flange provides axial positioning for automotive axle and half shaft applications.
What OEM number matches TB 62x82x9 half shaft oil seal?
Cross reference OEM part number: 52810-4F400, for automotive half shaft axle repair.
What is the temperature range for TB 62x82x9 NBR oil seal?
Working temperature range: -35℃ to +100℃, max working pressure ≤0.05MPa, maximum allowable shaft speed up to 12 m/s, compatible with mineral oil and grease.
What material is TB 62x82x9 oil seal made of?
NBR nitrile rubber sealing lip with AISI1010 cold rolled carbon steel flanged metal shell. FKM, HNBR and ACM materials are available on request.
Does TB 62x82x9 oil seal have dust lip?
Yes, this TB seal comes with integrated dust lip, effectively blocking mud, sand and splash water to protect axle bearings.
What are the advantages of TB flanged oil seal compared to TC seal?
TB has outer flange for axial positioning and prevents shifting during assembly; TC is plain metal shell without flange. TB is preferred for half shaft and axle sealing against mud and water.
How to install TB flanged metal shell oil seal correctly?
Clean shaft and housing bore, lightly lubricate sealing lip, press seal squarely until flange sits flat against housing surface, avoid scratching the rubber lip.
What is MOQ and lead time for VKEFOT TB oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, type, quantity, destination country and working medium for accurate quotation.
