VKEFOT TAY 85x130x22 mm Wheel Hub Rotary Shaft Oil Seal NBR Double Metal Cased for Renault Heavy Truck Axle
Model / SKU: VKEFOT-TAY-85-130-22
VKEFOT TAY 85x130x22 mm oil seal, NBR nitrile rubber, double metal cased heavy-duty cassette structure with spring energized sealing lip and integrated dust lip. Cross OEM 5000675975 for Renault truck axle. Factory direct supply from Xingtai, China. Working temperature -20℃ ~ +90℃, excellent oil and abrasion resistance, in stock with fast worldwide shipping. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT TAY oil seal, TAY 85x130x22 wheel hub seal, 85-130-22 NBR oil seal, OEM 5000675975 truck oil seal, double metal cased TAY cassette seal

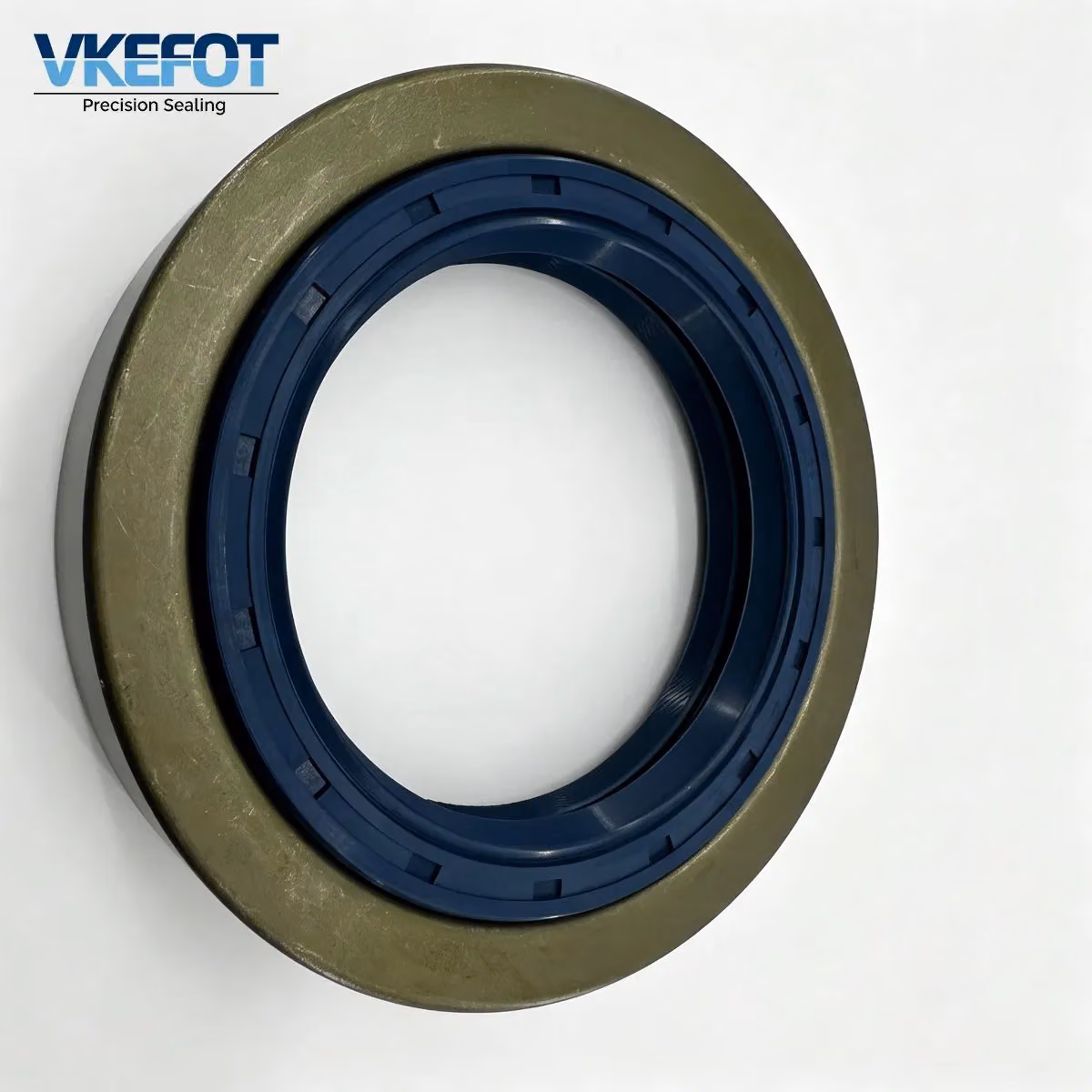

Product photos
Key specs: Inner diameter mm: 85 | Outer diameter mm: 130 | Height mm: 22 | Material: NBR | Size: 85×130×22 mm | Type: TAY Cassette Oil Seal | Material: NBR Nitrile Rubber | Structure: Double Rolled Steel Metal Casing, Spring Lip + Dust Lip
- Inner diameter mm: 85
- Outer diameter mm: 130
- Height mm: 22
- Material: NBR
- Size: 85×130×22 mm
- Type: TAY Cassette Oil Seal
- Material: NBR Nitrile Rubber
- Structure: Double Rolled Steel Metal Casing, Spring Lip + Dust Lip
- Temp Range: -20℃ ~ +90℃
- Max Pressure: 0.02MPa
- Cross OEM: 5000675975
- Application: Renault Heavy Truck Axle, Wheel Hub
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 85×130×22 mm |
| Type | TAY Cassette Oil Seal |
| Material | NBR Nitrile Rubber |
| Structure | Double Rolled Steel Metal Casing, Spring Lip + Dust Lip |
| Temp Range | -20℃ ~ +90℃ |
| Max Pressure | 0.02MPa |
| Cross OEM | 5000675975 |
| Application | Renault Heavy Truck Axle, Wheel Hub |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT TAY type 85x130x22 mm cassette rotary shaft oil seal manufactured in Xingtai, China. TAY cassette seal is a heavy-duty radial shaft seal built with double rolled steel metal casing, spring energized primary sealing lip and built-in dust lip, specially developed for heavy commercial vehicle wheel hub and axle sealing applications.
The double metal shell delivers high structural rigidity and stable press-fit inside housing bore. The NBR nitrile rubber sealing lip reliably retains mineral oil and bearing grease, while blocking mud, sand and splash water to protect wheel hub bearings. Operating temperature range -20℃ to +90℃, maximum working pressure up to 0.02MPa. Cross reference OEM number 5000675975 for Renault truck axle overhaul, widely used for heavy truck repair, fleet maintenance and vehicle rebuild projects.
Key Features
- TAY heavy-duty cassette radial shaft oil seal, dimension 85×130×22 mm
- Double rolled steel metal casing for enhanced structural stability
- Spring-loaded primary sealing lip plus built-in dust lip
- NBR nitrile rubber, excellent oil resistance and wear resistance
- Cross OEM 5000675975, aftermarket replacement for Renault heavy truck axle and wheel hub sealing
Material & Working Condition
Base rubber material is NBR (Nitrile Butadiene Rubber). Compatible with mineral oils and lubricating greases. Not suitable for ester-based oils or brake fluid. Confirm lubricant and operating temperature range in your RFQ.
Typical Applications
Heavy truck axle and wheel hub rotary shaft sealing, cross reference for Renault truck parts. This is an aftermarket replacement seal. Verify shaft diameter and housing bore dimension before purchase.
Installation Guide
- Clean shaft journal and housing bore thoroughly, remove old seal residue, rust, burrs and contaminants.
- Lightly lubricate sealing lip with compatible oil or grease before fitting.
- Use matched installation tool to press TAY seal evenly and squarely into the bore, avoid tilting.
- Prevent scratches or nicks on rubber lip during installation; lip damage will cause oil and grease leakage.
- After assembly, perform leak inspection before full load operation.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT TAY 85x130x22 oil seal used for?
This TAY 85×130×22 mm double metal cased cassette oil seal is used for heavy truck axles and wheel hubs, cross OEM 5000675975 for Renault trucks, retaining lubricant and blocking mud, dust and splash water from entering bearing chambers.
What is TAY cassette type oil seal?
TAY cassette oil seal is heavy-duty radial shaft seal with double rolled steel metal casing, spring energized main lip and built-in dust lip, widely used for heavy truck wheel hub and axle sealing.
What OEM number cross references TAY 85x130x22 oil seal?
Cross OEM part number: 5000675975, suitable for Renault heavy truck axle wheel hub overhaul.
What is the temperature range for TAY 85x130x22 NBR oil seal?
Working temperature range: -20℃ to +90℃, suitable for mineral oil and grease lubrication, max working pressure 0.02MPa.
What is the difference between TAY cassette seal and TA oil seal?
TAY is cassette double metal cased seal with reinforced lip structure optimized for truck wheel hub; TA is commonly used for gearbox and axle shaft applications.
Does TAY 85x130x22 oil seal have dust lip?
Yes, this TAY cassette oil seal is equipped with integrated dust lip, effectively blocking external dirt, sand and splash water to extend bearing service life.
How to install TAY cassette double metal cased oil seal correctly?
Clean shaft and housing bore, lightly lubricate sealing lip, use dedicated installation tool to press seal fully and squarely, avoid scratching the rubber lip.
What is MOQ and lead time for VKEFOT TAY oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, type, quantity, destination country and working medium for accurate quotation.
