VKEFOT TA 110x150x15 mm Rotary Shaft Oil Seal NBR Double Metal Cased with Dust Lip
Model / SKU: VKEFOT-TA-110-150-15
VKEFOT TA 110x150x15 mm oil seal, NBR nitrile rubber, double metal cased structure with spring loaded primary lip and integrated dust lip. Factory direct supply from Xingtai, China. Designed for heavy-duty rotary shaft sealing on truck axles, gearboxes and reducers, working temperature -20℃ ~ +90℃, excellent oil and abrasion resistance. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT TA oil seal, TA 110x150x15 rotary shaft seal, 110-150-15 NBR oil seal, double metal cased TA seal, heavy duty axle gearbox oil seal

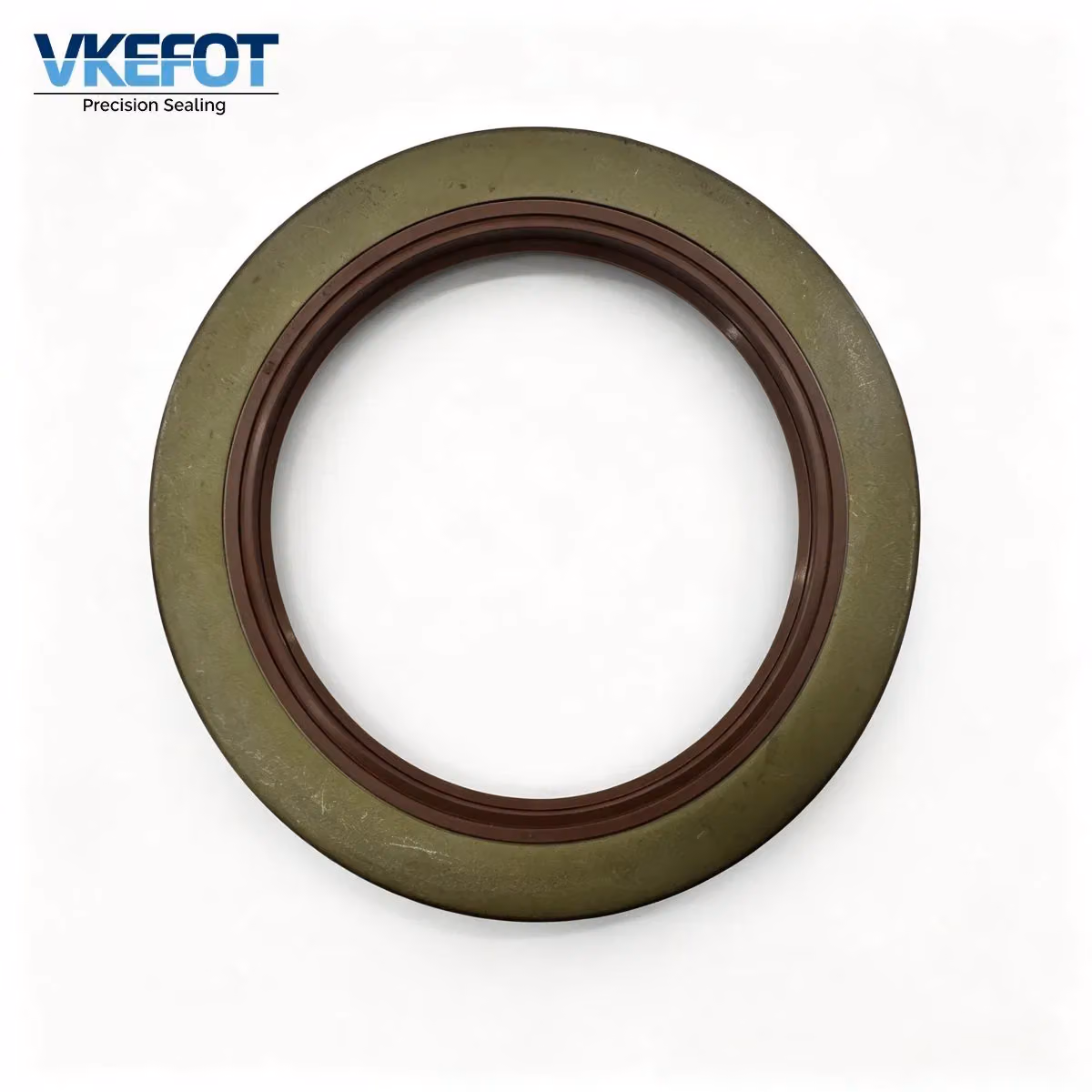

Product photos
Key specs: Inner diameter mm: 110 | Outer diameter mm: 150 | Height mm: 15 | Material: NBR | Size: 110×150×15 mm | Type: TA Oil Seal | Material: NBR Nitrile Rubber | Structure: Double Metal Cased, Spring Lip + Dust Lip
- Inner diameter mm: 110
- Outer diameter mm: 150
- Height mm: 15
- Material: NBR
- Size: 110×150×15 mm
- Type: TA Oil Seal
- Material: NBR Nitrile Rubber
- Structure: Double Metal Cased, Spring Lip + Dust Lip
- Temp Range: -20℃ ~ +90℃
- Max Pressure: 0.02MPa
- Application: Truck Axle, Gearbox, Reducer
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 110×150×15 mm |
| Type | TA Oil Seal |
| Material | NBR Nitrile Rubber |
| Structure | Double Metal Cased, Spring Lip + Dust Lip |
| Temp Range | -20℃ ~ +90℃ |
| Max Pressure | 0.02MPa |
| Application | Truck Axle, Gearbox, Reducer |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT TA type 110x150x15 mm rotary shaft oil seal manufactured in Xingtai, China. TA style is a heavy-duty radial shaft seal built with double rolled steel metal casing, spring energized primary sealing lip and built-in dust lip for harsh working environments.
The dual metal shell delivers high rigidity and stable press-fit inside housing bore, suitable for large-size and rough bore assembly. NBR nitrile rubber provides reliable sealing against mineral oil and grease, resisting dust, mud and splash water ingress. Operating temperature range -20℃ to +90℃, maximum working pressure up to 0.02MPa. Widely used for heavy truck axles, transmission gearboxes, reducers and construction machinery rotary shaft overhaul and fleet maintenance projects.
Key Features
- TA heavy-duty radial shaft oil seal, dimension 110×150×15 mm
- Double metal cased rolled steel structure for enhanced structural stability
- Spring-loaded primary sealing lip plus integrated dust lip
- NBR nitrile rubber, good oil resistance and wear resistance for medium temperature applications
- Aftermarket replacement for truck axle, gearbox and reducer sealing
Material & Working Condition
Base rubber material is NBR (Nitrile Butadiene Rubber). Compatible with mineral oils and lubricating greases. Not recommended for ester-based oils or brake fluid. Confirm lubricant and operating temperature range in your RFQ.
Typical Applications
Heavy truck axle, gearbox, speed reducer and rotary shaft sealing. This is an aftermarket replacement seal. Verify shaft diameter, housing bore dimension before purchase.
Installation Guide
- Clean shaft journal and housing bore thoroughly, remove old seal residue, rust, burrs and contaminants.
- Lightly lubricate sealing lip with compatible oil or grease before fitting.
- Use matched installation tool to press TA seal evenly and squarely into the bore, avoid tilting.
- Prevent scratches or nicks on rubber lip during installation; lip damage will cause oil leakage.
- After assembly, perform leak inspection before full load operation.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT TA 110x150x15 oil seal used for?
This TA 110×150×15 mm double metal cased oil seal is used for heavy-duty truck axles, gearboxes and reducers, retaining lubricant and blocking dust, mud and splash water from entering bearing chambers.
What is TA type oil seal?
TA oil seal is a heavy-duty radial shaft seal with double rolled steel metal casing, spring energized main lip and built-in dust lip. It has higher rigidity than TC seal for large bore and harsh environment applications.
What is the temperature range for TA 110x150x15 NBR oil seal?
Working temperature range: -20℃ to +90℃, suitable for mineral oil and grease lubrication, max working pressure 0.02MPa.
What is the difference between TA and TC oil seal?
TA adopts double metal casing for stronger rigidity and better stability in rough housing bore; TC uses single metal shell. TA is preferred for heavy-duty axle and large size rotary shaft sealing.
Does TA 110x150x15 oil seal come with dust lip?
Yes, this TA oil seal is equipped with integrated dust lip, effectively blocking external dirt, sand and splash water to extend service life.
How to install TA double metal cased oil seal correctly?
Clean shaft and housing bore, lightly lubricate sealing lip, use dedicated installation tool to press seal fully and squarely, avoid scratching the rubber lip.
What is MOQ and lead time for VKEFOT TA oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, type, quantity, destination country and working medium for accurate quotation.
