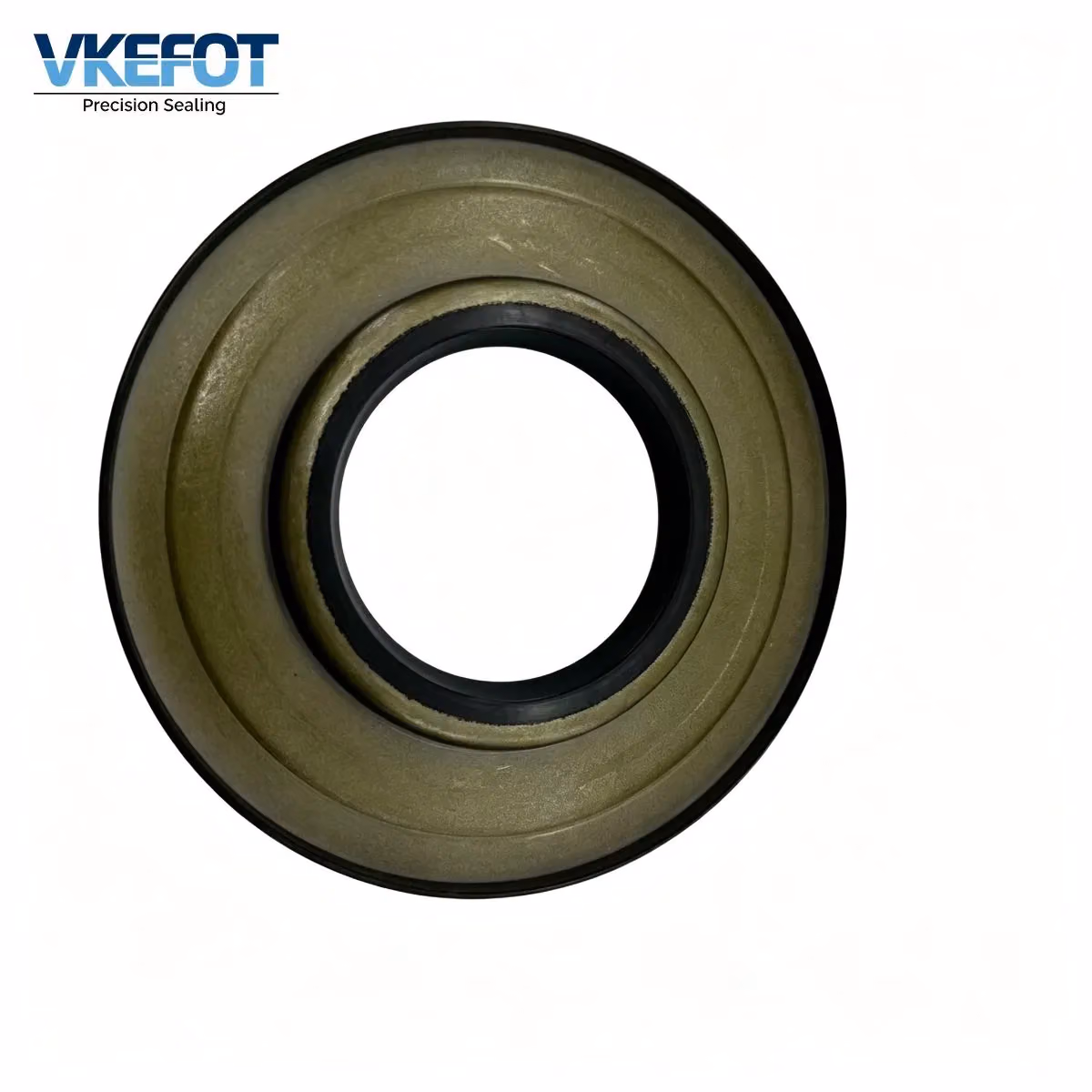

VKEFOT SCY 56x122x8/10.5 mm Wheel Hub Oil Seal OEM 1-09625331-2 for Isuzu Truck
Model / SKU: VKEFOT-SCY-56-122-8-10.5-1-09625331-2
VKEFOT SCY 56x122x8/10.5 mm wheel hub oil seal, OEM 1-09625331-2, NBR rubber. Factory direct supply from Xingtai, China. Heavy-duty SCY shaft seal for Isuzu truck wheel hub repair, in stock with fast worldwide shipping. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT SCY wheel hub oil seal, 1-09625331-2 Isuzu truck seal, 56x122x8 10.5mm SCY oil seal, Isuzu truck wheel hub seal, NBR SCY type shaft oil seal
Product photos
Key specs: Inner diameter mm: 56 | Outer diameter mm: 122 | Height mm: 8/10.5 | Material: NBR | Size: 56×122×8/10.5 mm | Type: SCY Wheel Hub Oil Seal | OEM: 1-09625331-2 | Fit: Isuzu Truck Wheel Hub
- Inner diameter mm: 56
- Outer diameter mm: 122
- Height mm: 8/10.5
- Material: NBR
- Size: 56×122×8/10.5 mm
- Type: SCY Wheel Hub Oil Seal
- OEM: 1-09625331-2
- Fit: Isuzu Truck Wheel Hub
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 56×122×8/10.5 mm |
| Type | SCY Wheel Hub Oil Seal |
| Material | NBR |
| OEM | 1-09625331-2 |
| Fit | Isuzu Truck Wheel Hub |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT SCY type 56x122x8/10.5 mm wheel hub oil seal with OEM cross reference 1-09625331-2, manufactured in Xingtai, China. This aftermarket SCY oil seal is specially built for Isuzu truck wheel hub assembly.
This SCY structure oil seal adopts stamped metal outer shell and high-quality NBR rubber sealing lip. It locks lubricating grease inside the wheel hub bearing chamber and prevents mud, water, sand and road contaminants from entering the bearing. The robust NBR compound delivers good oil resistance and wear resistance, stable performance under frequent road vibration and temperature fluctuation for light and medium duty Isuzu truck maintenance.
Key Features
- SCY type wheel hub oil seal for Isuzu truck
- Cross OEM number 1-09625331-2
- Stamped metal shell with NBR rubber sealing lip
- Mud & water exclusion design for wheel hub application
- In stock, fast shipping for truck repair and fleet maintenance
Material & Working Condition
Base rubber material is NBR. Confirm compatibility with your hub grease and operating temperature range in your RFQ.
Typical Applications
Isuzu truck wheel hub sealing. This is an aftermarket replacement seal. Verify shaft diameter, housing bore dimension and OEM part number before purchase.
Installation Guide
- Clean spindle and hub bore completely, remove old seal residue, rust, burrs and dirt.
- Lightly coat sealing lip with compatible hub grease before installation.
- Use matched installation tool, press seal evenly and perpendicularly into hub bore, avoid tilting.
- Do not scratch the rubber lip during pressing; lip damage causes grease leakage.
- After assembly, check for leaks and free rotation of wheel hub before road test.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT SCY 56x122x8/10.5 oil seal used for?
This SCY wheel hub oil seal OEM 1-09625331-2 is used for Isuzu truck wheel hub, retaining bearing grease and blocking mud and water from entering wheel bearings.
What OEM part number for this Isuzu truck hub seal?
Cross OEM 1-09625331-2. Always compare dimension and OEM number with your original seal before ordering.
What is SCY type oil seal?
SCY oil seal is a heavy-duty wheel hub seal with special metal shell profile, widely adopted for truck wheel hub sealing to resist mud and splash water.
What material is SCY 1-09625331-2 oil seal?
This SCY wheel hub oil seal is made of NBR rubber, offering good wear and grease resistance for medium-duty truck wheel hubs.
How to install SCY wheel hub oil seal for Isuzu truck?
Clean spindle and hub bore, apply thin grease on lip, use dedicated tool to press seal straightly, avoid damaging the sealing lip.
What is MOQ and lead time for VKEFOT SCY oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, OEM number, quantity, destination country and working medium for accurate quotation.
