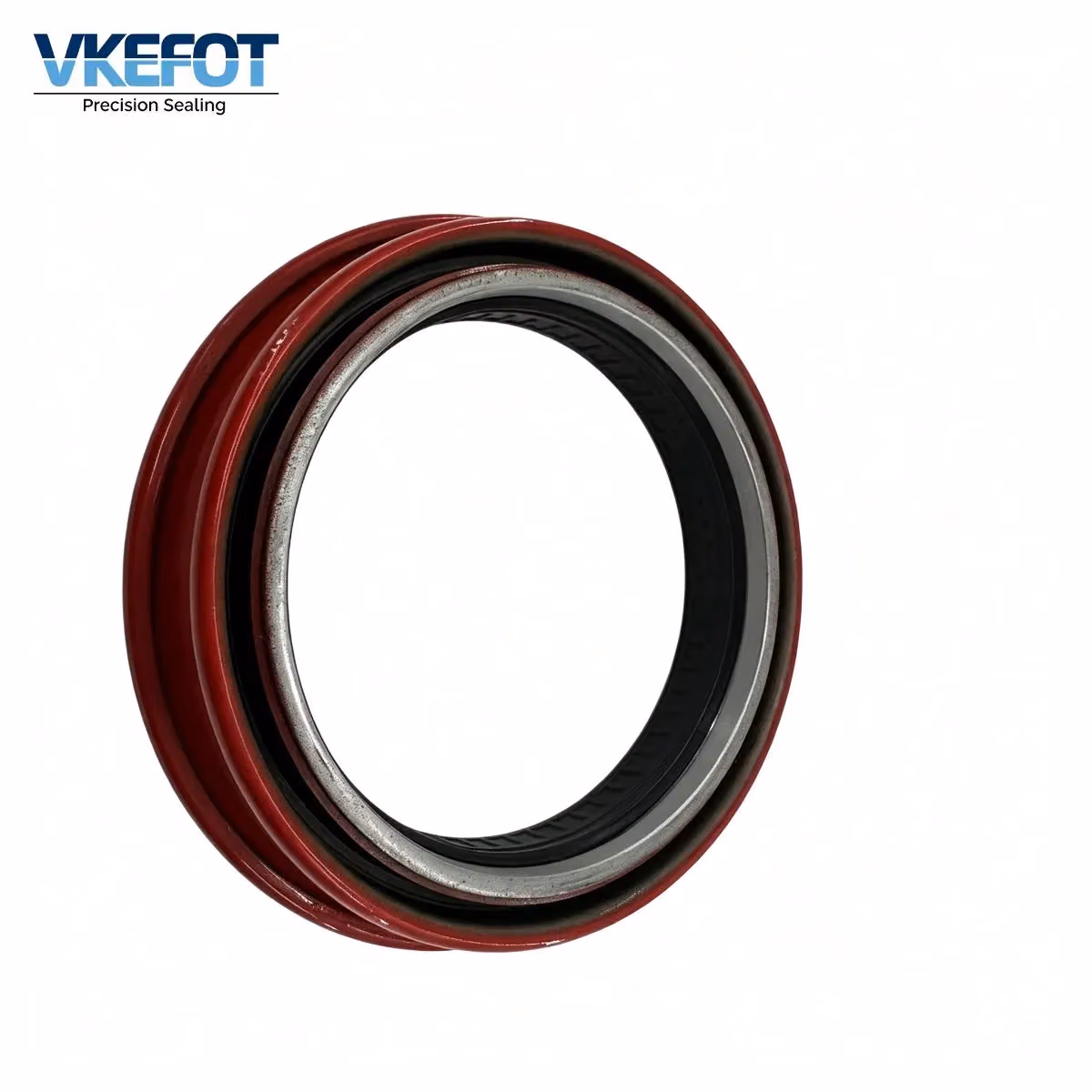

VKEFOT A1205-R-2592 82.5x108x20 mm FKM Pinion Input Shaft Axle Oil Seal for Meritor Heavy Truck
Model / SKU: VKEFOT-A1205-R-2592-82.5-108-20
VKEFOT 82.5x108x20 mm FKM pinion input shaft axle oil seal, OEM A1205-R-2592 (A1205R2592), factory direct from Xingtai, China. This aftermarket replacement seal fits Meritor heavy truck axles, delivering excellent high temperature and oil resistance for differential pinion sealing. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT A1205-R-2592 oil seal, 82.5x108x20 truck axle seal, FKM pinion input shaft seal, A1205R2592 Meritor axle replacement seal, heavy truck differential pinion oil seal
Product photos
Key specs: Inner diameter mm: 82.5 | Outer diameter mm: 108 | Height mm: 20 | Material: FKM | Size: 82.5×108×20 mm | Type: Pinion Input Shaft Axle Oil Seal | OEM: A1205-R-2592 | Fit: Meritor Heavy Truck Axle RD20-145 RD23-160
- Inner diameter mm: 82.5
- Outer diameter mm: 108
- Height mm: 20
- Material: FKM
- Size: 82.5×108×20 mm
- Type: Pinion Input Shaft Axle Oil Seal
- OEM: A1205-R-2592
- Fit: Meritor Heavy Truck Axle RD20-145 RD23-160
- specifications: A1205R2592
- Size: A1205R2592
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 82.5×108×20 mm |
| Type | Pinion Input Shaft Axle Oil Seal |
| Material | FKM |
| OEM | A1205-R-2592 |
| Fit | Meritor Heavy Truck Axle RD20-145 RD23-160 |
| Size | A1205R2592 |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT 82.5x108x20 mm pinion input shaft axle oil seal made of FKM fluororubber, OEM reference A1205-R-2592, manufactured in Xingtai, China. This heavy-duty red coated integrated axle seal is an aftermarket replacement for Meritor RD20-145, RD23-160 and similar heavy truck differential input shaft applications.
This red painted integrated pinion seal adopts multi-lip sealing construction. It retains axle gear lubricant inside the differential housing and blocks external contaminants including water, mud, grit and dust from invading the axle assembly. FKM fluororubber provides outstanding high temperature resistance, oil resistance and wear resistance for heavy-load commercial truck operating conditions.
Key Features
- Heavy-duty integrated pinion input shaft axle seal
- FKM fluororubber for superior high temperature and oil resistance
- Multi-lip sealing system for oil retention and heavy-duty dust exclusion
- OEM reference A1205-R-2592 for Meritor heavy truck axle aftermarket replacement
- Red painted metal shell for corrosion resistance and long service life under harsh working environments
Material & Working Condition
Base material is FKM. Confirm compatibility with your lubricant and operating temperature range in your RFQ.
Typical Applications
Heavy truck Meritor differential pinion and front differential input shaft axle sealing. This is an aftermarket replacement seal. Verify shaft diameter, housing bore dimension and OEM part number before purchase.
Installation Guide
- Clean shaft and housing thoroughly, remove old seal residue, burrs, rust and debris.
- Lightly lubricate sealing surfaces with compatible lubricant before installation.
- Use matched installation tool, apply even perpendicular force only on the outer metal shell, avoid striking inner rubber lips.
- Keep the seal fully level during pressing; scratches or distortion will cause premature leakage.
- After installation, check free rotation of the assembly before equipment startup.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT A1205-R-2592 oil seal used for?
This 82.5x108x20 mm FKM pinion input shaft oil seal is an aftermarket replacement for Meritor heavy truck axles, designed for differential pinion sealing, preventing gear oil leakage and blocking mud, water and dust.
What material is A1205-R-2592 Meritor axle seal?
This oil seal is made of FKM / FPM fluororubber. Check compatibility with your gear lubricant and operating temperature before ordering.
Which Meritor axles fit A1205-R-2592 seal?
It is commonly used for Meritor RD20-145, RD23-160 and similar heavy-duty rear axle / front differential input shaft applications. Please verify OEM number and axle specs before ordering.
How to install Meritor pinion input shaft oil seal correctly?
Clean shaft and housing, lubricate sealing surface, use matched installation tool, apply even force only on outer shell, avoid tilting or striking inner lips. Check free rotation after assembly.
What is MOQ and lead time for VKEFOT A1205-R-2592 oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, OEM number, quantity, destination country and working medium for accurate quotation.
