VKEFOT OEM 429-0011 82.5x140x18 mm FKM FPM Differential Pinion Cassette Oil Seal, Wheel Unitized Seal
Model / SKU: VKEFOT-429-0011-82.5-140-18
VKEFOT 82.5x140x18 mm FKM FPM unitized cassette wheel seal with OEM 429-0011, factory direct from Xingtai, China. This heavy-duty differential pinion oil seal delivers excellent high temperature and wear resistance for truck axle sealing. Send RFQ with quantity and destination for quotation.
Tags: VKEFOT 429-0011 cassette seal, 82.5x140x18 oil seal, FKM FPM unitized wheel seal, differential pinion oil seal, heavy truck axle cassette seal

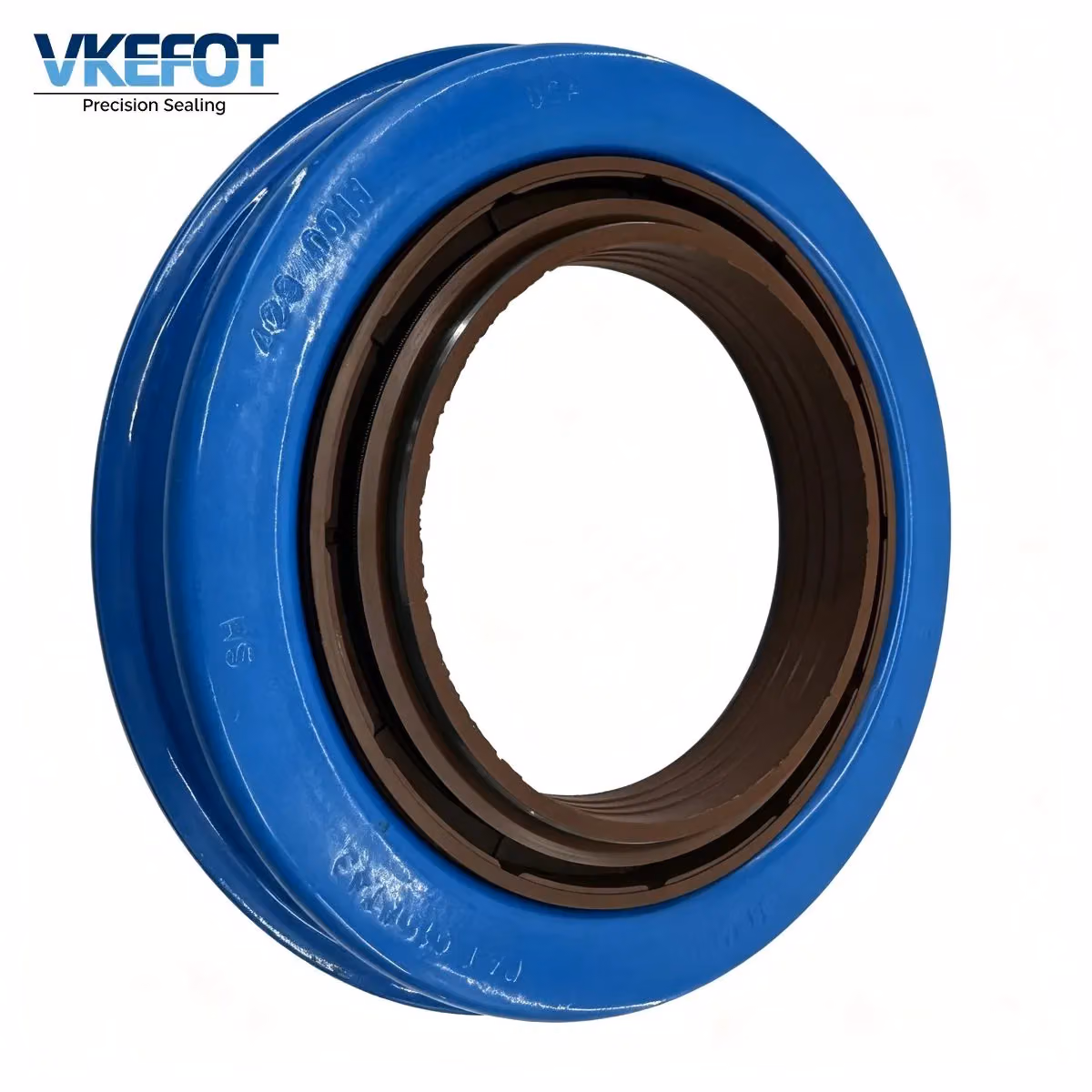

Product photos
Key specs: Inner diameter mm: 82.5 | Outer diameter mm: 140 | Height mm: 18 | Material: FKM | Size: 82.5×140×18 mm | Type: Cassette Unitized Wheel Seal | OEM: 429-0011 | specifications: Differential Pinion Oil Seal｜FPM
- Inner diameter mm: 82.5
- Outer diameter mm: 140
- Height mm: 18
- Material: FKM
- Size: 82.5×140×18 mm
- Type: Cassette Unitized Wheel Seal
- OEM: 429-0011
- specifications: Differential Pinion Oil Seal｜FPM
- Size: Differential Pinion Oil Seal｜FPM
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 82.5×140×18 mm |
| Type | Cassette Unitized Wheel Seal |
| Material | FKM |
| OEM | 429-0011 |
| Size | Differential Pinion Oil Seal｜FPM |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT 82.5x140x18 mm unitized cassette wheel oil seal made of FKM (FPM) material, OEM reference number 429-0011, manufactured in Xingtai, China. This heavy-duty integrated cassette seal is designed for differential pinion and wheel axle applications on commercial vehicles and heavy trucks.
This unitized cassette seal adopts multi-lip integrated structure. It combines oil retention and dust exclusion in one assembly, protecting axle bearings from lubricant leakage and external contaminants including mud, water and dust. FKM / FPM fluororubber provides outstanding high-temperature resistance, oil resistance and wear resistance under heavy load conditions.
Key Features
- Integrated cassette unitized wheel seal construction
- FKM (FPM) fluororubber for high temp and oil resistance
- Multi-lip sealing system against oil leakage, water and mud ingress
- OEM reference 429-0011 for heavy truck axle replacement
- Robust heavy-duty design for long service life
Material & Working Condition
Base material is FKM (FPM). Confirm compatibility with your lubricant and operating temperature range in your RFQ.
Typical Applications
Heavy truck wheel axle and differential pinion sealing. This is an aftermarket replacement seal. Verify shaft diameter, housing bore dimension and OEM part number before purchase.
Installation Guide
- Clean shaft and housing thoroughly, remove old seal residue, burrs, rust and debris.
- Lightly lubricate sealing surfaces with compatible lubricant before installation.
- Use matched installation tool, apply even perpendicular force only on the outer metal shell, avoid striking inner rubber lips.
- Keep the seal fully level during pressing; scratches or distortion will cause premature leakage.
- After installation, check free rotation of the assembly before equipment startup.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of rotary shaft oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT 429-0011 cassette oil seal used for?
This 82.5x140x18 mm FKM unitized cassette seal is used for heavy truck differential pinion and wheel axle sealing, preventing oil leakage and blocking mud, water and dust.
What material is 429-0011 wheel cassette seal?
This oil seal is made of FKM / FPM fluororubber. Check compatibility with your lubricant and operating temperature before ordering.
How to install unitized cassette wheel oil seal correctly?
Clean shaft and housing, lubricate sealing surface, use matched installation tool, apply even force only on outer shell, avoid tilting or striking inner lips. Check rotation after assembly.
What is MOQ and lead time for VKEFOT 429-0011 oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, quantity, destination country and working medium for accurate quotation.
