VKEFOT 235x265x15 mm Dedicated Shaft Oil Seal, Heavy Duty Rotary Shaft Seal
Model / SKU: VKEFOT-OS-235-265-15
VKEFOT 235x265x15 mm dedicated rotary shaft oil seal, factory direct from Xingtai, China. Designed for reliable shaft sealing, it retains lubricant and blocks dust and contaminants. Submit RFQ with quantity and destination for quotation.
Tags: VKEFOT oil seal, 235x265x15 oil seal, heavy duty shaft seal, rotary shaft oil seal, industrial oil seal

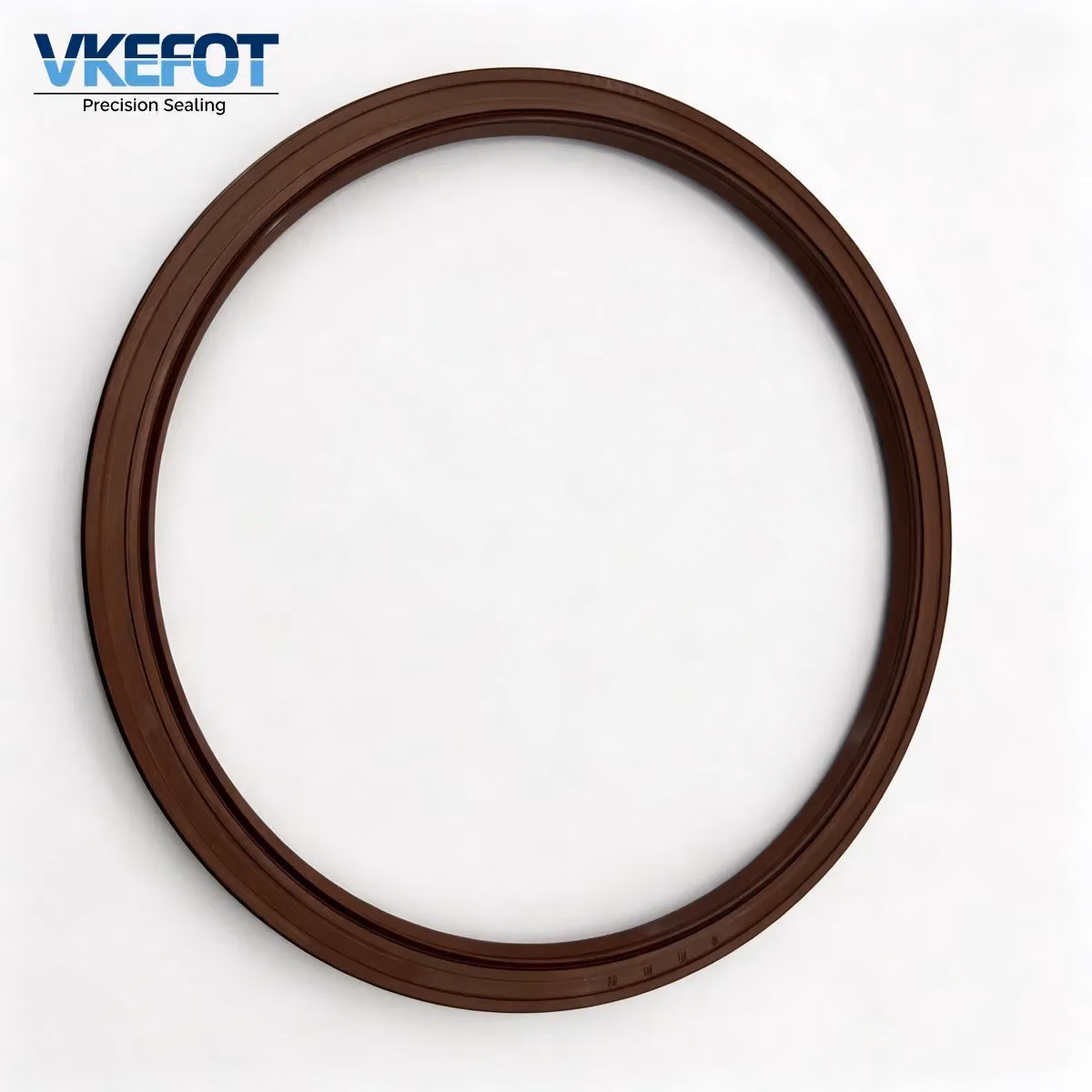

Product photos
Key specs: Inner diameter mm: 235 | Outer diameter mm: 265 | Height mm: 15 | Size: 235×265×15 mm | Type: Dedicated rotary shaft oil seal
- Inner diameter mm: 235
- Outer diameter mm: 265
- Height mm: 15
- Size: 235×265×15 mm
- Type: Dedicated rotary shaft oil seal
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size | 235×265×15 mm |
| Type | Dedicated rotary shaft oil seal |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: 100–5000 pcs | Lead Time:7–15 working days
Product details
VKEFOT 235x265x15 mm dedicated rotary shaft oil seal, manufactured in Xingtai, China. This heavy-duty oil seal is built for rotary shaft sealing applications, keeping lubricant inside the equipment and preventing dust and debris from entering the shaft chamber.
Key Features
- Stable sealing performance for continuous rotary shaft operation
- Good oil resistance and wear resistance for long service life
- Precision metal skeleton for secure press-fit installation
- Maintains consistent lip pressure under operating vibration
Material & Working Condition
Multiple rubber compound options available. Choose suitable material according to lubricant type and operating temperature. Confirm material selection in your RFQ.
Typical Applications
Suitable for heavy equipment rotary shaft sealing. This is an aftermarket replacement seal. Verify shaft diameter and housing bore dimension before purchase.
Installation Guide
- Fully clean shaft and housing surface, remove old seal residue, burrs and debris.
- Lubricate sealing lip with compatible lubricant before installation.
- Use dedicated installation sleeve, apply even perpendicular force only on outer metal shell, avoid striking the rubber sealing lip.
- Do not tilt the seal during pressing; scratches on sealing lip will cause early leakage.
- After installation, manually rotate the shaft to confirm smooth movement before putting equipment into service.
Packaging & Shipment
- Standard packing：neutral plastic bags + export cartons, packing quantity adjustable as requested.
Samples are available for standard stocked sizes; sample freight cost confirmed during RFQ.
VKEFOT is a professional manufacturer of heavy-duty oil seals and custom rubber sealing components in Xingtai, China. Our products are exported to Europe, North America, Middle East and Southeast Asia. Send RFQ including seal size, quantity, destination country and working medium for formal quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is VKEFOT 235x265x15 oil seal used for?
This VKEFOT dedicated oil seal is used for heavy equipment rotary shaft sealing. It retains lubricant and keeps dust and contaminants out of the shaft chamber.
What material options are available for this 235x265x15 oil seal?
Multiple rubber compound options are available. Select the proper material based on lubricant type and operating temperature. Specify your requirement in RFQ.
How to install VKEFOT heavy duty shaft oil seal correctly?
Clean shaft and housing, lubricate sealing lip, use installation sleeve, apply even force only on outer metal shell, avoid tilting or striking rubber lip. Rotate shaft manually after assembly.
What is MOQ and lead time for VKEFOT 235x265x15 oil seal?
MOQ:100–5000 pcs, lead time:7–15 working days. Final quantity and delivery time confirmed on formal quotation.
Can I get material test data for VKEFOT oil seals?
You may ask for material test data when sending your RFQ.
What information should I provide for RFQ to VKEFOT?
Please provide seal dimension, quantity, destination country and working medium for accurate quotation.
