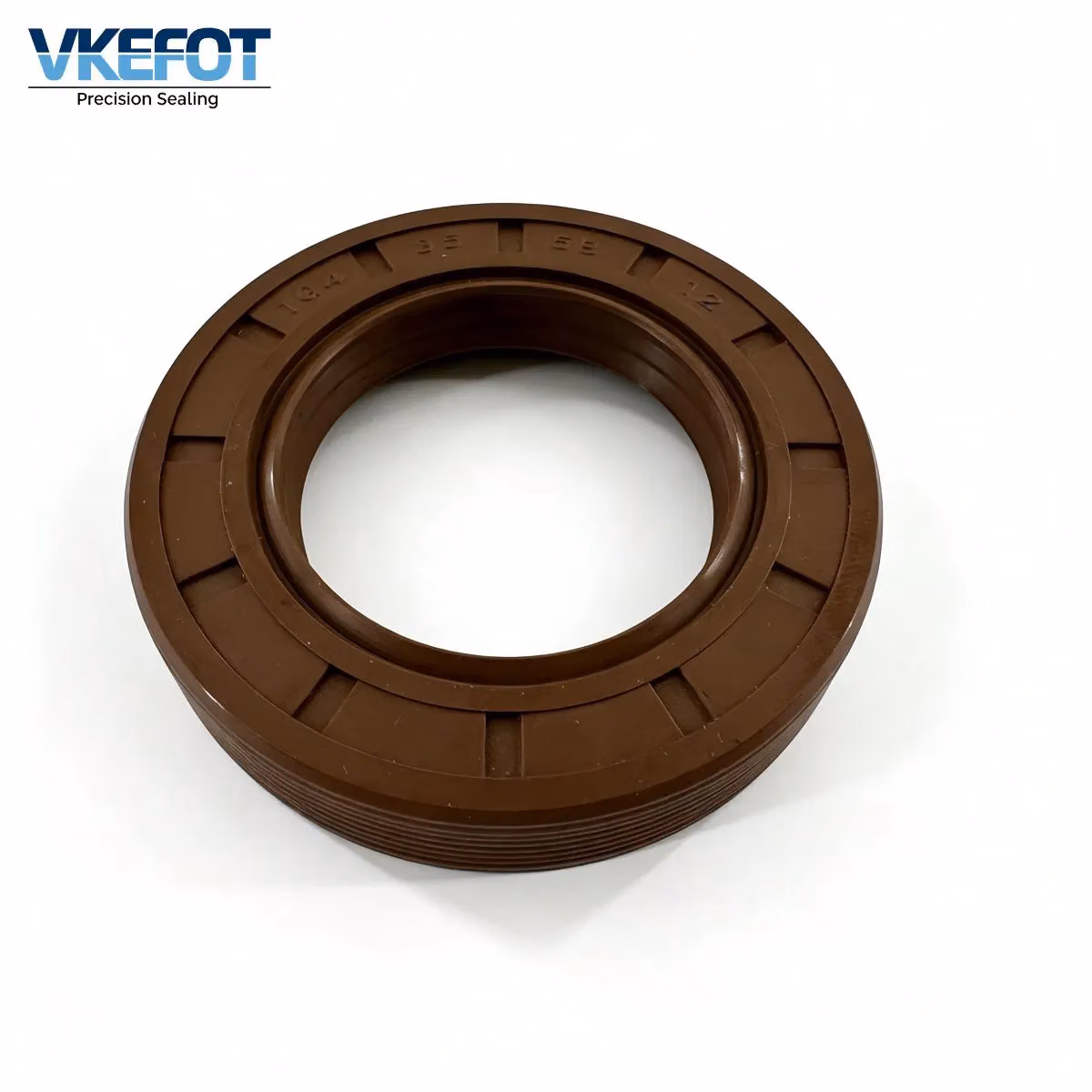

TG4 35x58x12mm NBR Brown High Pressure Oil Seal
Model / SKU: VKEFOT-TG4-35-58-12-NBR
This aftermarket TG4 oil seal 35x58x12mm in brown NBR high pressure double lip seal.
Tags: 35x58x12mm TG4 oil seal, high pressure rotary shaft seal, brown NBR transmission seal, triple lip garter spring, aftermarket oil seal
Product photos
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size (mm) | 35x58x12 |
| Material | NBR |
| Structure | TG4 type high pressure corrugated OD triple lip oil seal with garter spring |
| Size | 35x58x12mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: In stock: ships in 1 to 2 days | Not in stock but still in current production: 10 to 15 days | Not in stock and not in production: 25 to 30 days
Product details
This aftermarket TG4 high pressure oil seal measures 35mm inner diameter, 58mm outer diameter and 12mm in height, manufactured in brown NBR nitrile rubber. It features a corrugated outer diameter, triple-lip design with garter spring and an internal steel skeleton, engineered for medium-pressure rotary shaft applications.
Importers, wholesalers and MRO buyers can submit RFQ with dimension, quantity, destination and working medium for a formal quotation.
Features & Benefits
The TG4 triple-lip design provides enhanced sealing under medium system pressure compared to standard TG seals, with a short, rigid lip profile that resists inversion.
Corrugated outer diameter resists seal rotation under vibration and accommodates thermal expansion differences between seal and housing.
Triple lip configuration: primary lip retains oil under pressure, secondary lip blocks dust and contaminants, and a third lip adds redundant sealing for heavy-duty service.
Brown NBR nitrile rubber offers good oil resistance and wear resistance, compatible with gear oils, engine oils and standard lubricants.
Internal steel skeleton with full rubber coating provides structural rigidity and reliable static sealing in the housing bore.
Standard 35x58x12mm dimensions match common TG4 housings used in transmissions, rear axles and rotary shaft applications.
This is an aftermarket replacement seal. Always verify shaft diameter, housing bore, system pressure and application before ordering.
Factory standard options are available for marking and packaging; confirm all requirements on RFQ.
Material & Process
- Sealing lip：NBR (nitrile butadiene rubber), brown
- Reinforcement：internal steel skeleton with full rubber coating
- Spring：carbon steel garter spring
- Pressure rating：suitable for medium pressure rotary applications; confirm system pressure with RFQ.
Confirm compound grade with RFQ for high-temperature applications.
Compatible fluids: gear oil, engine oil, standard lubricants
Packaging & Delivery
Standard packaging: neutral polybag per piece, packed in export cartons.
Samples and small trial lots are available for stocked sizes; sample freight confirmed on RFQ.
Send an inquiry with size (ID×OD×height in mm), quantity, destination country and duty for a firm lead time.
FAQ
What is a TG4 35x58x12mm high pressure oil seal used for?
TG4 35x58x12mm brown NBR high pressure triple-lip rotary shaft seal is used for transmissions, rear axles and rotary shaft applications where medium system pressure is present, retaining lubricants and blocking contaminants.
What are the full specifications of this 35x58x12mm TG4 seal?
Size: 35mm inner diameter, 58mm outer diameter, 12mm height. Material: brown NBR with internal steel skeleton and garter spring. Triple-lip design with corrugated OD.
What is the difference between TG and TG4 oil seals?
TG4 features a triple-lip design with a shorter, more rigid lip profile that resists inversion under medium pressure, while standard TG uses double lips for near-zero pressure rotary applications. TG4 is suited for transmission and rear axle applications with pressure loading.
Is this 35x58x12mm TG4 oil seal a genuine OEM part?
No — it is an aftermarket replacement seal. Always verify dimensions, housing bore and system pressure before purchasing.
How to install 35x58x12mm TG4 high pressure oil seal without leakage?
1. Clean shaft and housing bore thoroughly. 2. Lubricate lips and shaft with compatible oil; do not install dry. 3. Press seal evenly with a proper tool, keeping it perpendicular. 4. Do not hammer the seal; protect corrugated outer surface. 5. Run under low pressure first and check for leakage.
What is the MOQ and lead time for TG4 35x58x12mm oil seals?
This SKU quantity confirmed on quotation. Samples are available for stocked sizes.
What information should I send for an RFQ on this TG4 oil seal?
Submit ID×OD×height in mm, system pressure, quantity, destination country, working medium and any custom requirements for a formal quotation.
Do you support custom logo and export packaging for this seal?
Factory standard options are available for marking and packaging.
