TG 84x104x8mm NBR Oil Seal OE 12279-0M300 Crankshaft

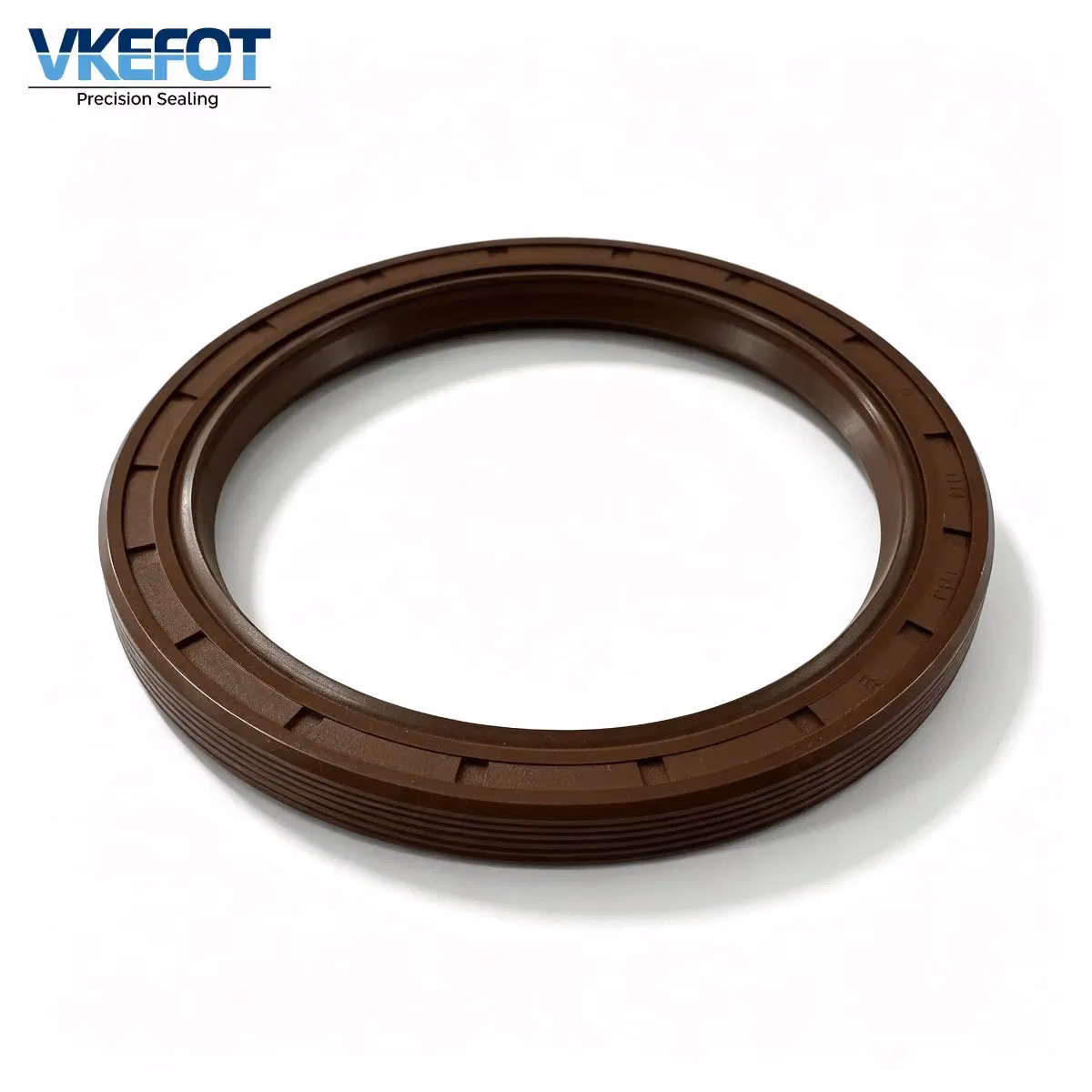

This aftermarket TG corrugated outer diameter oil seal measures 84mm inner diameter, 104mm outer diameter and 8mm in height, manufactured in brown NBR nitrile rubber. It features a corrugated outer diameter, double-lip design with garter spring and an internal steel skeleton, designed as rear crankshaft seal for Nissan engines.

Importers, wholesalers and auto repair distributors can submit RFQ with dimension, OE number, quantity, destination and working medium for a formal quotation. Standard production Lead Time is 7–15 days.

Features & Benefits

The corrugated outer diameter resists seal rotation under engine vibration and accommodates thermal expansion between seal and aluminum crankcase, reducing leakage risk at the rear main bearing.
Double lip design with garter spring maintains uniform radial contact pressure on the crankshaft; the primary lip retains engine oil while the secondary lip blocks dust and moisture.
Brown NBR nitrile rubber offers good oil resistance and wear resistance, compatible with engine oils and standard lubricants under typical operating temperatures.
Internal steel skeleton with full rubber coating provides structural rigidity and reliable static sealing in the crankcase bore.
Standard 84x104x8mm dimensions match common Nissan rear crankshaft seal housings referencing OE 12279-0M300.
This is an aftermarket replacement seal matching OE 12279-0M300, not a genuine OEM part. Always verify shaft diameter, housing bore and OE number before ordering.

• MOQ：Depends on spec; typically 100–5,000 pcs. Lead Time: 7–15 days. This SKU quantity confirmed on quotation.
  Factory standard options are available for marking and packaging; confirm all requirements on RFQ.

Material & Process

• Sealing lip：NBR (nitrile butadiene rubber), brown
• Reinforcement：internal steel skeleton with full rubber coating
• Spring：carbon steel garter spring
  Continuous working temperature: -30°C to +100°C; short-term peak up to +120°C. Confirm compound grade with RFQ for high-temperature applications.
  Compatible fluids: engine oil, mineral oil, standard lubricants

Applications & Compatibility

Matched as rear crankshaft oil seal for Nissan engines referencing OE 12279-0M300. Cross reference numbers 12279-AD205, 12279-1N510 and 12279-1N500 are commonly listed. Verify engine model before purchase.
Aftermarket replacement. Verify shaft diameter, housing bore and OE number before order.

Selection & Installation

Selection Tips

Confirm crankshaft ID 84mm, crankcase bore OD 104mm and seal height 8mm. Cross reference OE 12279-0M300 and match NBR material to your engine oil type.

Installation Steps

1. Thoroughly clean the crankshaft and crankcase bore; remove all burrs, old seal residue, rust and contamination.
2. Lightly lubricate the sealing lips and crankshaft with engine oil. Do not install dry.
3. Press the seal evenly into the housing using a proper installation tool, keeping it perfectly perpendicular to the bore.
4. Do not strike the rubber lip or hammer directly on the seal. Protect the corrugated outer surface from damage.
5. After assembly, rotate the crankshaft by hand to check for binding, then inspect for oil leakage during initial test run.

Packaging & Delivery

Standard packaging: neutral polybag per piece, packed in export cartons. Typically 100–300 pcs per carton, adjustable on request.

• Lead Time：7–15 days for this standard spec. MOQ: Depends on spec; typically 100–5,000 pcs; this SKU quantity confirmed on quotation.
  Samples and small trial lots are available for stocked sizes; sample freight confirmed on RFQ.
  Send an inquiry with size (ID×OD×height in mm), OE number, quantity, destination country and duty for a firm lead time.
