TG 32x52x7mm NBR Rubber Coated Oil Seal Rotary Shaft
Model / SKU: VKEFOT-TG-32-52-7-NBR
This aftermarket TG oil seal 32x52x7mm in NBR with corrugated OD for rotary shafts.
Tags: 32x52x7mm TG oil seal, corrugated OD oil seal, NBR rotary shaft seal, double lip garter spring, brown rubber covered seal

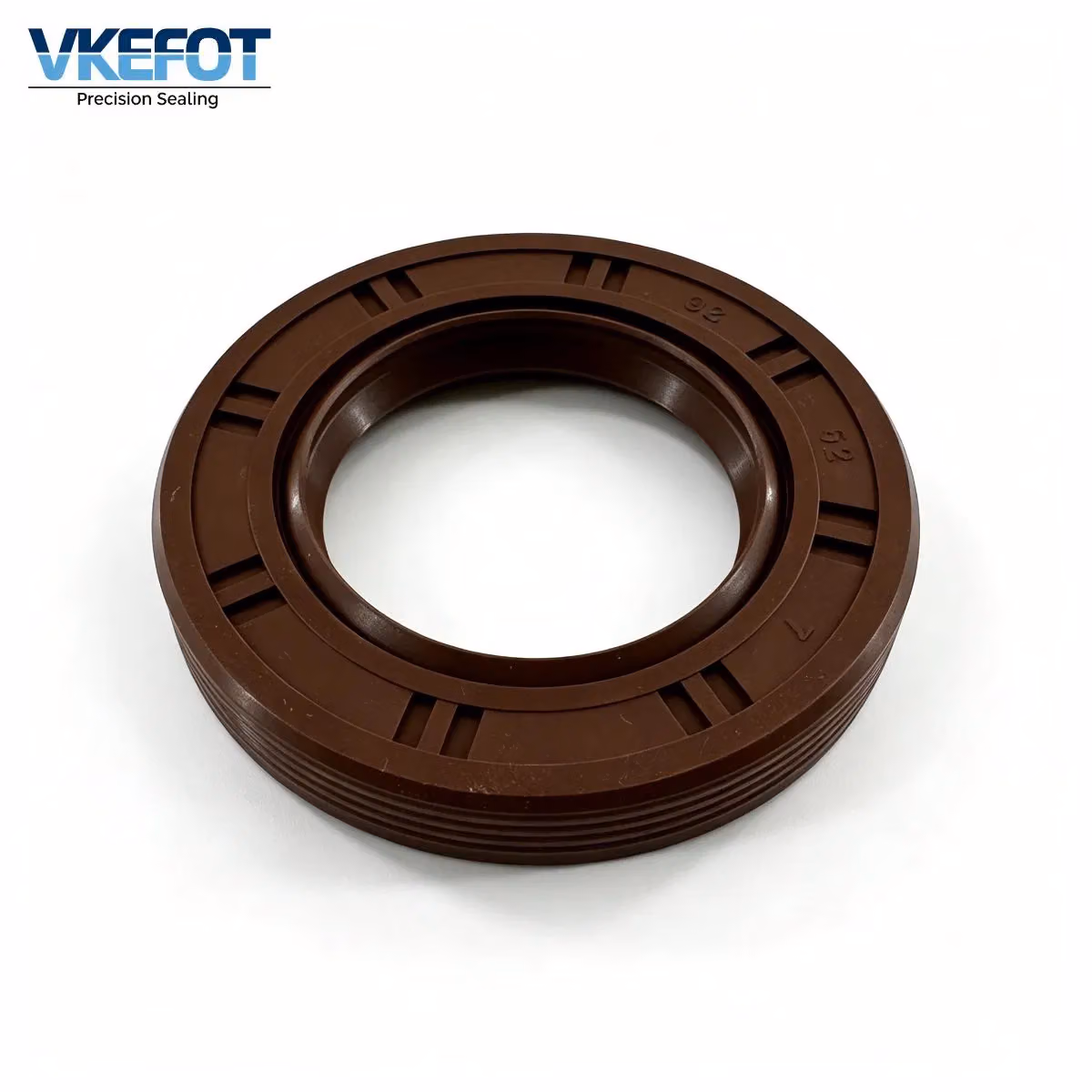

Product photos
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size (mm) | 32x52x7 |
| Material | NBR |
| Structure | TG type corrugated outer diameter double lip oil seal with garter spring |
| Size | 32x52x7mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: In stock: ships in 1 to 2 days | Not in stock but still in current production: 10 to 15 days | Not in stock and not in production: 25 to 30 days
Product details
This aftermarket TG corrugated outer diameter oil seal measures 32mm inner diameter, 52mm outer diameter and 7mm in height, manufactured in NBR nitrile rubber. It features a corrugated or threaded outer diameter, double-lip design with garter spring and an internal steel skeleton.
Importers, wholesalers and MRO buyers can submit RFQ with dimension, quantity, destination and working medium for a formal quotation.
Features & Benefits
The corrugated outer diameter improves press-fit stability in the housing bore and resists seal rotation under vibration, making it suitable for housings with thermal expansion variation such as aluminum.
Double lip design with garter spring: primary lip retains oil and grease while the secondary dust lip blocks contaminants from reaching the sealing contact area.
NBR nitrile rubber offers good oil resistance, wear resistance and aging resistance, compatible with mineral oils, greases and standard lubricants.
Internal steel skeleton with full rubber coating provides structural rigidity and reliable static sealing between the seal outer diameter and housing bore.
Standard 32x52x7mm metric dimensions match common TG-type housings used across general rotary shaft equipment.
This is an aftermarket replacement seal. Always verify shaft diameter, housing bore and application before ordering.
Factory standard options are available for marking and packaging; confirm all requirements on RFQ.
Material & Process
- Sealing lip：NBR (nitrile butadiene rubber)
- Reinforcement：internal steel skeleton with full rubber coating
- Spring：carbon steel garter spring
Confirm compound grade with RFQ for high-temperature applications.
Compatible fluids: mineral oil, gear oil, grease, standard hydraulic fluids
Packaging & Delivery
Standard packaging: neutral polybag per piece, packed in export cartons.
Samples and small trial lots are available for stocked sizes; sample freight confirmed on RFQ.
Send an inquiry with size (ID×OD×height in mm), quantity, destination country and duty for a firm lead time.
FAQ
What is a TG 32x52x7mm corrugated OD oil seal used for?
TG 32x52x7mm NBR corrugated outer diameter oil seal is used for rotary shaft sealing in engines, transmissions, axles, gearboxes and motors, retaining lubricants and blocking dust and contaminants.
What are the full specifications of this 32x52x7mm TG seal?
Size: 32mm inner diameter, 52mm outer diameter, 7mm height. Material: NBR nitrile rubber with internal steel skeleton and garter spring. Corrugated outer diameter for improved press-fit.
Is this 32x52x7mm TG oil seal a genuine OEM part?
No — it is an aftermarket replacement seal. Always verify dimensions, housing bore and application before purchasing.
How to install 32x52x7mm TG corrugated oil seal without leakage?
1. Clean shaft and housing bore thoroughly. 2. Lubricate lip and shaft with compatible oil; do not install dry. 3. Press seal evenly with a proper tool, keeping it perpendicular. 4. Do not hammer the seal; protect corrugated outer surface. 5. Rotate shaft by hand and check for leakage.
What is the MOQ and lead time for TG 32x52x7mm oil seals?
This SKU quantity confirmed on quotation. Samples are available for stocked sizes.
What information should I send for an RFQ on this TG oil seal?
Submit ID×OD×height in mm, quantity, destination country, working medium and any custom requirements for a formal quotation.
Do you support custom logo and export packaging for this seal?
Factory standard options are available for marking and packaging.
