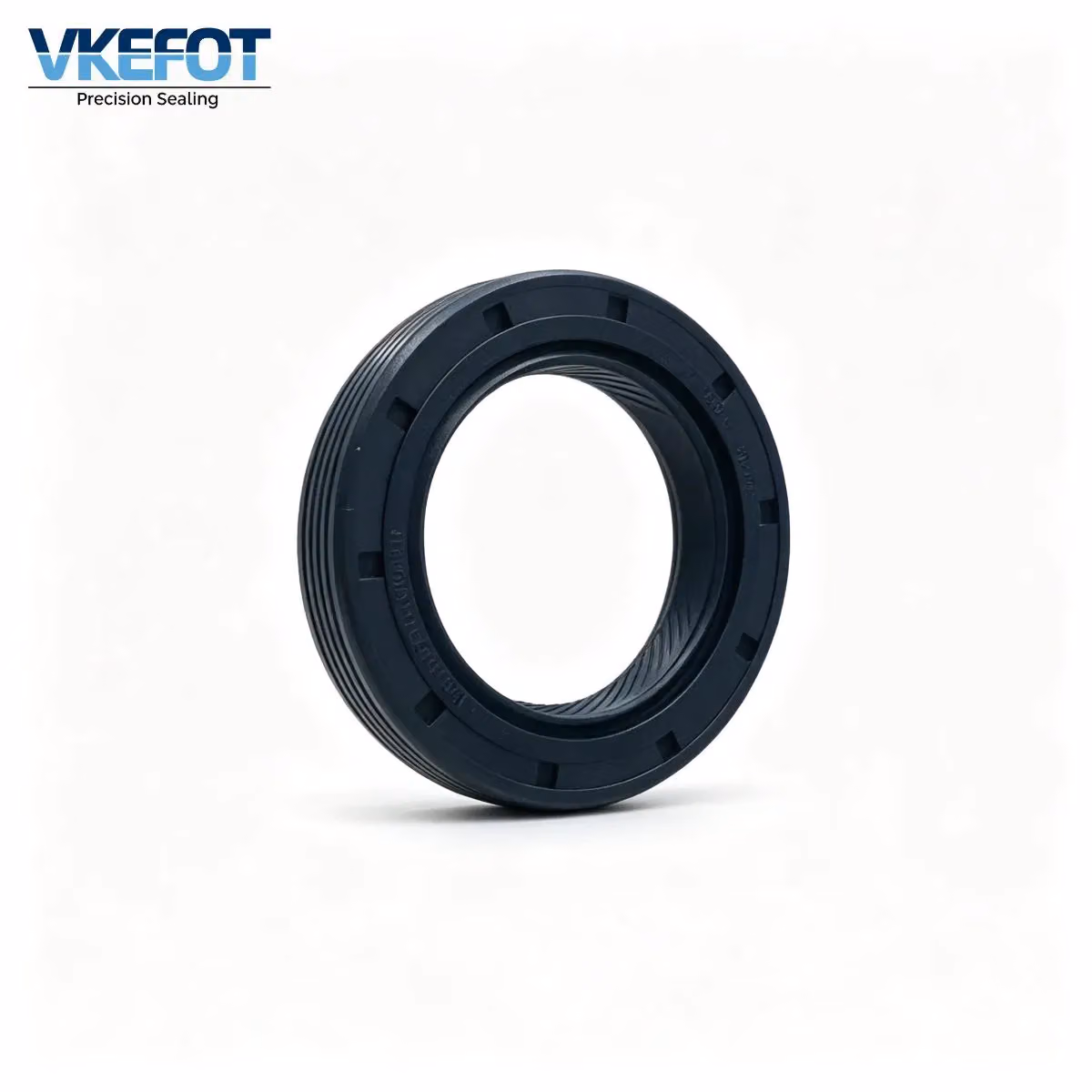

TG 28x42x7mm NBR Threaded OD Oil Seal Rotary Shaft

This aftermarket TG threaded outer diameter oil seal measures 28mm inner diameter, 42mm outer diameter and 7mm in height, manufactured in black NBR nitrile rubber. It features helical threads on the outer diameter, a double-lip design with garter spring and an internal steel skeleton.

Importers, wholesalers and MRO buyers can submit RFQ with dimension, quantity, destination and working medium for a formal quotation. Standard production Lead Time is 7–15 days.

Features & Benefits

The threaded outer diameter improves press-fit stability in the housing bore, resisting seal rotation under vibration and dynamic load that can occur with a smooth OD seal.
Helical thread pattern on the outer rubber surface also enhances static sealing between seal and housing, compensating for minor bore surface imperfections.
Double lip design with garter spring: primary lip retains oil and grease while the secondary dust lip blocks contaminants from reaching the sealing area.
Black NBR nitrile rubber offers good oil resistance and wear resistance, compatible with mineral oils, greases and standard lubricants.
Internal steel skeleton provides structural rigidity and maintains the seal shape under operating pressure and temperature.
This is an aftermarket replacement seal. Always verify shaft diameter, housing bore and application before ordering.

• MOQ：Depends on spec; typically 100–5,000 pcs. Lead Time: 7–15 days. This SKU quantity confirmed on quotation.
  Factory standard options are available for marking and packaging; confirm all requirements on RFQ.

Material & Process

• Sealing lip：NBR (nitrile butadiene rubber), black
• Reinforcement：internal steel skeleton with externally threaded rubber coating
• Spring：carbon steel garter spring
  Continuous working temperature: -30°C to +100°C; short-term peak up to +120°C. Confirm compound grade with RFQ for special applications.
  Compatible fluids: mineral oil, grease, standard lubricants

Applications & Compatibility

Commonly used in gearboxes, motors, reducers, pumps and general rotary shaft applications where a threaded outer diameter is specified. Application context commonly listed for this size — verify housing bore type and shaft speed before order.
Aftermarket replacement. Verify shaft diameter, housing bore and application before order.

Selection & Installation

Selection Tips

Confirm shaft ID 28mm, housing OD 42mm and seal height 7mm. Verify the housing bore is smooth and clean; the threaded OD is designed for press-fit into standard bores. Match NBR material to your lubricant type.

Installation Steps

1. Thoroughly clean the shaft and housing bore; remove all burrs, old seal residue, rust and contamination.
2. Lightly lubricate the sealing lip and shaft with compatible oil. Do not install dry.
3. Press the seal evenly into the housing using a proper installation tool, keeping it perfectly perpendicular to the bore.
4. Do not strike the rubber lip or hammer directly on the seal. Avoid cocking or distorting the threaded outer surface.
5. After assembly, rotate the shaft by hand to check for binding, then inspect for leakage during initial test run.

Packaging & Delivery

Standard packaging: neutral polybag per piece, packed in export cartons. Typically 300–800 pcs per carton, adjustable on request.

• Lead Time：7–15 days for this standard spec. MOQ: Depends on spec; typically 100–5,000 pcs; this SKU quantity confirmed on quotation.
  Samples and small trial lots are available for stocked sizes; sample freight confirmed on RFQ.
  Send an inquiry with size (ID×OD×height in mm), quantity, destination country and duty for a firm lead time.
