TBY 59x75x9/11.5mm NBR Oil Seal with Dustproof Edge | Automotive Rotary Shaft Seal
Model / SKU: VKEFOT-TBY-59-75-9-11.5-NBR
This aftermarket TBY oil seal 59x75x9/11.5mm in brown NBR features an integral dustproof edge for automotive rotary shaft and auxiliary drive sealing.
Tags: 59x75x9/11.5mm TBY oil seal, dustproof edge rotary seal, NBR brown shaft seal, automotive auxiliary drive seal, aftermarket replacement seal

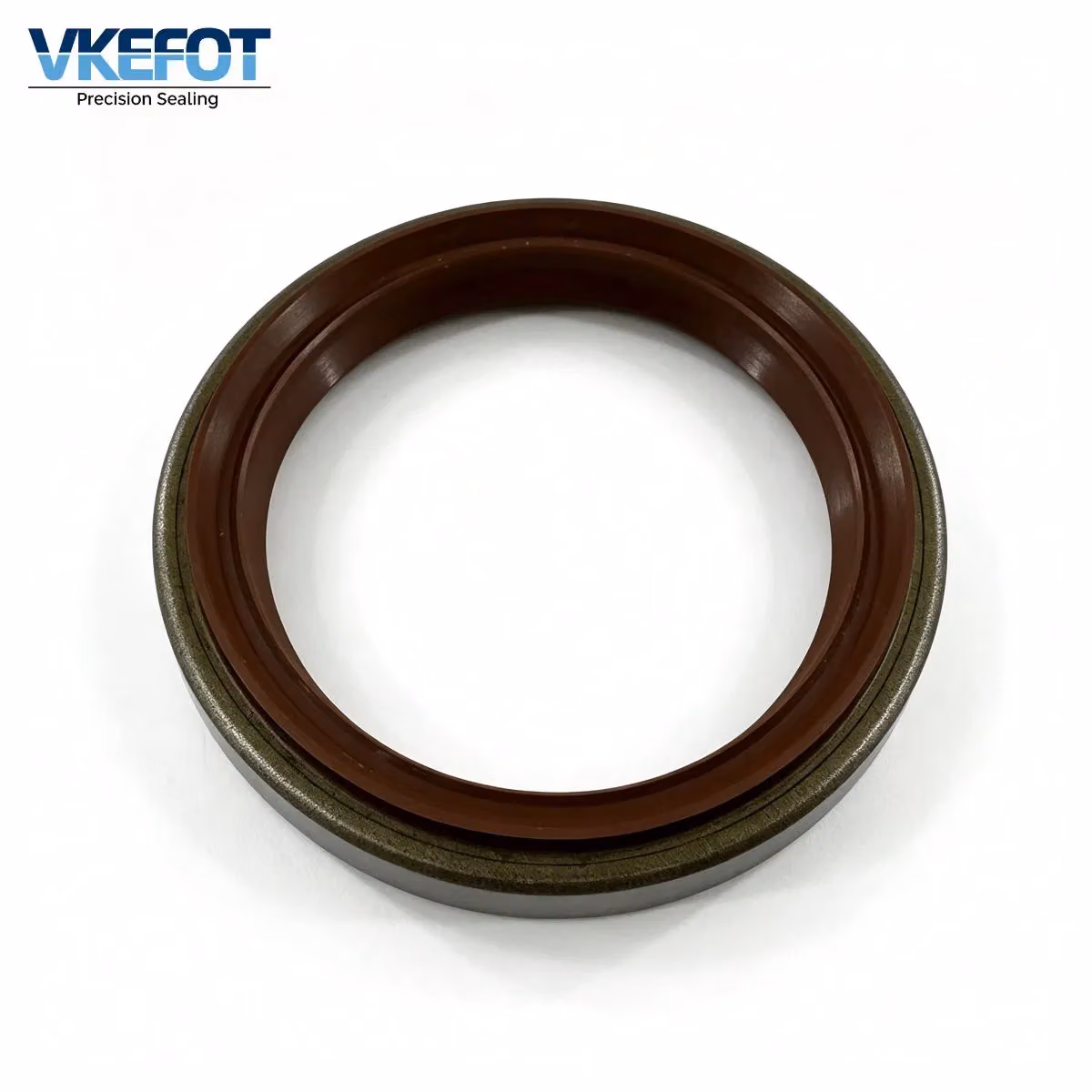

Product photos
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size (mm) | 59x75x9/11.5 |
| Material | NBR |
| Structure | TBY type metal cased double lip oil seal with dustproof edge |
| Size | 59x75x9/11.5mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: In stock: ships in 1 to 2 days | Not in stock but still in current production: 10 to 15 days | Not in stock and not in production: 25 to 30 days
Product details
This aftermarket TBY metal-cased double lip oil seal measures 59mm inner diameter, 75mm outer diameter and 9/11.5mm in height. It is manufactured with brown NBR rubber and a rigid steel outer case with an integrated dustproof edge, engineered for reliable sealing in dusty automotive and light industrial rotary applications.
Ideal for importers, wholesalers, auto repair shops and MRO distributors sourcing replacement seals. Submit an RFQ with dimensions, quantity, destination and working medium to receive a formal quotation.
Features & Benefits
Integrated dustproof outer edge provides an extra layer of contamination protection, blocking road dust, dirt and splash water from reaching the primary sealing lip and extending service life.
Rigid steel outer case creates a stable press fit in the housing bore, resists radial distortion and prevents seal rotation under vibration and dynamic shaft loads.
Double lip design with a single garter spring maintains uniform radial contact pressure on the shaft. The primary lip retains lubricating oil and grease, while the secondary lip adds a secondary barrier against fine particulate contamination.
Precision-bonded brown NBR rubber lip delivers reliable oil resistance and wear resistance, with good compatibility with mineral engine oils, gear greases and standard hydraulic fluids.
Precision finished outer diameter ensures consistent static sealing between the seal and housing, compensating for minor housing bore tolerances and surface imperfections.
Standard metric dimensions match common TBY-type housing specifications, making it suitable for direct aftermarket replacement in most standard rotary shaft assemblies.
This is an aftermarket replacement seal, not a genuine OEM part. Always verify shaft diameter, housing bore and application before ordering.
Exact quantity for this SKU is confirmed on quotation.
Factory standard options for marking and packaging are available; confirm all requirements at the RFQ stage.
Material & Process
Sealing lip material: NBR (nitrile butadiene rubber), brown finish
- Reinforcement：rigid steel outer case with integrated dustproof edge
- Spring：carbon steel garter spring
Confirm compound grade with your RFQ for high-temperature or special fluid applications.
Compatible fluids: mineral engine oil, gear oil, lithium-based grease, standard hydraulic fluids
Packaging & Delivery
Standard packaging: neutral polybag per piece, packed in export-grade cartons.
Samples are available for stocked sizes; sample charges and freight costs are confirmed on request.
Custom logo printing and private label packaging are available; confirm all requirements at the quotation stage.
Send an inquiry with size (ID×OD×height in mm), quantity, destination country, working medium and any custom requirements to receive a firm lead time and quotation.
FAQ
What is a TBY 59x75x9/11.5mm oil seal with dustproof edge used for?
TBY 59x75x9/11.5mm brown NBR oil seal with integrated dustproof edge is used for automotive rotary shafts, auxiliary drives and light industrial equipment to retain lubricant and block dust, dirt and splash water.
What are the full dimensions and specs of this TBY type oil seal?
Standard dimensions: 59mm inner diameter (shaft), 75mm outer diameter (housing), 9/11.5mm height. Material: brown NBR nitrile rubber with steel outer case, dustproof edge and single garter spring.
What applications fit a 59x75mm dustproof oil seal?
Common applications include automotive rotary shafts, auxiliary drives, steering components and light industrial rotating equipment, especially in dusty on-road and light off-road conditions.
Is this 59x75x9/11.5mm TBY oil seal a genuine OEM part?
No — it is a high-quality aftermarket replacement seal. Always verify dimensions, housing bore and specific application before purchasing.
How to install a 59x75mm dustproof edge oil seal without leakage?
1. Clean the shaft and housing bore thoroughly to remove burrs and old seal residue. 2. Lightly lubricate the sealing lip and shaft with compatible lubricant; do not install dry. 3. Press the seal evenly with a proper installation tool, keeping it perpendicular to the bore. 4. Do not hammer the rubber lip or metal case edge directly. 5. Rotate the shaft by hand after assembly and check for leakage.
What is the MOQ and lead time for TBY 59x75x9/11.5mm oil seals?
Exact quantity for this SKU is confirmed on formal quotation. Samples are available on request.
What information do I need for an RFQ on this dustproof oil seal?
Please provide ID×OD×height in mm, required quantity, destination country, working medium and any custom requirements to receive a formal quotation.
Do you offer custom logo and export packaging for automotive oil seals?
Factory standard options for custom marking and private label export packaging are available.
