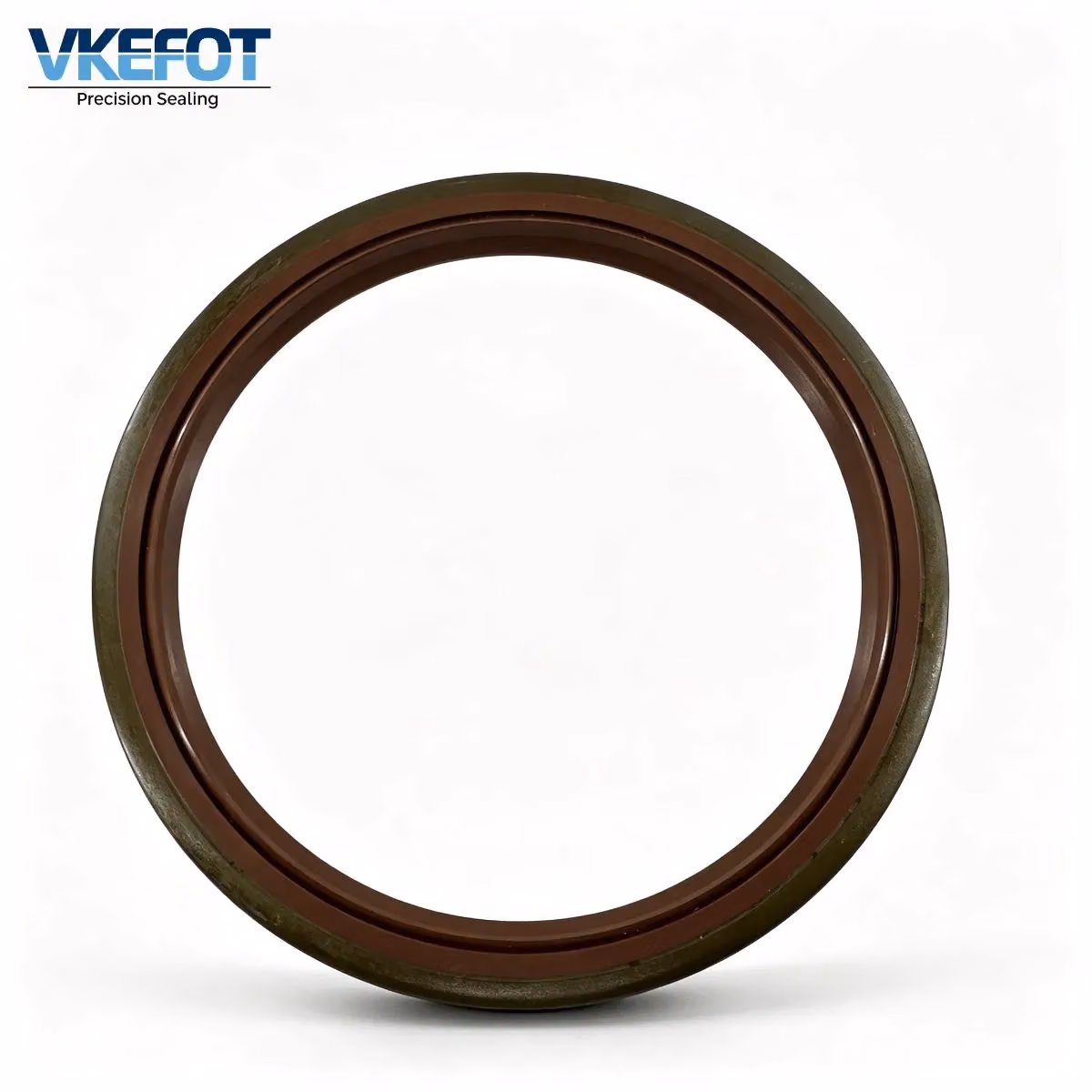

TB 98x113x12mm Metal Cased Double Lip Oil Seal NBR | Automotive Wheel Hub Seal

This aftermarket TB metal cased double lip oil seal measures 98mm ID, 113mm OD and 12mm in height, manufactured with brown NBR rubber and a rigid steel outer case. It is designed for reliable sealing in automotive wheel hub and heavy rotary shaft applications.

Importers, wholesalers, auto repair shops and MRO distributors can submit RFQ with dimension, quantity, destination and working medium for a formal quotation. Lead Time: 7–15 days for standard production.

Features & Benefits

Rigid steel outer case delivers stable press fit in the housing bore, resists radial distortion and prevents seal rotation under vibration and dynamic loads.
Double lip design with a single garter spring maintains consistent radial contact pressure on the shaft. Primary lip retains oil and grease; secondary lip blocks dust, splash water and light contaminants.
Brown NBR nitrile rubber lip offers excellent compatibility with mineral oils, wheel bearing greases and standard hydraulic fluids, with balanced wear resistance for typical duty cycles.
Precision finished metal outer diameter ensures reliable static sealing between seal and housing, compensates for minor bore tolerances and surface imperfections.
Standard metric dimensions match common TB-type housing specifications, suitable for direct aftermarket replacement in most standard assemblies.
This is an aftermarket replacement seal, not a genuine OEM part. Always verify shaft diameter, housing bore and application before ordering.

• MOQ：Depends on spec; typically 100–5,000 pcs. Lead Time: 7–15 days. This SKU quantity confirmed on quotation.
  Factory standard options are available for marking and packaging; confirm all requirements on RFQ.

Material & Process

• Sealing lip：NBR (nitrile butadiene rubber), brown
• Reinforcement：steel metal outer case (iron shell)
• Spring：carbon steel garter spring
  Continuous working temperature: -30°C to +100°C; short-term peak up to +120°C. Confirm compound grade with RFQ for special applications.
• Compatible with：mineral engine oil, wheel bearing grease, gear oil, standard hydraulic fluids

Applications & Compatibility

Commonly used for automotive wheel hub, heavy rotary shafts, transmissions and light industrial equipment sealing; suitable for passenger car and light commercial vehicle repair and replacement.
Aftermarket replacement. Verify shaft diameter, housing bore and application before order.

Selection & Installation

Selection Tips

Confirm shaft ID 98mm, housing OD 113mm, seal height 12mm. Match rubber material to your lubricant type and operating temperature range.

Installation Steps

1. Thoroughly clean the shaft and housing bore. Remove all burrs, old seal residue, rust and contamination.
2. Lightly lubricate the sealing lip and shaft with the same oil or grease used in the assembly. Do not install dry.
3. Press the seal evenly into the housing using a proper installation tool. Keep the seal perfectly perpendicular to the bore.
4. Do not strike the rubber lip or hammer directly on the metal case edge. Avoid cocking or distorting the seal.
5. After assembly, rotate the shaft by hand to check for binding. Inspect for leakage during initial test run.

Packaging & Delivery

Standard packaging: neutral polybag per piece, export carton outer packing. 50–200 pcs per carton (adjustable).

• Lead Time：7–15 days for standard production.
  Samples available for stocked sizes; sample charge and freight confirmed on request.
  Custom logo printing and private label packaging available; confirm all requirements at quotation stage.
  Send an inquiry with size (ID×OD×height in mm), quantity, destination country, working medium and any custom requirements for a firm lead time.
