49x102x8/10 TB oil seal, NBR brown for automotive repair
Model / SKU: TB-49-102-8-10-NBR-VKEFOT
VKEFOT aftermarket TB oil seal 49x102x8/10 mm made of brown NBR nitrile rubber. For wholesalers and MRO repair shops; Lead Time:7–15 days — Submit your RFQ with size, quantity and destination.
Tags: 49x102x8/10, TB oil seal, NBR brown oil seal, automotive shaft seal, VKEFOT NBR oil seal
Product photos
Key specs: Inner diameter mm: 49 | Outer diameter mm: 102 | Height mm: 8/10 | Material: NBR | Structure: TB | Color: Brown | Brand: VKEFOT | specifications: 49x102x8/10 mm
- Inner diameter mm: 49
- Outer diameter mm: 102
- Height mm: 8/10
- Material: NBR
- Structure: TB
- Color: Brown
- Brand: VKEFOT
- specifications: 49x102x8/10 mm
- Size: 49x102x8/10 mm
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Inner diameter mm | 49 |
| Outer diameter mm | 102 |
| Height mm | 8/10 |
| Material | NBR |
| Structure | TB |
| Color | Brown |
| Brand | VKEFOT |
| specifications | 49x102x8/10 mm |
| Size | 49x102x8/10 mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: Typically 100–5,000 pcs | Lead Time: 7–15 days
Product details

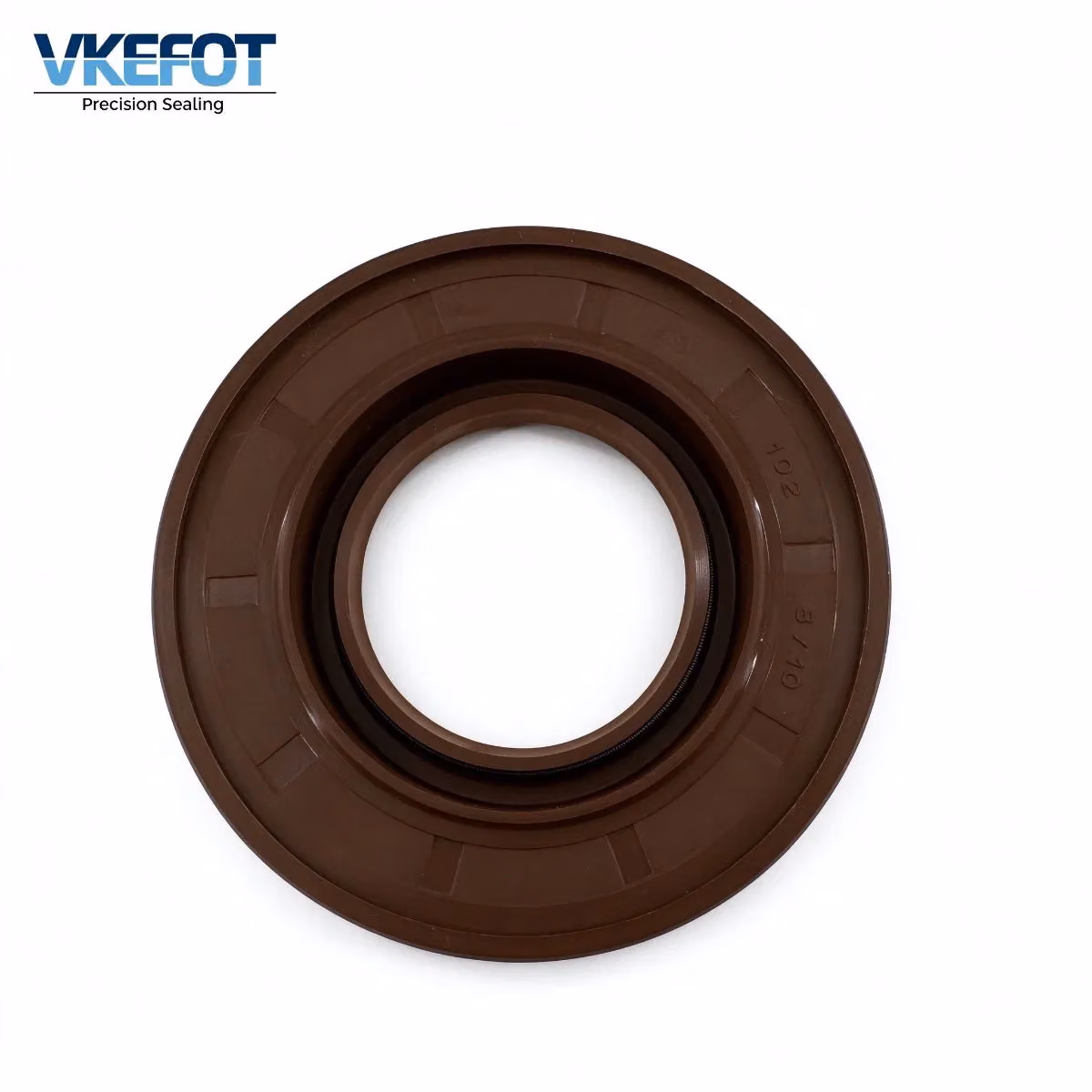

This VKEFOT aftermarket TB oil seal measures 49x102x8/10 mm, constructed with brown NBR nitrile rubber, designed for general automotive shaft sealing and vehicle repair applications.
Buyers from wholesale and MRO sectors can send RFQ including size, quantity, destination and duty requirement.
Features & Benefits
This VKEFOT seal uses NBR nitrile rubber to deliver stable oil resistance and wear resistance under normal automotive operating conditions.
The TB metal outer shell structure effectively blocks dust, mud and impurities from entering the sealed assembly.
It maintains internal lubrication and prevents oil leakage on rotating shafts for different automotive assemblies.
This is an aftermarket replacement seal. Please verify shaft dimension, housing bore and required dimensions before placing orders.
Custom options including VKEFOT custom logo printing and custom packaging are available, please confirm all requirements in your RFQ.
VKEFOT manufactures oil seals, O-rings and custom rubber seals in Xingtai and exports to Europe, North America, Middle East and Southeast Asia.
Material & Performance
The sealing lip uses NBR nitrile rubber with garter spring to maintain stable lip contact pressure. The outer casing adopts formed metal shell. Standard NBR compound works continuously from -30°C to +100°C and can withstand short peak temperature up to 120°C. Please inform us of extreme working conditions during inquiry.
Applications & Compatibility
This VKEFOT brown NBR oil seal is widely used for multiple automotive shaft sealing and general vehicle repair jobs.
Aftermarket replacement part. Check shaft diameter, housing bore and dimension before purchase.
Selection & Installation
Selection Tips
Confirm ID×OD×thickness, rubber material and working temperature before ordering. Check shaft surface and housing bore condition.
Installation Steps
- Fully clean the shaft and housing bore, remove old seal residue, rust and burrs.
- Lubricate the seal lip with matched grease before fitting, dry installation is not recommended.
- Keep the seal perpendicular to housing bore during pressing, use matched installation sleeve.
- Apply even pressure only on the outer metal shell; never hit the rubber lip directly.
- After installation, rotate the shaft manually to check for stuck or damaged lip.
Packaging & Delivery
VKEFOT standard export packaging: neutral plastic bags packed into export cartons, 50–200 pcs per carton, adjustable.
- Lead Time：7–15 days for this standard item. MOQ is typically 100–5,000 pcs.
Stocked items support samples and small trial orders; shipping cost will be confirmed in quotation.
Payment and shipment terms will be confirmed by formal quotation for each order.
Send your inquiry with seal dimensions, order quantity and destination country for quotation.
Need help specifying a seal?
Use these checks to prepare your enquiry. Final suitability depends on the specific design and operating conditions.
Check dimensions and design
Provide the shaft diameter, housing bore and seal width in mm. Include the part marking, lip profile or a dimensioned drawing if available.
Describe operating conditions
Share the fluid or medium, operating temperature, pressure and shaft speed. Confirm the material grade against the application.
Verify a replacement
Provide the original part number and photos. Similar dimensions alone do not confirm interchangeability; compare the design and material.
FAQ
What is this 49x102x8/10 TB oil seal used for?
This VKEFOT 49x102x8/10 TB oil seal is used for automotive shaft sealing, retaining lubricant and preventing oil leakage during vehicle repair.
What are the specifications of this 49x102x8/10 oil seal?
VKEFOT oil seal size 49x102x8/10 mm, TB metal shell structure, brown NBR nitrile rubber.
What material is this 49x102x8/10 oil seal made of?
This VKEFOT oil seal adopts NBR nitrile rubber, it offers good oil resistance and wear resistance for automotive applications.
How to install 49x102x8/10 oil seal to avoid oil leakage?
1. Clean shaft and housing, remove old seal debris and burrs. 2. Lubricate seal lip before installation. 3. Press seal vertically with matched sleeve. 4. Apply pressure only on outer metal shell, avoid hitting rubber lip. 5. Rotate shaft manually after installation to check for stuck.
What is MOQ and lead time for this 49x102x8/10 oil seal?
MOQ is typically 100–5,000 pcs, lead time 7–15 days for standard stocked items.
What information should I provide for quotation on this TB oil seal?
Please send seal dimensions, order quantity and destination country to get formal quotation.
Can I get custom logo and custom packaging for this oil seal?
VKEFOT provides custom logo printing and custom packaging service for this oil seal, you can submit your requirements in inquiry.
