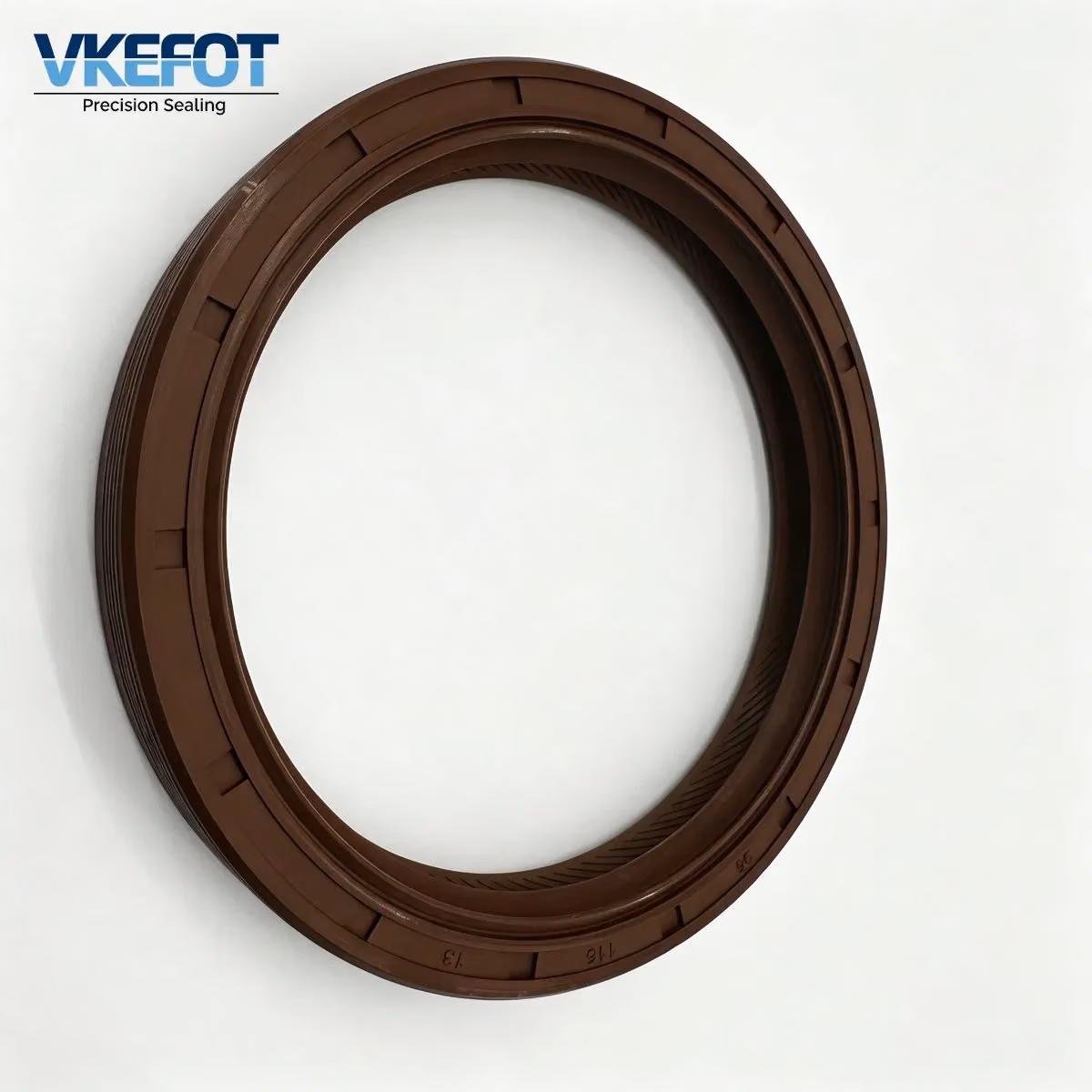

95x115x13mm Rotary Shaft Crankshaft Oil Seal, Brown FKM FPM | High Temp Engine Crankshaft Seal | VKEFOT
Model / SKU: VKEFOT-95-115-13-FKM
95x115x13mm brown FKM FPM engine crankshaft oil seal for automotive crankshaft rotary shaft sealing. Excellent oil-resistant and wear-resistant performance, high temperature tolerance. Factory direct, in stock, worldwide shipping. Send RFQ for bulk wholesale pricing.
Tags: 95x115x13mm oil seal, FKM FPM crankshaft oil seal, engine crankshaft seal, brown fluororubber oil seal, high temperature crankshaft oil seal, auto engine sealing replacement part, aftermarket automotive crankshaft seal
Product photos
Key specs: Inner diameter mm: 95 | Outer diameter mm: 115 | Height mm: 13 | Material: FKM | Structure: double lip rotary shaft oil seal, metal casing with garter spring, used for automotive engine crankshaft sealing | specifications: 95x115x13 mm｜FPM (Fluoroelastomer) | Size: 95x115x13 mm｜FPM (Fluoroelastomer)
- Inner diameter mm: 95
- Outer diameter mm: 115
- Height mm: 13
- Material: FKM
- Structure: double lip rotary shaft oil seal, metal casing with garter spring, used for automotive engine crankshaft sealing
- specifications: 95x115x13 mm｜FPM (Fluoroelastomer)
- Size: 95x115x13 mm｜FPM (Fluoroelastomer)
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Material | FKM |
| Structure | double lip rotary shaft oil seal, metal casing with garter spring, used for automotive engine crankshaft sealing |
| Size | 95x115x13 mm｜FPM (Fluoroelastomer) |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: Typically 100–5,000 pcs | Lead Time: 7–15 working days
Product details
This aftermarket 95x115x13mm crankshaft oil seal is manufactured from brown FKM / FPM fluoroelastomer with carbon steel casing and built-in garter spring. It is specially designed for automotive engine crankshaft rotary shaft sealing, delivering outstanding oil resistance, wear resistance and high temperature resistance for engine service.
VKEFOT manufactures oil seals, O-rings and custom rubber sealing components in Xingtai, China. Our products export to Europe, North America, Middle East and Southeast Asia. Importers, auto part wholesalers and MRO distributors can send RFQ with size, purchase quantity and destination country for formal quotation.
Features & Benefits
Dual lip construction provides reliable oil retention and prevents dust and contaminants from entering engine crankcase.
Integrated garter spring maintains stable radial compression force on sealing lip under continuous shaft rotation.
Brown FKM (FPM) fluoroelastomer material features superior high temperature resistance, great compatibility with engine oils, gear oils and fuels, excellent anti-aging and wear-resistant properties.
Metal outer casing offers rigid support for secure press-fit installation inside housing bore.
This seal is an aftermarket replacement part for engine crankshaft service; verify shaft, bore dimensions and working condition before placing your order.
Material & Specification
- Sealing lip：FKM / FPM Fluoroelastomer, brown
- Reinforcement：carbon steel metal casing
- Spring：carbon steel garter spring
Typical working temperature range for FKM: -20°C to +200°C. Confirm rubber compound grade with RFQ for special operating applications.
Compatible fluids: mineral engine oil, synthetic engine oil, gear oil, diesel fuel.
Not suitable for ketones, low molecular weight esters and some polar solvents.
Applications & Compatibility
Designed for automotive engine crankshaft rotary shaft sealing. Widely used for passenger car and light commercial vehicle engine repair and aftermarket replacement.
Check shaft diameter and housing bore dimension before purchase to avoid costly size mismatch.
Selection & Installation Guide
Selection Tips
Confirm shaft dimension 95 mm, housing bore 115 mm and seal width 13 mm. Verify lubricant and operating temperature before final selection.
Installation Steps
- Clean shaft and housing bore fully, remove burrs, rust and old seal residue.
- Lubricate sealing lips and shaft with compatible lubricant; dry installation is not allowed.
- Press the seal squarely and evenly with proper installation tool, keep perpendicular to bore.
- Do not strike rubber lip directly, protect seal outer surface from scratches and deformation.
- Rotate shaft manually after assembly, then run low pressure test and check for oil leakage.
Packaging & Delivery
Each seal packed in neutral polybag, then packed into export cartons, normally 300–600 pcs per carton and adjustable on request.
- Lead Time：7–15 working days for this standard stocked spec. MOQ: Typically 100–5,000 pcs; exact quantity, unit price and lead time confirmed on formal quotation.
Samples and small trial lots are available for stocked sizes; sample freight cost confirmed on RFQ.
Send inquiry with dimension in mm, quantity, destination country and working medium for a firm quotation.
FAQ
What is this 95x115x13mm oil seal used for?
This 95x115x13mm oil seal is brown FKM FPM engine crankshaft rotary shaft seal for automotive engine sealing and engine repair.
What are the full specifications of the 95x115x13mm FKM crankshaft oil seal?
This seal: 95mm inner diameter, 115mm outer diameter, 13mm width. Material: brown FKM / FPM fluoroelastomer. Structure: double lip rotary shaft oil seal with metal casing and garter spring for engine crankshaft.
What is the difference between FKM and NBR oil seal?
FKM (FPM) fluoroelastomer has much higher temperature resistance and better resistance to synthetic oils and fuels than NBR nitrile rubber, ideal for engine crankshaft high-temperature working conditions.
What vehicles fit 95x115x13mm crankshaft oil seal?
It is an aftermarket replacement crankshaft seal for automotive engines. Always verify shaft and bore dimensions before ordering.
Is 95x115x13mm FKM crankshaft oil seal genuine OEM part?
No. It is an aftermarket replacement seal for engine repair and fleet maintenance. Please confirm all dimensions before purchase.
How to install 95x115x13mm crankshaft oil seal correctly to stop oil leakage?
1. Clean shaft and housing bore thoroughly, remove burrs and old seal residue. 2. Lubricate lips and shaft with compatible oil, dry installation is forbidden. 3. Press seal evenly with installation tool and keep perpendicular. 4. Never hammer the seal, protect outer surface from scratches. 5. Rotate shaft manually and run low pressure leakage test.
What is MOQ and lead time for bulk order of 95x115x13mm oil seals?
MOQ is typically 100–5,000 pcs. Lead Time:7–15 working days. Final price and lead time will be confirmed on formal quotation.
What information do I need to submit for RFQ of this crankshaft oil seal?
Send ID×OD×thickness in mm, purchase quantity, destination country and working medium for quotation.
Can you make custom logo and custom export packaging for this FKM oil seal?
Custom logo, marking and export packaging are available. All custom requirements need to be confirmed before order.
What temperature can FKM crankshaft oil seal withstand?
FKM FPM oil seal normally works within -20°C ~ +200°C, suitable for high temperature engine crankshaft application.
