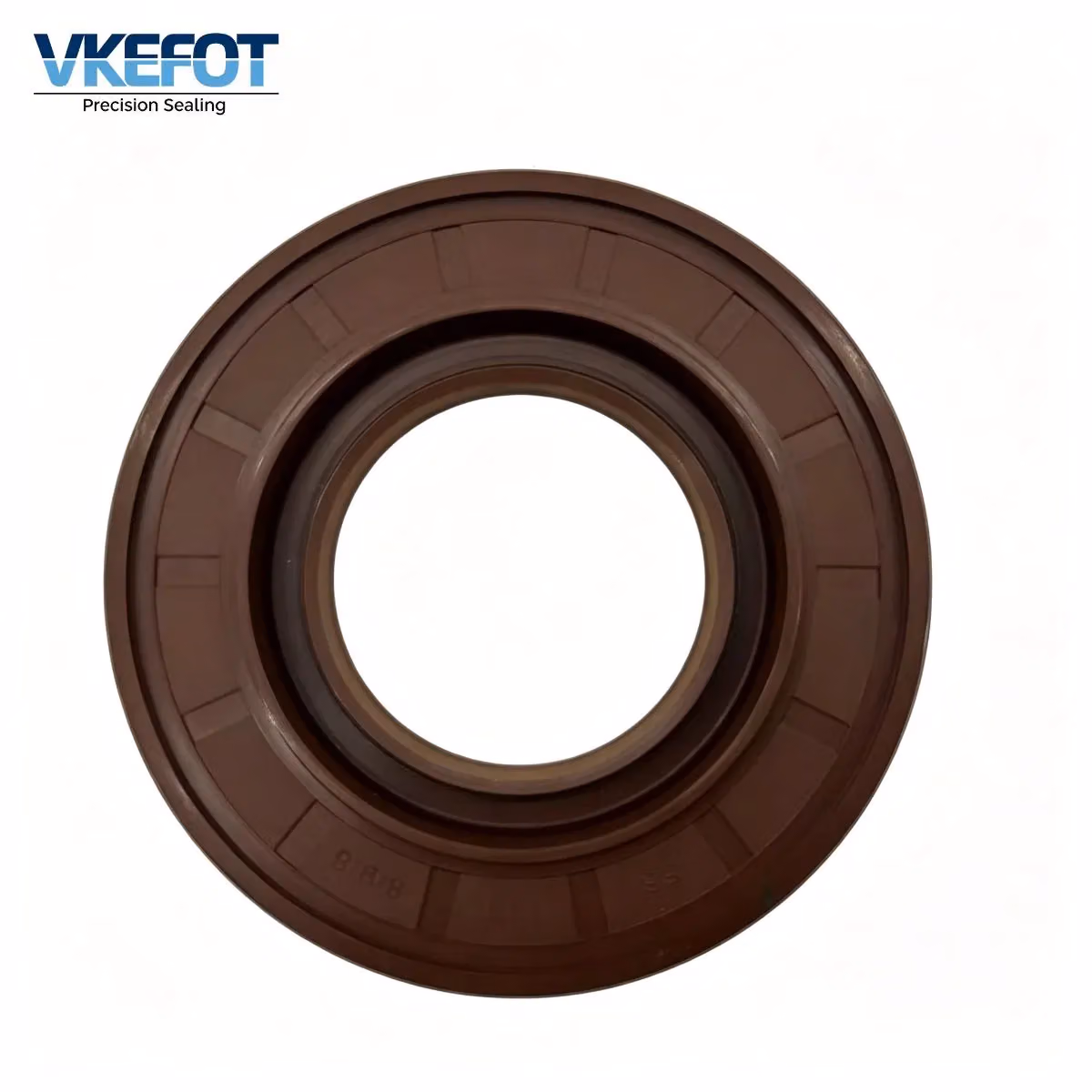

56x115x8/9.8mm Stepped Double Lip Oil Seal
Model / SKU: VKEFOT-56-115-8-9.8-NBR
56x115x8/9.8mm brown NBR stepped double lip oil seal for automotive axle and transmission rotary shaft sealing. Oil-resistant and wear-resistant. Factory direct, in stock, worldwide shipping. Send RFQ for bulk wholesale pricing.
Tags: 56x115x8/9.8mm oil seal, stepped double lip rotary shaft seal, automotive axle shaft oil seal, transmission rotary shaft seal, brown NBR nitrile rubber oil seal, aftermarket auto oil seal replacement, heavy duty rotary shaft oil seal
Product photos
Key specs: Inner diameter mm: 56 | Outer diameter mm: 115 | Height mm: 8/9.8 | Material: NBR | Material: NBR (Nitrile Butadiene Rubber) | Structure: double lip stepped rotary shaft oil seal, metal casing with garter spring | specifications: 56x115x8/9.8 mm | Size: 56x115x8/9.8 mm
- Inner diameter mm: 56
- Outer diameter mm: 115
- Height mm: 8/9.8
- Material: NBR
- Material: NBR (Nitrile Butadiene Rubber)
- Structure: double lip stepped rotary shaft oil seal, metal casing with garter spring
- specifications: 56x115x8/9.8 mm
- Size: 56x115x8/9.8 mm
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Material | NBR (Nitrile Butadiene Rubber) |
| Structure | double lip stepped rotary shaft oil seal, metal casing with garter spring |
| Size | 56x115x8/9.8 mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: Typically 100–5,000 pcs | Lead Time: 7–15 working days
Product details
This aftermarket stepped double lip rotary shaft oil seal 56x115x8/9.8 mm is manufactured from brown NBR nitrile rubber with carbon steel casing and built-in garter spring. It is engineered for rotary shaft sealing on automotive axles, transmissions and heavy-duty vehicle assemblies.
VKEFOT manufactures oil seals, O-rings and custom rubber sealing components in Xingtai, China. Our products export to Europe, North America, Middle East and Southeast Asia. Importers, auto part wholesalers and MRO distributors can send RFQ with size, purchase quantity and destination country for formal quotation.
Features & Benefits
Dual lip construction delivers primary oil retention and secondary dust & mud exclusion for harsh rotary shaft working environments.
Integrated garter spring maintains stable radial contact pressure on the sealing lip during continuous shaft rotation.
Brown NBR nitrile rubber offers excellent wear resistance and good compatibility with mineral engine oil and gear lubricants.
The special stepped height profile 8/9.8mm matches vehicle housings requiring two-stage stepped installation geometry.
Metal outer casing provides rigid support for secure press-fit installation inside housing bore.
This seal is an aftermarket replacement part; verify shaft, bore dimensions and working condition before placing your order.
Material & Specification
- Sealing lip：NBR nitrile butadiene rubber, brown
- Reinforcement：carbon steel metal casing
- Spring：carbon steel garter spring
Typical working temperature range for NBR: -30°C to +100°C. Confirm rubber compound grade with RFQ for high-temperature operating applications.
Compatible fluids: mineral gear oil, engine oil, standard mineral lubricants.
Not suitable for strong solvents, ketones or concentrated ester oils.
Applications & Compatibility
Designed for rotary shaft sealing on automotive axles, gearboxes, transmissions and vehicle rotary shaft assemblies.
Commonly used for auto repair and aftermarket replacement projects.
Check shaft diameter and housing bore dimension before purchase to avoid costly size mismatch.
Selection & Installation Guide
Selection Tips
Confirm shaft dimension 56 mm, housing bore 115 mm and seal stepped height 8/9.8 mm. Verify lubricant type before final selection.
Installation Steps
- Clean shaft and housing bore fully, remove burrs, rust and old seal residue.
- Lubricate sealing lips and shaft with compatible lubricant; dry installation is not allowed.
- Press the seal squarely and evenly with proper installation tool, keep perpendicular to bore.
- Do not strike rubber lip directly, protect seal outer surface from scratches and deformation.
- Rotate shaft manually after assembly, then run low pressure test and check for oil leakage.
Packaging & Delivery
Each seal packed in neutral polybag, then packed into export cartons, normally 300–600 pcs per carton and adjustable on request.
- Lead Time：7–15 working days for this standard stocked spec. MOQ: Typically 100–5,000 pcs; exact quantity, unit price and lead time confirmed on formal quotation.
Samples and small trial lots are available for stocked sizes; sample freight cost confirmed on RFQ.
Send inquiry with dimension in mm, quantity, destination country and working medium for a firm quotation.
FAQ
What is this 56x115x8/9.8mm oil seal used for?
This 56x115x8/9.8mm oil seal is a brown NBR stepped double lip rotary shaft seal for automotive heavy-duty axle and transmission rotary shaft sealing.
What are the full specifications of the 56x115x8/9.8mm stepped oil seal?
This seal: 56mm inner diameter, 115mm outer diameter, 8/9.8mm stepped height. Material: brown NBR nitrile rubber. Structure: double lip stepped rotary shaft oil seal with metal casing and garter spring.
What vehicles or assemblies fit the 56x115x8/9.8mm oil seal?
It fits heavy-duty automotive axles, gearboxes and transmission rotary shafts. Always verify shaft and bore dimensions before ordering.
Is 56x115x8/9.8mm oil seal genuine OEM auto part?
No. It is an aftermarket replacement seal for auto repair. Please confirm all dimensions before purchase.
How to install 56x115x8/9.8mm oil seal correctly to stop oil leakage?
1. Clean shaft and housing bore thoroughly, remove burrs and old seal residue. 2. Lubricate lips and shaft with compatible oil, dry installation is forbidden. 3. Press seal evenly with installation tool and keep perpendicular. 4. Never hammer the seal, protect outer surface from scratches. 5. Rotate shaft manually and run low pressure leakage test.
What is MOQ and lead time for bulk order of 56x115x8/9.8mm oil seals?
MOQ is typically 100–5,000 pcs. Lead Time:7–15 working days. Final price and lead time will be confirmed on formal quotation.
What information do I need to submit for RFQ of this stepped oil seal?
Send ID×OD×stepped height in mm, purchase quantity, destination country and working medium for quotation.
Can you make custom logo and custom export packaging for this oil seal?
Custom logo, marking and export packaging are available. All custom requirements need to be confirmed before order.
What temperature range can NBR brown oil seal work within?
NBR nitrile rubber oil seal normally works between -30°C and +100°C. Contact us if you need seals for higher temperature working conditions.
What is the advantage of stepped double lip oil seal?
Stepped profile fits special stepped housing bore. Double lip retains oil and blocks mud, dust and water for harsh heavy-duty working conditions.
