113x150x12/35.5mm Concrete Mixer Reducer Oil Seal, NBR | Heavy Equipment Rotary Shaft Seal | VKEFOT
Model / SKU: VKEFOT-113-150-12-35.5-NBR
113x150x12/35.5mm heavy-duty oil seal for concrete mixer reducer. Factory direct sales, high quality aftermarket spare parts for construction machinery and heavy equipment maintenance. In stock, worldwide shipping. Send RFQ for bulk wholesale pricing.
Tags: 113x150x12/35.5mm oil seal, concrete mixer oil seal, reducer oil seal, heavy equipment shaft seal, construction machinery oil seal, factory direct oil seal, aftermarket heavy equipment spare part

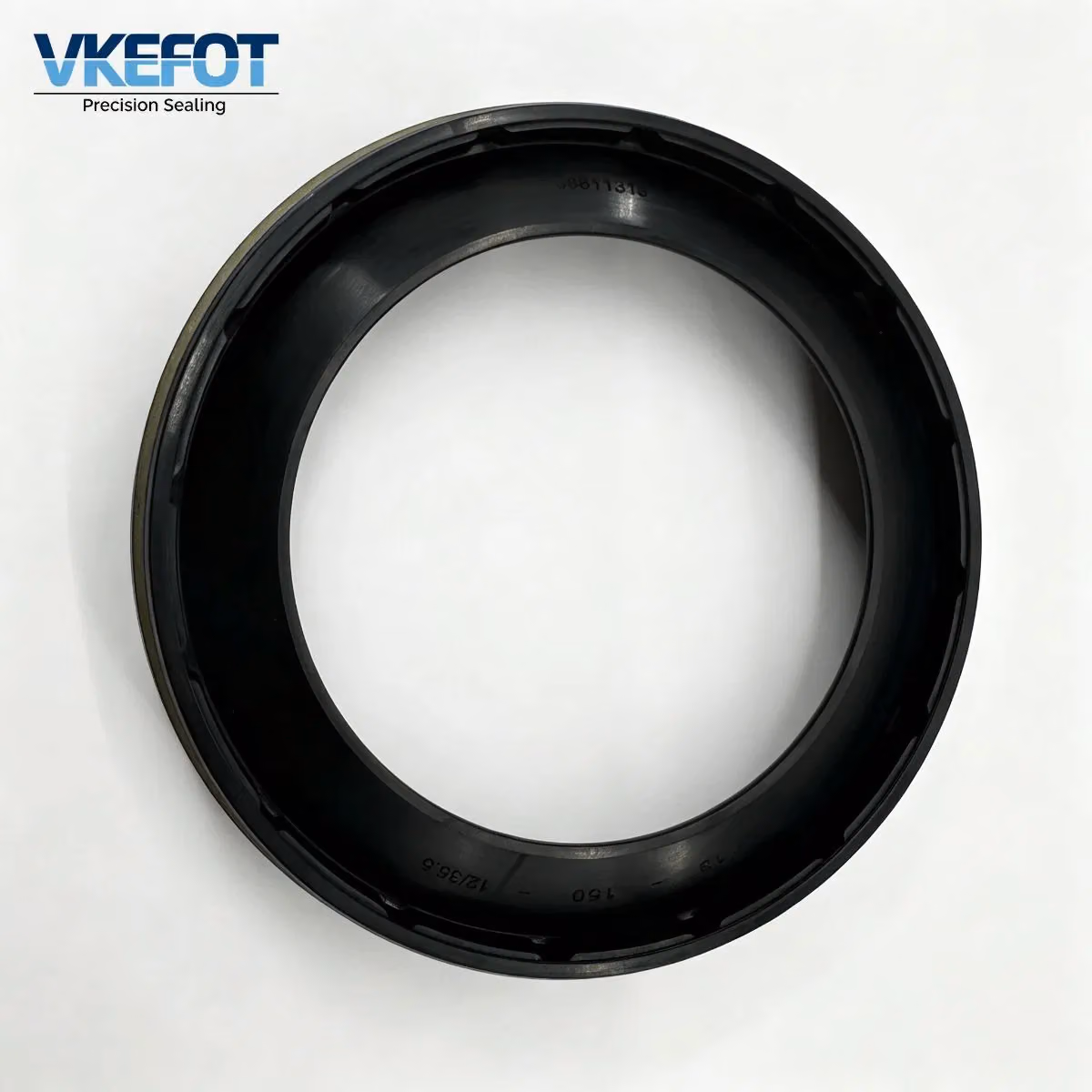

Product photos
Key specs: Inner diameter mm: 113 | Outer diameter mm: 150 | Height mm: 12/35.5 | Material: NBR | Material: NBR (Nitrile Butadiene Rubber), Black | Structure: double lip rotary shaft oil seal with reinforced metal casing and garter spring, heavy duty seal for concrete mixer reducer | specifications: 113x150x12/35.5 mm | Size: 113x150x12/35.5 mm
- Inner diameter mm: 113
- Outer diameter mm: 150
- Height mm: 12/35.5
- Material: NBR
- Material: NBR (Nitrile Butadiene Rubber), Black
- Structure: double lip rotary shaft oil seal with reinforced metal casing and garter spring, heavy duty seal for concrete mixer reducer
- specifications: 113x150x12/35.5 mm
- Size: 113x150x12/35.5 mm
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Material | NBR (Nitrile Butadiene Rubber), Black |
| Structure | double lip rotary shaft oil seal with reinforced metal casing and garter spring, heavy duty seal for concrete mixer reducer |
| Size | 113x150x12/35.5 mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: Typically 100–5,000 pcs | Lead Time: 7–15 working days
Product details
This aftermarket 113x150x12/35.5mm heavy-duty reducer oil seal is constructed with black NBR nitrile rubber and reinforced metal outer casing, fitted with garter spring. It is specially engineered for concrete mixer reducer rotary shaft sealing, capable of enduring heavy load, vibration and dusty working conditions on construction sites.
VKEFOT manufactures oil seals, O-rings and custom rubber sealing components in Xingtai, China. Our products export to Europe, North America, Middle East and Southeast Asia. Importers, construction machinery wholesalers and MRO distributors can send RFQ with size, purchase quantity and destination country for formal quotation.
Features & Benefits
Dual lip sealing structure prevents gear oil leakage and blocks dust, mud and water from entering the reducer gearbox.
Built-in garter spring maintains stable radial compression force on sealing lip under continuous heavy rotation and strong vibration of mixer reducer.
NBR nitrile rubber delivers reliable oil resistance and wear resistance for reducer gear oil operating environment.
Reinforced metal casing ensures firm press-fit installation and stable service life under heavy-duty working conditions.
This seal is an aftermarket replacement part; verify shaft and bore dimensions and concrete mixer reducer model before placing your order.
Material & Specification
- Sealing lip：NBR nitrile butadiene rubber, black
- Reinforcement：carbon steel metal casing
- Spring：carbon steel garter spring
Typical working temperature range for NBR: -30°C to +100°C. Confirm rubber compound grade with RFQ for special operating applications.
Compatible fluids: mineral gear oil, heavy-duty transmission oil, axle grease.
Not suitable for strong polar solvents, ketones and high temperature synthetic oils.
Applications & Compatibility
Designed for concrete mixer reducer sealing, widely used in construction machinery overhaul, heavy equipment fleet maintenance and aftermarket replacement.
Check shaft diameter, housing bore dimension and reducer model before purchase to avoid costly size mismatch.
Selection & Installation Guide
Selection Tips
Confirm shaft dimension 113 mm, housing bore 150mm and seal width 12/35.5mm. Verify lubricant type and operating temperature before final selection.
Installation Steps
- Clean shaft and housing bore fully, remove burrs, rust and old seal residue.
- Lubricate sealing lips and shaft with compatible gear oil; dry installation is not allowed.
- Press the seal squarely and evenly with proper installation tool, keep perpendicular to bore.
- Do not strike rubber lip directly, protect seal outer surface from scratches and deformation.
- Rotate shaft manually after assembly, then run low pressure test and check for oil leakage.
Packaging & Delivery
Each seal packed in neutral polybag, then packed into export cartons, normally 300–600 pcs per carton and adjustable on request.
- Lead Time：7–15 working days for this standard stocked spec. MOQ: Typically 100–5,000 pcs; exact quantity, unit price and lead time confirmed on formal quotation.
Samples and small trial lots are available for stocked sizes; sample freight cost confirmed on RFQ.
Send inquiry with dimension in mm, quantity, destination country and working medium for a firm quotation.
FAQ
What is this 113x150x12/35.5mm oil seal used for?
This 113x150x12/35.5mm NBR oil seal is heavy-duty aftermarket seal specially made for concrete mixer reducer rotary shaft sealing in construction machinery.
What are the full specifications of 113x150x12/35.5mm concrete mixer reducer oil seal?
This seal: 113mm inner diameter,150mm housing bore,12/35.5mm width. Material: black NBR nitrile rubber. Structure: double lip rotary shaft oil seal with reinforced metal casing and garter spring for concrete mixer reducer.
What machine uses reducer oil seal 113x150x12/35.5mm?
This oil seal is for concrete mixer reducer, widely used on cement mixer truck gearbox maintenance and heavy construction machinery repair. Always verify dimensions before ordering.
What temperature can NBR heavy duty oil seal withstand?
NBR nitrile rubber oil seal normally works within -30°C ~ +100°C, suitable for heavy load concrete mixer reducer working conditions.
Is this 113x150x12/35.5mm mixer reducer oil seal genuine OEM part?
No. It is an aftermarket replacement oil seal for concrete mixer reducer overhaul and construction equipment fleet maintenance. Please confirm all dimensions before purchase.
How to install 113x150x12/35.5mm concrete mixer reducer oil seal correctly?
1. Clean shaft and housing bore thoroughly, remove burrs and old seal residue. 2. Lubricate lips and shaft with compatible gear oil, dry installation is forbidden. 3. Press seal evenly with installation tool and keep perpendicular. 4. Never hammer the seal, protect outer surface from scratches. 5. Rotate shaft manually and run low pressure leakage test.
What is MOQ and lead time for bulk order of 113x150x12/35.5mm mixer reducer oil seals?
MOQ is typically 100–5,000 pcs. Lead Time:7–15 working days. Final price and lead time will be confirmed on formal quotation.
What information do I need to submit for RFQ of this concrete mixer reducer oil seal?
Send ID×OD×thickness in mm, purchase quantity, destination country and working medium for quotation.
Can you make custom logo and export packaging for this heavy duty reducer oil seal?
Custom logo, marking and export packaging are available. All custom requirements need to be confirmed before order.
What lubricants are compatible with NBR heavy machinery oil seal?
NBR nitrile rubber works well with mineral gear oil and heavy-duty transmission lubricants. It is not suitable for ketones and some polar solvents.
