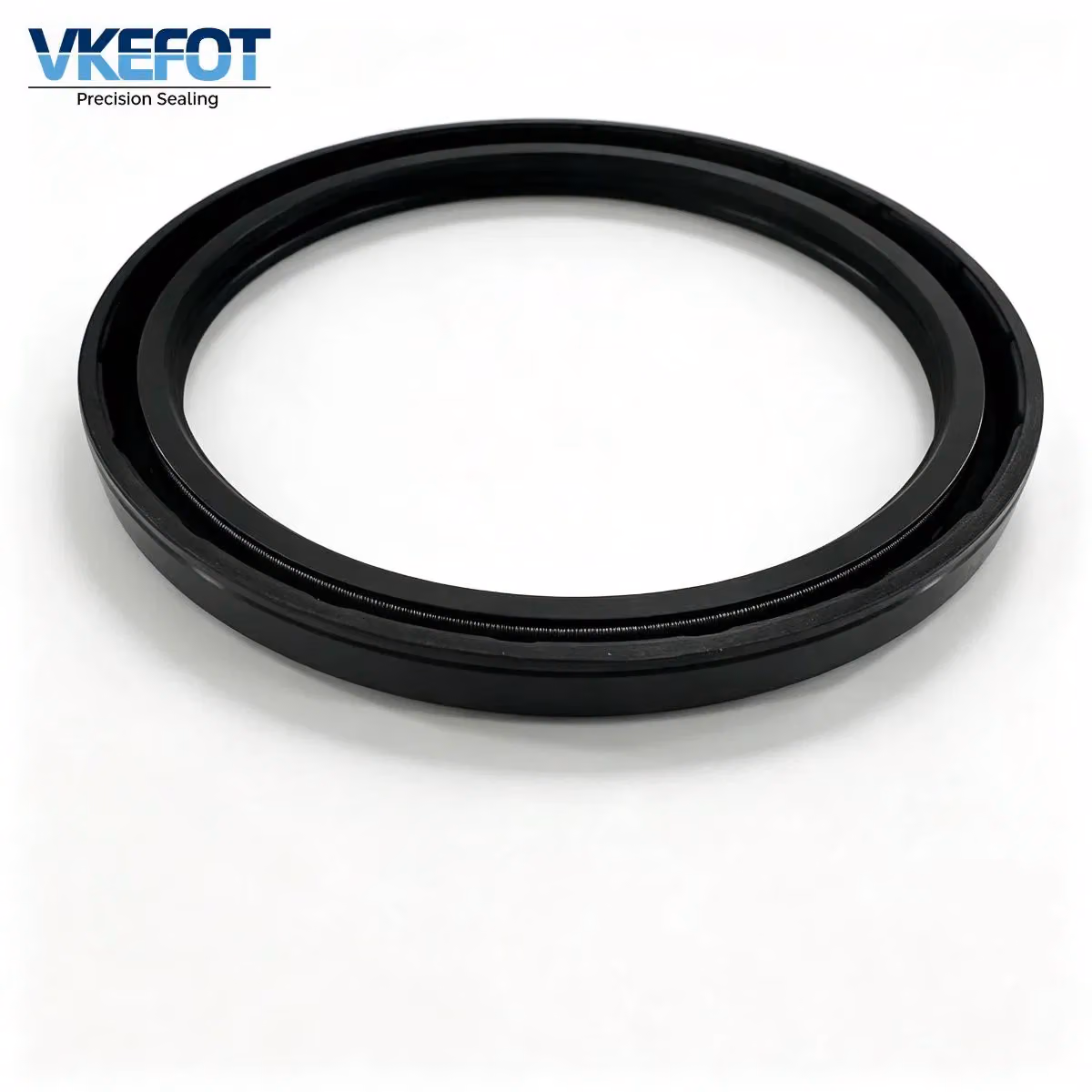

92x110x8.5mm HTC Crankshaft Oil Seal OE 90311-92009 For Toyota Engine
Model / SKU: VKEFOT-HTC-92-110-8.5-90311-92009
This aftermarket HTC type crankshaft oil seal 92x110x8.5mm matches OE 90311-92009 in NBR.
Tags: 92x110x8.5mm, 90311-92009, HTC crankshaft seal, Toyota engine seal, NBR engine oil seal
Product photos
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Size (mm) | 92x110x8.5 |
| Material | NBR |
| Structure | HTC type rear crankshaft oil seal |
| Size | 92x110x8.5mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: In stock: ships in 1 to 2 days | Not in stock but still in current production: 10 to 15 days | Not in stock and not in production: 25 to 30 days
Product details
This aftermarket HTC type rear crankshaft oil seal 92x110x8.5mm matches OE 90311-92009, designed for Toyota engine crankshaft rear end sealing.
Buyers sourcing automotive engine seals can submit RFQ with dimension, OE number, quantity and destination country.
Features & Benefits
HTC profile with internal oil return thread pumps leaked oil back into crankcase, reduces oil seepage under continuous crankshaft rotation.
NBR rubber lip delivers good oil resistance and wear resistance under standard engine operating conditions.
Spring energized sealing lip maintains consistent contact pressure on rotating crankshaft for reliable oil retention.
Verify OE number, dimension and shaft surface condition before installation, this seal is aftermarket replacement, not genuine OEM part.
Factory standard options, confirm on RFQ.
VKEFOT manufactures oil seals, O-rings and custom rubber seals in Xingtai and exports to Europe, North America, Middle East and Southeast Asia.
Material & Process
Metal skeleton bonded with NBR rubber, internal thread oil return structure, black finish.
Packaging & Delivery
Standard neutral polybag + export carton.
Samples and small trial lots for stocked sizes; freight confirmed on RFQ.
Send an inquiry with size (ID×OD×height in mm), OE number, quantity, destination and duty for a firm lead time.
FAQ
What is 92x110x8.5mm HTC crankshaft oil seal OE 90311-92009 used for?
92x110x8.5mm HTC crankshaft oil seal matching OE 90311-92009 is used for Toyota engine crankshaft rear end sealing to retain engine oil and prevent leakage.
Which engine does OE 90311-92009 oil seal fit?
OE 90311-92009 is commonly listed for Toyota engine crankshaft rear end, verify OE number and dimension before purchase.
Is OE 90311-92009 crankshaft oil seal a genuine OEM part?
No — it is an aftermarket replacement matching OE 90311-92009; verify size and OE number before order.
How to install 92x110x8.5mm crankshaft oil seal without oil leakage?
1. Clean crankshaft and housing bore, remove burrs and old seal residue. 2. Protect sealing lip from scratches. 3. Press seal evenly and keep perpendicular. 4. Do not hammer rubber directly. 5. Rotate shaft manually after assembly and check leakage.
What information should I send for an RFQ on this HTC crankshaft oil seal?
Submit ID×OD×height in mm, OE number, quantity, destination country and working medium for quotation.
