85x150/169x13.5/33mm NBR Differential Shaft Oil Seal for Trucks

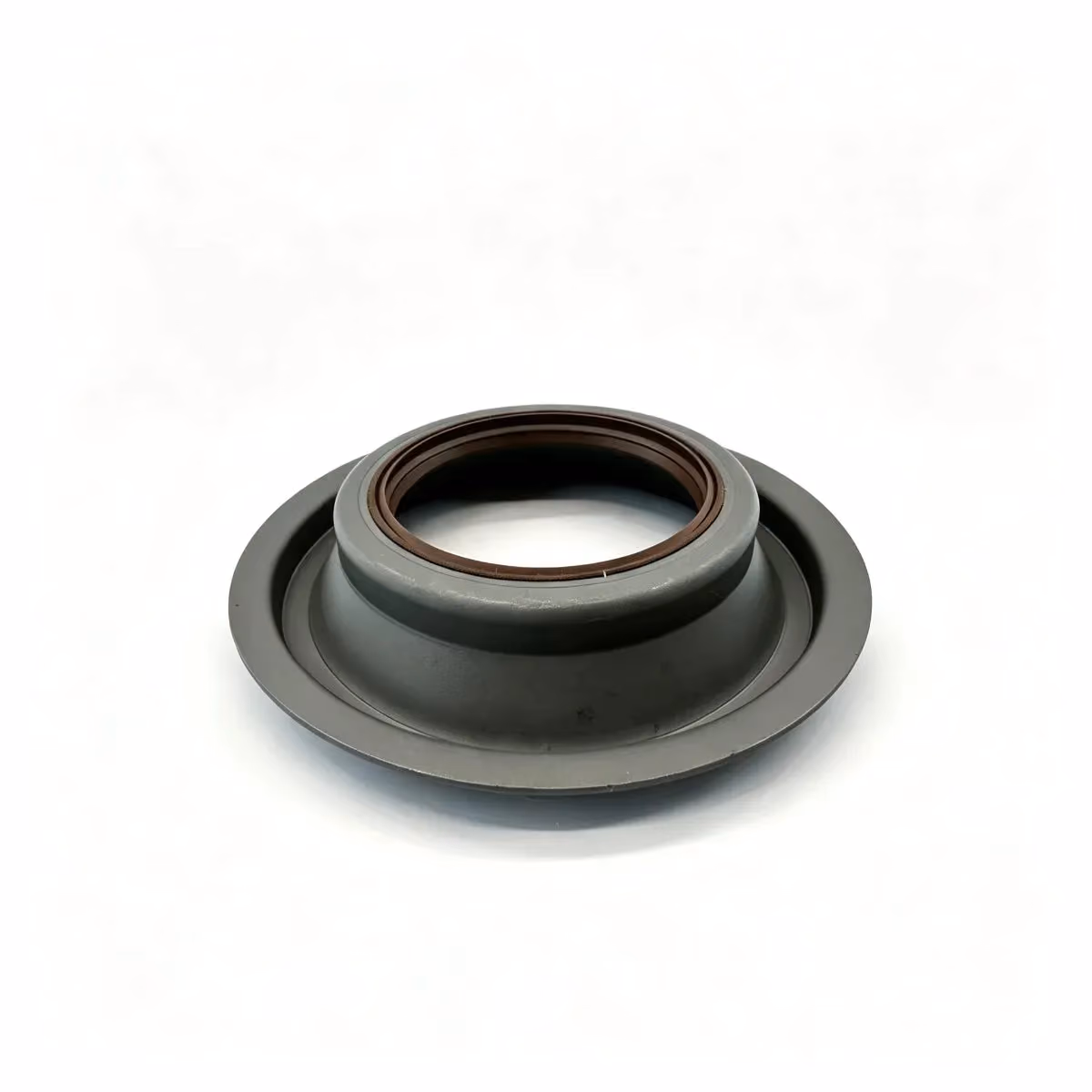

85x150/169x13.5/33mm Differential Shaft Oil Seal, NBR, High Quality, — main photo

Premium flange‑style differential shaft oil seal 85x150/169x13.5/33mm, NBR construction with bowl‑shaped metal shell and garter‑spring double lip. Specially engineered for heavy‑duty truck differential pinion shaft, prevents gear‑oil leakage and blocks heavy mud, dust and splash‑water under harsh road conditions. Factory‑new aftermarket truck spare part.

Tags: black NBR oil seal, differential pinion shaft seal, universal heavy‑duty truck, flange bowl‑type double‑lip seal

Product photos

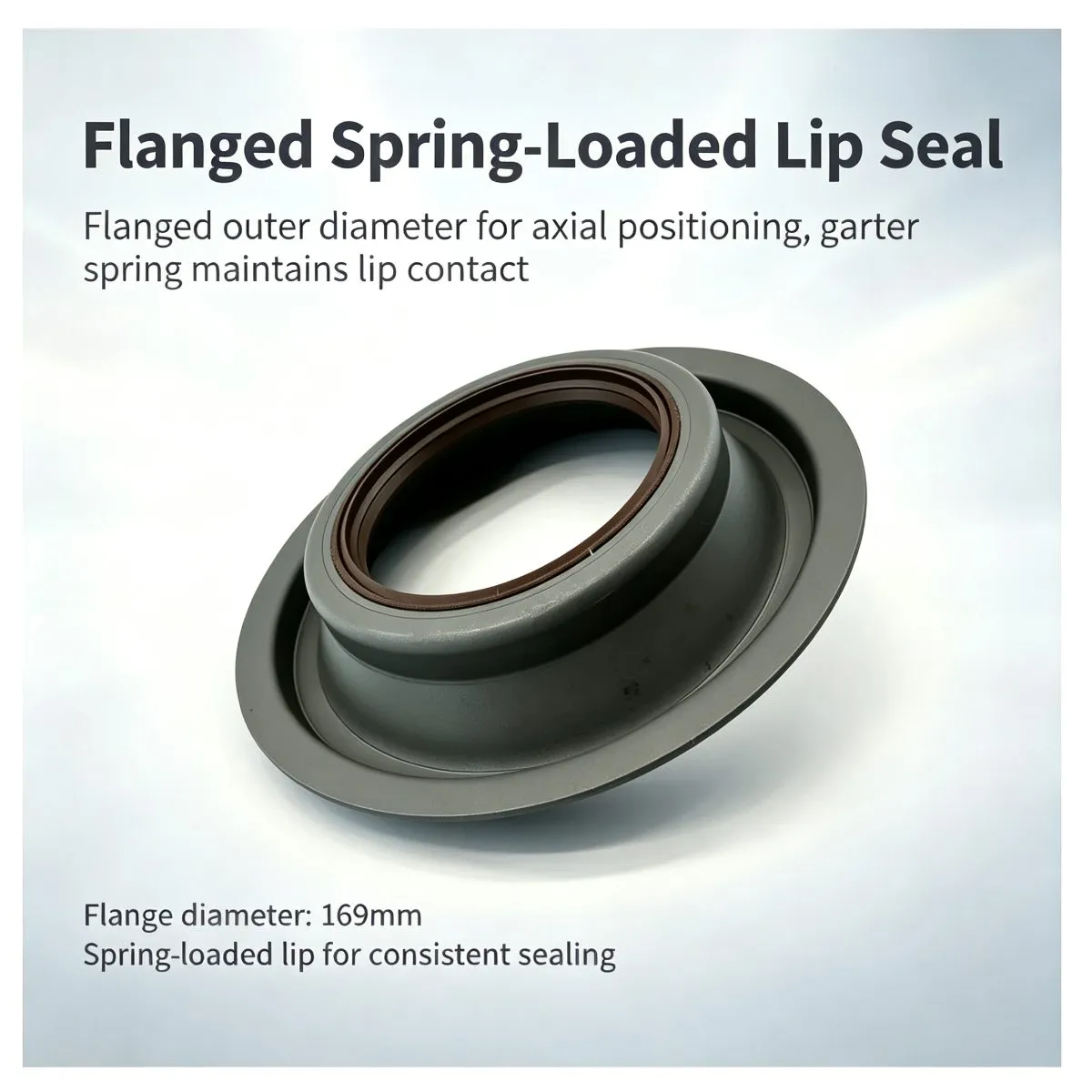

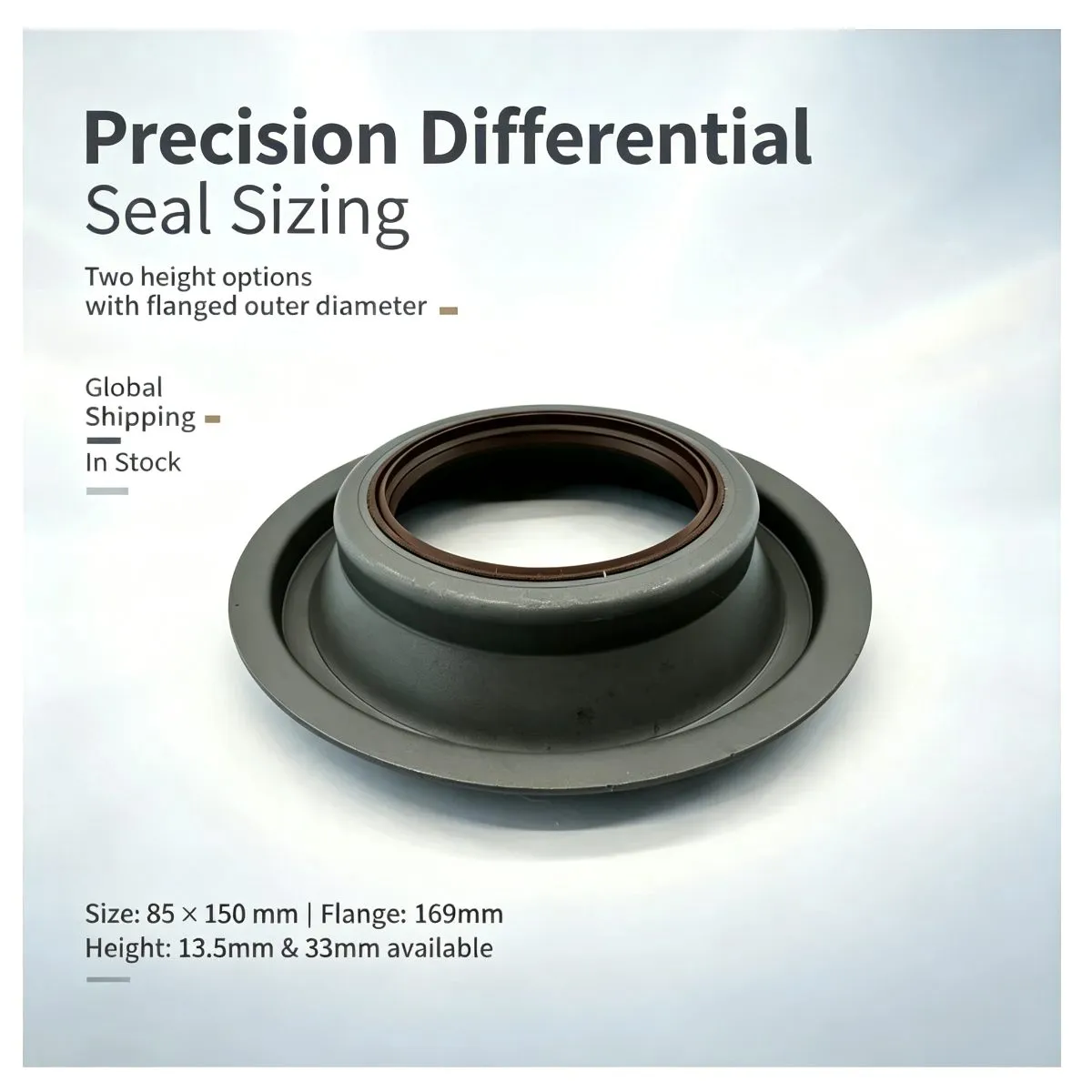

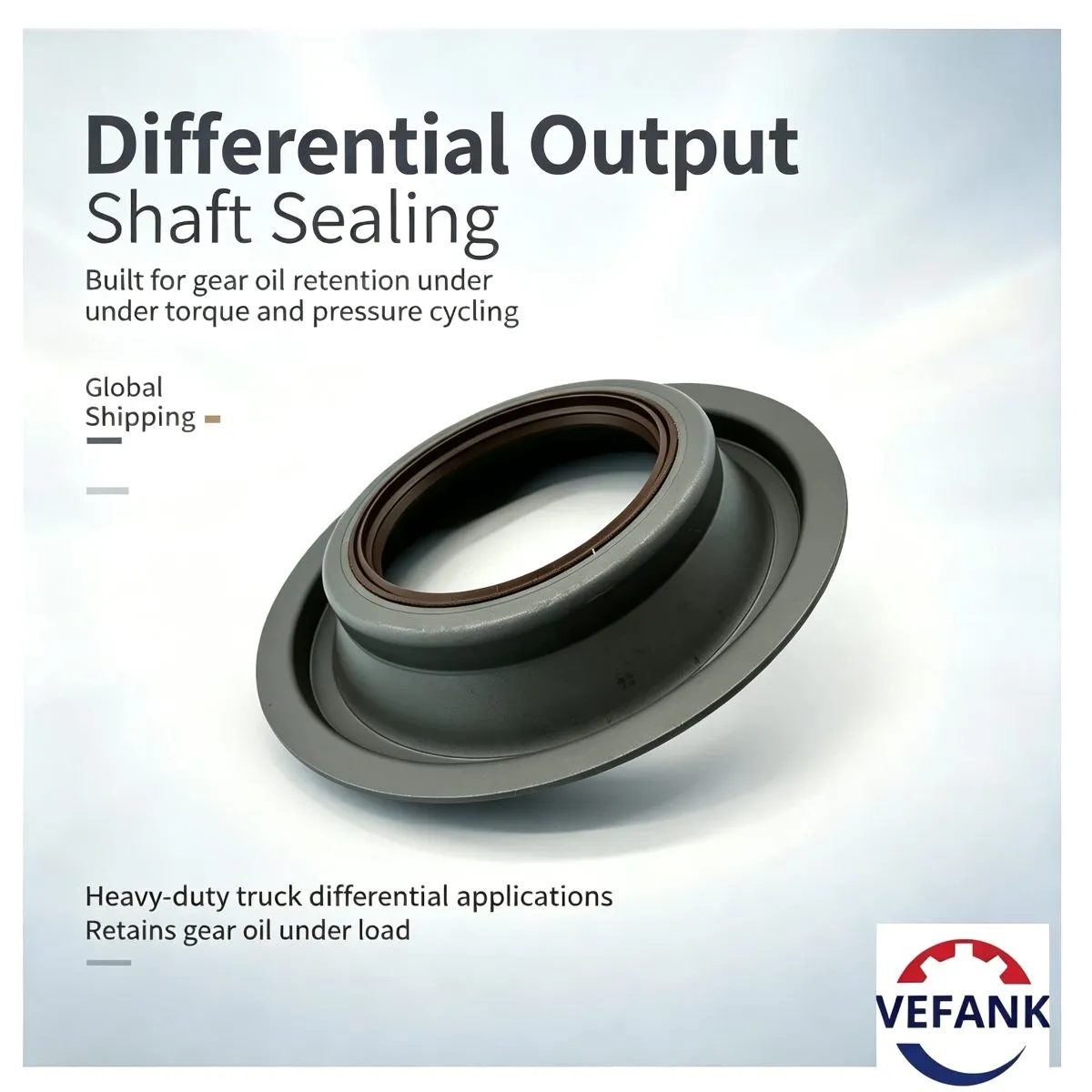

85x150/169x13.5/33mm Differential Shaft Oil Seal, NBR, High Quality, — photo 2 85x150/169x13.5/33mm Differential Shaft Oil Seal, NBR, High Quality, — photo 3 85x150/169x13.5/33mm Differential Shaft Oil Seal, NBR, High Quality, — photo 4

Key specs: Material: NBR | Spec & Model: 85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft | Spec & Model: 85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft

  • Material: NBR
  • Spec & Model: 85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft
  • Spec & Model: 85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

Brand‑new aftermarket flange bowl‑style differential shaft oil seal 85x150/169x13.5/33mm, built with reinforced deep‑drawn bowl‑shaped metal shell and NBR double‑lip with garter spring, designed for heavy‑duty truck differential pinion shaft assembly. The unique bowl‑flange shell provides stable interference fit for truck axle housing bore. Pre‑loaded garter spring maintains constant radial pressure on rotating shaft. It locks differential gear‑oil inside housing and resists heavy mud, sand and splash‑water intrusion in tough off‑road and highway truck operating scenarios. Ideal for truck repair shops, heavy‑parts wholesalers and cross‑border bulk procurement. Core functions Gear‑oil retention: Stop differential gear‑oil leakage under heavy load, vibration and shock from truck driving Heavy‑duty contamination exclusion: Block thick mud, road grit and splash‑water for poor‑road truck working environment Reinforced bowl‑shaped metal shell: Anti‑rust coating, anti‑deformation for heavy‑truck press‑fit installation Garter‑spring pre‑load: Stable sealing performance under large temperature swings and continuous vibration

Material and process

Material ：NBR nitrile rubber sealing lip, anti‑rust painted deep‑draw carbon‑steel bowl‑flange shell, stainless steel garter spring Structure ：Flange bowl‑type double‑lip rotary shaft oil seal Key properties ：Oil‑resistant, heavy‑dust‑proof, anti‑vibration, anti‑aging, impact resistant Working temperature:‑20℃ +120℃ Manufacturing features High‑temperature vulcanization bonding between rubber lip and bowl‑shaped metal shell, resist rubber‑metal separation under heavy truck vibration. Precision‑ground sealing lip to reduce friction heat and extend service‑life under long‑time continuous rotation. Anti‑rust painted bowl‑flange shell adapts to harsh heavy‑truck under‑carriage environment. NBR compound compatible with heavy‑duty truck differential gear‑oil. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load operating conditions.

Application and compatibility

Product Type ：Bowl‑flange differential pinion shaft oil seal for heavy‑duty truck Key dimension ：ID85mm × OD150/169mm × dual width13.5/33mm Compatible media ：Heavy‑duty truck differential gear‑oil. Working conditions:Heavy‑truck differential pinion shaft, withstand heavy load, strong vibration, mud and splash‑water. Not suitable for ：Strong corrosive solvents, extreme ultra‑high‑temperature special‑purpose equipment. Fit applications ：Aftermarket replacement seal for heavy‑duty truck differential repair. Buyer reminder ：This is aftermarket replacement truck spare part. Please verify shaft diameter, housing bore and flange profile before placing order. Mismatched dimension or housing profile will cause gear‑oil leakage right after installation.

Selection guide

Selection Tips 1. Confirm dimension ID85mm, OD150/169mm, dual width13.5/33mm and bowl‑flange seal structure. 2. Standard NBR version for regular heavy‑truck gear‑oil environment; choose FKM upgrade for high‑temperature heavy‑load scenarios. 3. Inspect truck differential pinion shaft and housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Fully clean differential housing bore, flange seating surface and pinion shaft, remove old seal fragments, grease dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched heavy‑duty differential gear‑oil. Dry installation is strictly forbidden; dry friction will burn sealing lip quickly. Orientation Confirmation Main sealing lip points toward gear‑oil cavity; outer dust lip faces outward. Wrong installation direction leads to oil leakage and lost mud‑proof protection. Vertical Press‑fit Use dedicated press‑sleeve tool to press bowl‑flange oil‑seal evenly and vertically. Never strike rubber lip or thin bowl‑flange directly, to avoid shell deformation and lip tearing. Seating Inspection Ensure full flat contact between seal flange and housing seating surface, no tilt or gap. Visual Check Examine sealing lip for invisible nicks and bowl‑shell deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate pinion shaft assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip and bowl‑flange from scratch and dent. Outer package ：Reinforced heavy‑export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection:Moisture‑proof, dust‑proof and anti‑collision packing to prevent bowl‑flange deformation during transit.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is 85x150/169x13.5/33mm oil seal used for?

85x150/169x13.5/33mm bowl‑flange differential pinion shaft oil seal, NBR material, aftermarket heavy‑duty truck repair replacement part, prevents differential gear‑oil leakage and blocks heavy mud and splash‑water.

What are full specifications?

Size:85x150/169x13.5/33mm; Material:NBR lip + painted bowl‑flange carbon‑steel shell + garter spring; Working temperature:‑20℃ 120℃; Application:Heavy‑duty truck differential pinion shaft sealing.

Which vehicle fits 85x150/169x13.5/33mm differential oil seal?

This bowl‑flange oil seal is aftermarket replacement for universal heavy‑duty truck differential repair, please confirm shaft dimension, housing bore and flange profile before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.

What is your MOQ and delivery time?

In‑stock items: no MOQ, delivery within 3‑5 working days. Customized order MOQ:1000 pcs, lead‑time 30‑45 days.

How to avoid gear‑oil leakage after installation?

Repair worn shaft, housing bore and flange seating surface before fitting. Lubricate seal lip before pressing. Install in correct direction with proper sleeve press‑tool, never strike seal bowl‑flange or lip directly. Test shaft rotation after assembly. Improper installation is main cause of early leakage.

What is shelf‑life for NBR oil seal?

Shelf life is 24 months when stored in cool, dry, dark and ventilated warehouse, avoid ozone, high temperature and heavy squeezing or denting.

Can I get FKM high‑temperature version for this size?

Yes, FKM material upgrade version is available for higher‑temperature heavy‑load working conditions, please contact us for quotation.

Can you provide export documents for bulk order?

We can provide commercial invoice, packing list and certificate of origin for bulk export shipments to support customs clearance.

Can I mix different oil seals in one order?

Mixed wholesale is supported, you can combine multiple sizes oil seals for one‑stop sourcing.
