130x155x20mm TB Metal-Cased NBR Oil Seal for Commercial Axle Hub

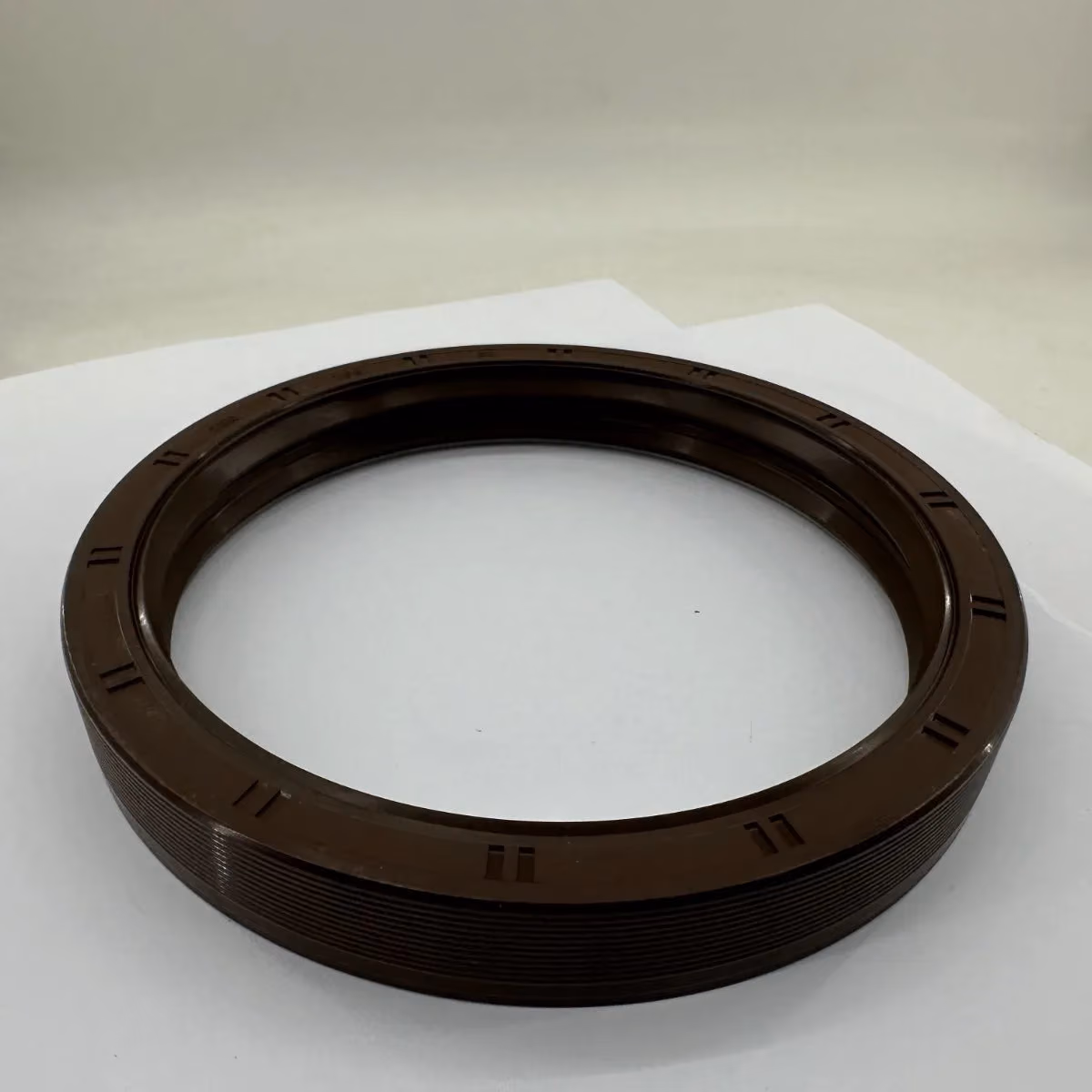

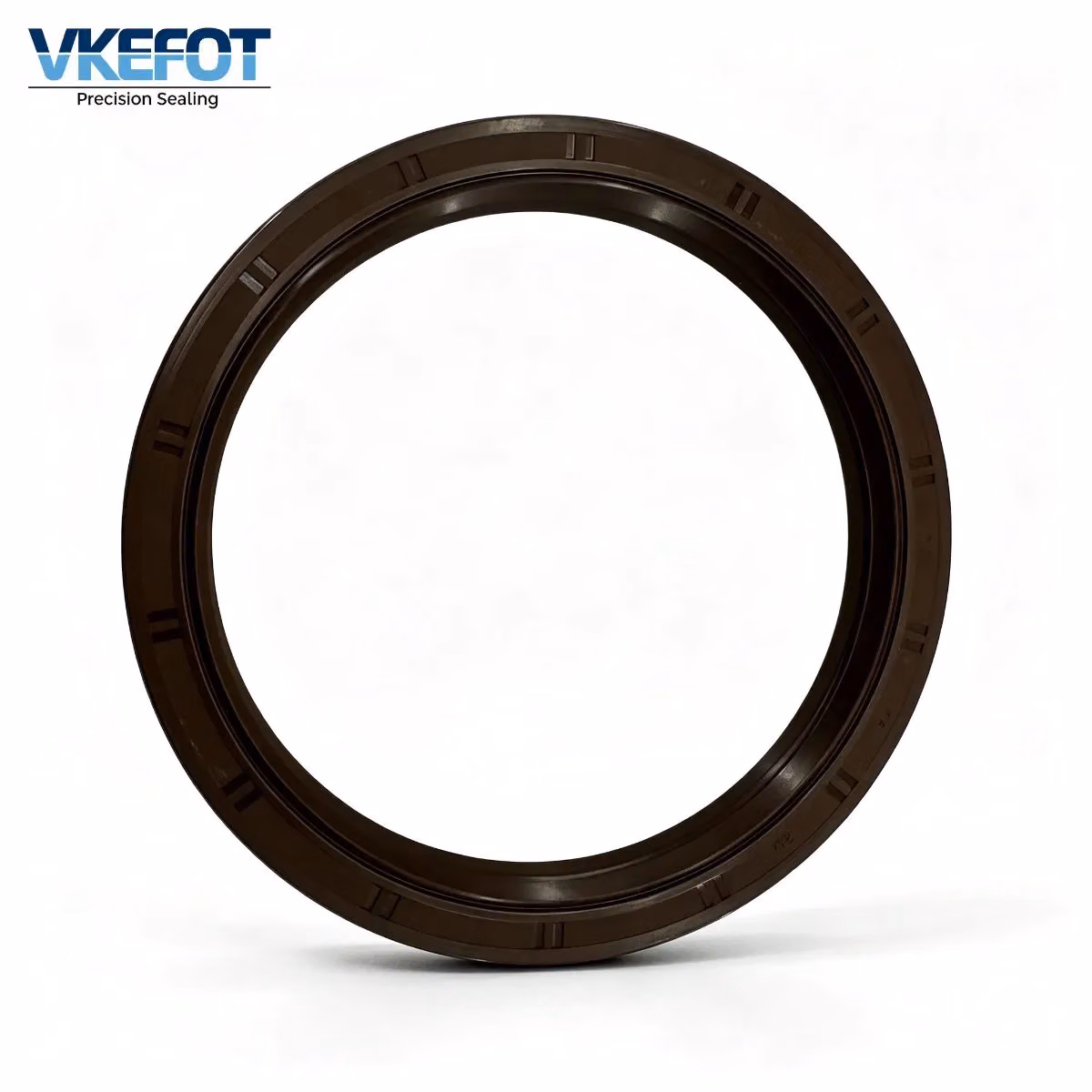

130x155x20mm TB‑Type Metal‑Cased Oil Seal, NBR Rubber Heavy‑Duty — main photo

Factory‑new TB‑type metal‑cased skeleton oil seal, dimension 130×155×20 mm, NBR rubber sealing lip with metal outer shell and garter spring. Suitable for heavy‑duty commercial vehicle axle, hub and differential shaft assembly. Good oil‑resistant and wear‑resistant performance, prevents lubricant leakage and blocks mud, dust and splash‑water. High‑quality aftermarket spare part available for wholesale export.

Tags: NBR oil seal, axle hub shaft seal, heavy‑duty commercial vehicle, TB metal‑cased skeleton seal

Product photos

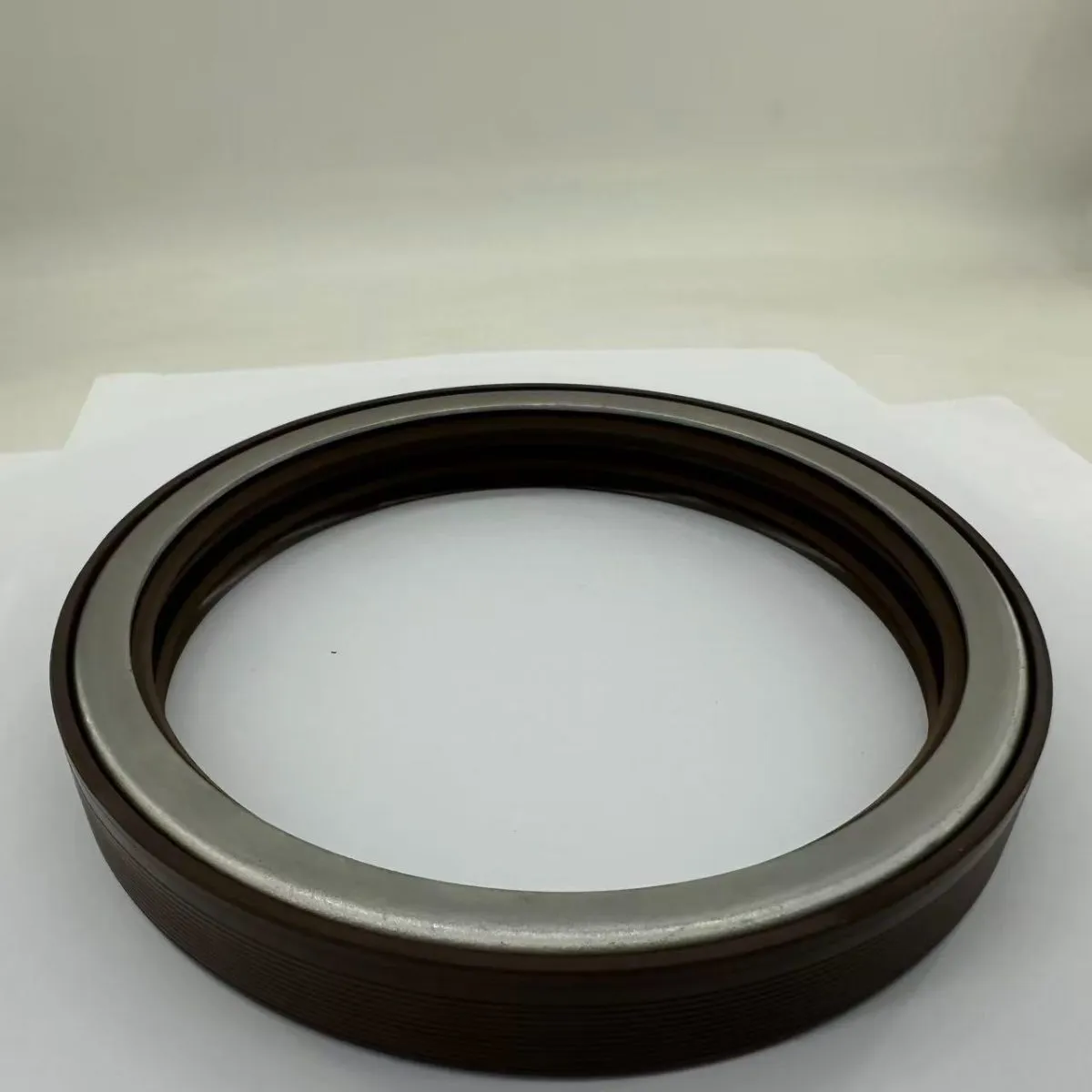

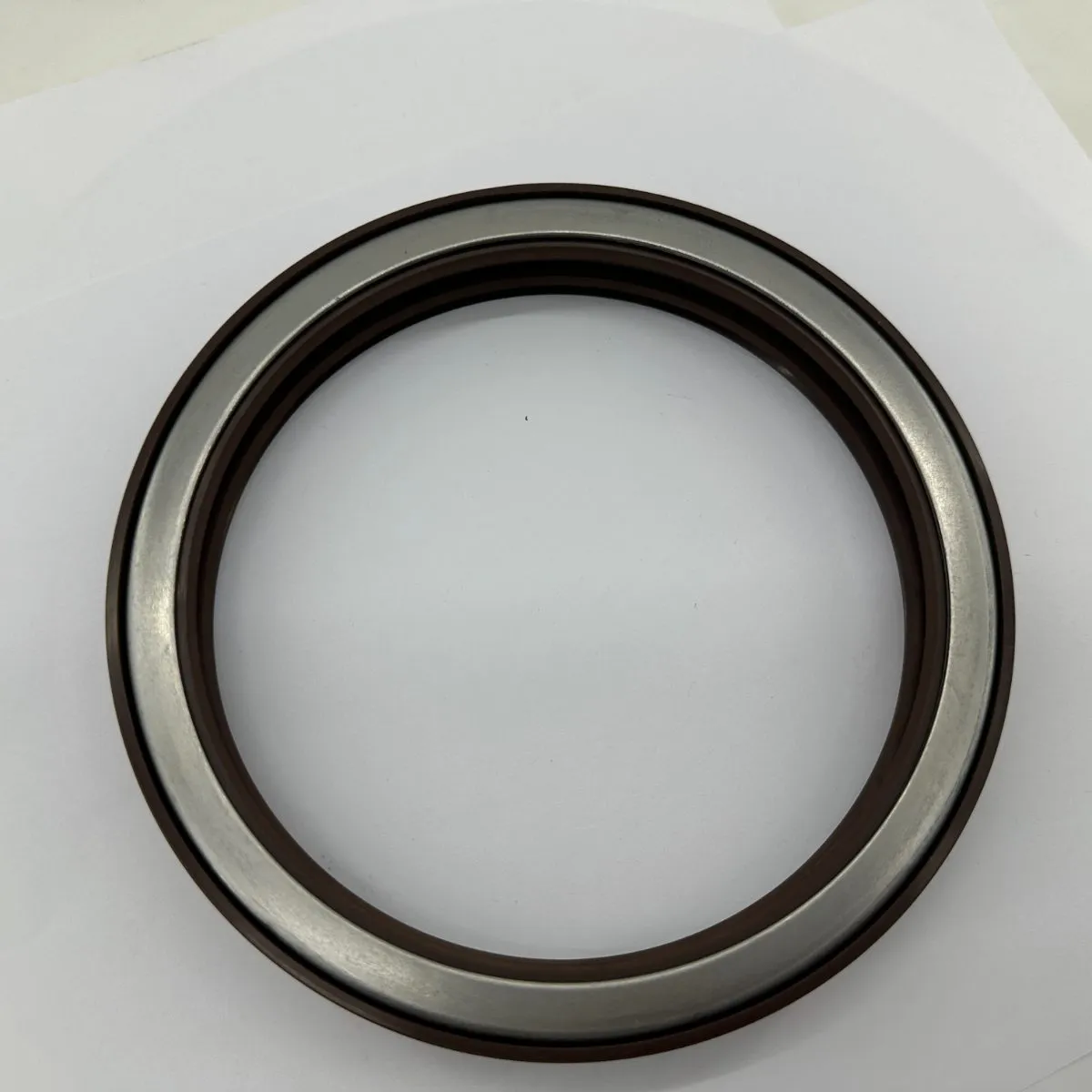

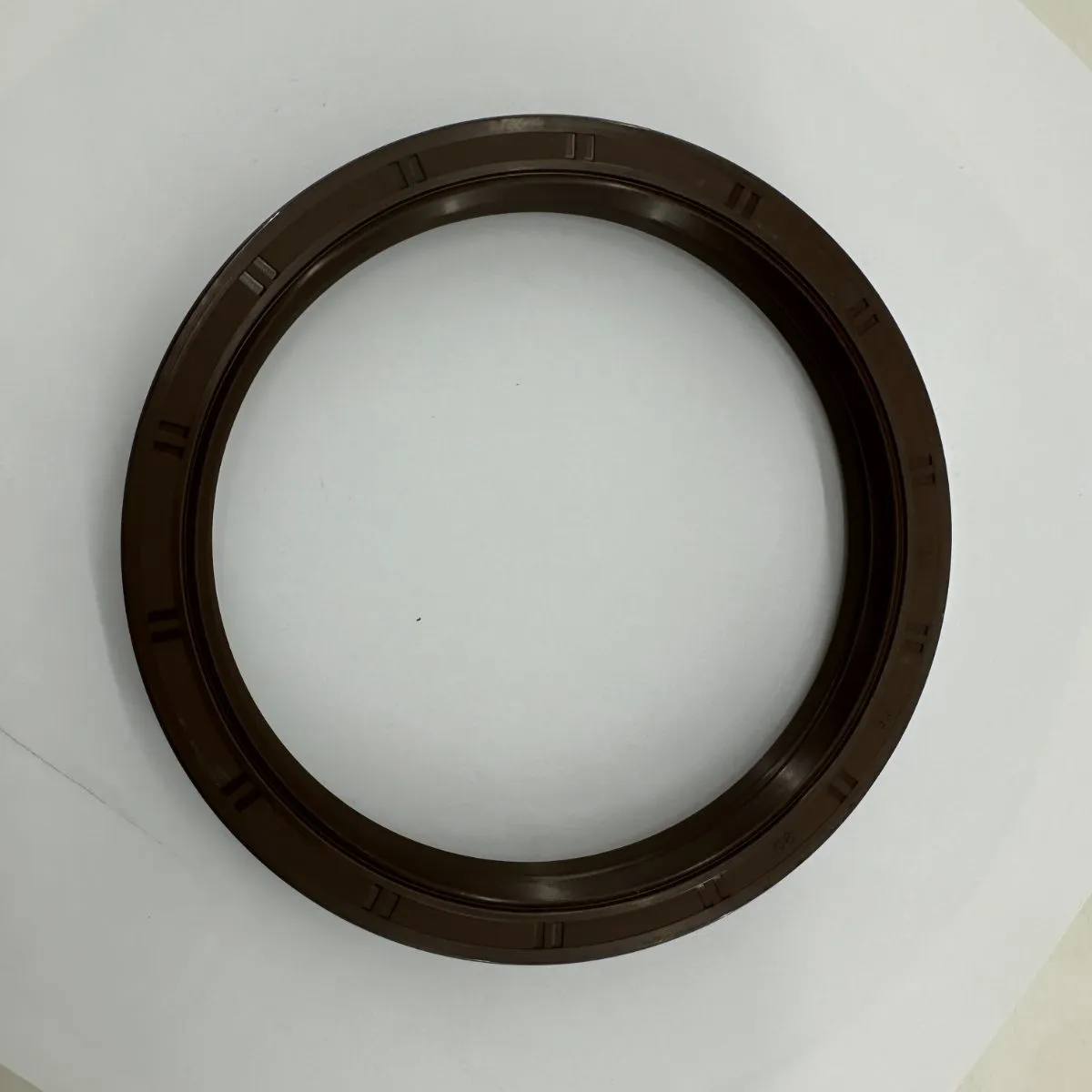

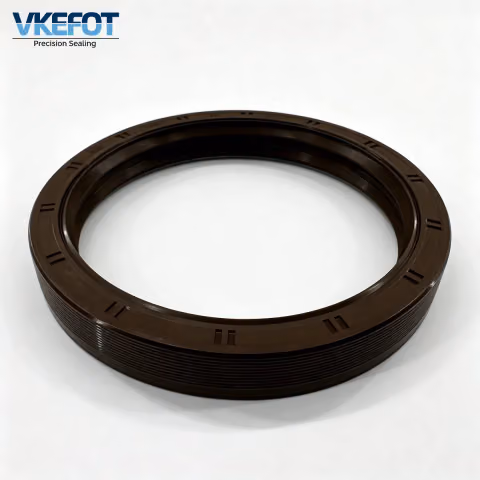

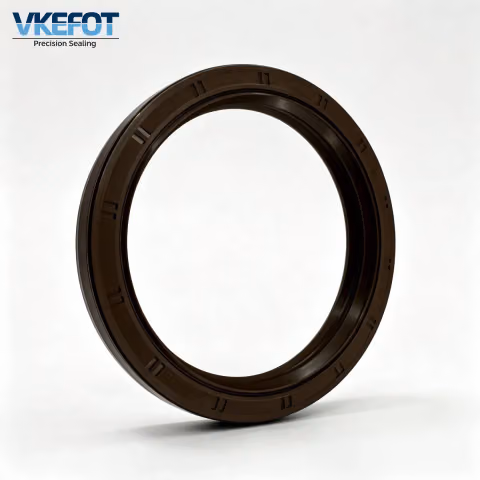

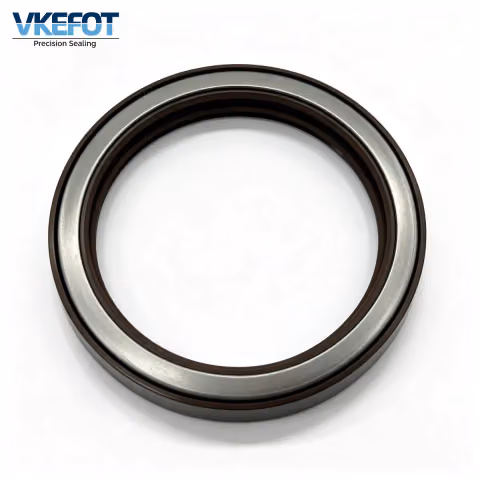

130x155x20mm TB‑Type Metal‑Cased Oil Seal, NBR Rubber Heavy‑Duty — photo 2 130x155x20mm TB‑Type Metal‑Cased Oil Seal, NBR Rubber Heavy‑Duty — photo 3 130x155x20mm TB‑Type Metal‑Cased Oil Seal, NBR Rubber Heavy‑Duty — photo 4

Key specs: Inner diameter mm: 130 | Outer diameter mm: 155 | Height mm: 20 | Material: NBR | Spec & Model: 130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft | Spec & Model: 130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft

  • Inner diameter mm: 130
  • Outer diameter mm: 155
  • Height mm: 20
  • Material: NBR
  • Spec & Model: 130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft
  • Spec & Model: 130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This TB‑style metal‑cased skeleton oil seal dimension 130×155×20 mm is brand‑new aftermarket replacement part for heavy‑duty commercial vehicle axle‑hub and differential shaft. Adopts rigid full‑metal outer shell bonded with NBR rubber sealing lip and built‑in garter spring. Effectively retain gear oil or bearing grease inside axle‑hub assembly, avoid lubricant leakage under heavy‑load vibration. Block sand, mud, dust and splash‑water from invading bearing and gear chamber. Widely used for vehicle repair workshops, domestic auto‑parts wholesale and cross‑border commercial‑vehicle‑parts export business. Core functions Prevent axle‑hub gear‑oil and bearing‑grease leakage under heavy‑duty driving vibration Isolate shaft assembly from mud, grit and splash‑water contamination Rigid metal‑cased structure ensures stable positioning and press‑fit installation Reliable sealing performance for long‑haul heavy‑duty transportation

Material and process

Material ：NBR nitrile rubber, full metal case, garter spring Structure ：TB type metal‑cased rotary shaft skeleton oil seal Key properties ：Oil‑resistant, wear‑resistant, dust‑proof, anti‑vibration, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features Firm vulcanization bonding between metal shell and rubber lip, stable performance under chassis bumping vibration. Precision‑formed sealing lip with garter spring maintains consistent radial pre‑load pressure. NBR compound has good compatibility with commercial‑vehicle gear‑oil and bearing grease. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load working scenarios.

Application and compatibility

Product Type ：TB metal‑cased skeleton oil seal for heavy‑duty commercial vehicle Key dimension ：ID130mm × OD155mm, overall thickness20mm Compatible media ：Axle gear‑oil, wheel‑hub bearing grease, general chassis lubricants. Fit application ：Heavy‑duty commercial‑vehicle axle‑hub and differential shaft sealing. Buyer reminder ：This is aftermarket replacement spare part. Please verify shaft dimension and housing bore before placing order. Dimension mismatch will result in lubricant leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID130mm, OD155mm, thickness20mm and TB metal‑cased skeleton structure. 2. Standard NBR version for normal oil/grease environment; select FKM upgrade for high‑temperature heavy‑load working condition. 3. Inspect shaft and housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Thoroughly clean housing bore and shaft surface, remove old seal residue, dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched gear‑oil or bearing grease. Dry installation strictly forbidden; dry friction will damage sealing lip quickly. Orientation Confirmation Main sealing lip points toward lubricant cavity; dust‑proof metal‑shell side faces outward. Wrong installation direction leads to lubricant leakage and poor contamination‑resistance. Vertical Press‑fit Use dedicated press‑sleeve tool to press metal‑cased oil‑seal evenly and vertically. Never strike rubber lip or metal shell directly to avoid seal deformation and lip tearing. Seating Inspection Ensure seal sits fully flush inside housing bore without tilt. Visual Check Examine sealing lip for nicks and seal‑body deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate shaft assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and anti‑collision packing to prevent deformation during transit.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is 130x155x20 oil seal used for?

130x155x20 mm TB metal‑cased skeleton oil seal, NBR material, aftermarket replacement for heavy‑duty commercial‑vehicle axle‑hub and differential shaft, prevents gear‑oil/grease leakage and blocks mud and dust.

What are full specifications?

Size:ID130mm × OD155mm, thickness20mm; Material:NBR rubber + full metal case + garter spring; Structure:TB metal‑cased skeleton seal; Working temperature:‑20℃ 120℃; Application:Heavy‑duty commercial‑vehicle axle‑hub and differential shaft sealing.

Which vehicle fits 130x155x20 oil seal?

This TB‑type metal‑cased oil seal is aftermarket replacement for heavy‑duty commercial‑vehicle axle‑hub and differential shaft. Please confirm shaft dimension and housing bore before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.

What is your MOQ and delivery time?

In‑stock items: no MOQ, delivery within 3‑5 working days. Customized order MOQ:1000 pcs, lead‑time 30‑45 days.

How to avoid lubricant leakage after installation?

Repair worn shaft and housing bore before fitting. Lubricate seal lip with matching oil or grease before pressing. Install in correct direction with proper sleeve press‑tool, never strike seal body directly. Test shaft rotation after assembly. Improper installation is main cause of early leakage.

What is shelf‑life for NBR TB‑type oil seal?

Shelf life is 24 months when stored in cool, dry, dark and ventilated warehouse, avoid ozone, high temperature and heavy squeezing or denting.

Can I get FKM high‑temperature version for this size?

Yes, FKM material upgrade version is available for higher‑temperature heavy‑load working conditions, please contact us for quotation.

Can you provide export documents for bulk order?

We can provide commercial invoice, packing list and certificate of origin for bulk export shipments to support customs clearance.

Can I mix different oil seals in one order?

Mixed wholesale is supported, you can combine multiple sizes oil seals for one‑stop sourcing.
