118x174x16/28mm Cassette Hub Oil Seal OEM 1026679 3453200450

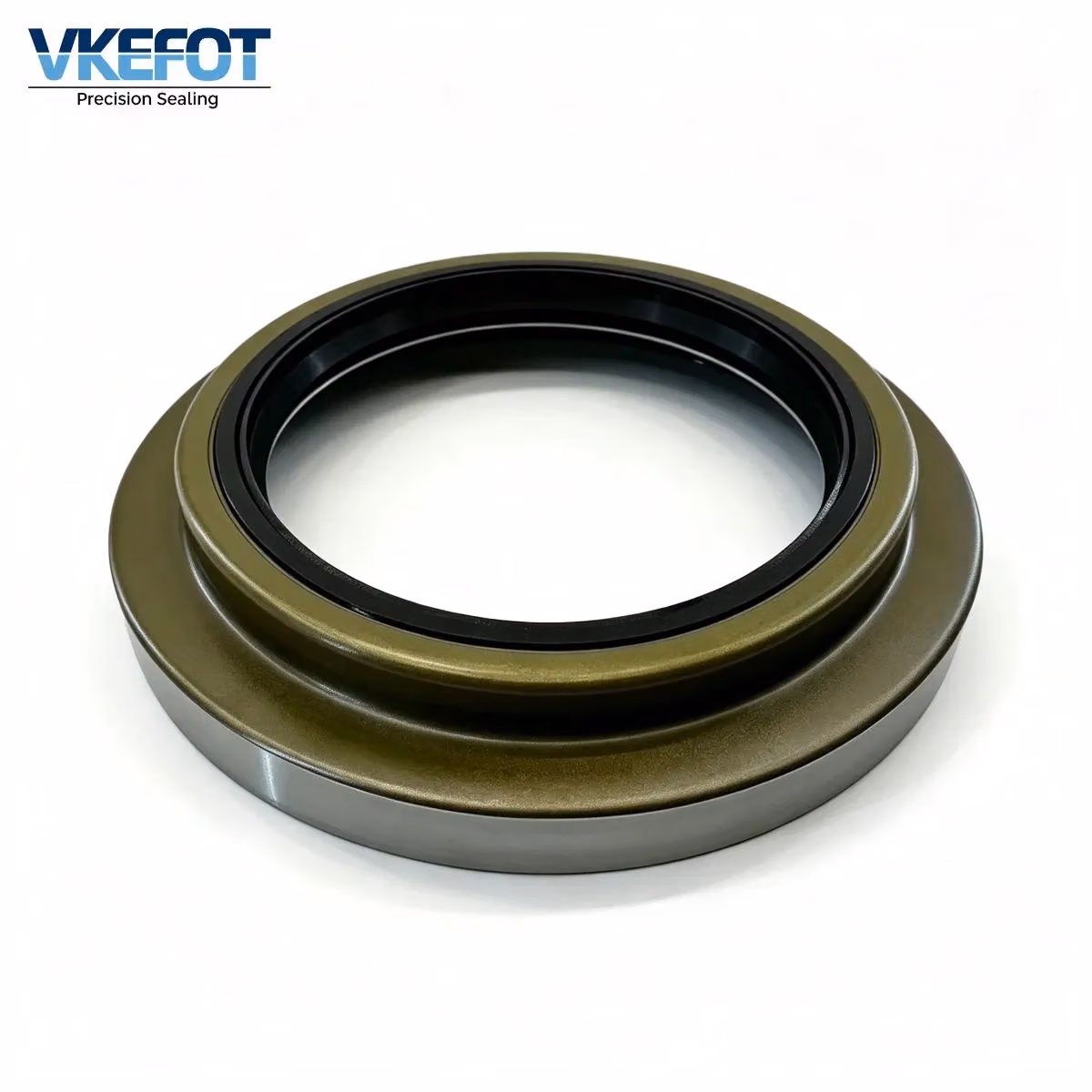

118x174x16/28mm Cassette Truck Wheel Hub Oil Seal OEM 1026679 — main photo

Factory‑new flange‑cassette wheel hub oil seal, dimension 118×174×16/28 mm, OEM numbers 1026679, 3453200450. NBR rubber with garter spring and flanged metal shell. Designed for heavy‑duty truck wheel hub assembly, retains bearing grease and blocks mud, dust and splash‑water. High‑quality aftermarket truck spare part, available for wholesale export.

Tags: NBR oil seal, truck wheel hub seal, heavy‑duty commercial vehicle, flanged cassette composite seal

Product photos

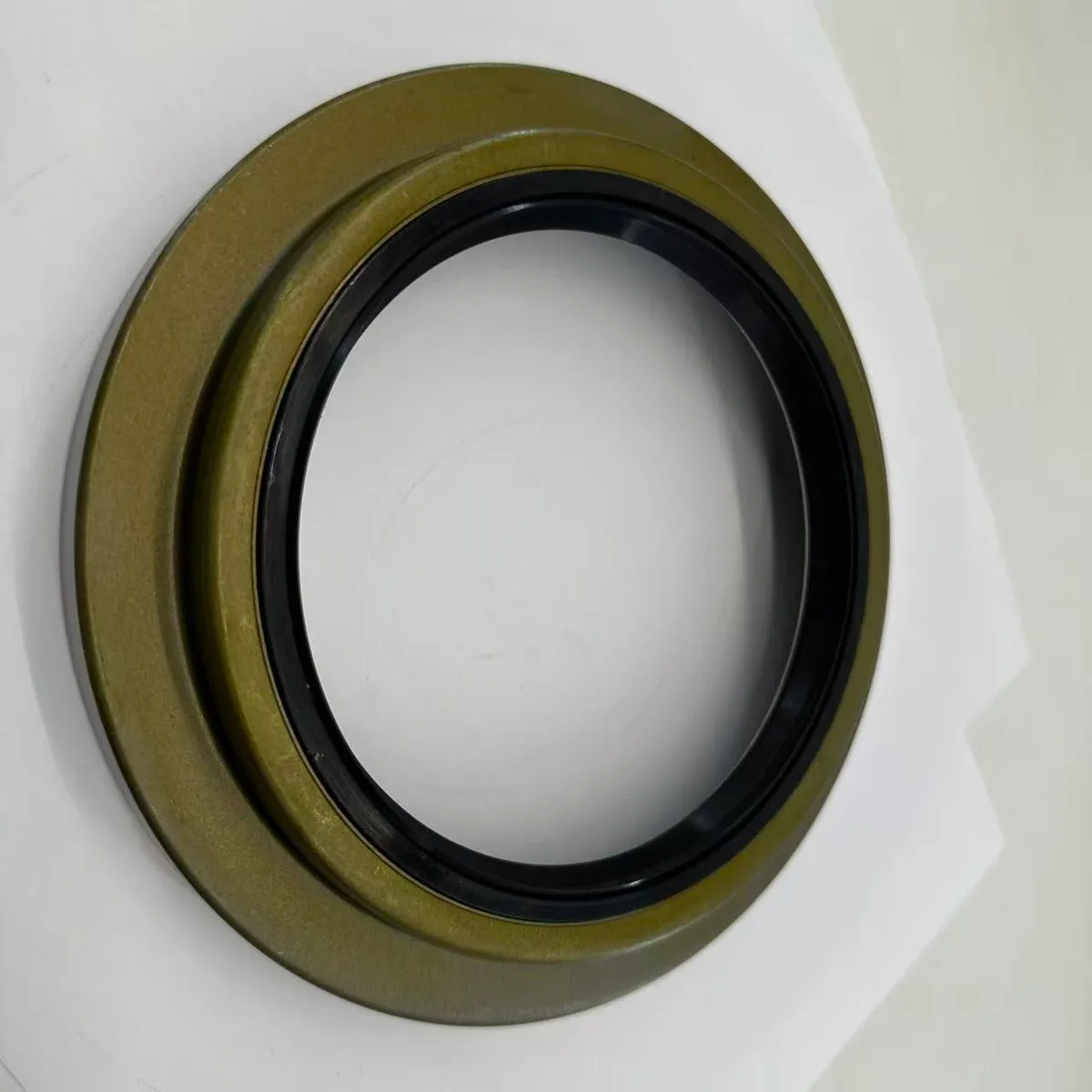

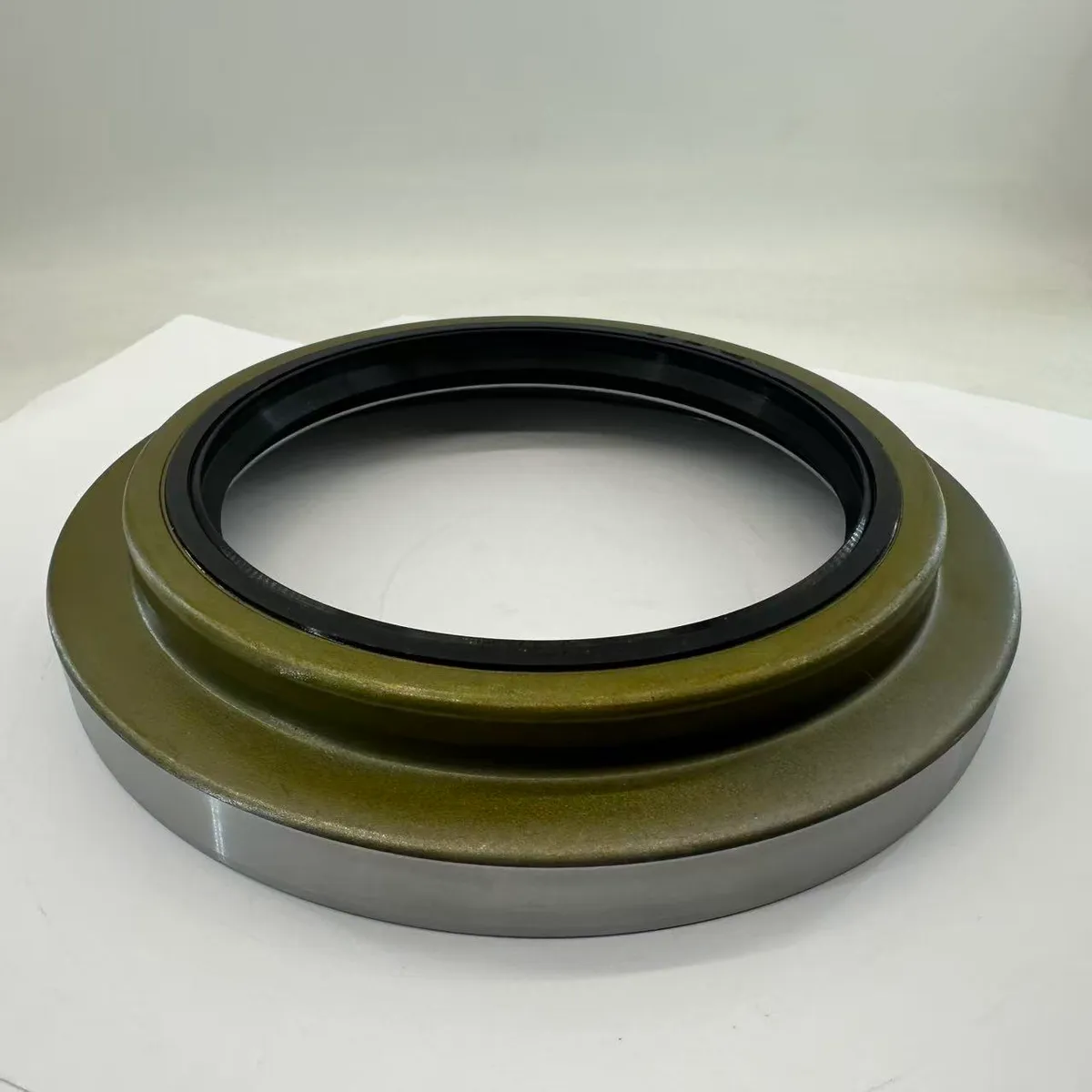

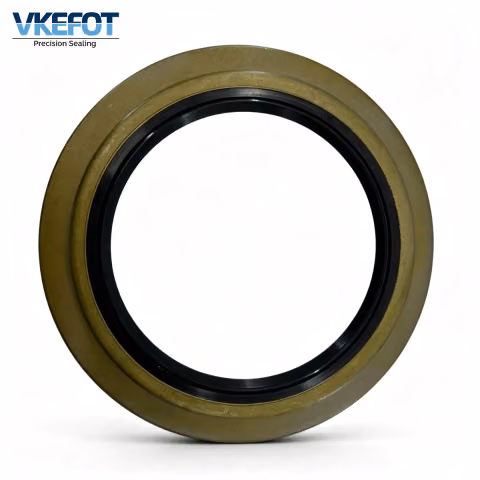

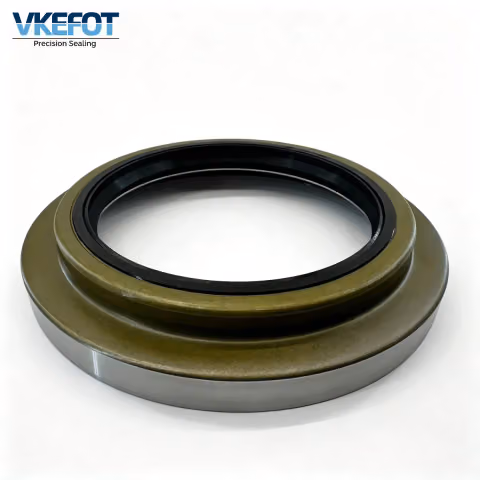

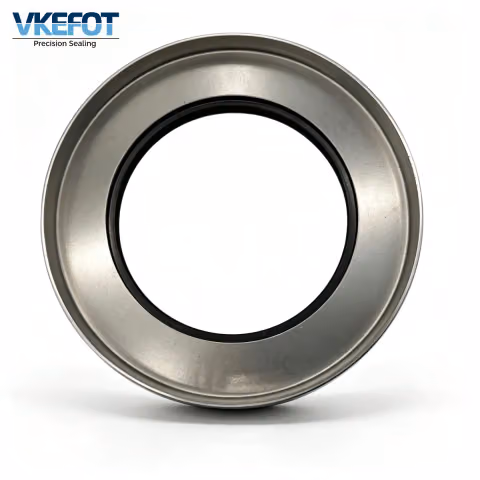

118x174x16/28mm Cassette Truck Wheel Hub Oil Seal OEM 1026679 — photo 2 118x174x16/28mm Cassette Truck Wheel Hub Oil Seal OEM 1026679 — photo 3 118x174x16/28mm Cassette Truck Wheel Hub Oil Seal OEM 1026679 — photo 4

Key specs: Inner diameter mm: 118 | Outer diameter mm: 174 | Height mm: 16/28 | Material: NBR | Spec & Model: 118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub | Spec & Model: 118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub

  • Inner diameter mm: 118
  • Outer diameter mm: 174
  • Height mm: 16/28
  • Material: NBR
  • Spec & Model: 118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub
  • Spec & Model: 118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This flanged cassette‑style wheel‑hub oil seal dimension 118×174×16/28 mm, cross reference OEM 1026679 and 3453200450, is aftermarket replacement part for heavy‑duty truck wheel hub. Adopts integrated cassette composite construction with flanged metal outer shell and built‑in garter spring. Effectively keeps wheel‑hub bearing grease inside hub assembly, prevents grease leakage under heavy‑load road vibration. Blocks mud, sand, dust and splash‑water from invading hub bearing chamber. Widely used for truck repair workshops, domestic auto‑parts wholesale and cross‑border heavy‑duty‑truck‑parts export business. Core functions Prevent wheel‑hub bearing grease leakage under heavy‑duty driving vibration Isolate hub bearing from mud, grit and splash‑water contamination Flanged cassette profile for stable positioning and press‑fit installation into hub housing bore Reliable sealing performance for long‑haul heavy‑duty transportation

Material and process

Material ：NBR nitrile rubber, flanged metal shell, garter spring Structure ：RWDR‑KASSETTE flanged‑cassette rotary shaft oil seal Key properties ：Grease resistant, mud‑proof, anti‑vibration, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features Vulcanized composite flange‑cassette structure, stable performance under chassis bumping vibration. Precision‑formed sealing lip with garter spring maintains consistent radial pre‑load pressure. NBR compound compatible with heavy‑duty truck wheel‑hub bearing grease. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load working scenarios.

Application and compatibility

Product Type ：Flanged cassette‑type wheel‑hub oil seal for heavy‑duty truck Key dimension ：ID118mm × OD174mm, mounting thickness16mm, overall height28mm OEM Part‑Number ：1026679, 3453200450 Compatible media ：Wheel‑hub bearing grease, general chassis lubricants. Fit application ：Heavy‑duty truck wheel‑hub sealing. Buyer reminder ：This is aftermarket replacement spare part for truck wheel hub. Please verify shaft dimension, housing bore, flange profile and OEM reference numbers before placing order. Dimension mismatch will result in grease leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID118mm, OD174mm, mounting thickness16mm, total height28mm, flanged cassette‑type structure and OEM numbers 1026679 / 3453200450. 2. Standard NBR version for normal hub‑grease environment; select FKM upgrade for high‑temperature heavy‑load working condition. 3. Inspect shaft and hub housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Thoroughly clean hub housing bore and shaft surface, remove old seal residue, dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched wheel‑hub bearing grease. Dry installation strictly forbidden; dry friction will damage sealing lip quickly. Orientation Confirmation Main sealing lip points toward hub bearing grease cavity; dust‑proof flange side faces toward wheel outer side. Wrong installation direction leads to grease leakage and poor contamination‑resistance. Vertical Press‑fit Use dedicated press‑sleeve tool to press flanged cassette oil‑seal evenly and vertically. Never strike rubber body or flange metal shell directly to avoid seal deformation and lip tearing. Seating Inspection Ensure seal flange sits fully flush against hub housing face without tilt. Visual Check Examine sealing lip for nicks and seal‑body deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate hub assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and anti‑collision packing to prevent deformation during transit.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is OEM 1026679 3453200450 oil seal used for?

118x174x16/28mm flanged‑cassette hub oil seal, NBR material, heavy‑duty truck wheel‑hub aftermarket replacement part. It retains wheel‑hub bearing grease and blocks mud and splash‑water for truck hub assembly.

What are full specifications?

Size:ID118mm × OD174mm, mounting thickness16mm, overall height28mm; OEM:1026679,3453200450; Material:NBR rubber + flanged metal shell + garter spring; Structure:RWDR‑KASSETTE flanged cassette seal; Working temperature:‑20℃ 120℃; Application:Heavy‑duty truck wheel‑hub sealing.

Which vehicle fits 1026679 / 3453200450 oil seal?

This flanged‑cassette oil seal is aftermarket replacement for heavy‑duty truck wheel hub. Please confirm shaft dimension, housing bore, flange profile and OEM cross‑numbers before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.

What is your MOQ and delivery time?

In‑stock items: no MOQ, delivery within 3‑5 working days. Customized order MOQ:1000 pcs, lead‑time 30‑45 days.

How to avoid grease leakage after installation?

Repair worn shaft and hub housing bore before fitting. Lubricate seal lip with bearing grease before pressing. Install in correct direction with proper sleeve press‑tool, never strike seal body directly. Test hub rotation after assembly. Improper installation is main cause of early leakage.

What is shelf‑life for NBR flanged cassette oil seal?

Shelf life is 24 months when stored in cool, dry, dark and ventilated warehouse, avoid ozone, high temperature and heavy squeezing or denting.

Can I get FKM high‑temperature version for this size?

Yes, FKM material upgrade version is available for higher‑temperature heavy‑load working conditions, please contact us for quotation.

Can you provide export documents for bulk order?

We can provide commercial invoice, packing list and certificate of origin for bulk export shipments to support customs clearance.

Can I mix different oil seals in one order?

Mixed wholesale is supported, you can combine multiple sizes oil seals for one‑stop sourcing.
