115x145x14mm Metal-Cased NBR Skeleton Oil Seal for Truck Repair

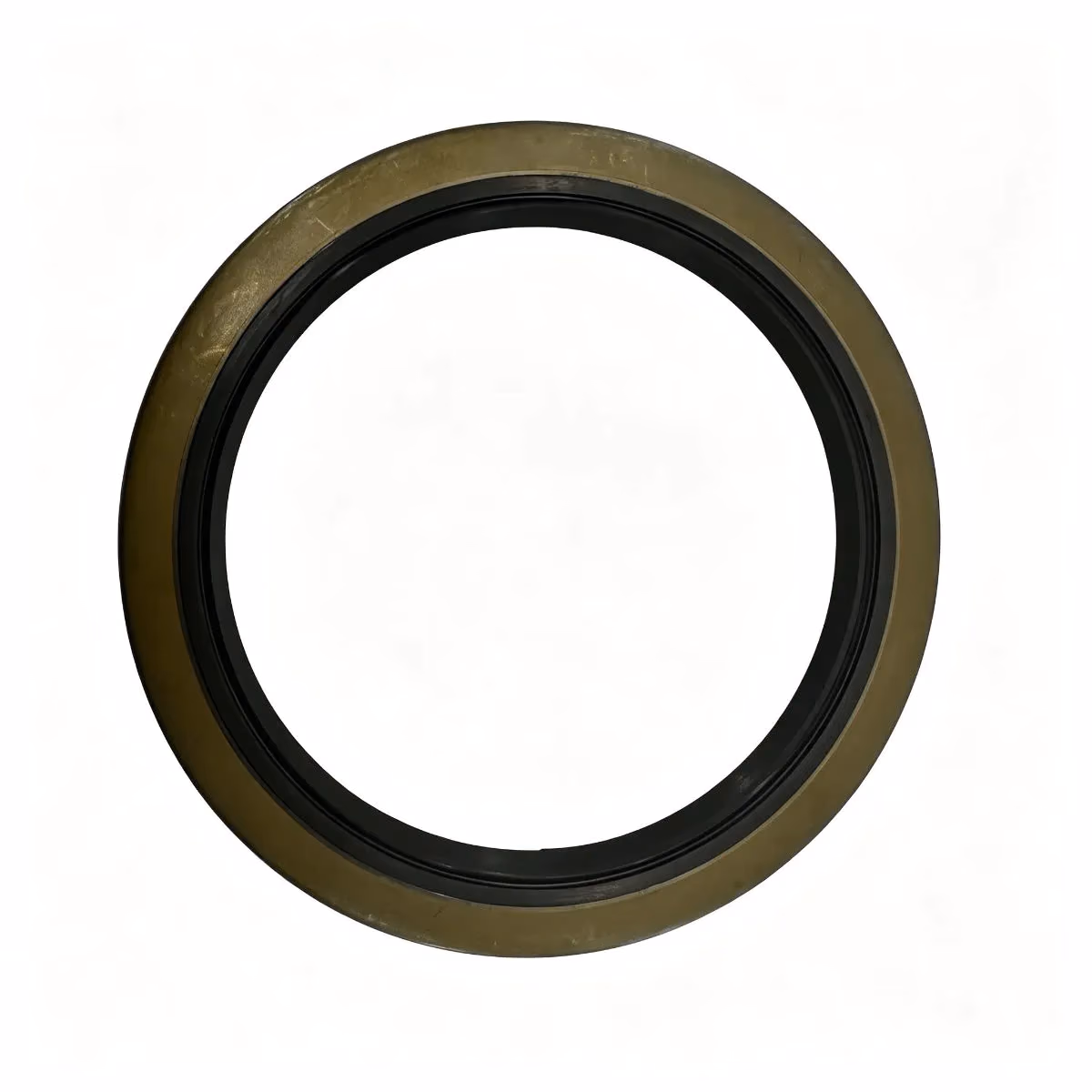

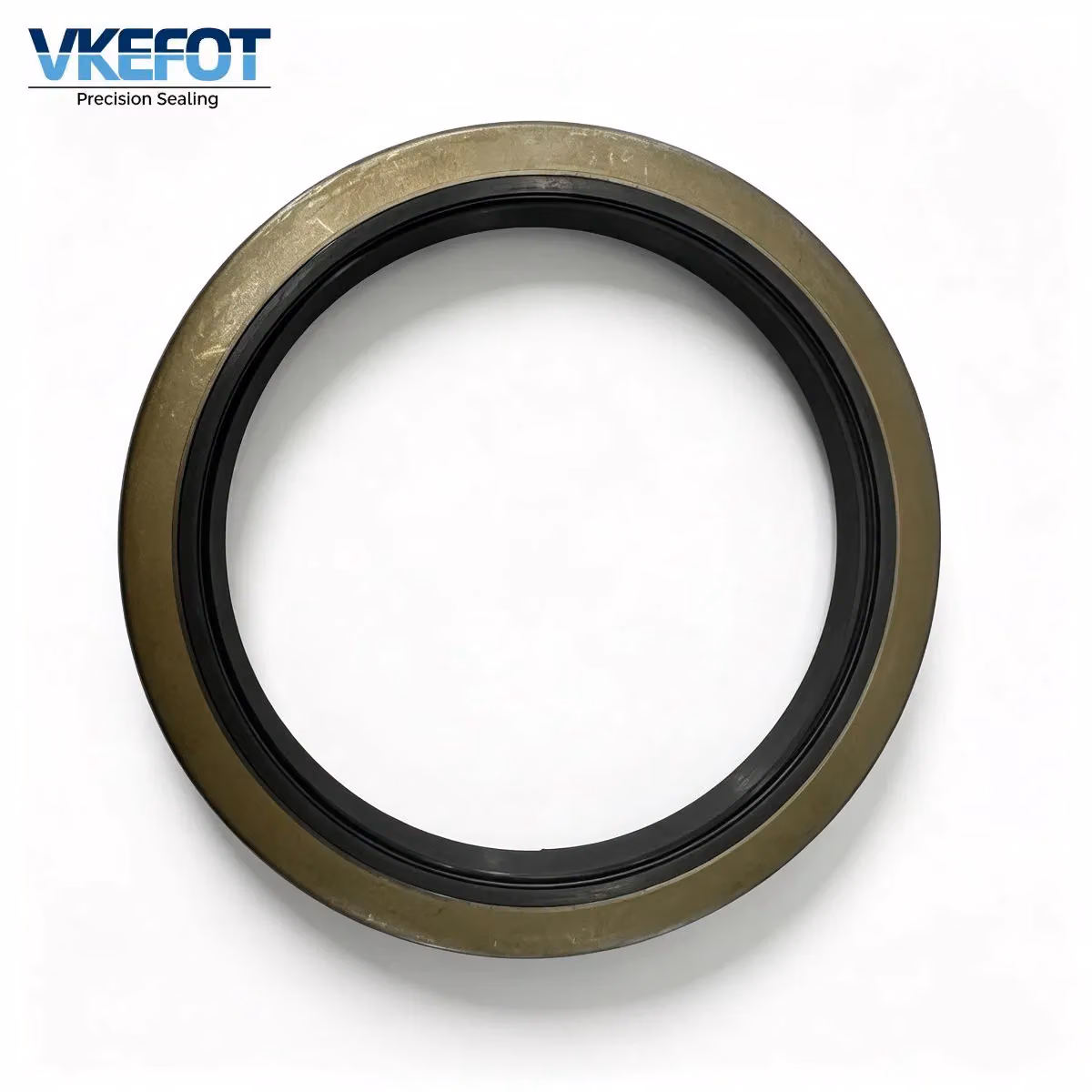

115x145x14mm Metal‑Cased Oil Seal, NBR Black Rubber Skeleton Oil Seal — main photo

Factory‑new metal‑cased skeleton oil seal, dimension 115×145×14 mm, black NBR rubber with garter spring, metal outer shell. Manufactured in China. Suitable for heavy‑duty commercial vehicle axle & hub assembly, retains lubricant and blocks mud, dust and splash‑water. High‑quality aftermarket spare part, in stock for wholesale export.

Tags: NBR oil seal, axle hub shaft seal, heavy‑duty commercial vehicle, metal‑cased skeleton seal

Product photos

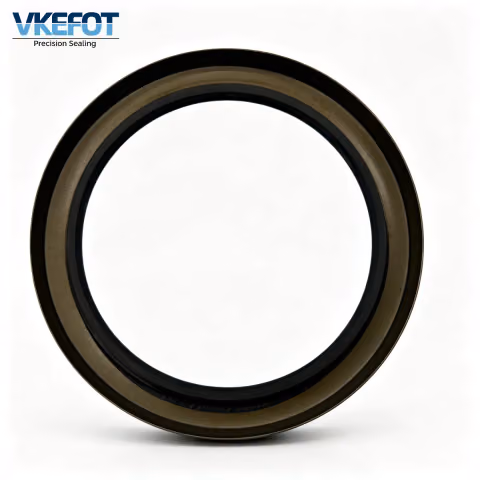

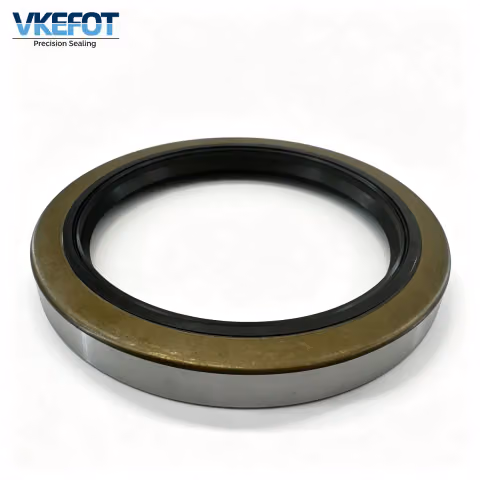

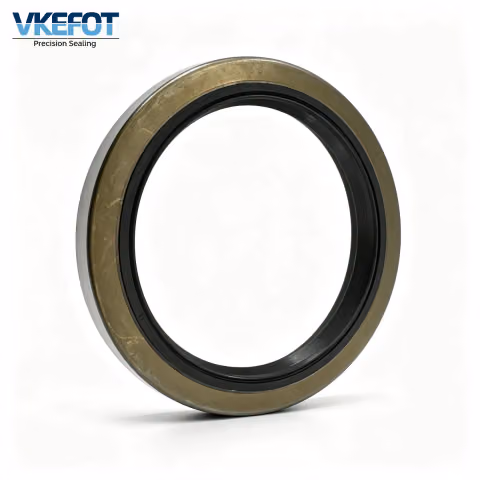

115x145x14mm Metal‑Cased Oil Seal, NBR Black Rubber Skeleton Oil Seal — photo 2 115x145x14mm Metal‑Cased Oil Seal, NBR Black Rubber Skeleton Oil Seal — photo 3 115x145x14mm Metal‑Cased Oil Seal, NBR Black Rubber Skeleton Oil Seal — photo 4

Key specs: Inner diameter mm: 115 | Outer diameter mm: 145 | Height mm: 14 | Material: NBR | Spec & Model: 115x145x14mm｜Material:Black NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle and hub shaft | Spec & Model: 115x145x14mm｜Material:Black NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle and hub shaft

  • Inner diameter mm: 115
  • Outer diameter mm: 145
  • Height mm: 14
  • Material: NBR
  • Spec & Model: 115x145x14mm｜Material:Black NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle and hub shaft
  • Spec & Model: 115x145x14mm｜Material:Black NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle and hub shaft

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号115x145x14mm｜Material:Black NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle and hub shaft

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

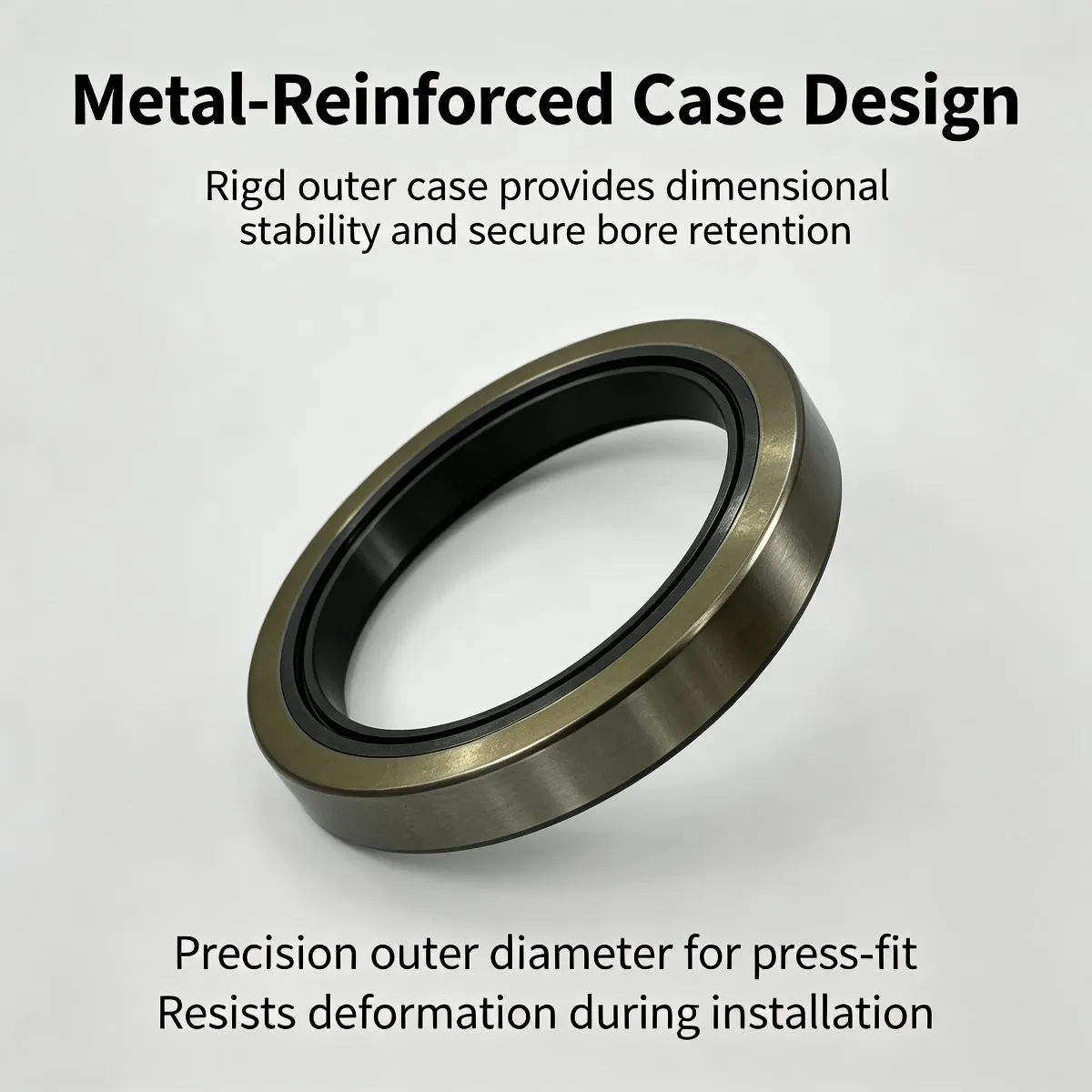

This TB‑style metal‑cased skeleton oil seal dimension 115×145×14 mm is brand‑new aftermarket replacement part manufactured in China for heavy‑duty commercial vehicle axle and hub shaft. Adopts full metal outer shell bonded with black NBR rubber sealing lip and built‑in garter spring. Effectively retain gear oil or bearing grease inside axle‑hub assembly, prevent lubricant leakage under road vibration. Blocks mud, sand, dust and splash‑water from invading shaft chamber. Widely applied for vehicle repair workshops, domestic auto‑parts wholesale and cross‑border commercial‑vehicle‑parts export business. Core functions Prevent axle‑hub lubricant leakage under heavy‑load driving vibration Isolate shaft assembly from mud, grit and splash‑water contamination Rigid metal‑cased profile for stable press‑fit installation into housing bore Reliable sealing performance for long‑distance heavy‑duty transportation

Material and process

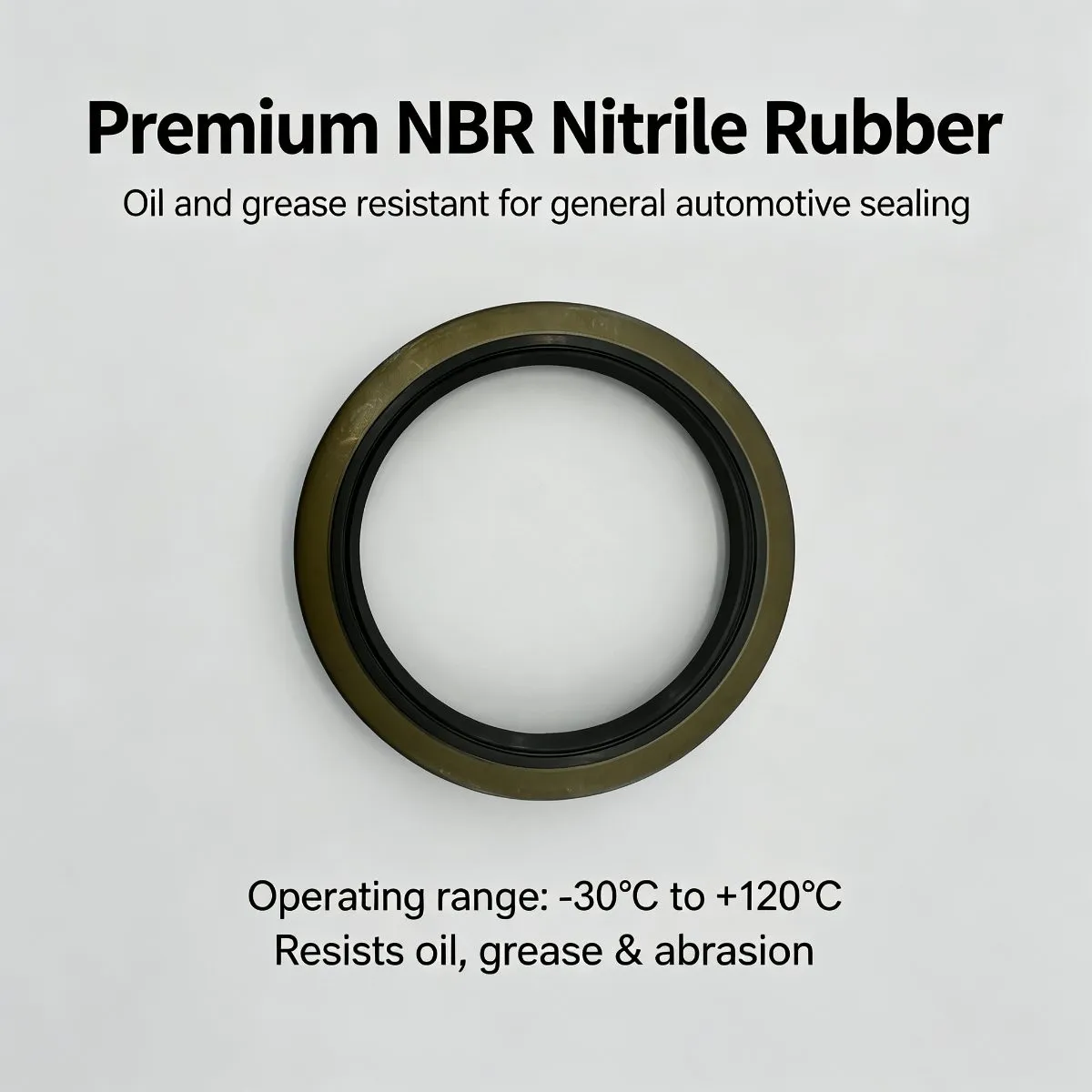

Material ：Black NBR nitrile rubber, full metal case, garter spring Structure ：TB type metal‑cased rotary shaft skeleton oil seal Key properties ：Oil & grease resistant, mud‑proof, anti‑vibration, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features Metal shell and rubber lip firmly vulcanized together, stable performance under chassis bumping vibration. Precision‑formed sealing lip with garter spring maintains consistent radial pre‑load pressure. NBR compound compatible with commercial‑vehicle gear‑oil and bearing grease. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load working scenarios.

Application and compatibility

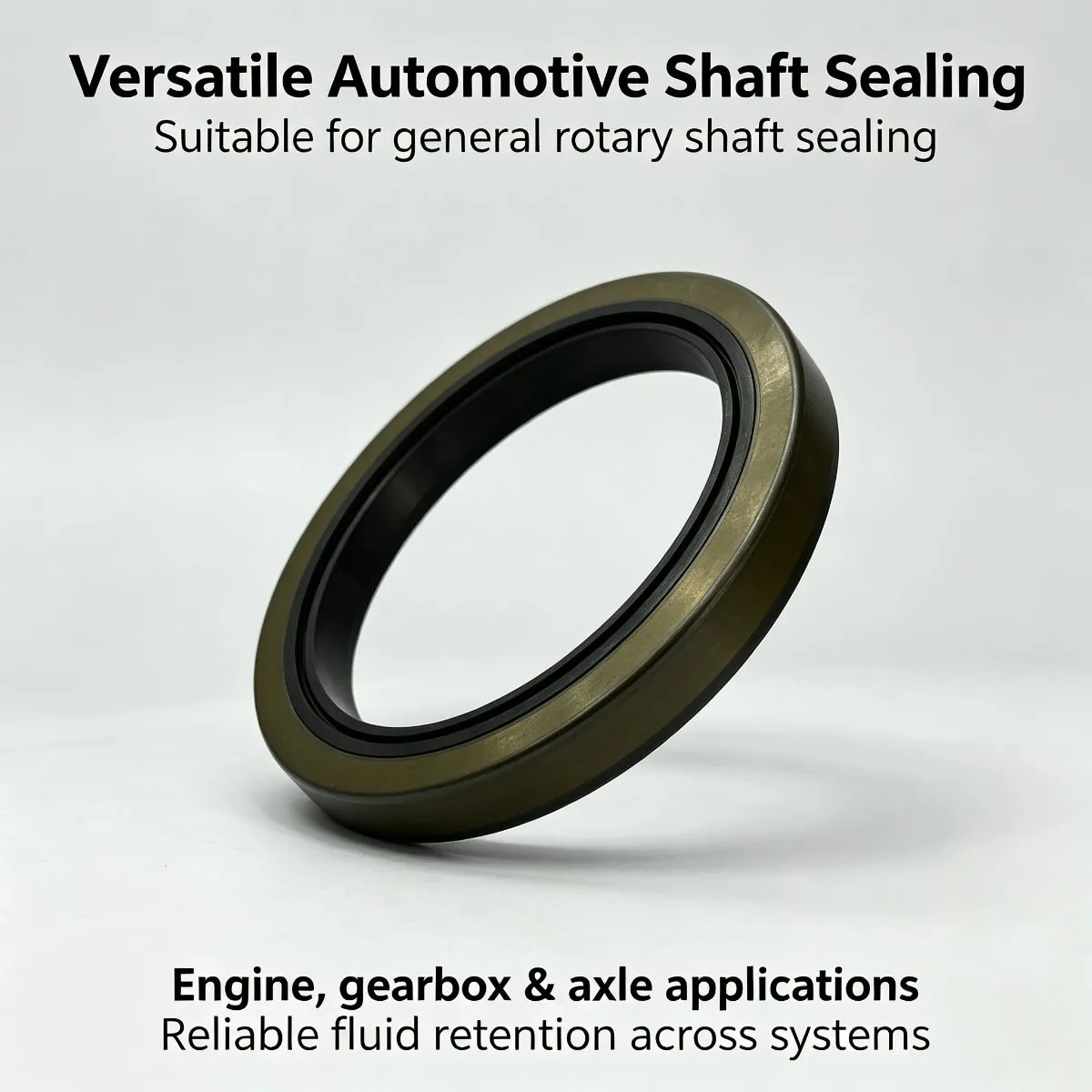

Product Type ：TB metal‑cased skeleton oil seal for heavy‑duty commercial vehicle Key dimension ：ID115mm × OD145mm, overall thickness14mm Compatible media ：Axle gear‑oil, wheel‑hub bearing grease, general chassis lubricants. Fit application ：Heavy‑duty commercial‑vehicle axle‑hub shaft sealing. Buyer reminder ：This is aftermarket replacement spare part for vehicle axle‑hub. Please verify shaft dimension, housing bore and seal profile before placing order. Dimension mismatch will result in lubricant leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID115mm, OD145mm, thickness14mm and TB metal‑cased skeleton structure. 2. Standard NBR version for normal oil/grease environment; select FKM upgrade for high‑temperature heavy‑load working condition. 3. Inspect shaft and housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Thoroughly clean housing bore and shaft surface, remove old seal residue, dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched axle gear‑oil or bearing grease. Dry installation strictly forbidden; dry friction will damage sealing lip quickly. Orientation Confirmation Main sealing lip points toward lubricant cavity; dust‑proof side faces outward. Wrong installation direction leads to lubricant leakage and poor contamination‑resistance. Vertical Press‑fit Use dedicated press‑sleeve tool to press metal‑cased oil‑seal evenly and vertically. Never strike rubber lip or metal shell directly to avoid seal deformation and lip tearing. Seating Inspection Ensure seal sits fully flush inside housing bore without tilt. Visual Check Examine sealing lip for nicks and seal‑body deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate shaft assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and anti‑collision packing to prevent deformation during transit.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is 115x145x14 oil seal used for?

115x145x14 TB metal‑cased skeleton oil seal, black NBR material, made in China. It is aftermarket replacement for heavy‑duty commercial‑vehicle axle‑hub shaft, keeps gear oil or bearing grease inside and blocks mud and splash‑water.

What are full specifications?

Size:ID115mm × OD145mm, thickness14mm; Material:Black NBR rubber + full metal case + garter spring; Structure:TB type metal‑cased skeleton seal; Working temperature:‑20℃ 120℃; Application:Heavy‑duty commercial‑vehicle axle‑hub shaft sealing.

Which vehicle fits this 115x145x14 oil seal?

This TB metal‑cased skeleton oil seal is aftermarket replacement for heavy‑duty commercial‑vehicle axle‑hub assembly. Please confirm shaft dimension, housing bore and seal profile before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.

What is your MOQ and delivery time?

In‑stock items: no MOQ, delivery within 3‑5 working days. Customized order MOQ:1000 pcs, lead‑time 30‑45 days.

How to avoid lubricant leakage after installation?

Repair worn shaft and housing bore before fitting. Lubricate seal lip with matching oil or grease before pressing. Install in correct direction with proper sleeve press‑tool, never strike seal body directly. Test shaft rotation after assembly. Improper installation is main cause of early leakage.

What is shelf‑life for NBR metal‑cased oil seal?

Shelf life is 24 months when stored in cool, dry, dark and ventilated warehouse, avoid ozone, high temperature and heavy squeezing or denting.

Can I get FKM high‑temperature version for this size?

Yes, FKM material upgrade version is available for higher‑temperature heavy‑load working conditions, please contact us for quotation.

Can you provide export documents for bulk order?

We can provide commercial invoice, packing list and certificate of origin for bulk export shipments to support customs clearance.

Can I mix different oil seals in one order?

Mixed wholesale is supported, you can combine multiple sizes oil seals for one‑stop sourcing.
