100x140x11/21mm TB Oil Seal OEM 31C89G-04080 for Truck Rear Axle Hub

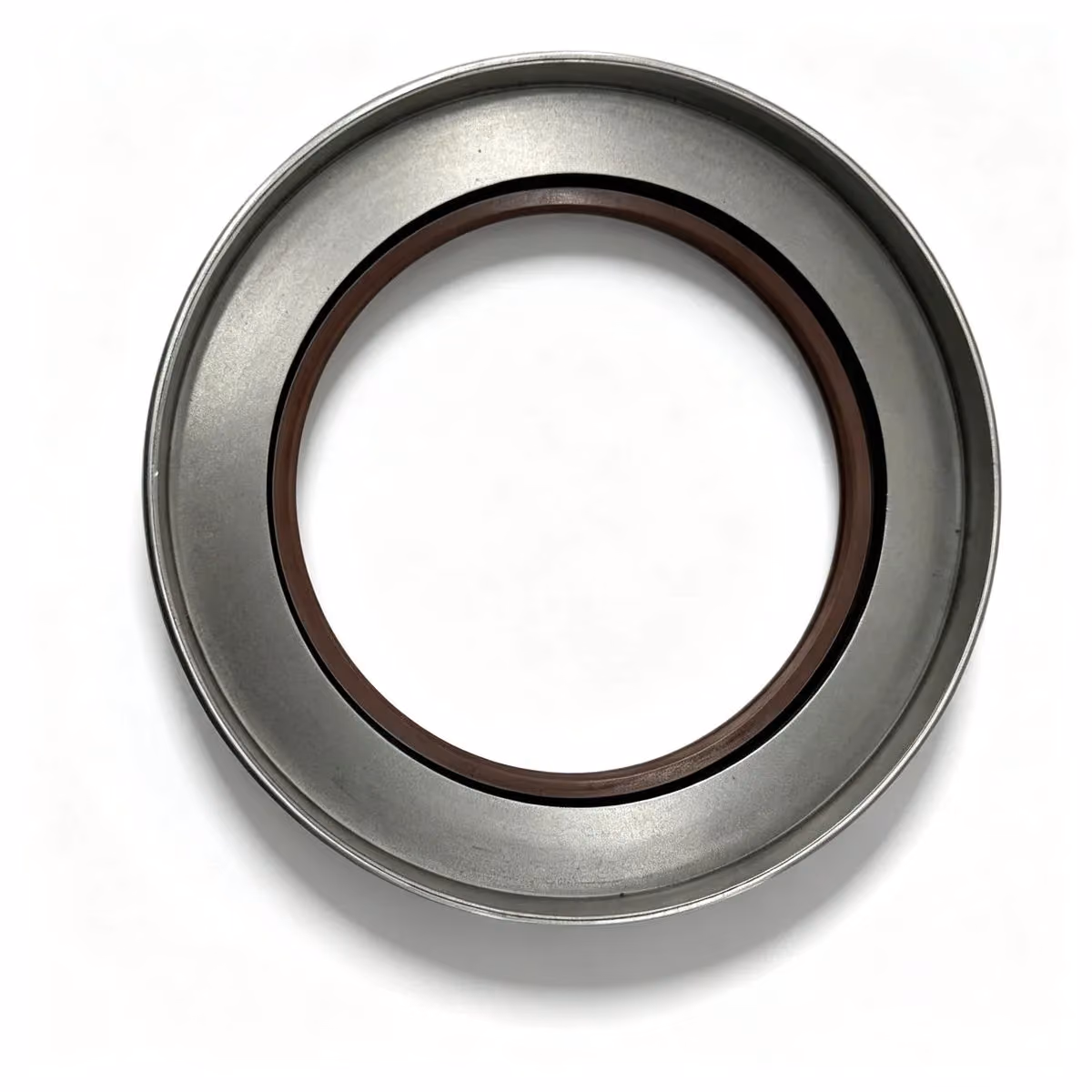

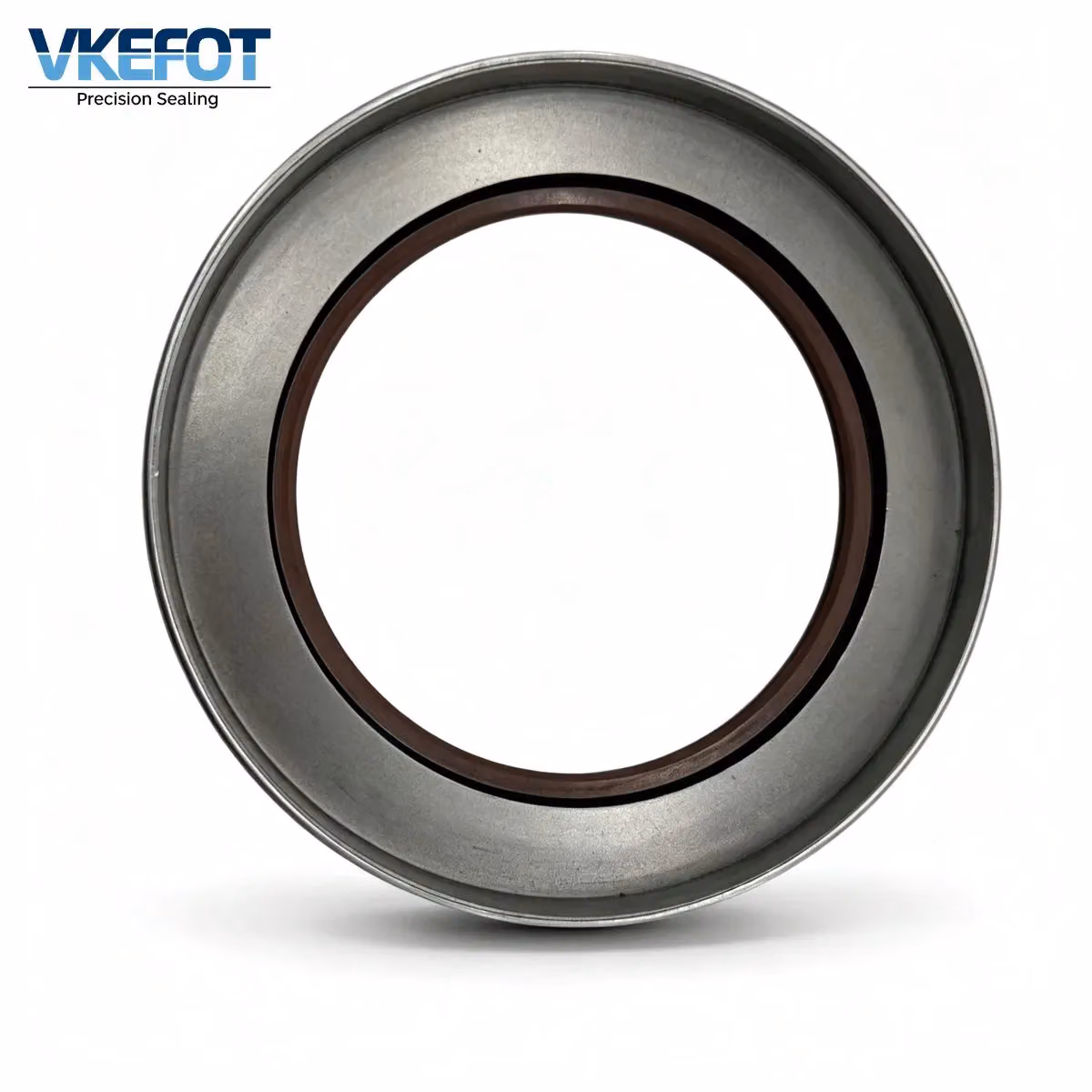

100x140x11/21mm TB Oil Seal OEM 31C89G‑04080 For Medium‑Light‑Duty — main photo

Brand‑new factory direct TB‑type rear axle hub oil seal, OEM NO.31C89G‑04080, dimension 100×140×11/21 mm, NBR rubber lip with stamped metal shell. Specially fit for medium‑light‑duty commercial truck with Dana rear axle. Prevent rear axle gear‑oil leakage and block road dust, mud and splash water, heavy‑duty aftermarket truck spare parts, ready in stock for wholesale export.

Tags: NBR oil seal, rear axle hub seal, medium‑light‑duty commercial truck, tb step metal casing seal

Product photos

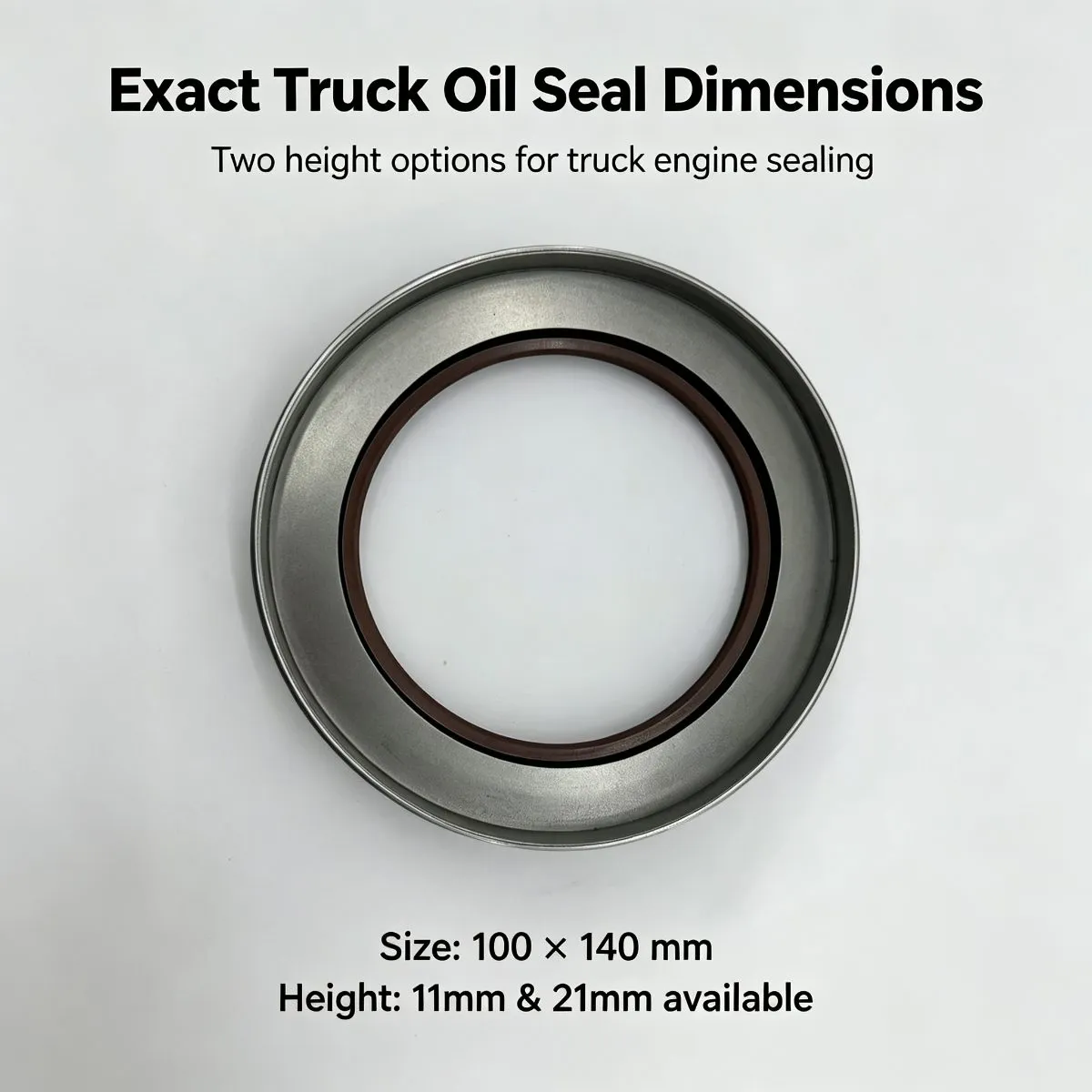

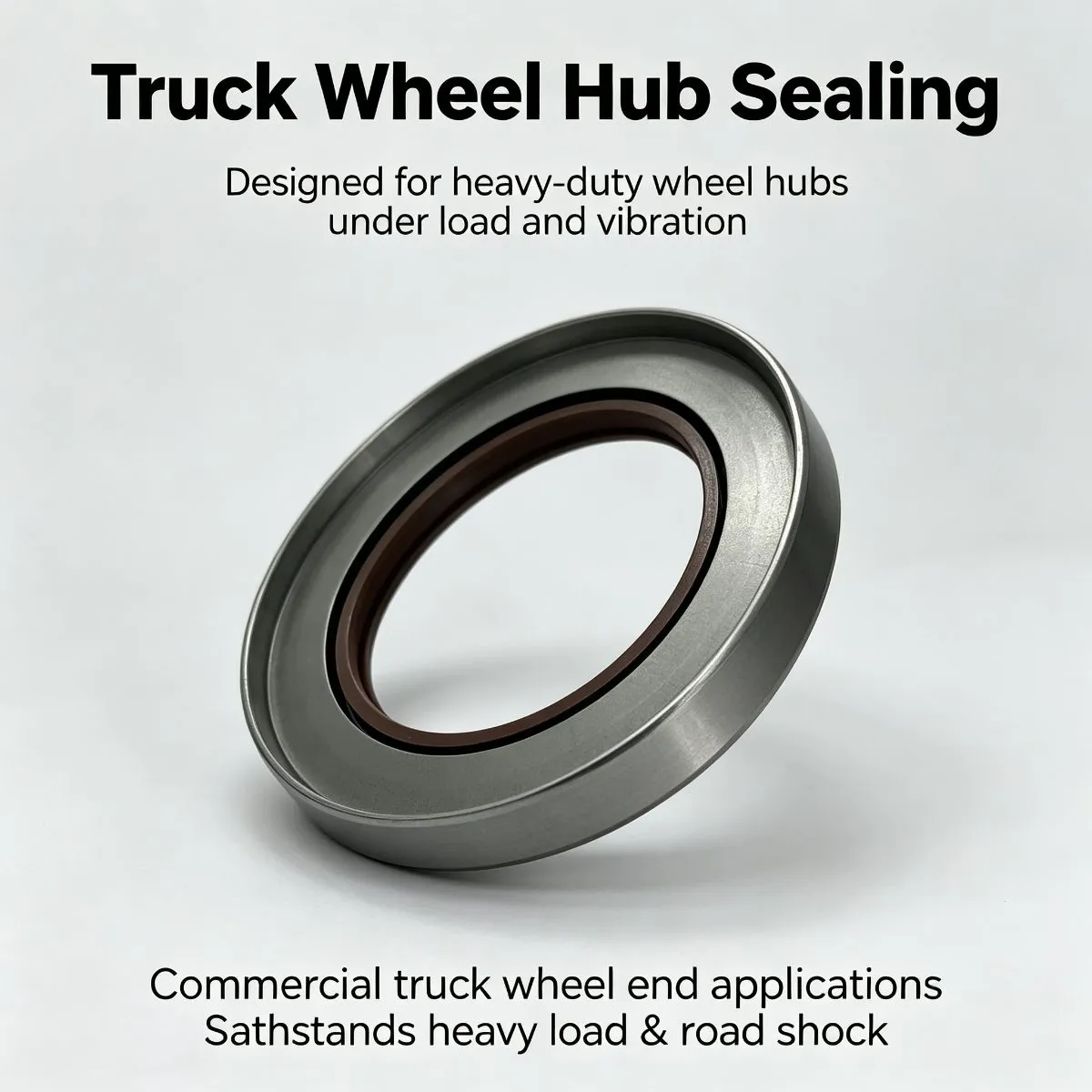

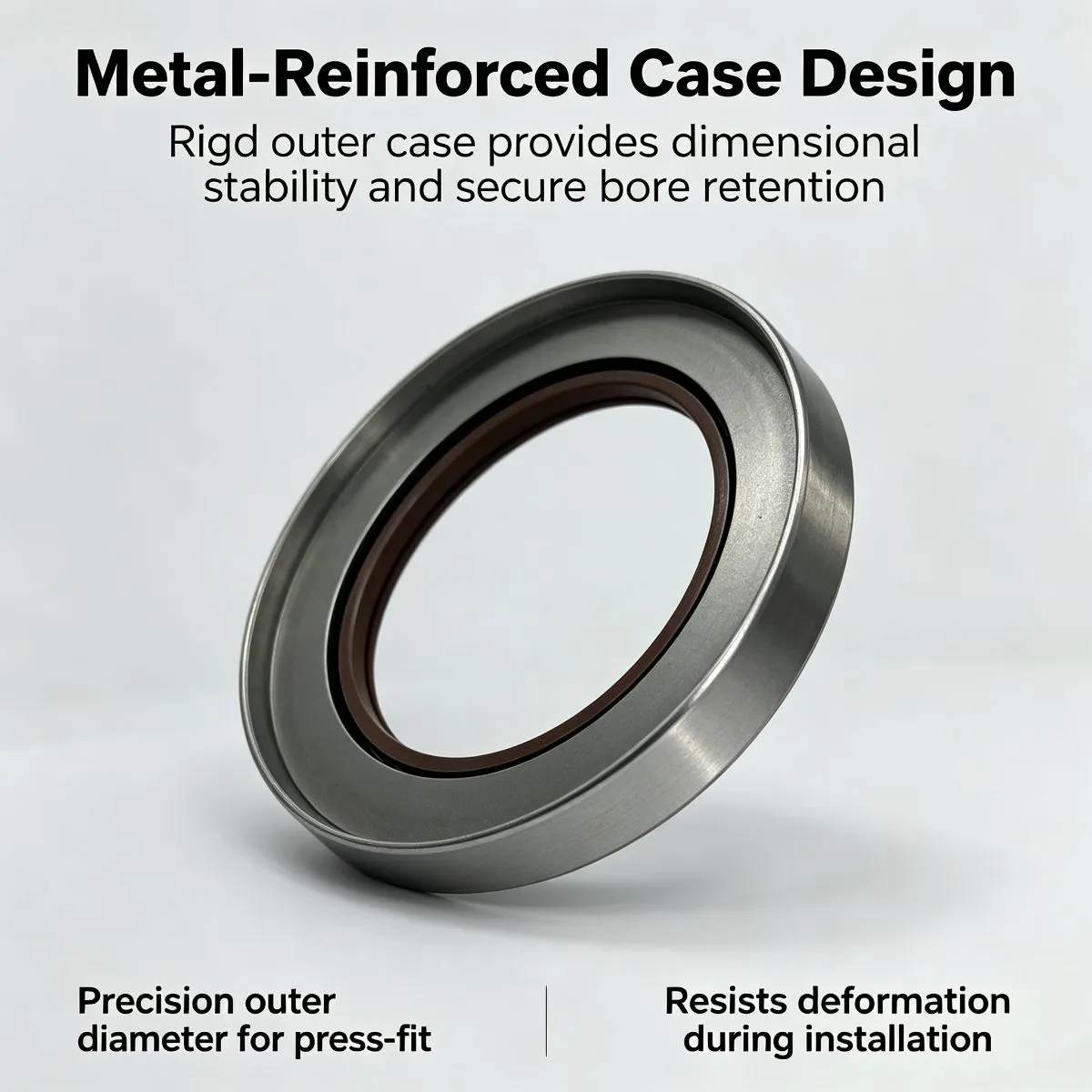

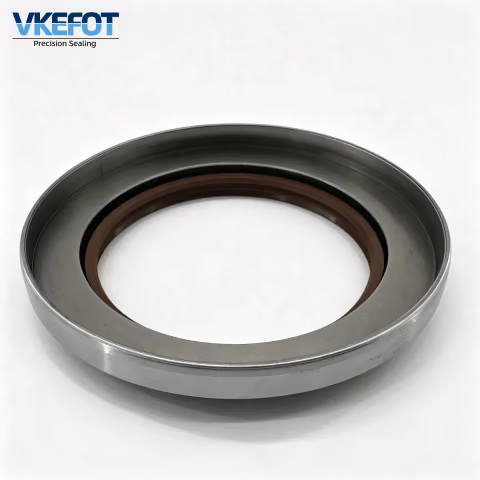

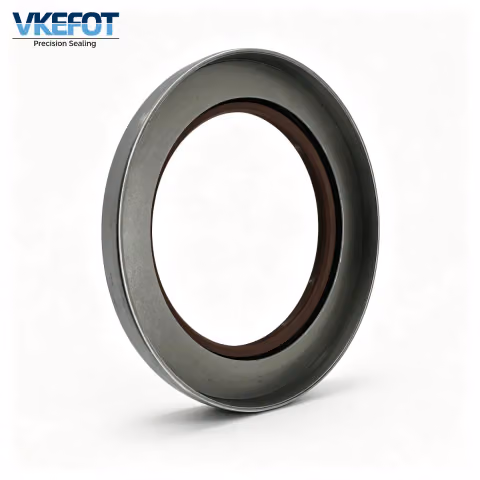

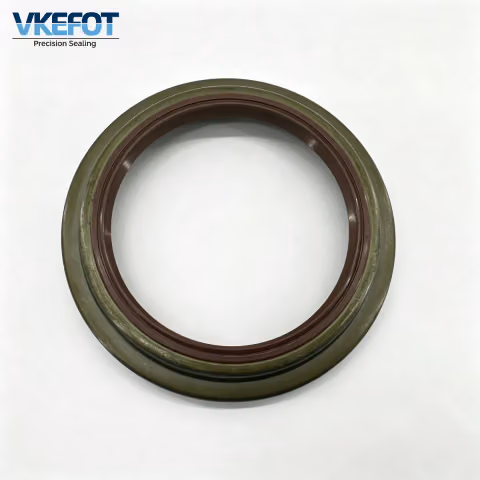

100x140x11/21mm TB Oil Seal OEM 31C89G‑04080 For Medium‑Light‑Duty — photo 2 100x140x11/21mm TB Oil Seal OEM 31C89G‑04080 For Medium‑Light‑Duty — photo 3 100x140x11/21mm TB Oil Seal OEM 31C89G‑04080 For Medium‑Light‑Duty — photo 4

Key specs: Inner diameter mm: 100 | Outer diameter mm: 140 | Height mm: 11/21 | Material: NBR | Spec & Model: 100x140x11/21mm｜OEM:31C89G‑04080｜Material:NBR sealing lip + stamped carbon‑steel metal shell｜Structure:TB‑type step metal outer casing oil seal with garter spring｜Fit for medium‑light‑duty commercial truck Dana rear axle hub | Spec & Model: 100x140x11/21mm｜OEM:31C89G‑04080｜Material:NBR sealing lip + stamped carbon‑steel metal shell｜Structure:TB‑type step metal outer casing oil seal with garter spring｜Fit for medium‑light‑duty commercial truck Dana rear axle hub

  • Inner diameter mm: 100
  • Outer diameter mm: 140
  • Height mm: 11/21
  • Material: NBR
  • Spec & Model: 100x140x11/21mm｜OEM:31C89G‑04080｜Material:NBR sealing lip + stamped carbon‑steel metal shell｜Structure:TB‑type step metal outer casing oil seal with garter spring｜Fit for medium‑light‑duty commercial truck Dana rear axle hub
  • Spec & Model: 100x140x11/21mm｜OEM:31C89G‑04080｜Material:NBR sealing lip + stamped carbon‑steel metal shell｜Structure:TB‑type step metal outer casing oil seal with garter spring｜Fit for medium‑light‑duty commercial truck Dana rear axle hub

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号100x140x11/21mm｜OEM:31C89G‑04080｜Material:NBR sealing lip + stamped carbon‑steel metal shell｜Structure:TB‑type step metal outer casing oil seal with garter spring｜Fit for medium‑light‑duty commercial truck Dana rear axle hub

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This TB‑type heavy‑duty truck oil seal OEM 31C89G‑04080 is replacement part for medium‑light‑duty commercial truck rear‑axle hub. Dimension ID100mm × OD140mm, mounting width 11 mm, overall total height 21 mm. Adopts robust stamped step‑shape metal outer shell and NBR nitrile rubber sealing lip. Effectively retains rear axle gear lubricant inside axle housing, stops dust, mud, sand and splash‑water invading into wheel hub assembly. Widely used for medium‑light‑duty commercial truck equipped with Dana drive axle. Suitable for auto repair shop, domestic auto‑parts wholesale and cross‑border truck‑parts export business. Core functions Prevent rear axle gear oil leakage under heavy‑load road vibration Resist mud, grit and splash‑water contamination for hub bearing Step‑form metal shell for precise interference press‑fit into axle housing bore Stable sealing performance under long‑distance heavy‑duty transport condition

Material and process

Material ：NBR nitrile rubber sealing lip, anti‑rust painted stamped carbon‑steel metal shell, garter spring Structure ：TB‑type step outer casing rotary shaft oil seal Key properties ：Gear‑oil resistant, mud‑proof, anti‑vibration, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features High‑temperature vulcanization bonding between NBR rubber and metal shell, avoid delamination under truck bumping vibration. Precision‑machined sealing lip with garter spring maintains consistent radial pressure on shaft surface. Anti‑rust treated metal shell adapts to chassis undercarriage harsh working environment. NBR compound compatible with commercial vehicle rear‑axle gear oil. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load working scenarios.

Application and compatibility

Product Type ：TB‑type rear axle hub oil seal for medium‑heavy‑duty truck Key dimension ：ID100mm × OD140mm, mounting thickness11mm, overall height21mm OEM Part‑Number ：31C89G‑04080 Compatible media ：Truck rear‑axle gear oil, general vehicle lubricants. Fit application ：Medium‑light‑duty commercial trucks equipped with Dana rear drive axle, rear wheel hub / half‑shaft sleeve sealing. Buyer reminder ：This is aftermarket replacement spare part for truck rear axle hub (NOT engine component). Please verify shaft dimension, housing bore and seal structure before placing order. Dimension mismatch will result in oil leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID100mm, OD140mm, mounting thickness11mm, total height21mm, TB step‑metal‑shell structure and OEM number 31C89G‑04080. 2. Standard NBR version for normal rear‑axle gear‑oil environment; select FKM upgrade for high‑temperature heavy‑load working condition. 3. Inspect shaft and housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Thoroughly clean axle housing bore and half‑shaft surface, remove old seal fragments, grease dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched heavy‑duty differential gear‑oil. Dry installation is strictly forbidden; dry friction will burn sealing lip quickly. Orientation Confirmation Main sealing lip points toward gear‑oil cavity; outer dust lip faces outward. Wrong installation direction leads to oil leakage and lost mud‑proof protection. Vertical Press‑fit Use dedicated press‑sleeve tool to press TB oil‑seal evenly and vertically. Never strike rubber lip or metal shell directly, to avoid shell deformation and lip tearing. Seating Inspection Ensure full flat contact between seal shell and housing seating surface, no tilt or gap. Visual Check Examine sealing lip for invisible nicks and shell deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate hub assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and anti‑collision packing to prevent deformation during transit.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is 31C89G‑04080 oil seal used for?

31C89G‑04080 TB‑type oil seal 100x140x11/21mm, NBR material, heavy‑duty truck rear‑axle hub replacement seal for medium‑light‑duty commercial truck with Dana rear axle, prevents rear‑axle gear‑oil leakage and blocks mud and splash‑water. It is axle chassis spare part, not engine part.

What are full specifications?

Size:ID100mm × OD140mm, mounting thickness11mm, overall height21mm; OEM NO:31C89G‑04080; Material:NBR lip + stamped metal shell + garter spring; Working temperature:‑20℃ 120℃; Application:Medium‑light‑duty commercial truck Dana rear‑axle hub sealing.

Which vehicle fits OEM 31C89G‑04080 oil seal?

This TB‑type oil seal is aftermarket replacement for medium‑light‑duty commercial trucks equipped with Dana rear drive axle, please confirm shaft dimension, housing bore and seal profile before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.

What is your MOQ and delivery time?

In‑stock items: no MOQ, delivery within 3‑5 working days. Customized order MOQ:1000 pcs, lead‑time 30‑45 days.

How to avoid rear‑axle gear‑oil leakage after installation?

Repair worn shaft, housing bore before fitting. Lubricate seal lip before pressing. Install in correct direction with proper sleeve press‑tool, never strike seal metal shell or lip directly. Test hub rotation after assembly. Improper installation is main cause of early leakage.

What is shelf‑life for NBR oil seal?

Shelf life is 24 months when stored in cool, dry, dark and ventilated warehouse, avoid ozone, high temperature and heavy squeezing or denting.

Can I get FKM high‑temperature version for this size?

Yes, FKM material upgrade version is available for higher‑temperature heavy‑load working conditions, please contact us for quotation.

Can you provide export documents for bulk order?

We can provide commercial invoice, packing list and certificate of origin for bulk export shipments to support customs clearance.

Can I mix different oil seals in one order?

Mixed wholesale is supported, you can combine multiple sizes oil seals for one‑stop sourcing.
