TC 52x66x7mm Double Lip Internal Skeleton Oil Seal Silicone (VMQ) For Automotive Rotary Shaft
Model / SKU: VKEFOT-TC-52-66-7-VMQ
This aftermarket TC type double lip internal skeleton oil seal 52x66x7mm in silicone (VMQ), designed for automotive rotary shaft and high-temperature general industrial sealing. For importers, wholesalers and MRO buyers; Lead Time: 7–15 days — RFQ with size, qty and destination.
Tags: 52x66x7mm, TC oil seal, double lip internal skeleton seal, silicone rotary shaft seal, garter spring auto seal

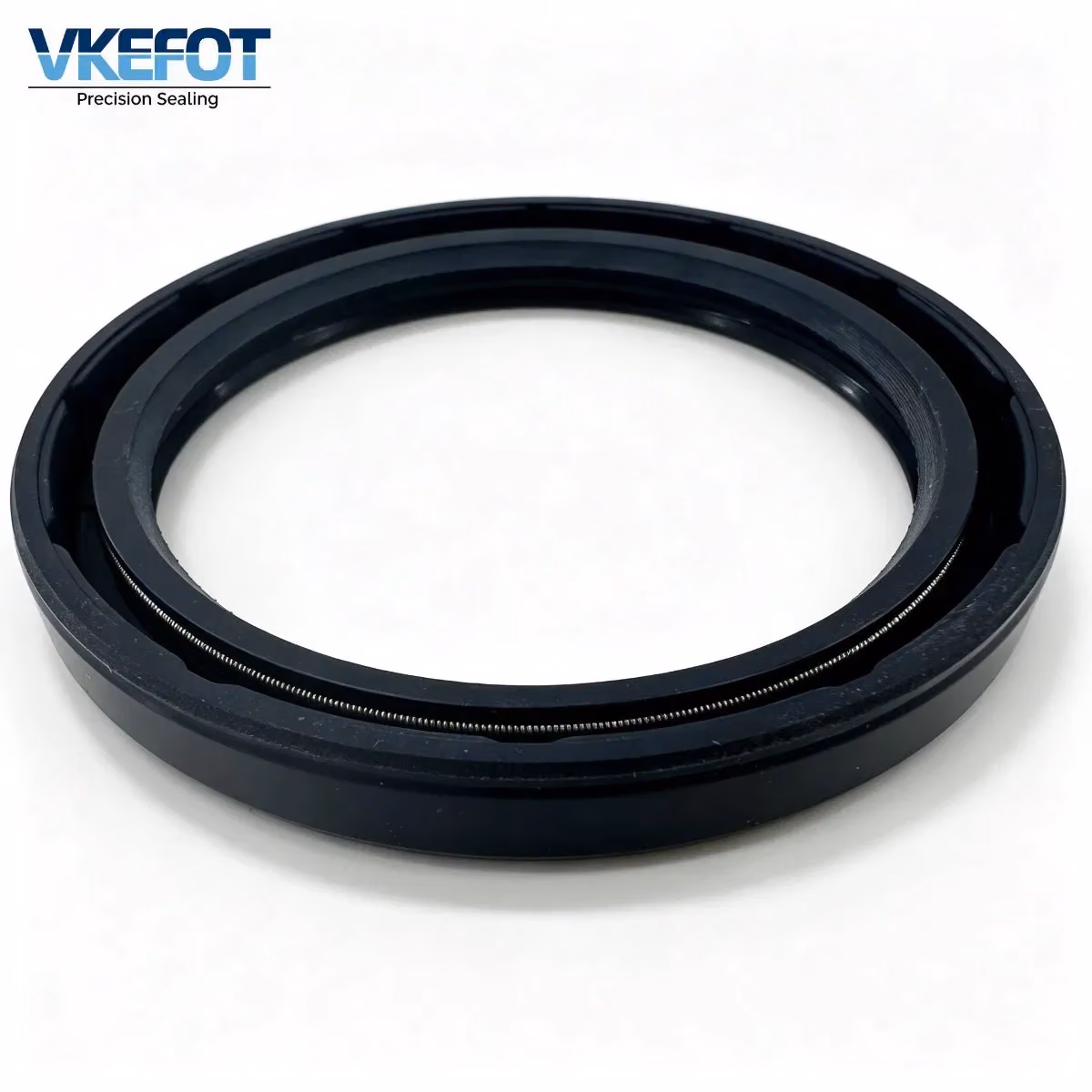

Product photos
Key specs: Inner diameter mm: 52 | Outer diameter mm: 66 | Height mm: 7 | Material: SILICONE | Material: Silicone (VMQ) | Structure: TC type double lip internal skeleton oil seal with garter spring | specifications: 52x66x7mm | Material: Silicone (VMQ)
- Inner diameter mm: 52
- Outer diameter mm: 66
- Height mm: 7
- Material: SILICONE
- Material: Silicone (VMQ)
- Structure: TC type double lip internal skeleton oil seal with garter spring
- specifications: 52x66x7mm
- Material: Silicone (VMQ)
- Structure: TC type double lip internal skeleton oil seal with garter spring
- Size: 52x66x7mm
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Material | Silicone (VMQ) |
| Structure | TC type double lip internal skeleton oil seal with garter spring |
| Size | 52x66x7mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ: Depends on spec; typically 100–5,000 pcs | Lead Time: 7–15 days
Product details
This aftermarket TC double lip oil seal 52x66x7mm is a standard radial rotary shaft seal built for automotive auxiliary shafts and high-temperature general industrial sealing applications.
Importers, wholesalers and MRO buyers can submit RFQ with dimension, quantity, destination and working medium for a formal quotation. Lead Time: 7–15 days for standard specs.
Features & Benefits
TC profile with internal metal skeleton delivers stable press fit in the housing bore and resists radial distortion under rotation.
Double lip design with a single garter spring maintains consistent radial pressure on the shaft, combining primary fluid retention and secondary dust / splash exclusion.
Rubber-covered outer diameter provides reliable static sealing between seal and housing, and compensates for minor housing bore tolerances.
Silicone (VMQ) rubber offers a wide operating temperature range, excellent weathering and ozone resistance, suitable for high-temperature and outdoor-exposed rotary applications.
Verify shaft diameter, housing bore and working medium before ordering; this is an aftermarket replacement, not a genuine OEM part.
- MOQ：Depends on spec; typically 100–5,000 pcs. Lead Time: 7–15 days. This SKU quantity confirmed on quotation.
Factory standard options, confirm on RFQ.
VKEFOT manufactures oil seals, O-rings and custom rubber seals in Xingtai and exports to Europe, North America, Middle East and Southeast Asia.
Material & Process
Sealing lip material: Silicone (VMQ) rubber, typical continuous working temperature -60°C to +200°C, short-term peak up to +230°C. Confirm compound grade with RFQ for special fluid or long-term oil immersion applications.
Steel internal skeleton fully bonded to silicone rubber, single garter spring, black finish.
Applications & Compatibility
Commonly used for automotive auxiliary rotary shafts, high-temperature equipment and general industrial rotating shaft sealing; also suitable for outdoor and weather-exposed applications.
Aftermarket replacement. Verify shaft diameter, housing bore and working medium before order. Note: silicone has limited compatibility with mineral oils and fuels; confirm fluid compatibility before use.
Selection & Installation
Selection Tips
Confirm shaft ID 52mm, housing OD 66mm, seal height 7mm. Match rubber material to your operating temperature, fluid type and environmental conditions.
Installation Steps
- Clean the shaft and housing bore thoroughly; remove burrs, old seal residue, rust and dirt.
- Lubricate the sealing lip and shaft lightly with a compatible lubricant; do not install dry.
- Press the seal evenly into the housing, keeping it perfectly perpendicular to the bore.
- Do not strike the rubber lip or hammer directly on the seal face; use a suitable installation tool.
- After assembly, rotate the shaft by hand to check for binding, then inspect for leakage under test run.
Packaging & Delivery
Standard neutral polybag per piece, packed in export cartons. Typically 50–200 pcs per carton; packaging configuration can be adjusted on request.
- Lead Time：7–15 days for this standard spec.
Samples and small trial lots are available for stocked sizes; sample freight confirmed on RFQ.
Send an inquiry with size (ID×OD×height in mm), quantity, destination country and duty for a firm lead time and quotation.
FAQ
I only have a competitor/OEM part number—can you cross-reference?
Yes. Send the reference PN, ID×OD×height in mm, and duty (media, temperature, pressure, speed). We match equivalents in the catalog; the Cross Reference page also searches by keyword. Final selection follows drawing and duty confirmation — do not order from a photo alone.
Do you support OEM/ODM, private packing and marking?
Yes — OEM/ODM from drawings or samples, plus agreed packing and marking. Share target-market compliance needs and annual volume; RFQ confirms process, tooling cost and cadence. VKEFOT is the export brand of the Xingtai factory, not a trading desk.
TC vs TB oil seal: which should I specify?
For a rotary shaft that needs a dust lip plus oil lip, start with TC (rubber-covered dual-lip is common); TB is typical when a semi-metal case needs a stiffer bore fit. Shaft diameter, housing, runout and dust still decide. Send ID×OD×height in mm and speed on the RFQ — not only a competitor photo.
NBR vs FKM oil seal for hot engine oil?
Continuous engine-oil duty near 120°C or fuel exposure should be reviewed as FKM; general mineral oil at moderate temperature and cost-sensitive repair jobs often stay NBR. Brown color is not proof of FKM. The quote names the grade and temperature limit — do not order by color.
Oil seal vs O-ring: when do I use which?
Use a metal-cased radial shaft (skeleton) oil seal for rotating shafts; use an O-ring for static glands or reciprocating grooves. An O-ring on a rotary shaft wears out quickly. VKEFOT makes both — state motion type (rotary/static/reciprocating) and ID×OD×section on the RFQ.
Cassette seal vs dual-lip TC for dusty construction equipment?
Ag gearboxes and construction travel shafts with mud and long service intervals should be reviewed as cassette/combined seals; many automotive hub repair jobs stay dual-lip TC. Cassette packs are thicker and need different bore and axial space. A job-site photo is not enough — send ID×OD×height.
Xingtai oil seal factory vs trading company — how do I tell?
VKEFOT is the export brand of Xingtai Hanchi Intelligent Technology Co., Ltd. Mixing, vulcanization and outgoing inspection run in Xingtai, then goods export to Europe, North America, the Middle East and Southeast Asia. A trading desk usually cannot change compound or cut tooling. For OEM drawings, ask who runs the process and QC — not only catalog price.
What is a skeleton / radial shaft oil seal?
A skeleton oil seal is a metal-cased radial shaft seal: the rubber lip rides the shaft and the case holds interference in the bore. Common styles include TC, TB and TA. Minimum spec is ID×OD×height in mm, compound and duty. VKEFOT catalogs automotive and industrial shaft seals; trust the product-page dimensions.
What do ID, OD and height mean on an oil seal RFQ?
ID is inside diameter (shaft), OD is outside diameter (bore), height is axial width, all in millimetres. Missing any one blocks a cross-reference. Example: 56×112×8/10 means 56 mm ID, 112 mm OD, 8/10 mm height. Put those three numbers and the compound on the RFQ.
Which oil seal for an automotive wheel hub or differential pinion?
Hub repair jobs often use dual-lip TC; differential pinion shafts often need a secondary lip or split height (e.g. 8/10 or 12/22 mm). Use measured or OEM dimensions — not a marketplace title. VKEFOT application pages cover drivetrains and hubs; send an OEM number or ID×OD×height on the RFQ.
How to select oil seals for ag gearbox and PTO shafts?
Ag gearboxes and PTO shafts see dust and shock — prefer a dust lip or cassette, with NBR or FKM matched to gear oil and temperature. Do not force a passenger-car hub seal onto a PTO shaft. Send shaft, bore, height and whether mud/water is present, then RFQ.
What matters for pump, valve and compressor shaft seals?
Match media (oil, water, gas) and temperature first, then lip style and compound; do not default to cheap NBR for high speed or dry running. Put shaft runout and eccentricity on the RFQ. VKEFOT application cases include pumps, valves and compressors — still use measured sizes.
Does a brown oil seal mean it is FKM?
No. Brown NBR is common; color is not proof of FKM. For heat or fuel duty, write temperature and media on the RFQ so the factory names the grade. Ordering by color is a frequent cause of early leak.
Can you quote an oil seal from a photo only?
Not as a firm quote. We need at least ID×OD×height in mm, ideally compound and speed. A photo can show lip count and case style; it does not replace dimensions. Incomplete RFQs get a request for those three numbers before price.
If a new oil seal leaks quickly, is it always a bad seal?
Not always. Rough shaft finish, runout, cocked installation or the wrong compound also leak early. Check size and media/temperature match before blaming the part, then inspect the journal. Note time-to-fail (e.g. 50 hours) on the RFQ so we diagnose — do not just buy a cheaper seal.
What is needed for private-label OEM packing of oil seals?
Private packing and marking need annual volume, target-market compliance and artwork; tooling cost and cadence are confirmed on the RFQ — not a one-line “please OEM”. VKEFOT runs OEM/ODM after drawings or samples are complete.
Who is VKEFOT and how does it relate to Xingtai Hanchi?
VKEFOT manufactures oil seals, O-rings and custom rubber seals in Xingtai and exports to Europe, North America, Middle East and Southeast Asia. The manufacturer is Xingtai Hanchi Intelligent Technology Co., Ltd. Use this wording on quotes and certificates — do not invent alternate spellings of the brand.
What is TC 52x66x7mm silicone oil seal used for?
TC 52x66x7mm silicone (VMQ) oil seal is a double lip internal skeleton rotary shaft seal for automotive auxiliary shafts and high-temperature industrial equipment, used to retain fluid and block dust and splash water.
What is TC type internal skeleton oil seal?
TC oil seal is a standard radial rotary shaft seal with internal metal skeleton, double lip and a single garter spring, designed for stable housing fit and reliable fluid retention under rotation.
What material is this TC 52x66x7mm rotary shaft seal?
Made of silicone (VMQ) rubber with steel internal skeleton, black finish. Typical working temperature -60°C to +200°C, with excellent weather and ozone resistance.
