24x39x8.5 SCJY oil seal OE confirmed on quotation — automotive power steering seal

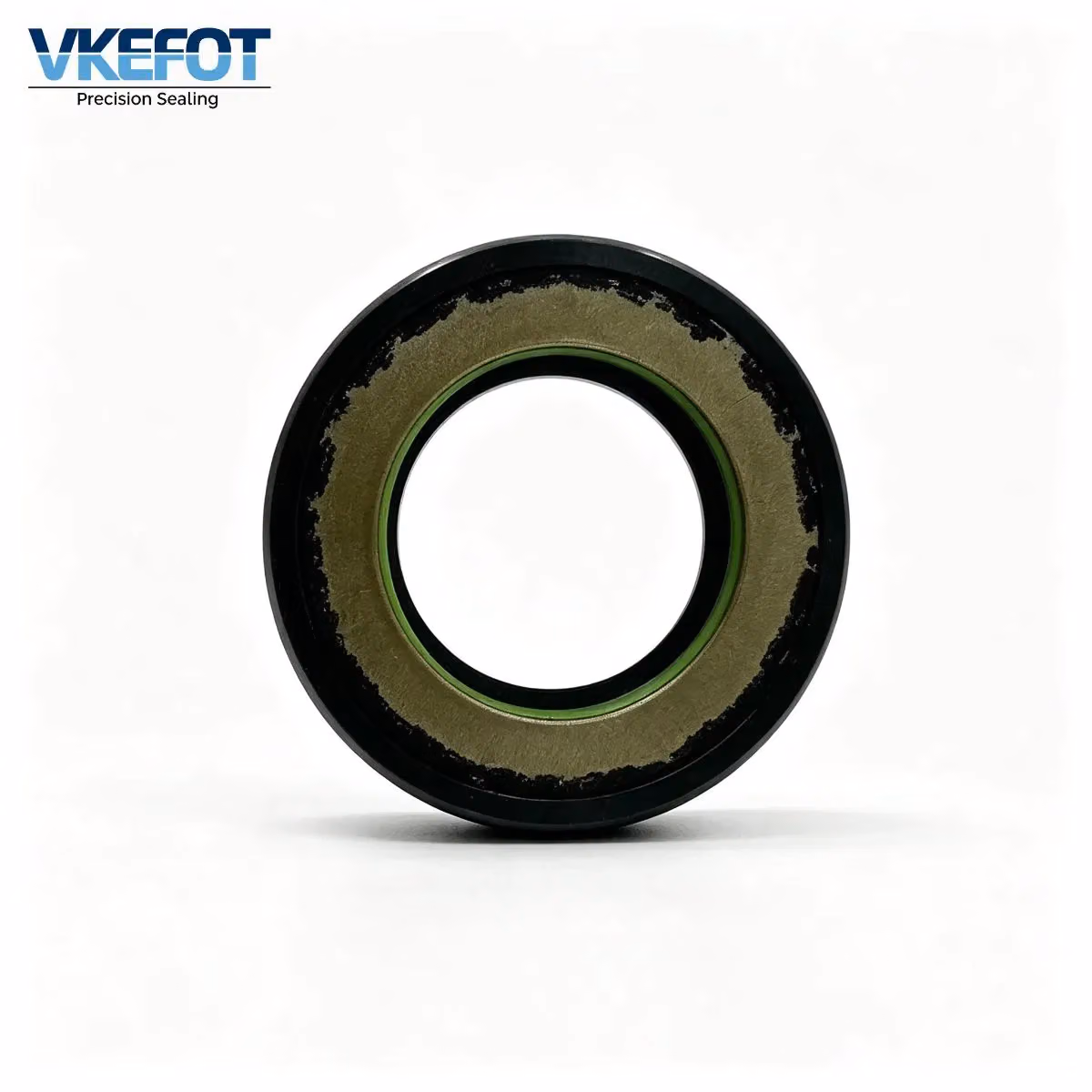

24x39x8.5 SCJY oil seal OE confirmed on quotation — automotive power SCJY-24-39-8.5-NBR — main photo

Model / SKU: SCJY-24-39-8.5-NBR

This aftermarket SCJY oil seal 24×39×8.5 mm matches OE confirmed on quotation in NBR. For importers, wholesalers and MRO buyers; lead time 7–15 working days — RFQ with size, OE, qty and destination.

Tags: 24x39x8.5 mm, confirmed on quotation, SCJY power steering seal, automotive steering gear seal, NBR oil seal

Product photos

24x39x8.5 SCJY oil seal OE confirmed on quotation — automotive power SCJY-24-39-8.5-NBR — photo 2 24x39x8.5 SCJY oil seal OE confirmed on quotation — automotive power SCJY-24-39-8.5-NBR — photo 3 24x39x8.5 SCJY oil seal OE confirmed on quotation — automotive power SCJY-24-39-8.5-NBR — photo 4

Key specs: Inner diameter mm: 24 | Outer diameter mm: 39 | Height mm: 8.5 | Material: NBR | Spec & Model: confirmed on quotation | Spec & Model: NBR | Spec & Model: SCJY | OE: confirmed on quotation

  • Inner diameter mm: 24
  • Outer diameter mm: 39
  • Height mm: 8.5
  • Material: NBR
  • Spec & Model: confirmed on quotation
  • Spec & Model: NBR
  • Spec & Model: SCJY
  • OE: confirmed on quotation
  • Material: NBR
  • Structure: SCJY
  • Spec & Model: 24x39x8.5mm

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
OEconfirmed on quotation
MaterialNBR
StructureSCJY
规格型号24x39x8.5mm

Pricing: request a quote (B2B / wholesale).

MOQ / commerce notes: Lead time 7–15 working days

Request a quote · Inquiry · Request a sample

Product details

This is a SCJY high pressure power steering oil seal 24×39×8.5 mm, aftermarket replacement for automotive power steering gear hydraulic sealing. Buyers should submit RFQ with ID×OD×height mm, OE number, quantity and destination; standard stocked sizes ship within 7–15 working days. HANVNK manufactures oil seals, O rings and custom rubber seals in Xingtai and exports to Europe, North America, Middle East and Southeast Asia. Features & Benefits SCJY composite lip construction handles hydraulic pressure within automotive power steering rack assemblies. Integrated garter spring maintains consistent lip contact pressure to compensate for minor wear under cyclic steering movement. NBR nitrile rubber provides stable sealing against standard power steering hydraulic fluids. The composite lip profile blocks fluid leakage while excluding external contaminants from entering the steering gear housing. Verify shaft, bore and OE part number before order; this item is aftermarket replacement and not genuine OEM component. Factory production MOQ typically 100–5,000 pcs depending on tooling, material and process; this SKU quantity confirmed on quotation, lead time 7–15 working days. FKM compound upgrade available for higher temperature or aggressive hydraulic fluid media upon request. OEM marking and export neutral carton packing can be arranged for bulk shipments. Material & Process Sealing lip ：NBR nitrile rubber; metal skeleton: carbon steel; garter spring: stainless steel. Typical operating temperature range 40°C to +100°C for NBR. FKM variant available for higher temperature service, confirm compound grade with RFQ. Applications & Compatibility Commonly fitted to automotive power steering gear and rack hydraulic assemblies. Application context commonly listed for this size — verify before order. Aftermarket replacement. Verify shaft diameter, housing bore and OE number before order. Selection & Installation Selection Tips Check ID 24 mm, OD 39 mm, width 8.5 mm, confirm OE reference, rubber compound and working temperature before ordering. Installation Steps 1. Clean shaft and housing bore thoroughly, remove burrs, rust and old seal residue. 2. Lubricate seal lip and shaft surface; dry installation is not permitted. 3. Orient seal so spring side faces the hydraulic fluid side, press vertically with matching installation sleeve. 4. Do not strike rubber body directly with hammer; apply even pressure on seal metal shell only. 5. Press seal fully to seating depth, then manually rotate shaft to confirm free movement. Packaging & Delivery Neutral PE bag + export carton; typically 50–200 pcs per carton, adjustable. Lead time 7–15 working days for this standard spec. Factory production MOQ typically 100–5,000 pcs depending on tooling, material and process; this SKU quantity confirmed on quotation. Samples and small trial lots for stocked sizes; freight confirmed on RFQ. Custom order lead time 25–40 working days. Payment, test reports and warranty confirmed on quotation /as agreed by lot. Send an inquiry with size (ID×OD×height in mm), OE, quantity, destination and duty for a firm lead time.

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is this 24x39x8.5 SCJY oil seal used for?

Conclusion: This 24×39×8.5 mm SCJY high pressure oil seal prevents hydraulic fluid leakage, designed for automotive power steering gear and rack assemblies.

What are the OE numbers and full specifications for confirmed on quotation?

Conclusion: Dimensions 24×39×8.5 mm, SCJY composite lip with garter spring, NBR material; OE reference confirmed on quotation.

Which equipment fit confirmed on quotation oil seal?

Conclusion: Commonly listed for automotive power steering gear assemblies; verify shaft and bore dimensions before order.

Is confirmed on quotation oil seal a genuine OEM part?

Conclusion: no — it is an aftermarket replacement matching OE confirmed on quotation; verify size before order.

How to install 24x39x8.5 oil seal without hydraulic fluid leakage?

Conclusion: Follow these steps for leak free installation: 1. Clean shaft and housing, remove burrs and old seal debris. 2. Lubricate seal lip and shaft surface, dry installation is forbidden. 3. Align seal with spring side toward hydraulic fluid chamber, press vertically with a sleeve. 4. Apply pressure only on metal shell, never hit rubber lip. 5. Seat fully then rotate shaft manually to check free movement.

What is the MOQ and lead time for 24x39x8.5 oil seals?

Conclusion: Factory production MOQ typically 100–5,000 pcs; this SKU confirmed on quotation, standard sizes ship 7–15 working days.

What dimensions should I send for an RFQ on this SCJY oil seal?

Conclusion: Submit ID×OD×height in mm plus OE reference, quantity, destination and duty for quotation of this 24×39×8.5 SCJY seal.

Do you support custom logo and export packaging for this seal?

Conclusion: OEM marking and export packing available, FKM compound upgrade optional; custom order lead time 25–40 working days.
