160x180x13mm TC Type NBR Oil Seal In Stock Heavy Duty Automotive

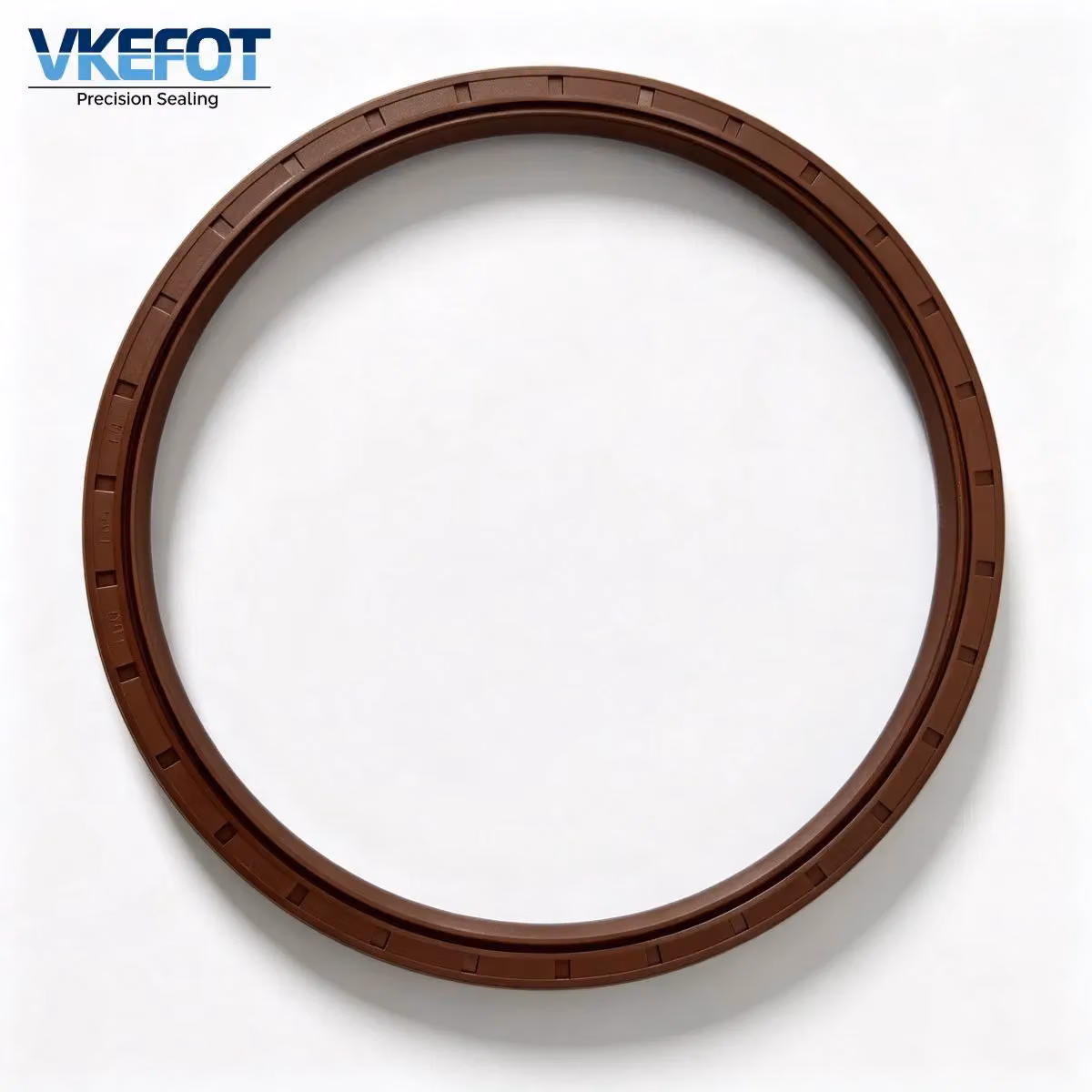

160x180x13mm TC Type NBR Oil Seal — main photo

160×180×13mm TC type oil seal, made of premium brown NBR nitrile rubber with built in garter spring. Factory direct sales with ample finished goods stock, worldwide shipping available. High quality aftermarket automotive sealing part with excellent oil resistance and wear resistance, direct interchange with standard OEM dimensions. Ideal for auto parts distributors, repair workshops, fleet maintenance and cross border B2B bulk procurement.

Tags: TC type NBR oil seal, 160x180mm shaft seal, factory direct auto seal, aftermarket automotive seal, heavy duty vehicle seal, in stock oil seal

Product photos

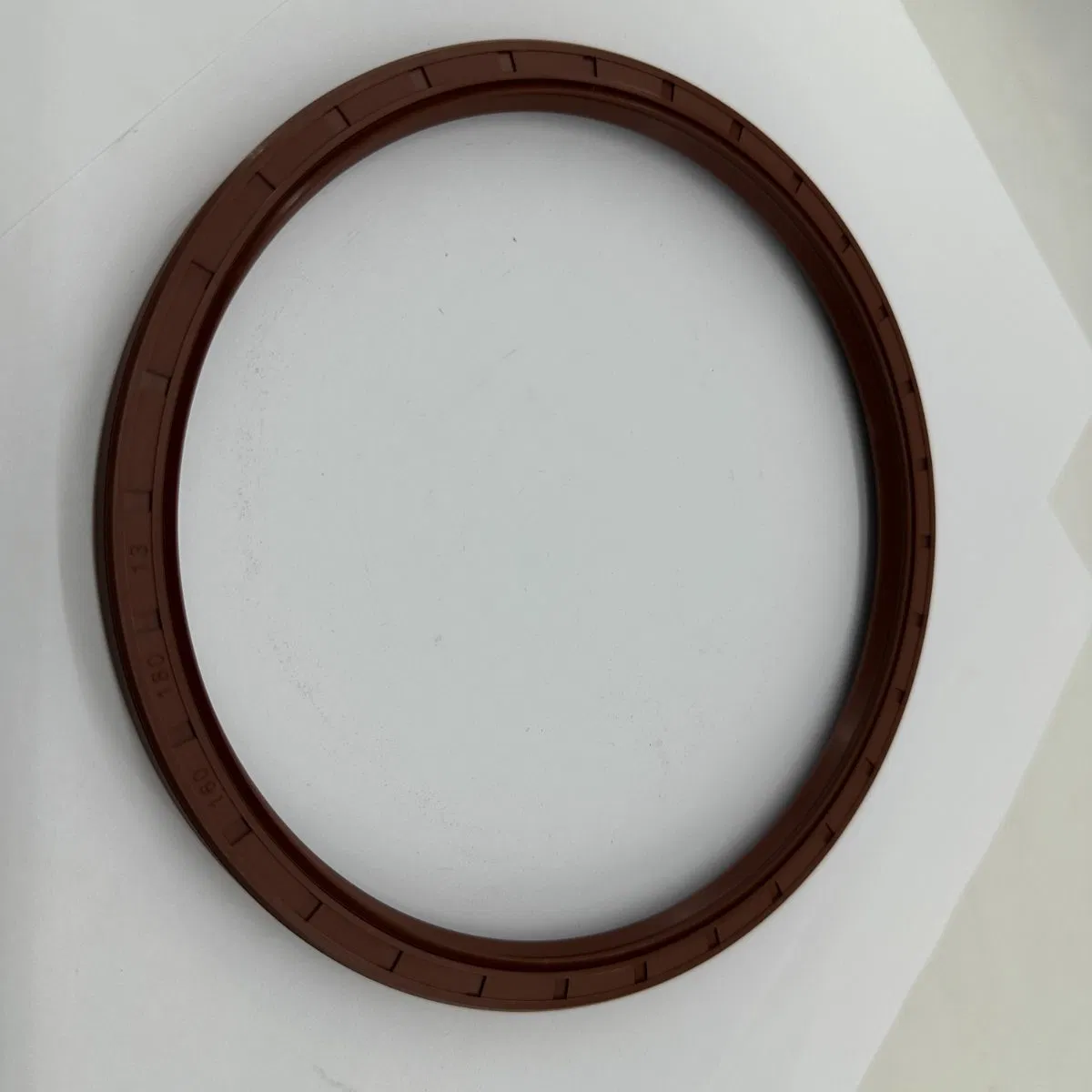

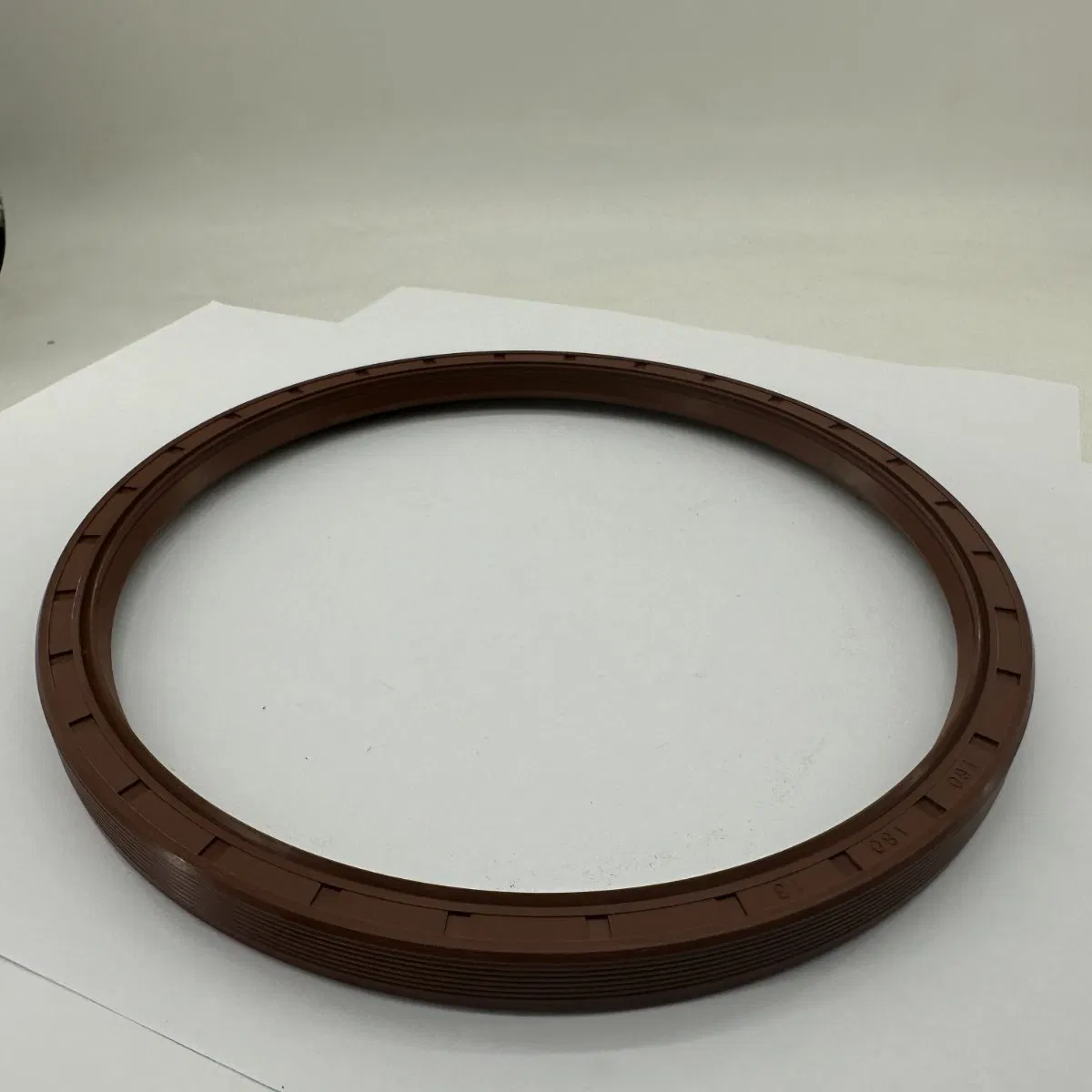

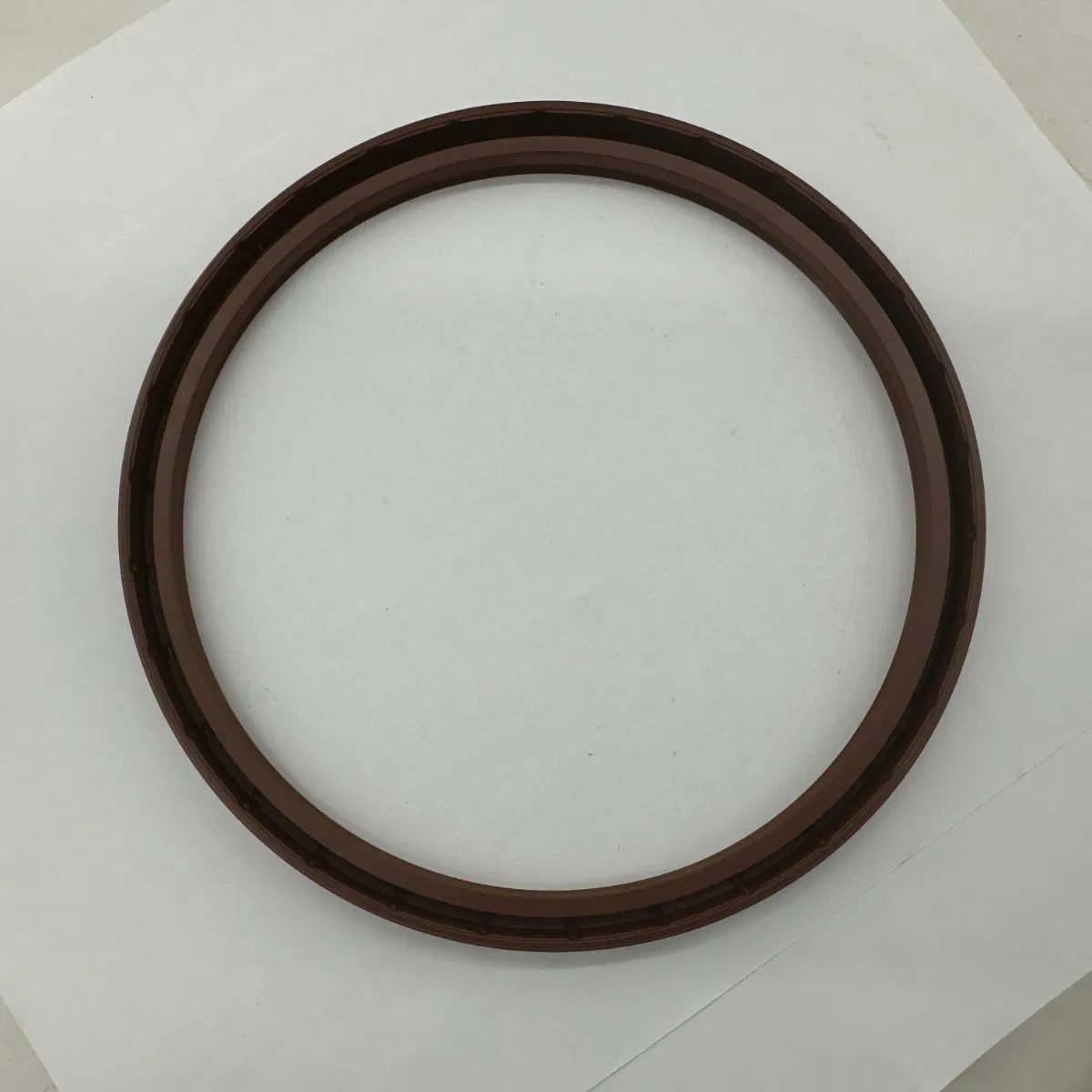

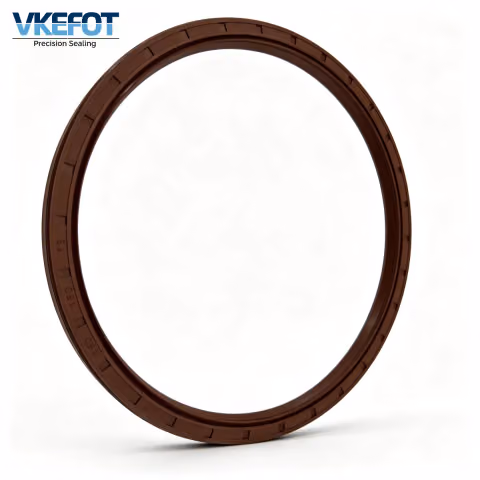

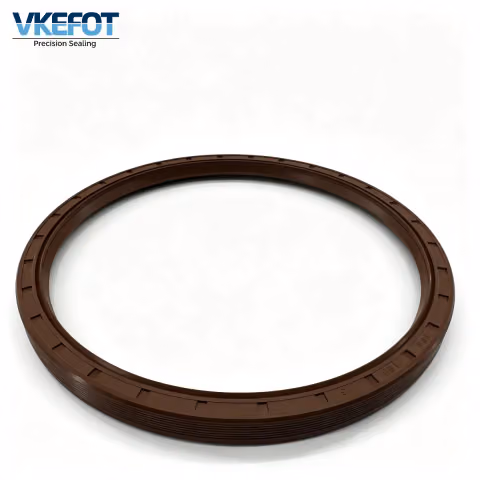

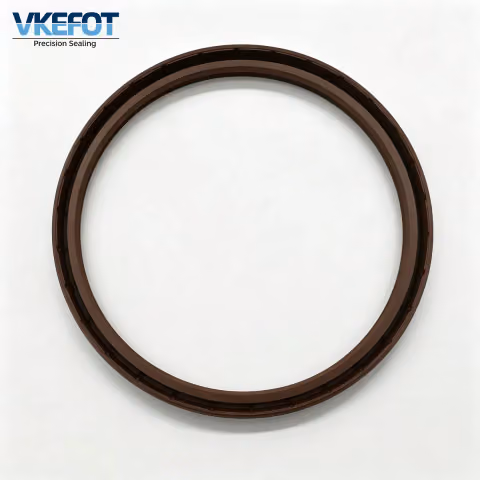

160x180x13mm TC Type NBR Oil Seal — photo 2 160x180x13mm TC Type NBR Oil Seal — photo 3 160x180x13mm TC Type NBR Oil Seal — photo 4

Key specs: Spec & Model: Structure: TC type fully rubber-covered skeleton seal with outer dust thread|Type: Aftermarket replacement part|Standard: ISO/TS 16949 compliant|Application: Automotive axle, hub & rotating shaft sealing | Material: Brown NBR nitrile rubber + Carbon steel garter spring: Structure: TC type fully rubber-covered skeleton seal with outer dust thread|Type: Aftermarket replacement part|Standard: ISO/TS 16949 compliant|Application: Automotive axle, hub & rotating shaft sealing

  • Spec & Model: Structure: TC type fully rubber-covered skeleton seal with outer dust thread|Type: Aftermarket replacement part|Standard: ISO/TS 16949 compliant|Application: Automotive axle, hub & rotating shaft sealing
  • Material: Brown NBR nitrile rubber + Carbon steel garter spring: Structure: TC type fully rubber-covered skeleton seal with outer dust thread|Type: Aftermarket replacement part|Standard: ISO/TS 16949 compliant|Application: Automotive axle, hub & rotating shaft sealing

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
Material: Brown NBR nitrile rubber + Carbon steel garter springStructure: TC type fully rubber-covered skeleton seal with outer dust thread|Type: Aftermarket replacement part|Standard: ISO/TS 16949 compliant|Application: Automotive axle, hub & rotating shaft sealing

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This 160×180×13mm TC type oil seal is a factory direct aftermarket auto sealing solution, designed for B2B buyers including automotive parts distributors, repair workshops and fleet operators. Manufactured with premium NBR nitrile rubber and integrated steel skeleton, it features a precision machined sealing lip with built in garter spring to maintain stable radial preload, effectively retaining gear oil and bearing grease while blocking external dust, mud and splash water. The outer dust proof thread structure enhances sealing performance between seal and housing bore. Produced under ISO/TS 16949 quality management system with strict dimensional tolerance control, it is directly interchangeable with standard OEM size specifications. We maintain stable bulk stock to support fast delivery and large volume procurement, with worldwide shipping options to serve global markets. Core value for B2B buyers Factory direct pricing with no intermediate links, cost effective for bulk purchase Ample finished goods stock, support urgent orders and fast delivery Standard OEM interchangeable size, direct drop in installation Stable quality consistency for batch procurement and long term cooperation

Material and process

Material ：Premium grade brown NBR nitrile rubber, carbon steel garter spring, steel skeleton Structure ：TC type fully rubber covered rotary shaft skeleton oil seal with outer dust proof thread Hardness ：70±5 Shore A Key performance ：Oil resistant, wear resistant, dust proof, anti aging, good sealing stability Working temperature range: 30℃ +120℃ Manufacturing process Integrated vulcanization molding, firm bonding between rubber and skeleton Precision grinding of sealing lip, uniform contact pressure with shaft Full dimensional inspection for each batch before delivery Strict quality control per automotive aftermarket part standards Upgrade option ：FKM fluoro rubber version available for higher temperature working conditions

Application and compatibility

Product Type ：Aftermarket TC type radial shaft oil seal for automotive and industrial use Core dimensions ：ID 160mm × OD 180mm × Thickness 13mm Compatible fluids: Gear oil, bearing grease, engine oil, general chassis lubricants Fit applications Passenger car and commercial vehicle wheel hub sealing Automotive axle and transmission rotating shaft sealing Agricultural machinery and engineering equipment bearing housing sealing General industrial rotating shaft sealing Suitable for ：Auto parts distributors, auto repair workshops, fleet maintenance centers, industrial parts suppliers, cross border traders Buyer notice ：This is an aftermarket replacement part, not genuine OEM. Please confirm shaft diameter, housing bore size and seal thickness before ordering. Dimension mismatch will cause lubricant leakage after installation.

Selection guide

Selection Guide for Bulk Buyers 1. Confirm shaft ID 160mm, housing OD 180mm, required thickness 13mm and TC type structure. 2. Standard NBR version for normal automotive operating conditions ( 30℃ 120℃); select FKM upgrade for high temperature and chemically aggressive environments. 3. For large volume bulk projects, contact us for exclusive bulk pricing and supply schedule. Installation Steps Surface Preparation Thoroughly clean the housing bore and shaft surface, remove old seal residue, dirt, rust and burrs. Pre lubrication Apply matching lubricating oil or grease evenly on the sealing lip and shaft mating surface. Dry installation is strictly prohibited. Orientation Confirmation The main sealing lip faces the lubricant cavity; the dust proof thread side faces the external environment. Press fit Installation Use a dedicated press tool to press the seal in evenly and vertically. Never strike the rubber body directly to avoid deformation and lip damage. Post installation Check Ensure the seal sits fully flush in the housing bore without tilt. Inspect the sealing lip for nicks and scratches. Function Test Manually rotate the shaft to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner packaging ：Each piece individually packed in anti dust poly bag to protect the sealing lip. Outer packaging ：Standard export corrugated carton with shock proof padding. Custom packaging with private label available. Packing quantity ：Adjustable per bulk order requirements. MOQ ：No minimum order for stock items; sample orders supported for quality evaluation. Lead time Stock items ：Ship within 2 5 working days after payment Custom private label / packaging orders: 25 40 working days Large volume bulk orders: Lead time to be confirmed based on quantity Custom services ：OEM private label printing, custom packaging design, consolidated shipping for mixed SKUs Shipping terms ：EXW, FOB, CIF, DDP available; worldwide shipping via sea, air and express Export documents ：Commercial invoice, packing list, certificate of origin, test report available on request

FAQ

There are only competing products—OEM and model—but not your part number. Can we use them as a reference for selection?

Sure. Please include the competing products/OEM model, key dimensions (ID × OD × height, in mm), and operating conditions (medium, temperature, pressure, rotational speed) to the inquiry form, and we will match them with equivalent specs items in our catalog.If dimensions are unavailable, please send model and photos/drawing first, and we will confirm the details. The final model selection will be based on the confirmation of drawing and operating conditions, and the official quotation will be subject to the written quotation order.

Does it support OEM/ODM along with privatization of packaging and tagging?

We support performing OEM/ODM in accordance with drawing/sample, as well as packaging and marking customization within the agreed upon scope.Please provide details on the target market’s compliance requirements and estimated annual volume. During the RFQ phase, we will confirm process feasibility, tooling costs, and mass production cycle time.

What is 160x180x13mm oil seal used for?

It is an aftermarket radial shaft seal for automotive wheel hubs, axles and rotating shafts, retaining lubricant and blocking external dust, mud and splash water.

What material is this 160mm oil seal made of?

Made of premium grade brown NBR nitrile rubber with carbon steel garter spring and steel skeleton, hardness 70 Shore A, working temperature 30℃ to +120℃.

Is this seal interchangeable with OEM size 160x180x13?

Yes, it is manufactured to standard OEM dimensions with strict tolerance control, direct drop in replacement without modification.

Do you sell this seal factory direct?

Yes, we are the manufacturer with our own production facility, offering factory direct pricing and stable bulk supply capacity.

Is this 160x180x13 seal in stock?

Yes, we keep ample stock of this standard size. Stock orders can be shipped within 2 5 working days after payment.

What is your MOQ for bulk orders?

No minimum order quantity for stock items. Sample orders are supported for quality evaluation before bulk purchase.

Do you support worldwide shipping?

Yes, we offer worldwide shipping via sea, air and express, with trade terms EXW, FOB, CIF available.

Can you provide OEM private label service?

Yes, we provide private label printing and custom packaging services. MOQ for custom orders is 1000 pieces, lead time 25 40 working days.

What export documents can you provide?

We can provide commercial invoice, packing list, certificate of origin and quality test report to support customs clearance.

Can I mix different seal sizes in one order?

Yes, mixed wholesale of multiple sizes and types is supported, with consolidated shipping to reduce logistics cost.
