115x135x10mm NBR Rotary Shaft Oil Seal, Oil &
Model / SKU: VKEFOT-115-135-10-NBR
115x135x10mm NBR nitrile rubber shaft oil seal, oil-resistant, wear-resistant and corrosion-resistant. Factory direct aftermarket sealing spare parts for auto repair, industrial machinery MRO, wholesalers and importers worldwide.
Tags: 115x135x10 oil seal, 115-135-10 NBR oil seal, NBR rotary shaft seal, nitrile rubber oil seal, machinery shaft oil seal, auto replacement oil seal

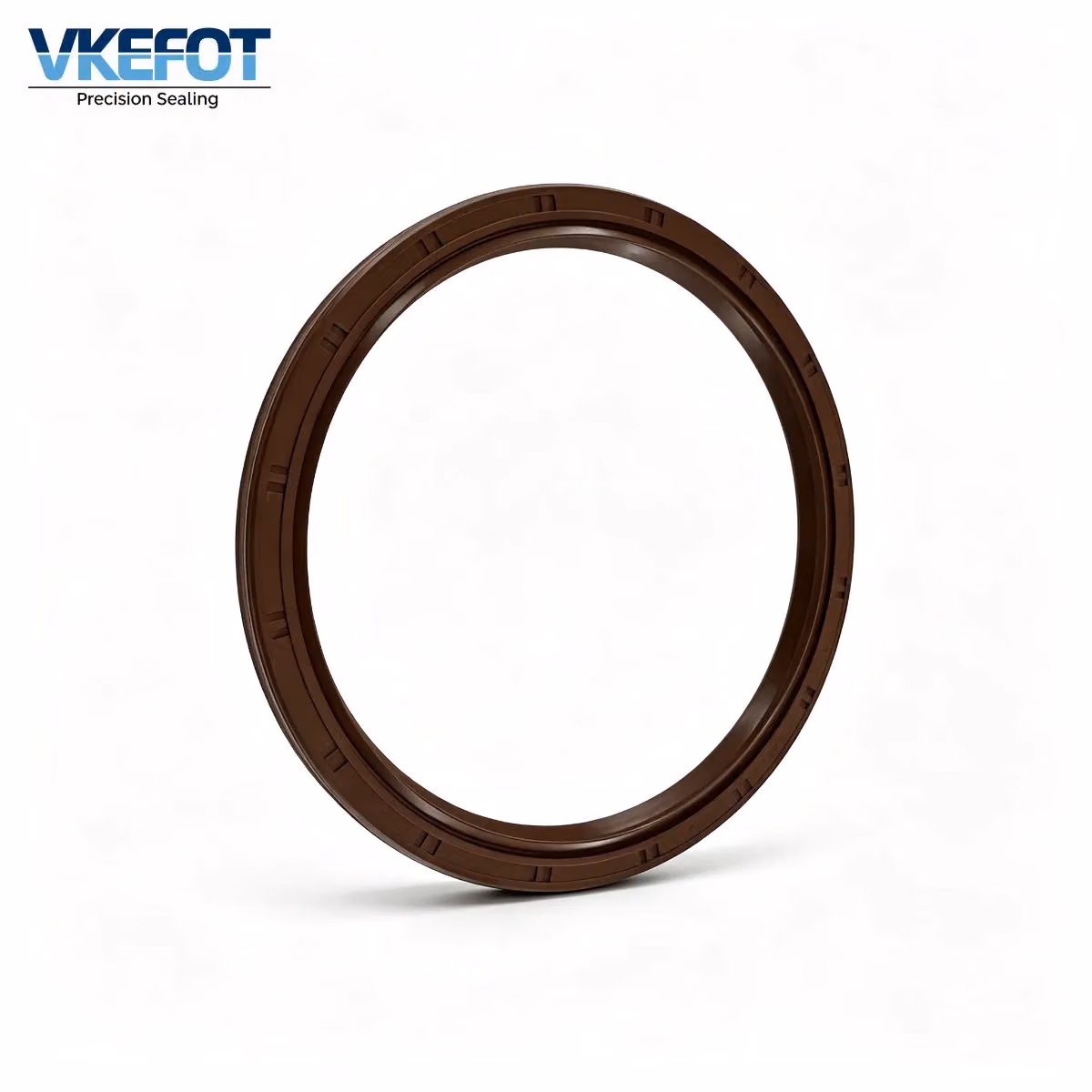

Product photos
Key specs: Inner diameter mm: 115 | Outer diameter mm: 135 | Height mm: 10 | Material: NBR | Material: NBR Nitrile Rubber | Temp Range: -30℃~120℃ | OEM: Not Applicable | Application: Rotary shaft sealing for automotive and general machinery
- Inner diameter mm: 115
- Outer diameter mm: 135
- Height mm: 10
- Material: NBR
- Material: NBR Nitrile Rubber
- Temp Range: -30℃~120℃
- OEM: Not Applicable
- Application: Rotary shaft sealing for automotive and general machinery
- specifications: 115×135×10 mm
- Material: NBR Nitrile Rubber
- Temp Range: -30℃~120℃
- OEM: Not Applicable
Technical summary
Product specifications. Refer to the approved drawing for dimensional tolerances and installation requirements.
| Spec | Value |
|---|---|
| Material | NBR Nitrile Rubber |
| Temp Range | -30℃~120℃ |
| OEM | Not Applicable |
| Application | Rotary shaft sealing for automotive and general machinery |
| Size | 115×135×10 mm |
Pricing: request a quote (B2B / wholesale).
MOQ / commerce notes: MOQ:100–5000pcs | Lead Time:7–15 Working Days | In stock, worldwide shipping
Product details
115x135x10mm NBR rotary shaft oil seal is a standard TC type rubber oil seal, widely used for rotary shaft sealing of automobiles and general industrial machinery. It prevents lubricating oil leakage and blocks dust, dirt and contaminants entering the assembly.
Core Product Advantages
NBR Nitrile Rubber Material
NBR features excellent oil resistance, wear resistance and moderate corrosion resistance. It maintains stable sealing performance under continuous rotary operation, resisting oil swelling and premature wear.Spring Loaded Single Lip TC Structure
Built-in garter spring keeps the sealing lip tightly contacting the rotating shaft surface, effective for medium-speed rotary shaft sealing.Wide Universal Application
Universal size for automotive assemblies and general machinery rotary shafts, ideal for repair replacement, equipment overhaul and spare parts wholesale.Factory Direct Aftermarket Replacement Seal
Standard dimension 115-135-10mm ready stock for global importers, MRO repair shops and spare parts distributors.
Material Performance Parameters
- Sealing Material：NBR Nitrile Rubber
- Seal Type：TC single lip rotary shaft oil seal
- Continuous Working Temperature: -30°C ~ +120°C
- Applicable Medium: Mineral engine oil, gear oil, lubricating grease
- Feature：Oil resistant, wear resistant, dust-proof, anti-leakage
Application Scope
Suitable for automotive rotary shaft and general industrial machinery sealing. Target buyers: auto repair networks, machinery MRO maintenance teams and spare parts wholesalers.
Installation Guidelines
- Fully clean shaft surface and housing bore, remove rust, burrs and residual debris.
- Lubricate NBR sealing lip with compatible lubricant before installation; dry installation is strictly prohibited.
- Keep oil seal perpendicular to shaft, press evenly with dedicated installation sleeve.
- Never strike the NBR sealing lip directly with hammer to avoid permanent damage.
- After assembly, manually rotate shaft to verify smooth movement without binding.
Packaging & Global Supply Support
Standard export neutral packaging, packed in export cartons. In stock with worldwide shipping. Custom packaging and bulk OEM services available. Formal quotation, inspection documents and after-sales support can be provided for international buyers.
FAQ
I only have a competitor/OEM part number—can you cross-reference?
Yes. Send the reference PN, ID×OD×height in mm, and duty (media, temperature, pressure, speed). We match equivalents in the catalog; the Cross Reference page also searches by keyword. Final selection follows drawing and duty confirmation — do not order from a photo alone.
Do you support OEM/ODM, private packing and marking?
Yes — OEM/ODM from drawings or samples, plus agreed packing and marking. Share target-market compliance needs and annual volume; RFQ confirms process, tooling cost and cadence. VKEFOT is the export brand of the Xingtai factory, not a trading desk.
TC vs TB oil seal: which should I specify?
For a rotary shaft that needs a dust lip plus oil lip, start with TC (rubber-covered dual-lip is common); TB is typical when a semi-metal case needs a stiffer bore fit. Shaft diameter, housing, runout and dust still decide. Send ID×OD×height in mm and speed on the RFQ — not only a competitor photo.
NBR vs FKM oil seal for hot engine oil?
Continuous engine-oil duty near 120°C or fuel exposure should be reviewed as FKM; general mineral oil at moderate temperature and cost-sensitive repair jobs often stay NBR. Brown color is not proof of FKM. The quote names the grade and temperature limit — do not order by color.
Oil seal vs O-ring: when do I use which?
Use a metal-cased radial shaft (skeleton) oil seal for rotating shafts; use an O-ring for static glands or reciprocating grooves. An O-ring on a rotary shaft wears out quickly. VKEFOT makes both — state motion type (rotary/static/reciprocating) and ID×OD×section on the RFQ.
Cassette seal vs dual-lip TC for dusty construction equipment?
Ag gearboxes and construction travel shafts with mud and long service intervals should be reviewed as cassette/combined seals; many automotive hub repair jobs stay dual-lip TC. Cassette packs are thicker and need different bore and axial space. A job-site photo is not enough — send ID×OD×height.
Xingtai oil seal factory vs trading company — how do I tell?
VKEFOT is the export brand of Xingtai Hanchi Intelligent Technology Co., Ltd. Mixing, vulcanization and outgoing inspection run in Xingtai, then goods export to Europe, North America, the Middle East and Southeast Asia. A trading desk usually cannot change compound or cut tooling. For OEM drawings, ask who runs the process and QC — not only catalog price.
What is a skeleton / radial shaft oil seal?
A skeleton oil seal is a metal-cased radial shaft seal: the rubber lip rides the shaft and the case holds interference in the bore. Common styles include TC, TB and TA. Minimum spec is ID×OD×height in mm, compound and duty. VKEFOT catalogs automotive and industrial shaft seals; trust the product-page dimensions.
What do ID, OD and height mean on an oil seal RFQ?
ID is inside diameter (shaft), OD is outside diameter (bore), height is axial width, all in millimetres. Missing any one blocks a cross-reference. Example: 56×112×8/10 means 56 mm ID, 112 mm OD, 8/10 mm height. Put those three numbers and the compound on the RFQ.
Which oil seal for an automotive wheel hub or differential pinion?
Hub repair jobs often use dual-lip TC; differential pinion shafts often need a secondary lip or split height (e.g. 8/10 or 12/22 mm). Use measured or OEM dimensions — not a marketplace title. VKEFOT application pages cover drivetrains and hubs; send an OEM number or ID×OD×height on the RFQ.
How to select oil seals for ag gearbox and PTO shafts?
Ag gearboxes and PTO shafts see dust and shock — prefer a dust lip or cassette, with NBR or FKM matched to gear oil and temperature. Do not force a passenger-car hub seal onto a PTO shaft. Send shaft, bore, height and whether mud/water is present, then RFQ.
What matters for pump, valve and compressor shaft seals?
Match media (oil, water, gas) and temperature first, then lip style and compound; do not default to cheap NBR for high speed or dry running. Put shaft runout and eccentricity on the RFQ. VKEFOT application cases include pumps, valves and compressors — still use measured sizes.
Does a brown oil seal mean it is FKM?
No. Brown NBR is common; color is not proof of FKM. For heat or fuel duty, write temperature and media on the RFQ so the factory names the grade. Ordering by color is a frequent cause of early leak.
Can you quote an oil seal from a photo only?
Not as a firm quote. We need at least ID×OD×height in mm, ideally compound and speed. A photo can show lip count and case style; it does not replace dimensions. Incomplete RFQs get a request for those three numbers before price.
If a new oil seal leaks quickly, is it always a bad seal?
Not always. Rough shaft finish, runout, cocked installation or the wrong compound also leak early. Check size and media/temperature match before blaming the part, then inspect the journal. Note time-to-fail (e.g. 50 hours) on the RFQ so we diagnose — do not just buy a cheaper seal.
What is needed for private-label OEM packing of oil seals?
Private packing and marking need annual volume, target-market compliance and artwork; tooling cost and cadence are confirmed on the RFQ — not a one-line “please OEM”. VKEFOT runs OEM/ODM after drawings or samples are complete.
Who is VKEFOT and how does it relate to Xingtai Hanchi?
VKEFOT manufactures oil seals, O-rings and custom rubber seals in Xingtai and exports to Europe, North America, Middle East and Southeast Asia. The manufacturer is Xingtai Hanchi Intelligent Technology Co., Ltd. Use this wording on quotes and certificates — do not invent alternate spellings of the brand.
What is 115x135x10mm NBR shaft oil seal used for?
This 115x135x10mm NBR rotary shaft oil seal is TC type general-purpose seal, used for automotive and general machinery rotary shaft sealing, to retain lubricating oil and block dust and dirt.
What material is 115-135-10 oil seal made of?
This oil seal is manufactured from NBR nitrile rubber, delivering good oil resistance, wear resistance and moderate corrosion resistance.
What temperature range can NBR oil seal work within?
Standard NBR nitrile rubber oil seal continuously works from -30°C up to 120°C for normal rotary shaft applications.
